HARNESS LAYOUT — Room Lamp Harness
EL-92wiring diagramR2 and R4 connectors apply to models with sun roof only. R3 applies to models without sun roof.
Room Lamp Harness

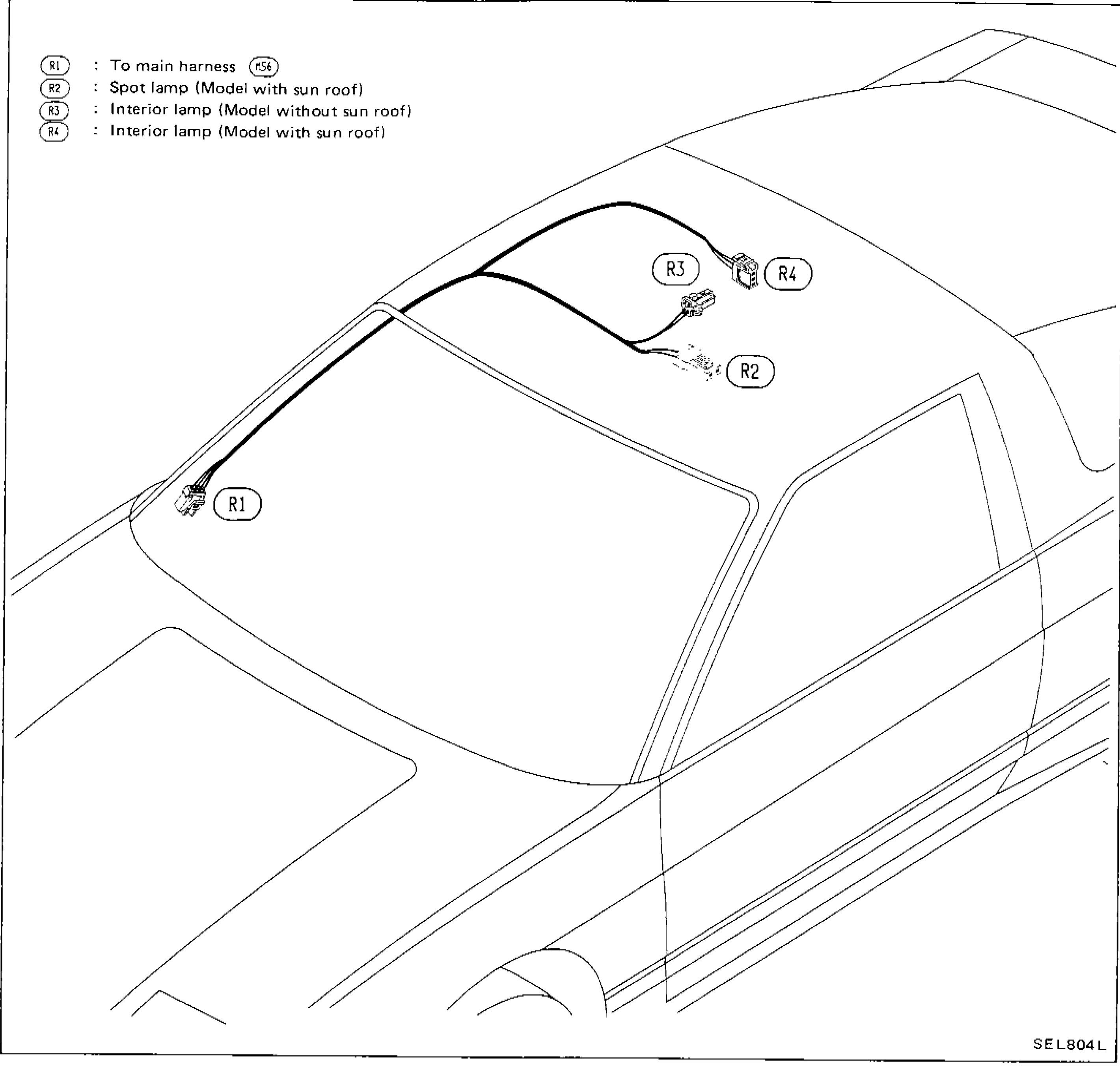

Component LocationFig. fig1
Room lamp harness routing shown on vehicle roof, viewed from above-rear perspective.
SEL804L
1R1(Left side of roof, near A-pillar/front — connector to main harness (M56))
2R2(Center-rear of roof — Spot lamp (Model with sun roof))
3R3(Center-rear of roof, slightly forward of R4 — Interior lamp (Model without sun roof))
4R4(Center-rear of roof, rightmost — Interior lamp (Model with sun roof))
| Specification | Value |
|---|---|
| R1 | To main harness (M56) |
| R2Model with sun roof | Spot lamp |
| R3Model without sun roof | Interior lamp |
| R4Model with sun roof | Interior lamp |
R1
To main harness (M56)
R2Model with sun roof
Spot lamp
R3Model without sun roof
Interior lamp
R4Model with sun roof
Interior lamp
