LOCATION OF ELECTRICAL UNITS — Passenger Compartment
EL-82component photoDiagram is for L.H.D. models. R.H.D. models: asterisk (*) items are mirror-located; steering column switches/units move to right side but retain relative positions to each other. V.P.W. wiper control unit is for West Germany only. A/T control unit present on automatic transmission models only.
Passenger Compartment

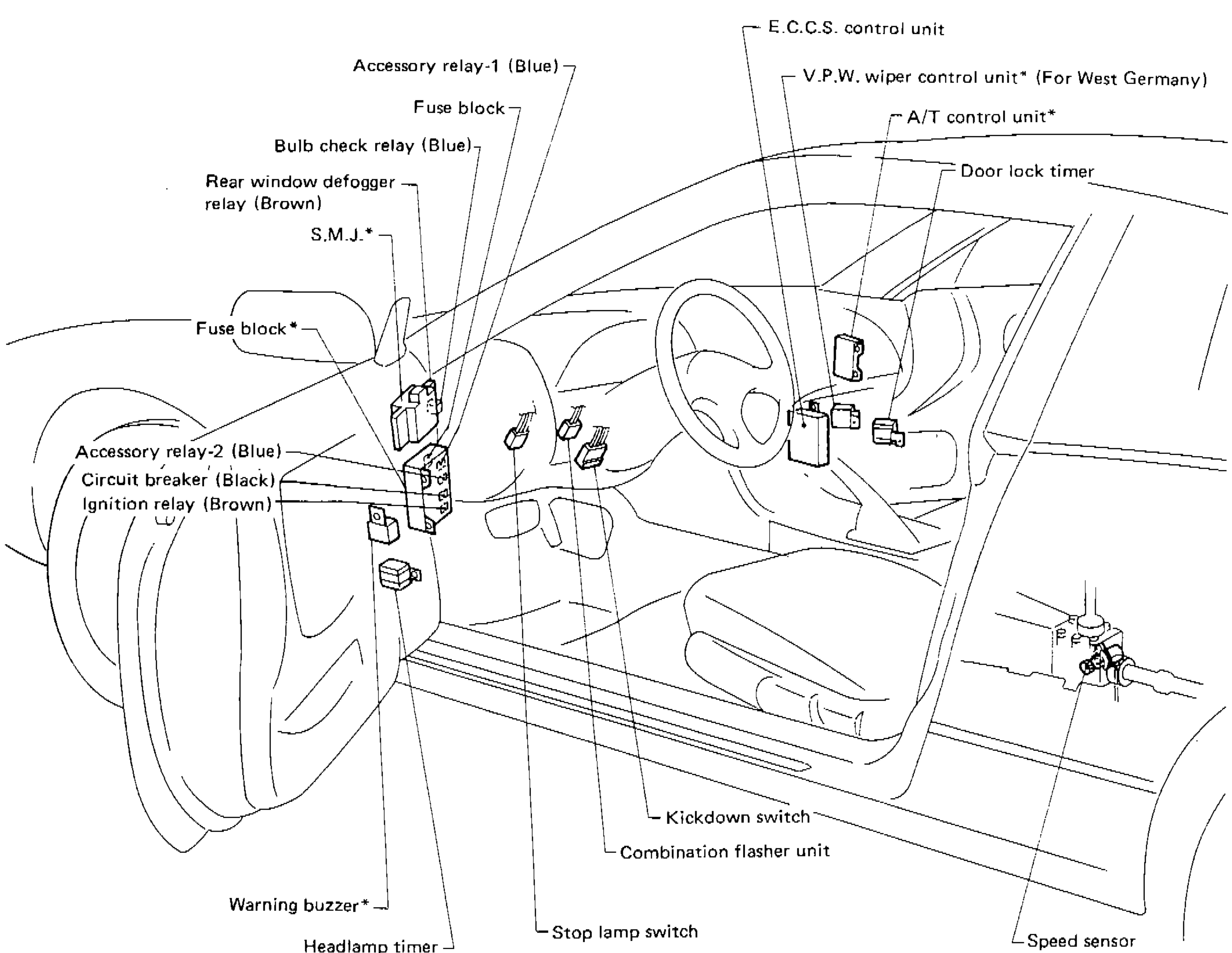

Component LocationFig. fig1
Passenger compartment and exterior electrical unit locations for 1989 Nissan 200SX (S13). Dashboard view is for L.H.D. models.
SEL706L
1E.C.C.S. control unit(upper center, behind dashboard)
2V.P.W. wiper control unit* (For West Germany)(upper right area, behind dashboard)
3A/T control unit*(upper right area, behind dashboard)
4Door lock timer(right side, behind dashboard)
5Accessory relay-1 (Blue)(upper left area, fuse block cluster)
6Fuse block(upper left area)
7Bulb check relay (Blue)(upper left area, fuse block cluster)
8Rear window defogger relay (Brown)(left side, fuse block cluster)
9S.M.J.*(left side, fuse block area)
10Fuse block*(left side)
11Accessory relay-2 (Blue)(lower left area)
12Circuit breaker (Black)(lower left area)
13Ignition relay (Brown)(lower left area)
14Warning buzzer*(lower left area)
15Headlamp timer(lower left area)
16Kickdown switch(center lower, near pedals)
17Combination flasher unit(center lower, near pedals)
18Stop lamp switch(center lower, near pedals)
19Speed sensor(lower right, near transmission tunnel)
20Wiper motor(exterior rear, upper right of vehicle)
21Differential oil cooler relay-2(exterior rear, right side)
22Wiper amp.(exterior rear, right side)
23A.B.S. control unit(exterior, lower left of vehicle (trunk/rear area))
NOTE
Figure shows dashboard for L.H.D. models.
On R.H.D. models, all side panel unit parts marked with an asterisk "*" are symmetrically located to those of L.H.D. models. However, switches and units around steering column remain in the same relative position to each other except that they have all been moved to the right side.
