HARNESS LAYOUT
EL-83component photoPage shows two separate harness layout diagrams: one for L.H. Drive Model and one for R.H. Drive Model, illustrating differences in harness routing between left-hand and right-hand drive configurations.
Outline
Component LocationFig. fig1

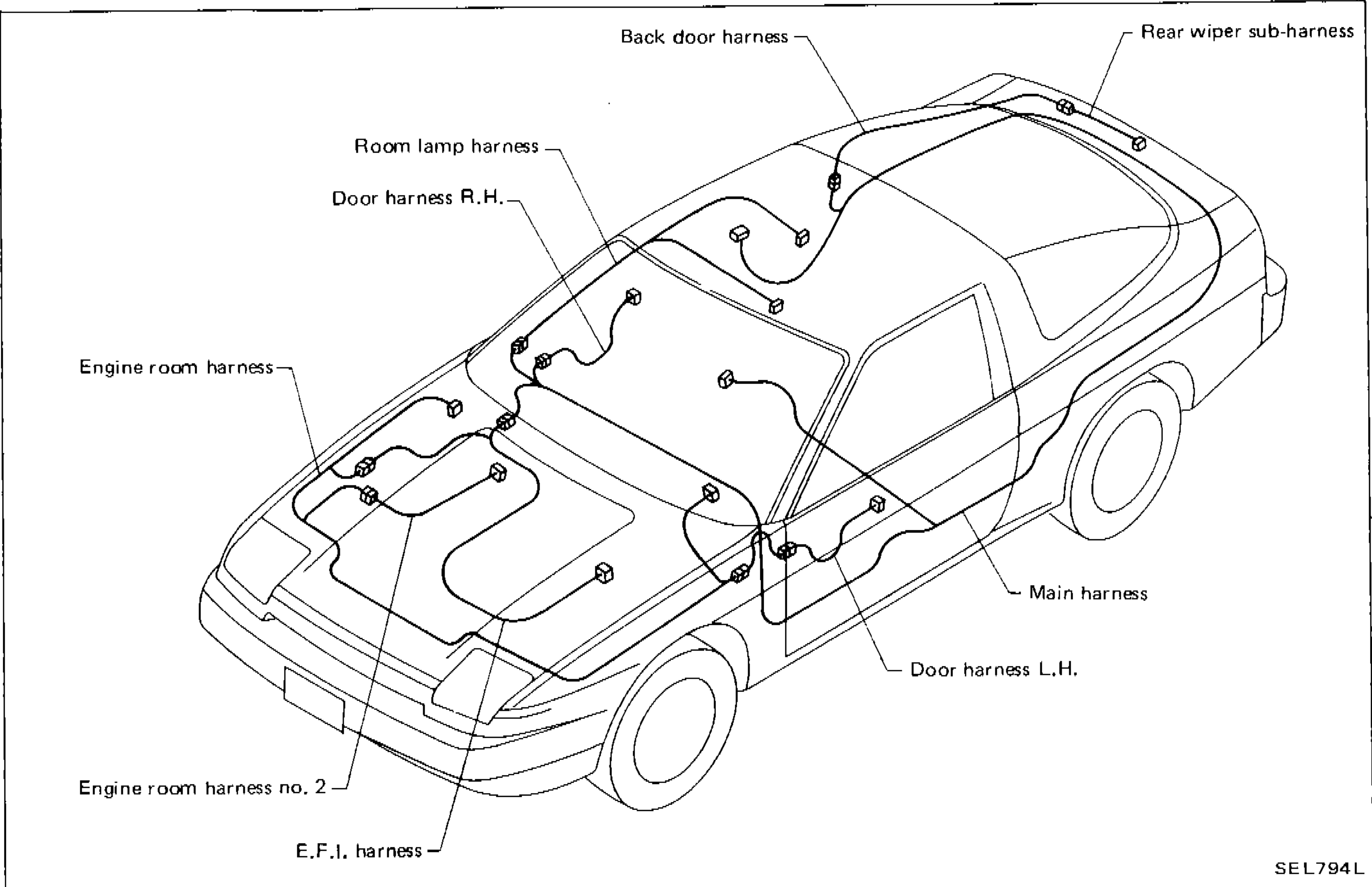

L.H. DRIVE MODEL — harness routing and locations
SEL794L
1Back door harness(top-rear of vehicle)
2Rear wiper sub-harness(top-right rear of vehicle)
3Room lamp harness(top-center of vehicle)
4Door harness R.H.(right side door area)
5Engine room harness(left front engine bay)
6Main harness(right center of vehicle)
7Door harness L.H.(left side door area)
8Engine room harness no. 2(lower front left engine bay)
9E.F.I. harness(lower front engine bay)
Component LocationFig. fig2

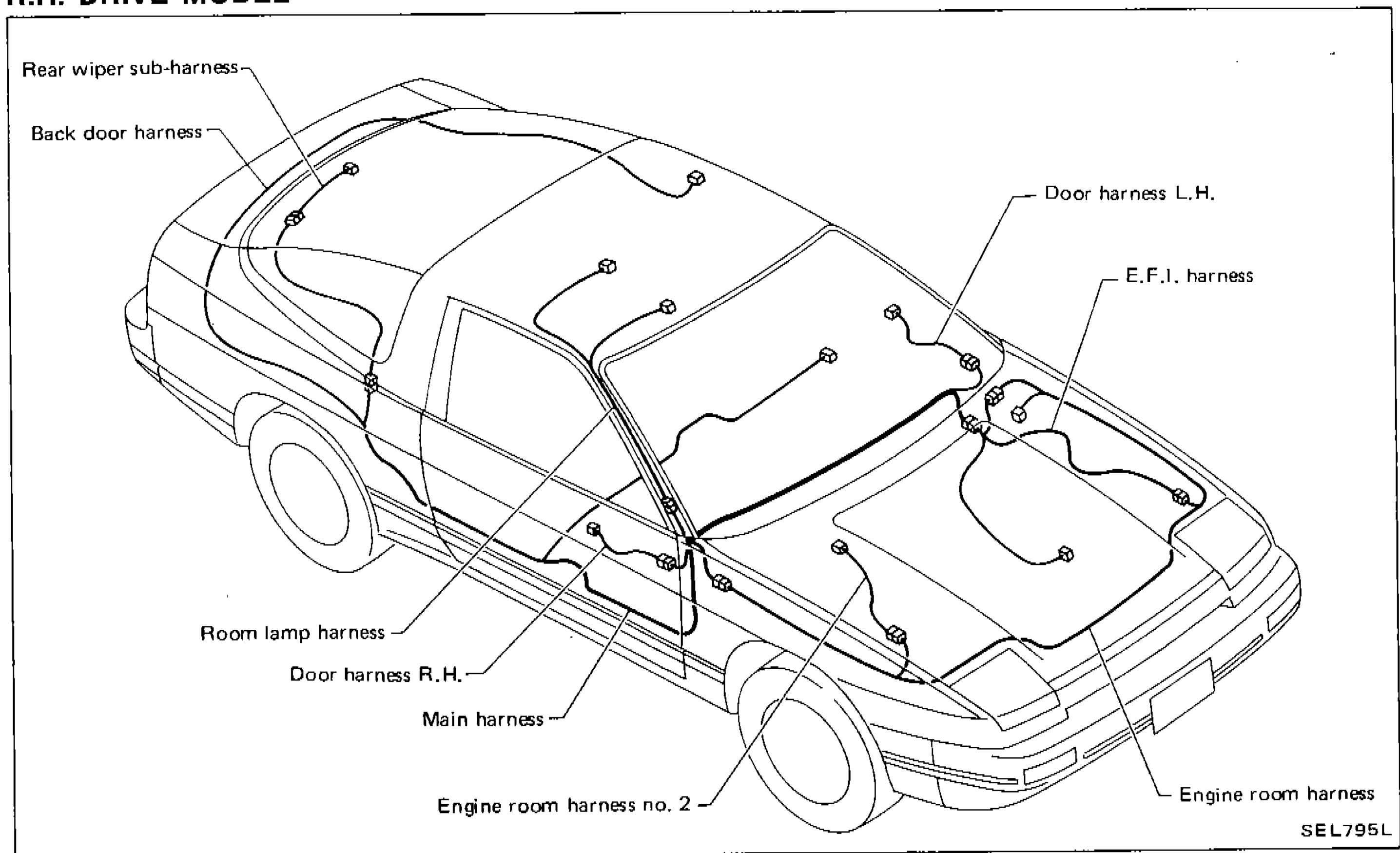

R.H. DRIVE MODEL — harness routing and locations
SEL795L
1Rear wiper sub-harness(top-left rear of vehicle)
2Back door harness(top-left rear of vehicle)
3Door harness L.H.(right side door area)
4E.F.I. harness(right front engine bay)
5Room lamp harness(lower left center of vehicle)
6Door harness R.H.(left side door area)
7Main harness(lower center of vehicle)
8Engine room harness no. 2(lower front center engine bay)
9Engine room harness(right front engine bay)
