CHARGING SYSTEM — Alternator — Rotor Slip Ring Check (Cont'd) / Brush Check / Stator Check
EL-28prose procedureRotor Slip Ring Check (Cont'd)

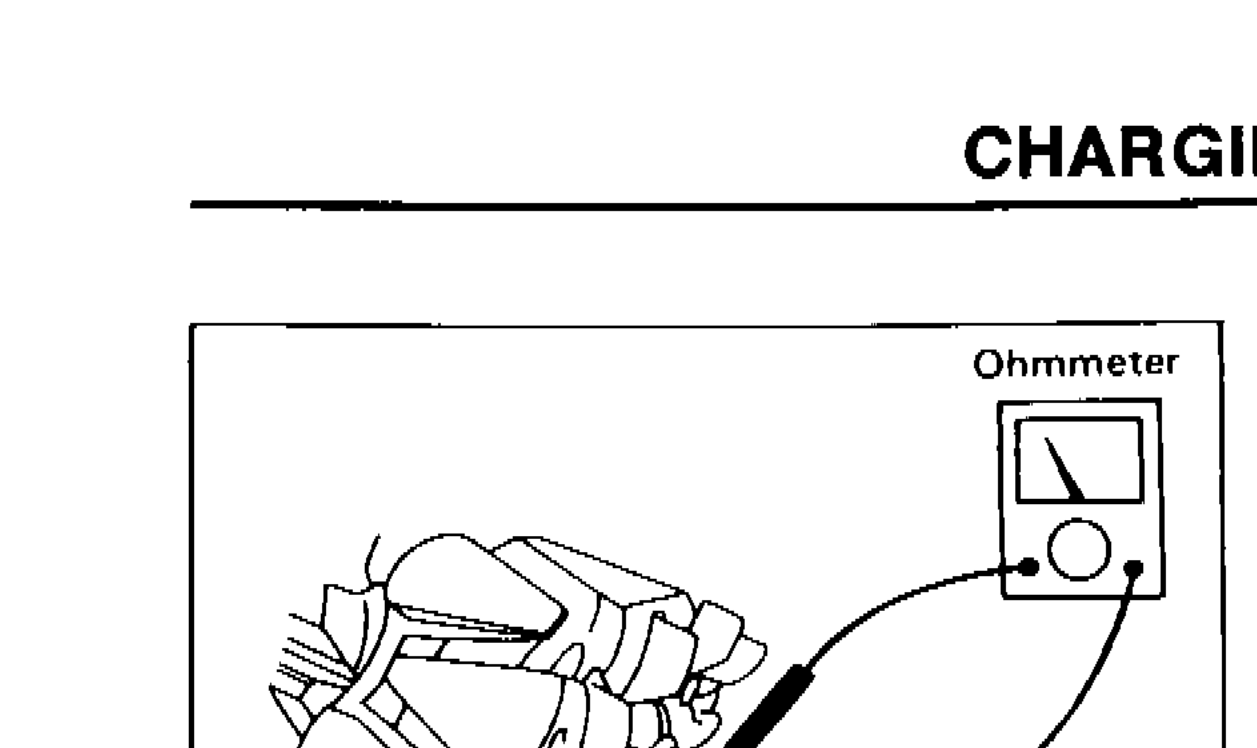

- 2Insulator testContinuity exists. ... Replace rotor.
SEL630D - 3Check slip ring for wear.
| Specification | Value |
|---|---|
| Slip ring minimum outer diameter | Refer to S.D.S. |
Slip ring minimum outer diameter
Refer to S.D.S.
Brush Check
- 1Check smooth movement of brush.Not smooth ... Check brush holder and clean.

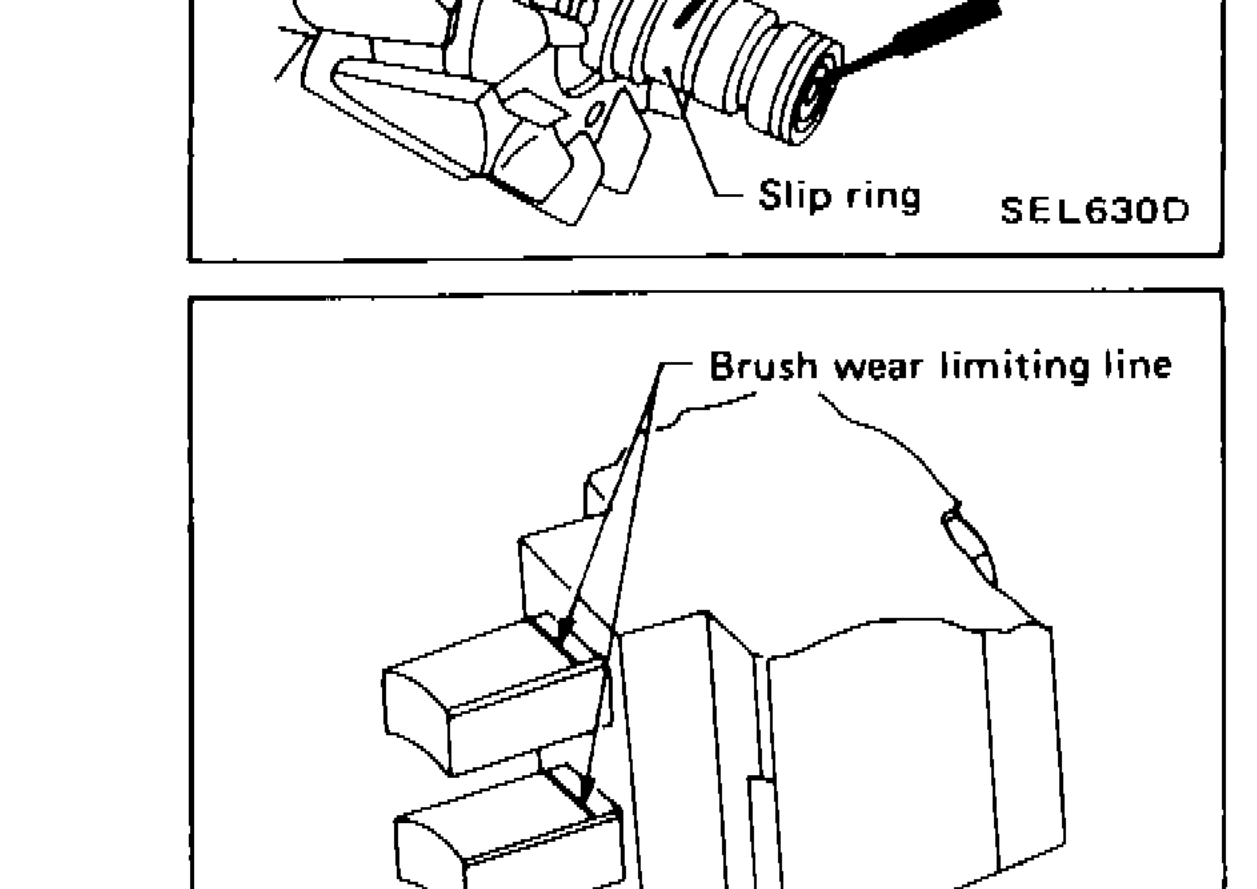

- 2Check brush for wear.Replace brush if it is worn down to the limit line.
SEL631D - 3Check brush lead wire for damage.Damaged ... Replace.
- 4Check brush spring pressure. Measure brush spring pressure with brush projected approximately 2 mm (0.08 in) from brush holder.Not within the specified values ... Replace.
EE049
| Specification | Value |
|---|---|
| Spring pressureBrush projected approximately 2 mm (0.08 in) from brush holder | Refer to S.D.S. |
Spring pressureBrush projected approximately 2 mm (0.08 in) from brush holder
Refer to S.D.S.
Stator Check
To test the stator or diode, separate them by unsoldering the connecting wires.
CAUTION
Use only as much heat as required to melt solder. Otherwise, diodes will be damaged by excessive heat.
Stator Check

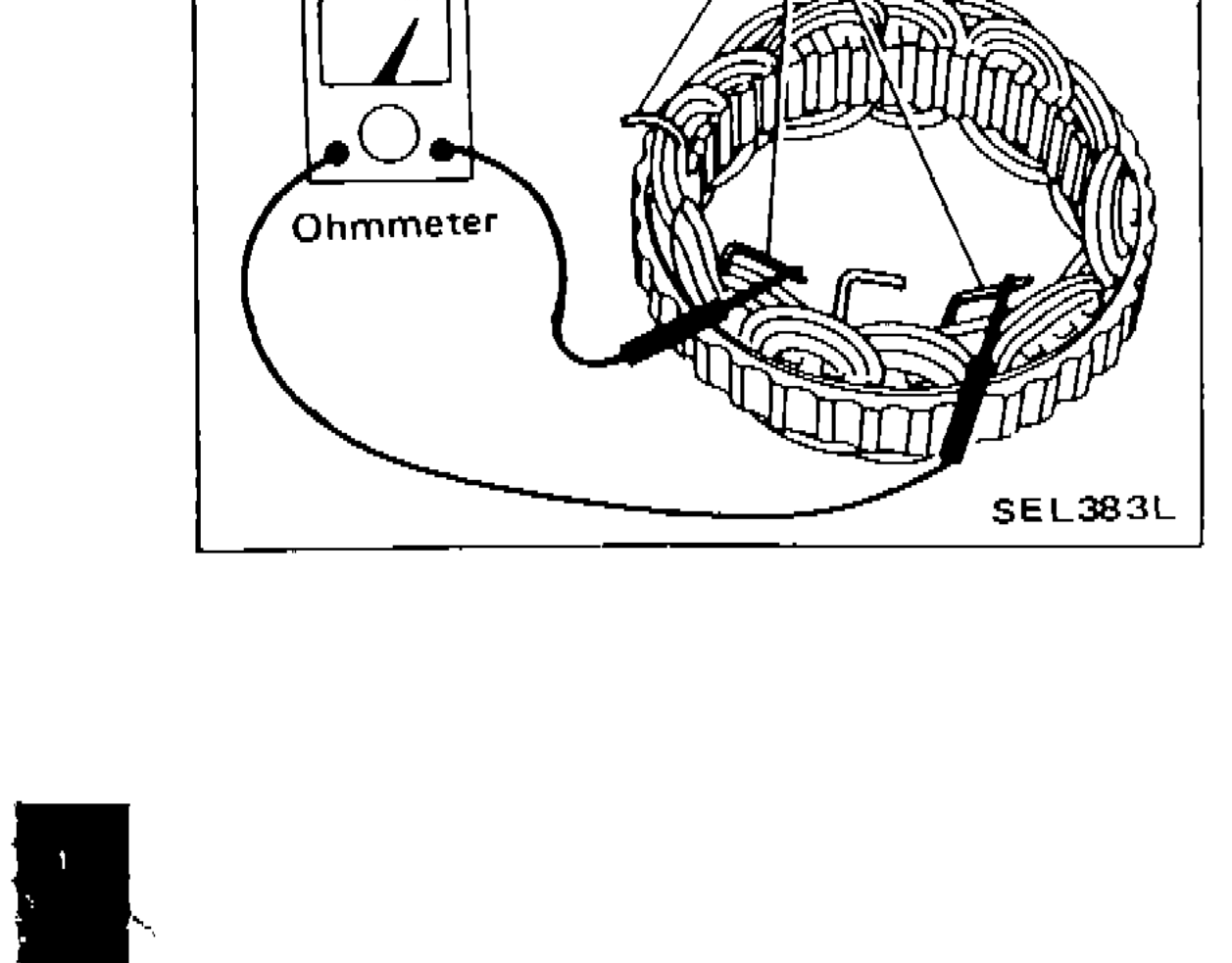

- 1Continuity testNo continuity ... Replace stator.
SEL383L
