WIPER AND WASHER — Washer Tube Layout

EL-72component photo
Continued from EL-71

Washer Tube Layout

Component LocationFig. fig1

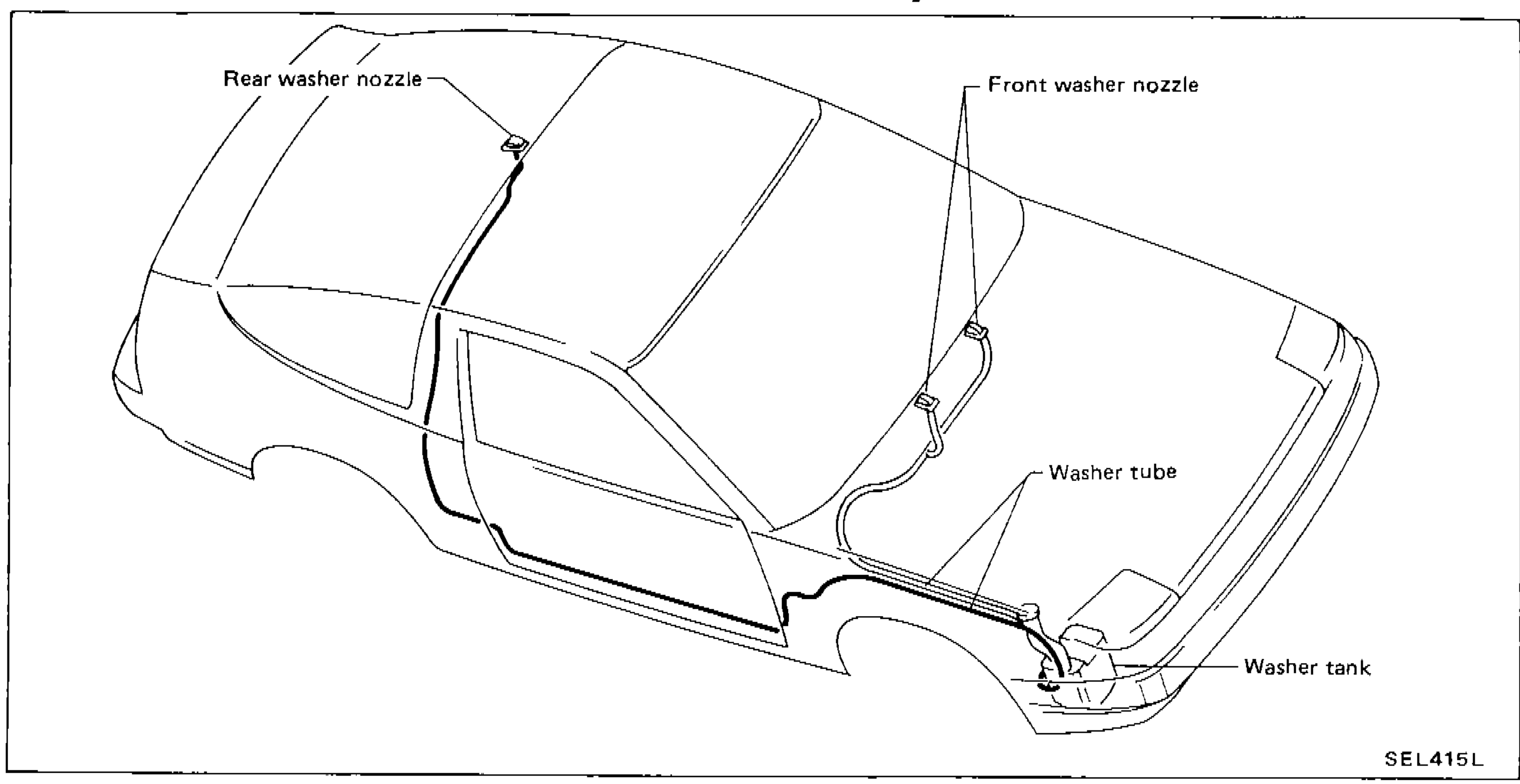

Washer tube routing across vehicle.

Cut-away vehicle view showing washer-tube routing: washer tank in engine bay (passenger-side fender), tube up to front washer nozzle on cowl, and rear-bound tube routed along the floor pan and up the C-pillar to the rear washer nozzle on the upper roof spoiler.
SEL415L
1Washer tank(Engine bay, passenger-side fender)
2Front washer nozzle(Cowl panel, in front of windshield)
3Washer tube (front)(From tank up to front nozzle)
4Washer tube (rear)(Along floor pan, up C-pillar to rear nozzle)
5Rear washer nozzle(On rear hatch / upper roof)
