HARNESS LAYOUT — Main Harness (Cont'd)
EL-90wiring diagramR.H. Drive Model only. This page shows the main harness connector layout specific to right-hand drive configuration.
Main Harness (Cont'd)
R.H. DRIVE MODEL

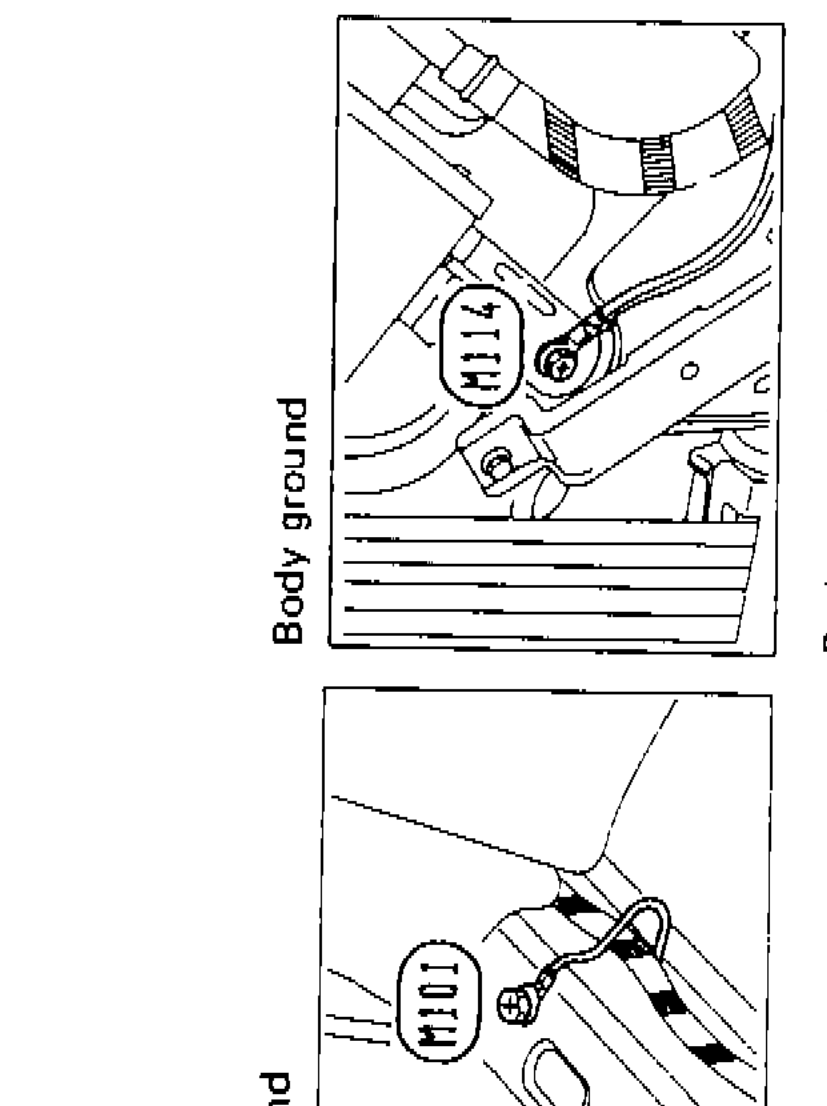

Component LocationFig. fig2
Body ground — connector M114
1M114(body ground point, detail inset top-left)
2Body ground(label on inset fig2)

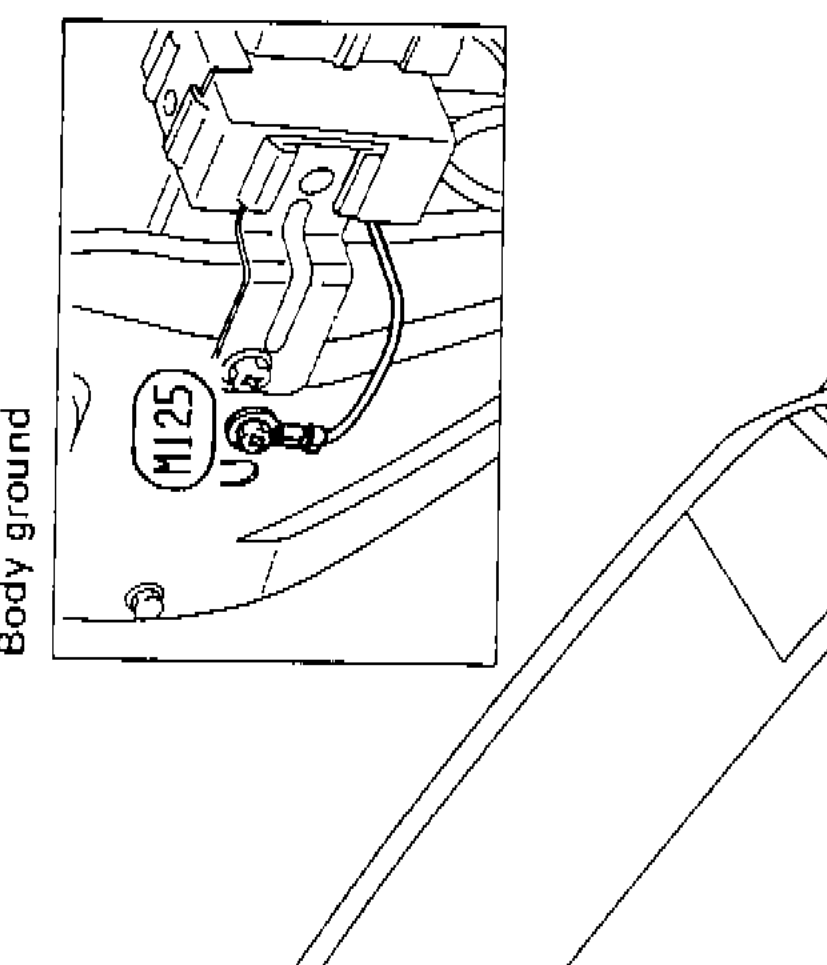

Component LocationFig. fig3
Body ground — connector M125
1M125(body ground point, detail inset top-center)
2Body ground(label on inset fig3)
Component LocationFig. fig4
Body ground — connector M101
1M101(body ground point, detail inset mid-left)
2Body ground(label on inset fig4)

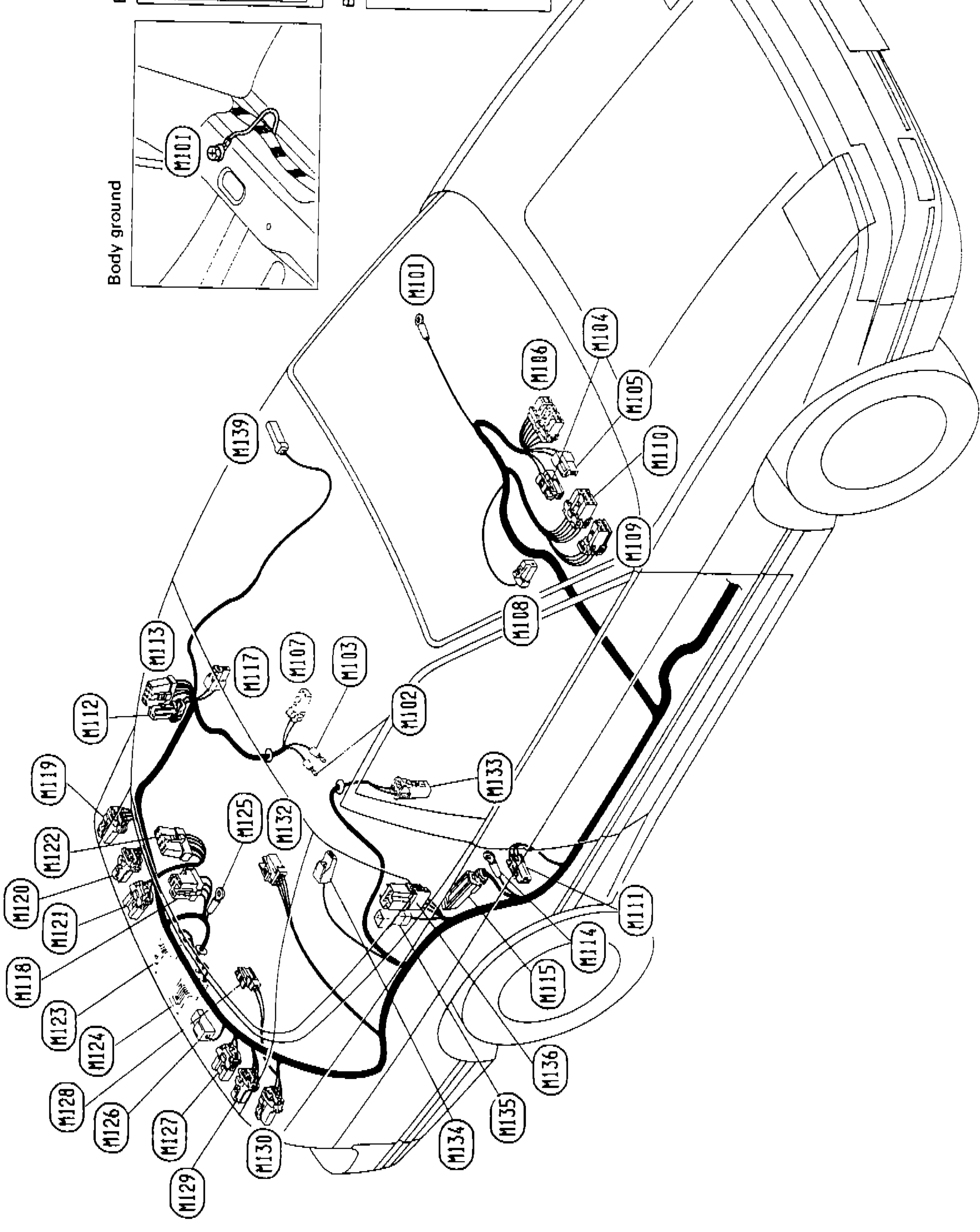

Component LocationFig. fig1
Main harness connector locations on R.H. Drive Model vehicle body
1M101(upper-center area of main diagram)
2M102(center area)
3M103(center area)
4M104(upper-right area)
5M105(upper-right area)
6M106(upper-center-right area)
7M107(center area)
8M108(center-right area)
9M109(center-right area)
10M110(upper-right area)
11M111(lower-right area)
12M112(left-center area)
13M113(left-center area)
14M114(lower-right area)
15M115(lower-right area)
16M117(center-left area)
17M118(lower-left area)
18M119(left area)
19M120(lower-left area)
20M121(lower-left area)
21M122(left area)
22M123(lower-left area)
23M124(lower-left area)
24M125(center-left area)
25M126(lower-left area)
26M127(lower-left area)
27M128(lower-left area)
28M129(lower-left area)
29M130(lower-center area)
30M132(center-left area)
31M133(center area)
32M134(lower-center area)
33M135(lower-center area)
34M136(lower-right area)
35M139(upper-left area)
