AUDIO AND POWER ANTENNA — Window Antenna Repair

EL-80prose procedure

Window Antenna Repair

ELEMENT CHECK

  1. 1
    Attach probe circuit tester (in ohm range) to antenna terminal on each side.

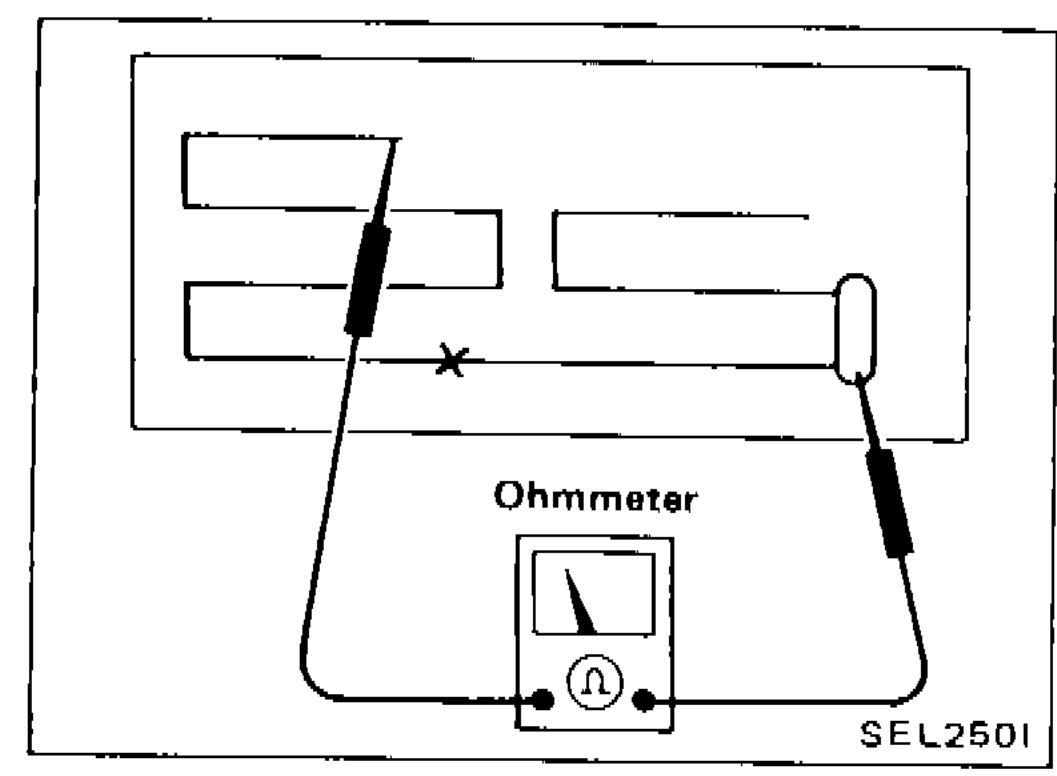

    Ohmmeter probes attached to antenna terminals on each side of window element — continuity check setup
    SEL2501
  2. 2
    If an element is broken, no continuity will exist.

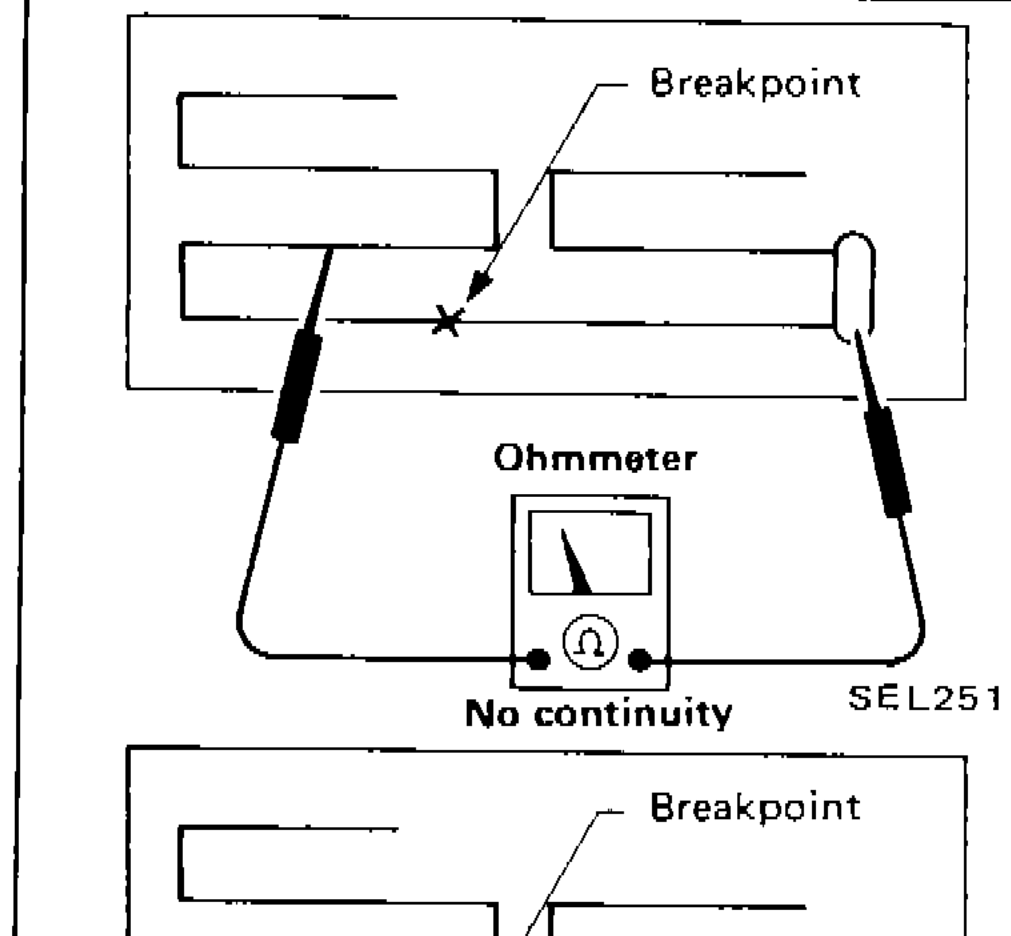

    Ohmmeter showing no continuity — breakpoint indicated on element, probes on each side of break
    SEL2511
  3. 3
    To locate broken point, move probe to left and right along element to determine point where tester needle swings abruptly.
    Ohmmeter showing needle swing — probe moved along element to locate broken point
    SEL2531

ELEMENT REPAIR

Refer to "Filament Repair" of REAR WINDOW DEFOGGER.
