HARNESS LAYOUT — Engine Room Harness No. 2
EL-101wiring diagramE201 (M/T model), E202 (M/T model), E203 (M/T model), E204 (M/T model), E205 (A/T model), E212 Back-up lamp switch (M/T model), E213 Neutral switch (M/T model).
Engine Room Harness No. 2

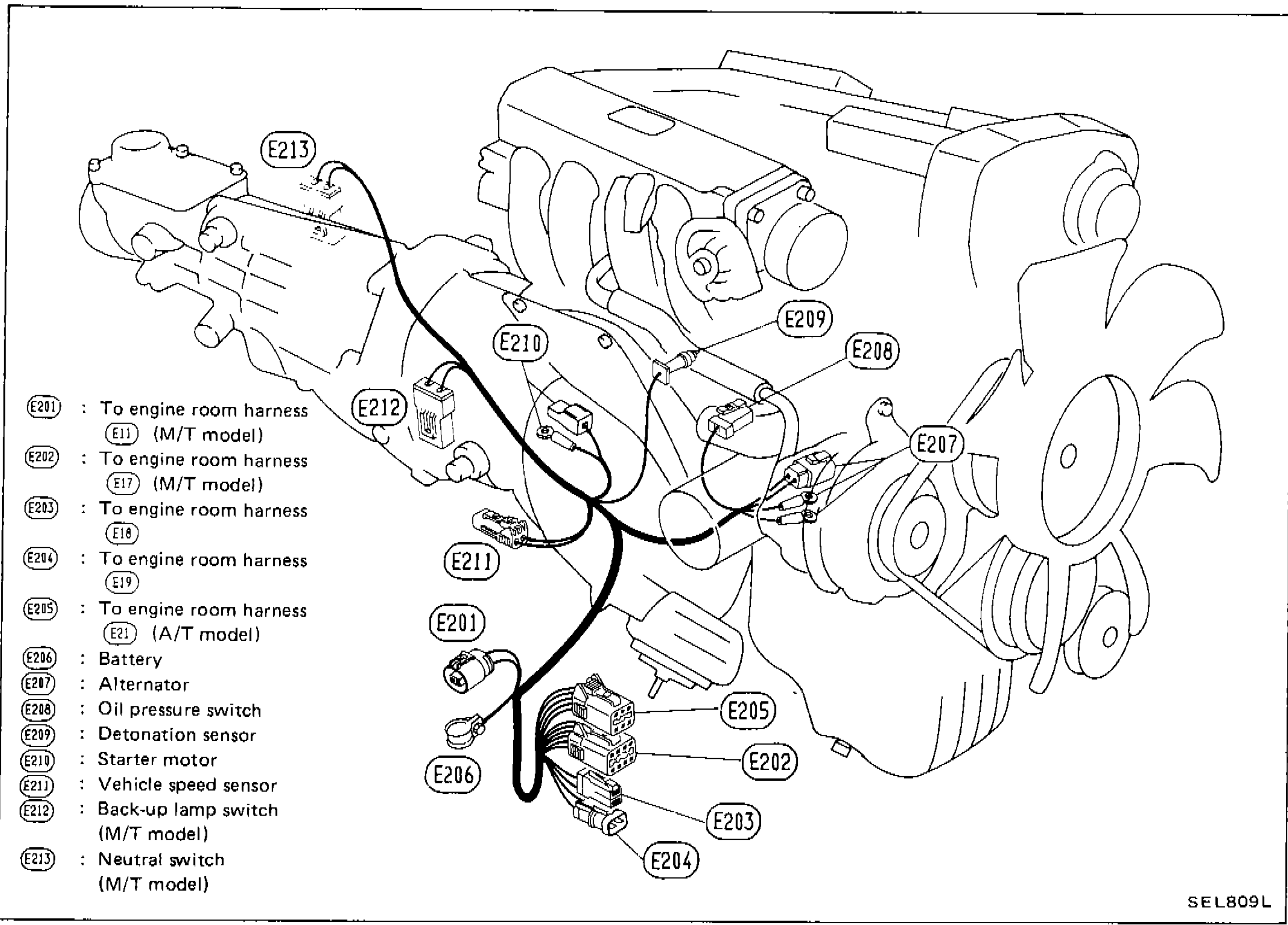

Component LocationFig. fig1
Engine Room Harness No. 2 connector legend and locations
SEL809L
1E201(To engine room harness E11 (M/T model))
2E202(To engine room harness E17 (M/T model))
3E203(To engine room harness E18 (M/T model))
4E204(To engine room harness E19 (M/T model))
5E205(To engine room harness E21 (A/T model))
6E206(Battery)
7E207(Alternator)
8E208(Oil pressure switch)
9E209(Detonation sensor)
10E210(Starter motor)
11E211(Vehicle speed sensor)
12E212(Back-up lamp switch (M/T model))
13E213(Neutral switch (M/T model))
See also
E11 · E17 · E18 · E19 · E21
