HARNESS LAYOUT - Main Harness
EL-84wiring diagramL.H. Drive Model only. Main harness connector layout diagram showing connectors M2 through M61.
Main Harness
L.H. DRIVE MODEL
Component LocationFig. fig1

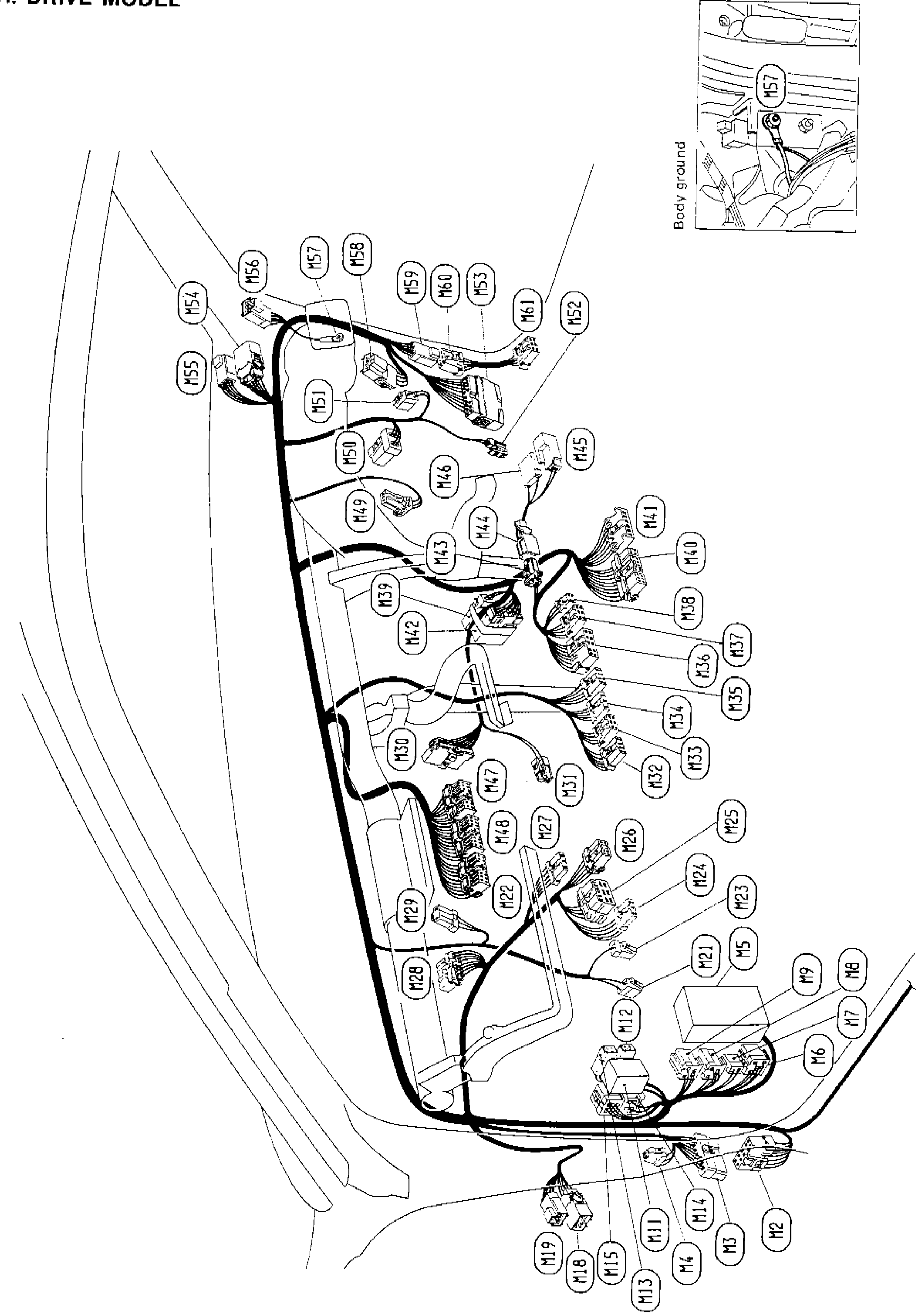

Main harness connector location diagram showing all connector identifiers for L.H. Drive Model
1M2(lower right area)
2M3(lower right area)
3M4(lower right area)
4M5(lower right area)
5M6(lower right area)
6M7(lower right area)
7M8(lower right area)
8M9(lower right area)
9M11(lower center-right area)
10M12(lower center-right area)
11M13(lower center area)
12M14(lower center area)
13M15(lower center area)
14M18(lower center area)
15M19(lower center area)
16M21(center-right area)
17M22(center area)
18M23(center-right area)
19M24(center-right area)
20M25(center-right area)
21M26(center area)
22M27(center area)
23M28(center-left area)
24M29(center-left area)
25M30(center-left area)
26M31(center area)
27M32(center-right area)
28M33(center-right area)
29M34(center-right area)
30M35(center-right area)
31M36(center-right area)
32M37(center-right area)
33M38(center-right area)
34M39(center-left area)
35M40(center-right area)
36M41(center-right area)
37M42(center-left area)
38M43(center area)
39M44(center area)
40M45(center-right area)
41M46(center area)
42M47(center area)
43M48(center area)
44M49(center-left area)
45M50(center-left area)
46M51(center-left area)
47M52(upper center-right area)
48M53(upper center area)
49M54(upper left area)
50M55(upper left area)
51M56(upper center-left area)
52M57(upper center-left area — body ground)
53M58(upper center area)
54M59(upper center area)
55M60(upper center area)
56M61(upper center-right area)
57Body ground(inset photo upper right — M57)
