Engine and Emission Control System Description — Direct Ignition System (Cont'd)

EF & EC-24prose procedure

Continued from EF & EC-23

Direct Ignition System (Cont'd)

METHOD B (With Tool KV109D10S0)

1

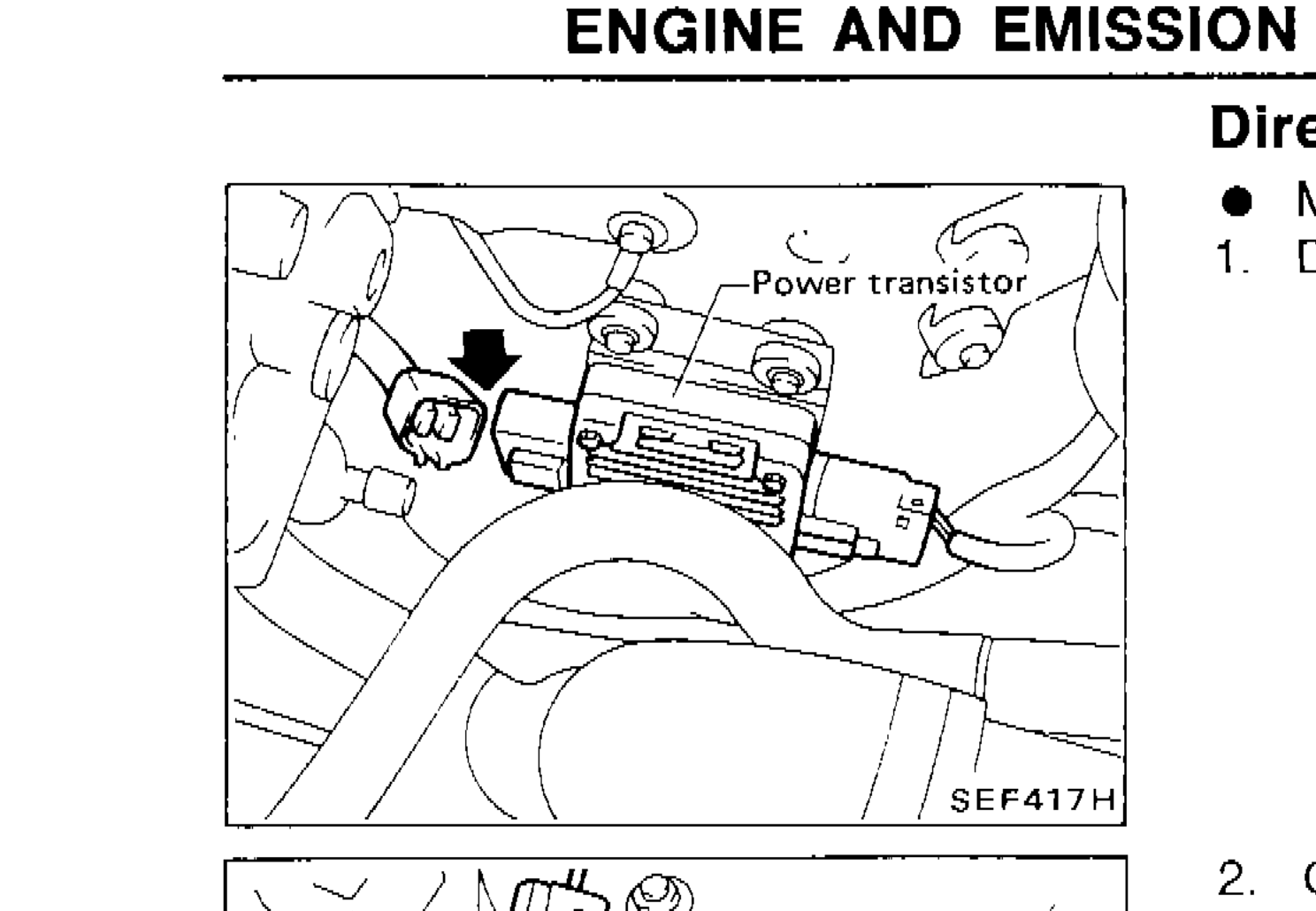

Disconnect connector of power transistor unit.
SEF417H
2

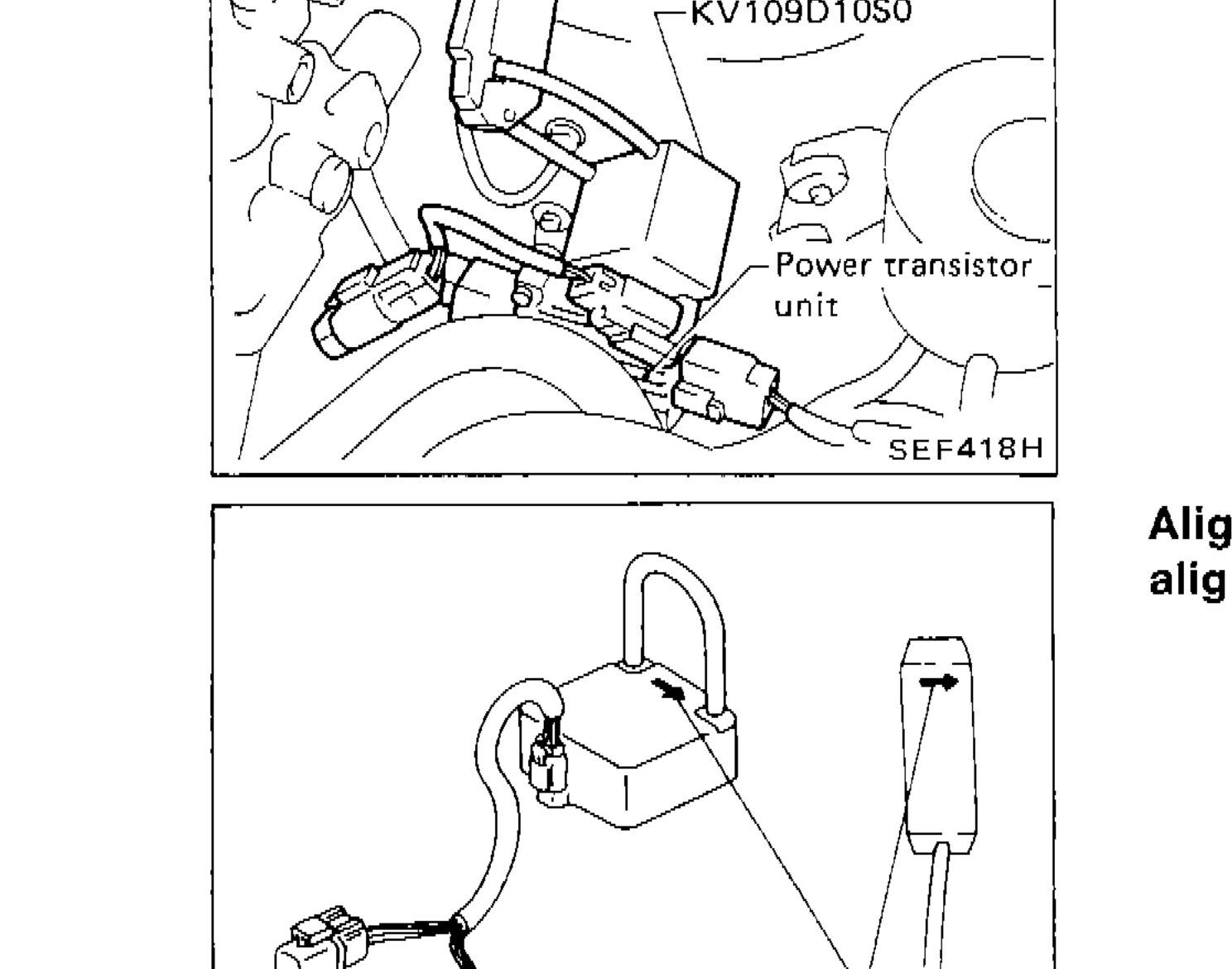

Connect Tool and clamp wire as shown.
SEF418H

NOTE

Align direction marks on Tool and timing light clamp if aligning mark is punched.
