Direct Ignition System (Cont'd)
Direct Ignition System — Ignition Timing Check Procedure (Continued)

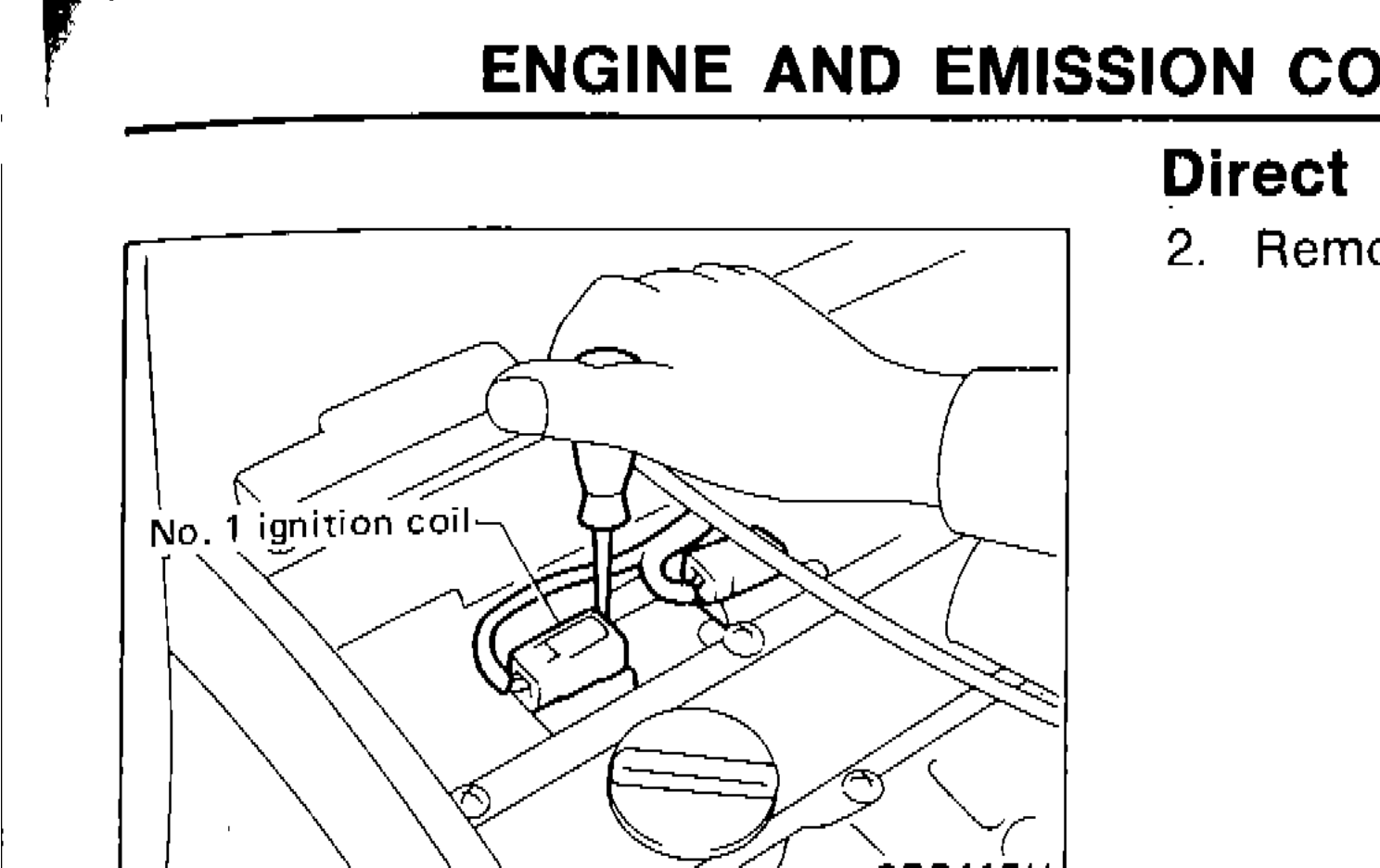

- 2Remove No. 1 ignition coil.

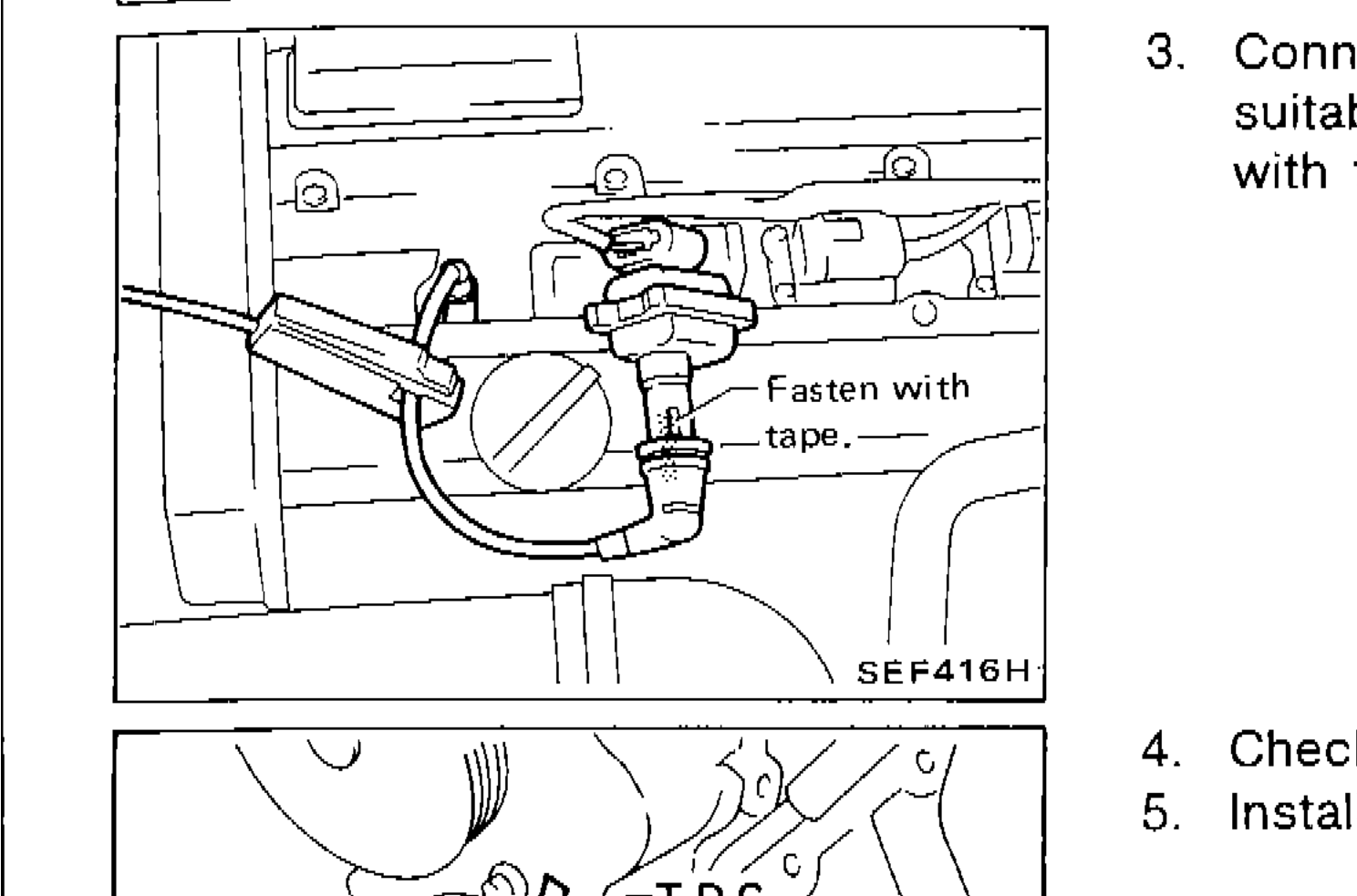

SEF415H - 3Connect No. 1 ignition coil and No. 1 spark plug with suitable high-tension wire as shown, and clamp this wire with timing light clamp.

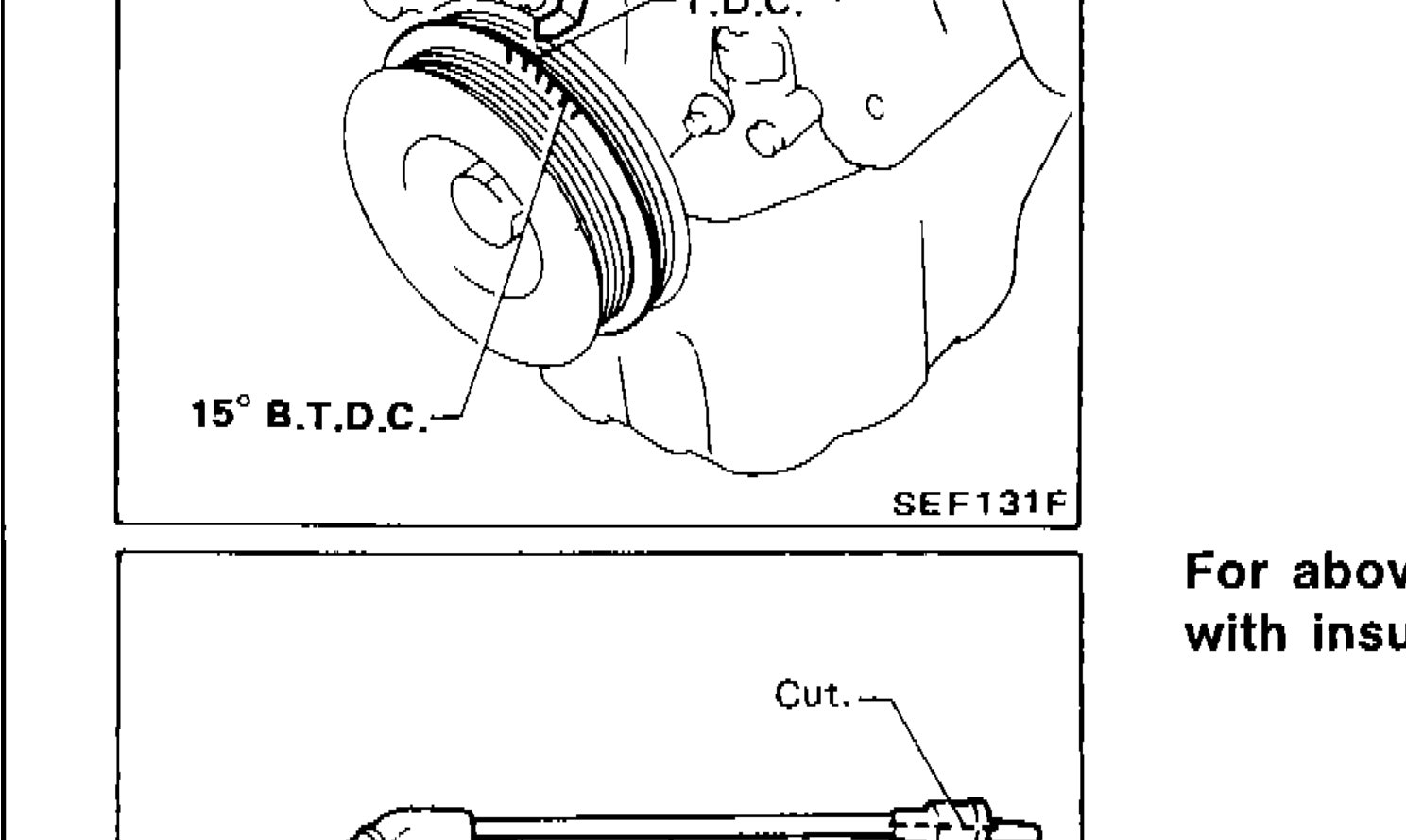

SEF416H - 4Check ignition timing.
SEF131F - 5Install No. 1 ignition coil and ornament cover.
NOTE
For above procedures, enlarge suitable high-tension wire end with insulating tape as shown.
| Specification | Value |
|---|---|
| Insulating tape wrap width (approximate)High-tension wire end preparation | Approx. 12 (0.47)mm (in) |
| Insulating tape wrap length (approximate)High-tension wire end preparation | Approx. 30 (1.18)mm (in) |
| Wire end exposed length (approximate)High-tension wire end preparation — after cutting and pulling electrode | Approx. 14 (0.55)mm (in) |
Insulating tape wrap width (approximate)High-tension wire end preparation
Approx. 12 (0.47)mm (in)
Insulating tape wrap length (approximate)High-tension wire end preparation
Approx. 30 (1.18)mm (in)
Wire end exposed length (approximate)High-tension wire end preparation — after cutting and pulling electrode
Approx. 14 (0.55)mm (in)
