TROUBLE DIAGNOSES — Diagnostic Procedure 14: AIR REGULATOR (Not self-diagnostic item)
EF & EC-110wiring diagramL.H. drive mode and R.H. drive mode variants noted on wiring schematic. Connector routing may differ between drive modes.
Diagnostic Procedure 14
AIR REGULATOR (Not self-diagnostic item)
Air Regulator Wiring Schematic
Computing layout…
Wire Details
| From | To | Color |
|---|---|---|
| ECCS | AIR_REG | B/P |
| F22 | EFI_HARNESS | B/P |
| EFI_HARNESS | ENGINE_ROOM_HARNESS | B/P |
| EFI_HARNESS | ENGINE_ROOM_HARNESS | B/Y |
| FUEL_PUMP_RELAY | IGN_SW | B/R |
| IGN_SW | FUSE | B/R |
| FUSE | FUSE_RELAY_BOX | B/W |
| FUSE_RELAY_BOX | BATTERY | W |
| E22 | BATTERY | |
| F11_ENGINE_GND | BATTERY |
NOTE
L : L.H. drive mode
R : R.H. drive mode

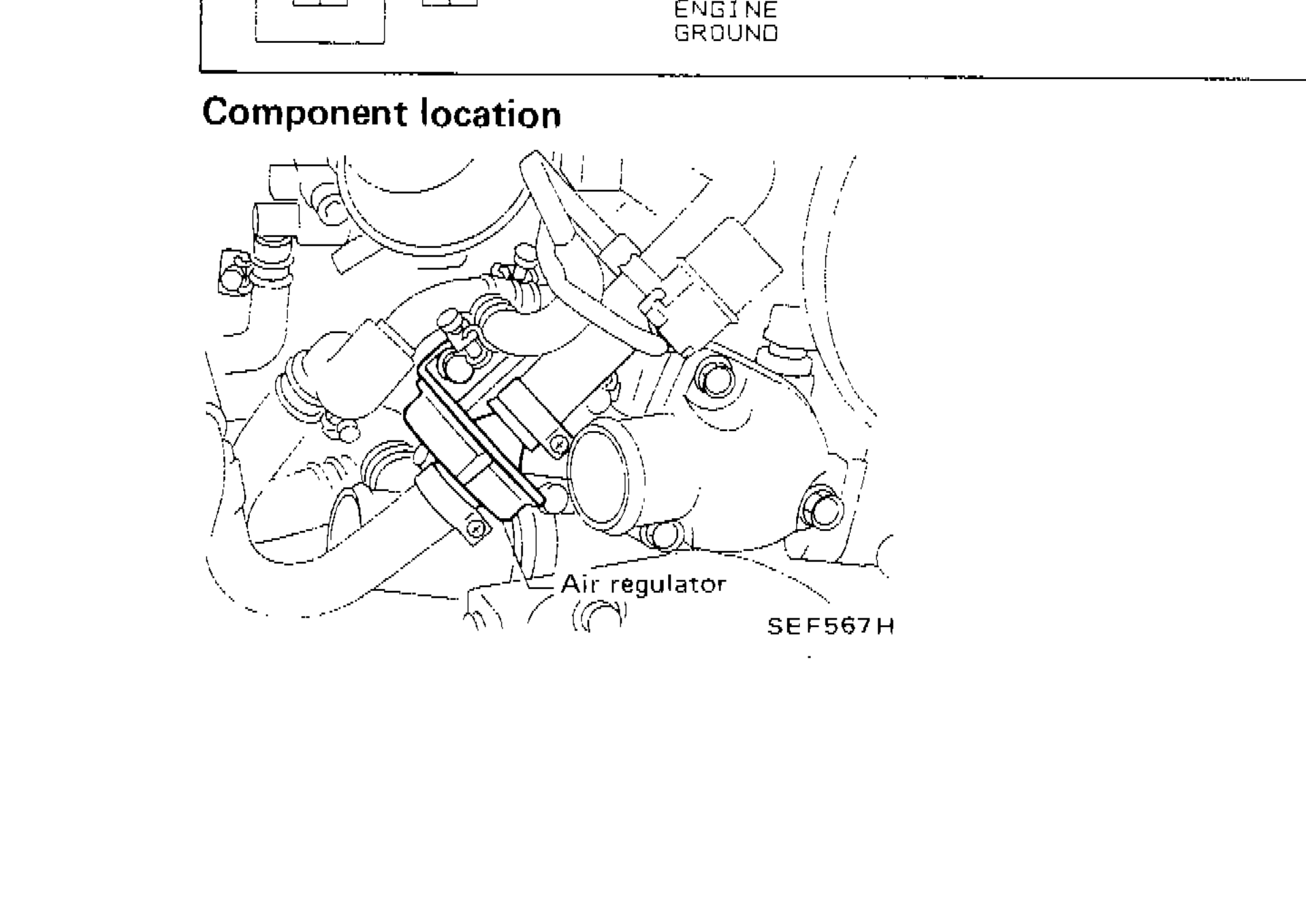

Component LocationFig. fig2
Engine bay photograph indicating the physical location of the Air Regulator.
SEF567H
1Air regulator(center-lower area of engine bay photo)
