OIL PAN — Installation (Cont'd)
EM-8prose procedureInstallation (Cont'd)

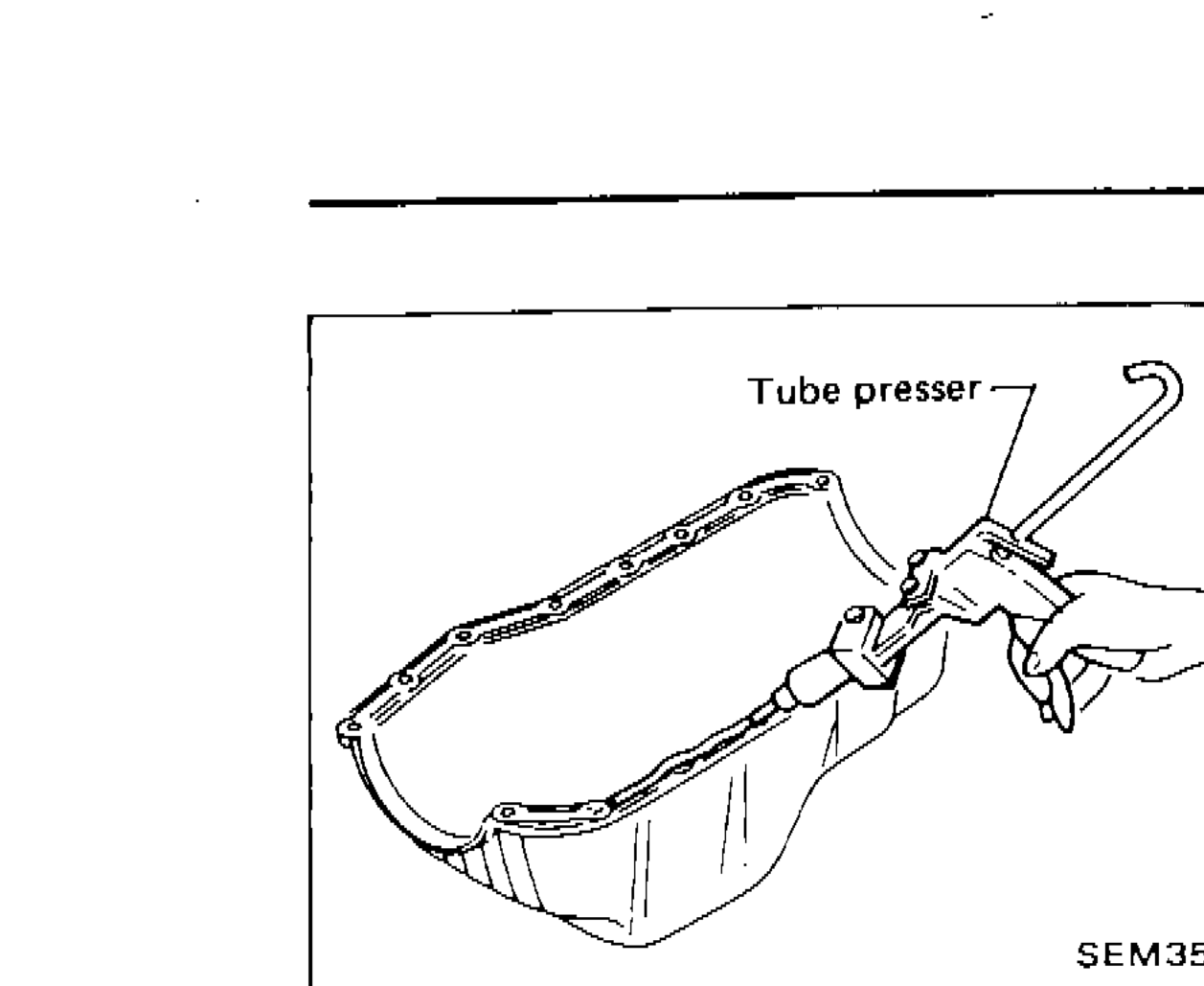

- 3Apply a continuous bead of liquid gasket to mating surface of oil pan.Use Genuine Liquid Gasket or equivalent.Be sure liquid gasket is 3.5 to 4.5 mm (0.138 to 0.177 in) wide.

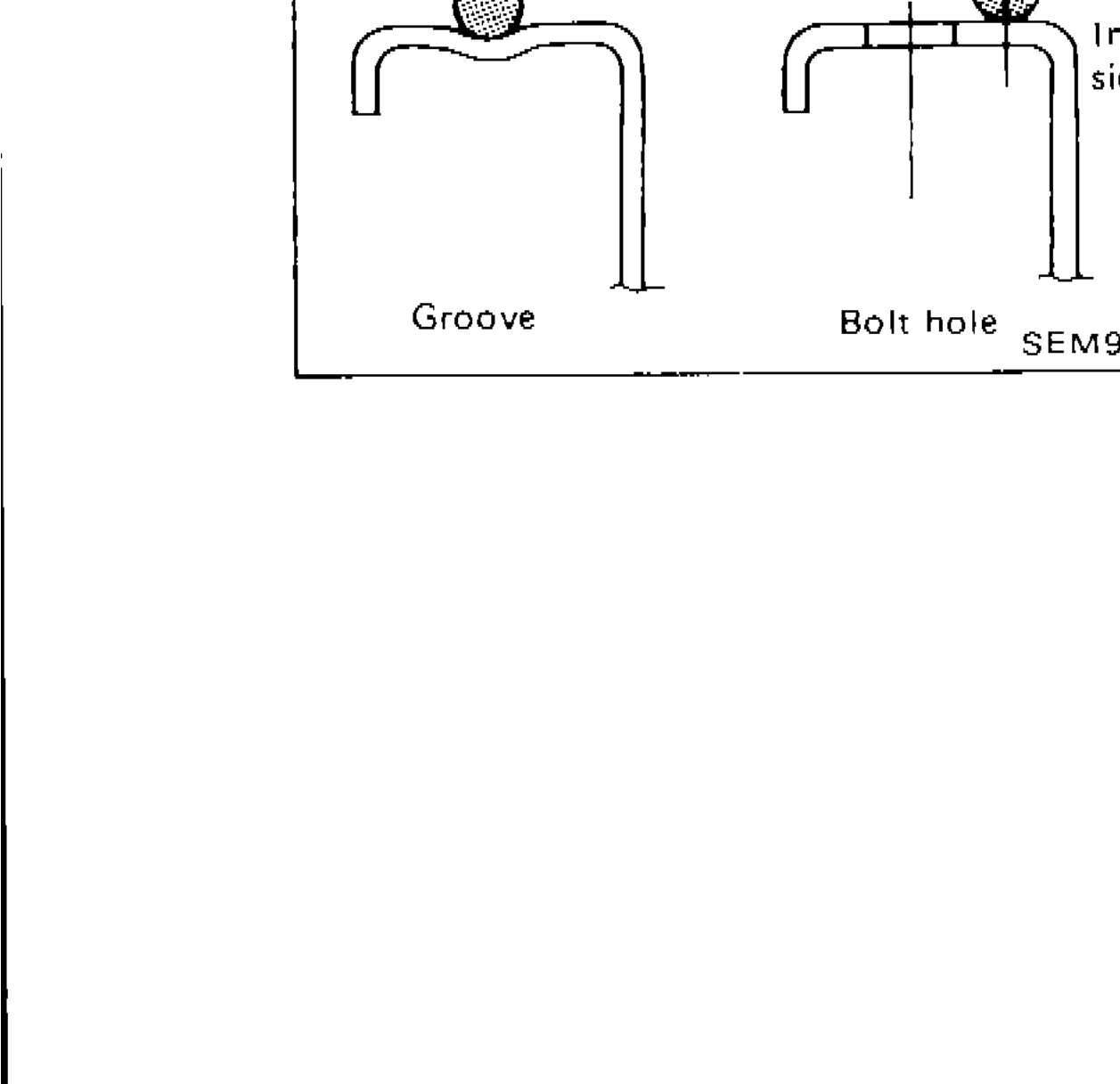

SEM351B - 4Apply liquid gasket to inner sealing surface as shown in figure.Attaching should be done within 5 minutes after coating.
SEM909B - 5Install oil pan.Wait at least 30 minutes before refilling engine oil.
IMPORTANT
Use Genuine Liquid Gasket or equivalent.
| Specification | Value |
|---|---|
| Liquid gasket bead widthApplied to mating surface of oil pan | 3.5 to 4.5mm (0.138 to 0.177 in) |
| Liquid gasket application distance from inner side (bolt hole)Inner sealing surface application | 7mm (0.28 in) |
| Time limit for attaching after coatingAfter liquid gasket application | within 5minutes |
| Wait time before refilling engine oilAfter oil pan installation | at least 30minutes |
Liquid gasket bead widthApplied to mating surface of oil pan
3.5 to 4.5mm (0.138 to 0.177 in)
Liquid gasket application distance from inner side (bolt hole)Inner sealing surface application
7mm (0.28 in)
Time limit for attaching after coatingAfter liquid gasket application
within 5minutes
Wait time before refilling engine oilAfter oil pan installation
at least 30minutes
