OIL PAN

EM-7prose procedure

1
Drain engine oil.
2
Remove front stabilizer bar.
3
Loosen front engine mounting nuts. (Do not loosen completely.)
4
Lift up engine slightly using engine slingers.
5
Remove oil pan.
(1) Insert Tool between cylinder block and oil pan.
(2) Slide Tool by tapping its side with a hammer, and remove oil pan.

(1) Insert Tool between cylinder block and oil pan.

WARNING

Do not insert Tool into oil pump or rear oil seal retainer portion, or aluminum mating face will be damaged.

WARNING

Do not insert screwdriver, or oil pan flange will be deformed.

(2) Slide Tool by tapping its side with a hammer, and remove oil pan.

1

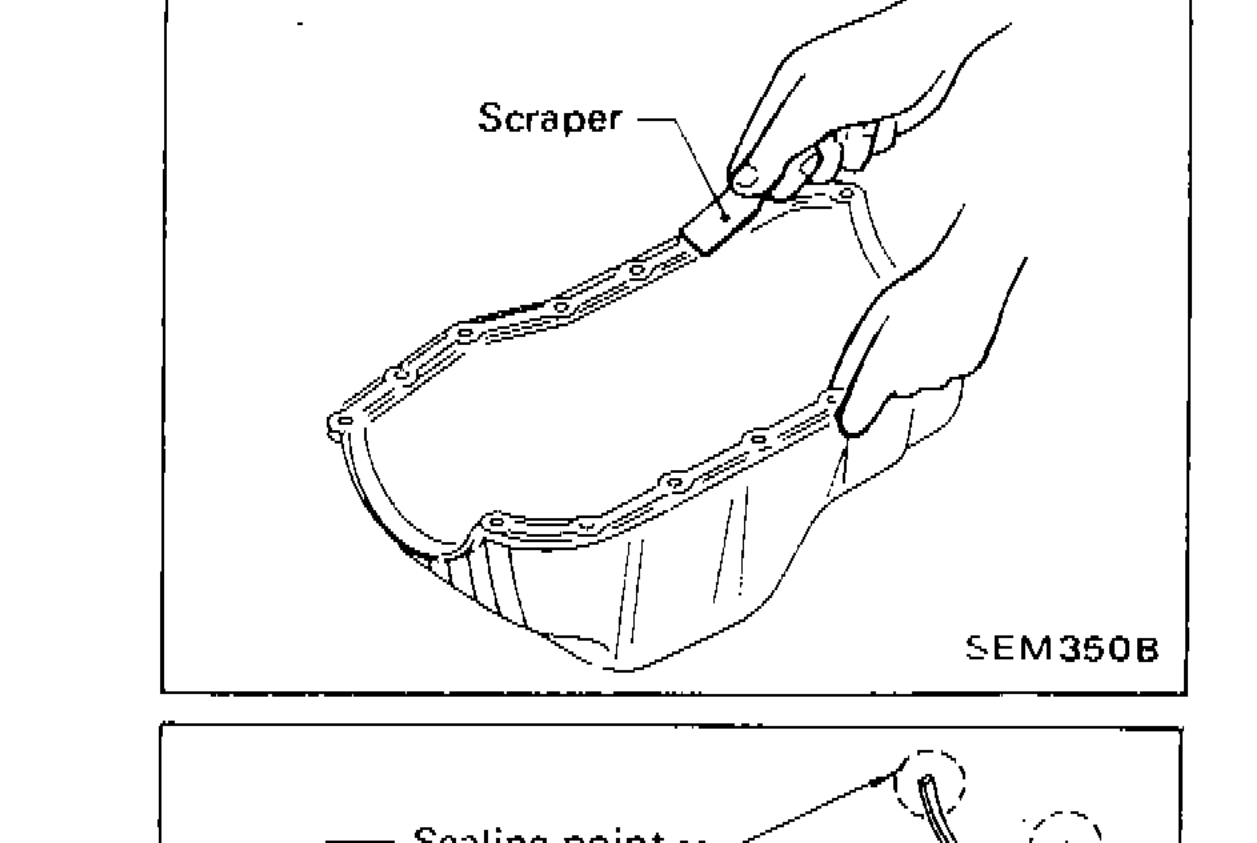

Before installing oil pan, remove all traces of liquid gasket from mating surface using a scraper.
Also remove traces of liquid gasket from mating surface of cylinder block.
SEM350B
2

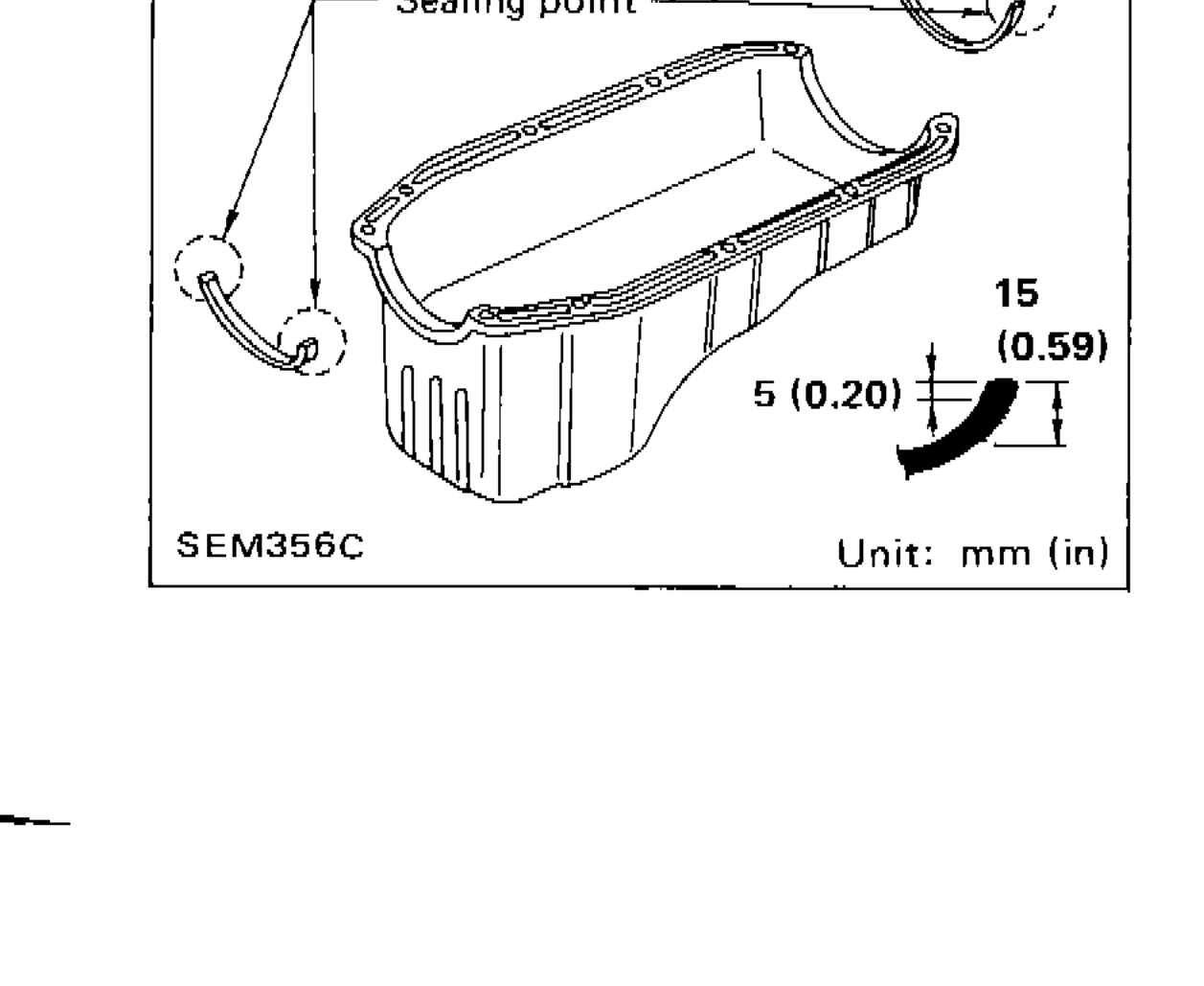

Apply liquid gasket to oil pump gasket and rear oil seal retainer gasket.
SEM356C

NOTE

Also remove traces of liquid gasket from mating surface of cylinder block.

Specification	Value
Liquid gasket bead width at sealing pointOil pan sealing point	5 (0.20)mm (in)
Liquid gasket bead height at sealing pointOil pan sealing point	15 (0.59)mm (in)

Liquid gasket bead width at sealing pointOil pan sealing point

5 (0.20)mm (in)

Liquid gasket bead height at sealing pointOil pan sealing point

15 (0.59)mm (in)
