CYLINDER HEAD
EM-17prose procedureCAUTION
• When installing sliding parts such as camshaft, camshaft bracket and oil seal, be sure to apply new engine oil on their sliding surfaces.
• When tightening cylinder head bolts and camshaft bracket bolts, apply new engine oil to thread portions and seat surfaces of bolts.
• Do not put hydraulic valve lifters upside down, otherwise air will enter valve lifter, causing it to make a noise.
• Do not disassemble hydraulic valve lifter.
• Attach tags to valve lifters so as not to mix them up.
• Valve lifters are required to put in engine oil.
Removal
- 1Remove timing belt. Refer to "Removal" of TIMING BELT.
- 2Drain coolant from radiator.
- 3Disconnect exhaust manifold from cylinder head.

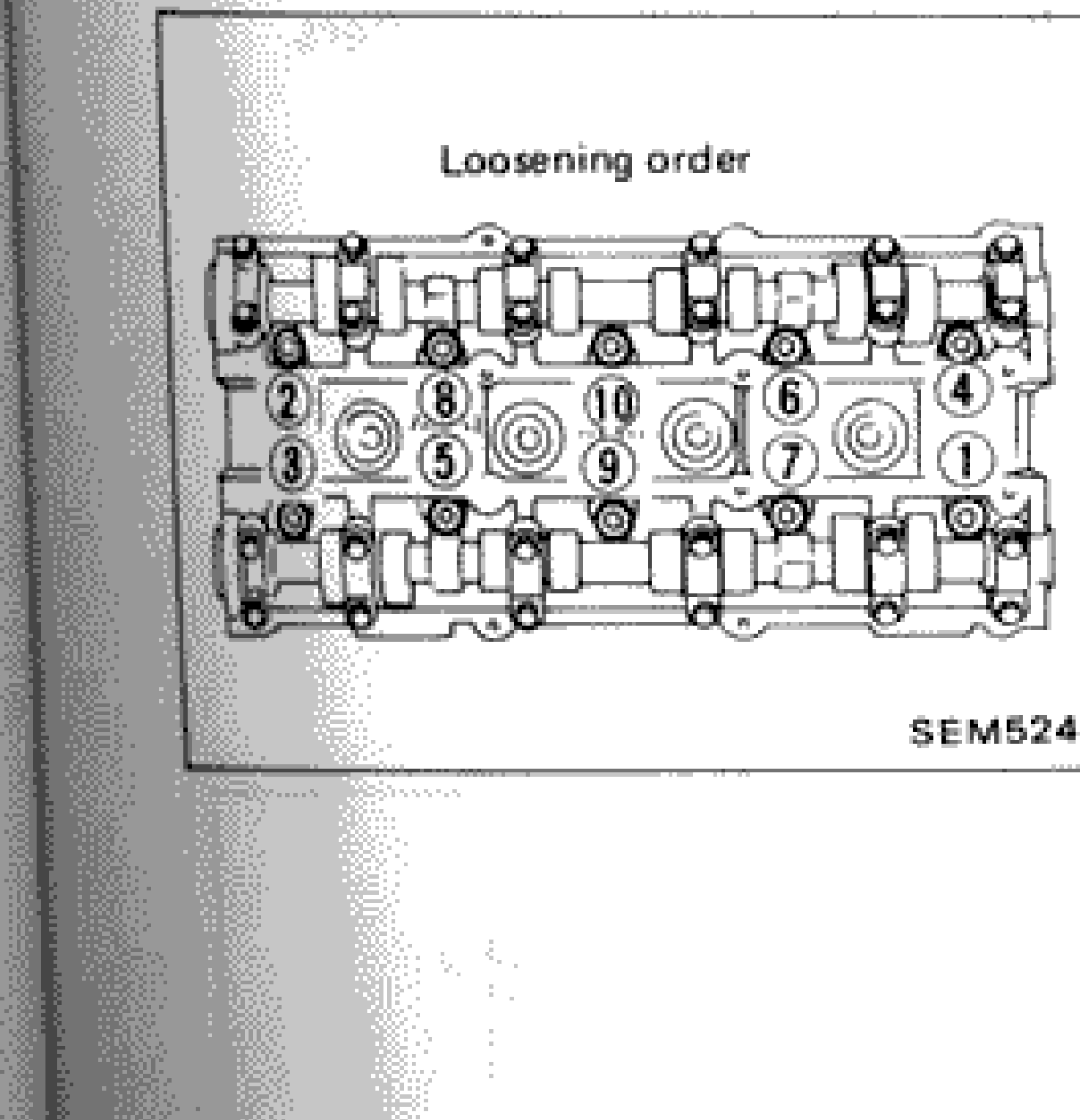

- 4Remove cylinder head with intake manifold.Head warpage or cracking could result from removing in incorrect order.Cylinder head bolts should be loosened in two or three steps.
SEM524B
