OIL SEAL REPLACEMENT

EM-15prose procedure
Continued from EM-14

Oil Seal Replacement

  1. 6
    Remove valve springs and valve oil seals.

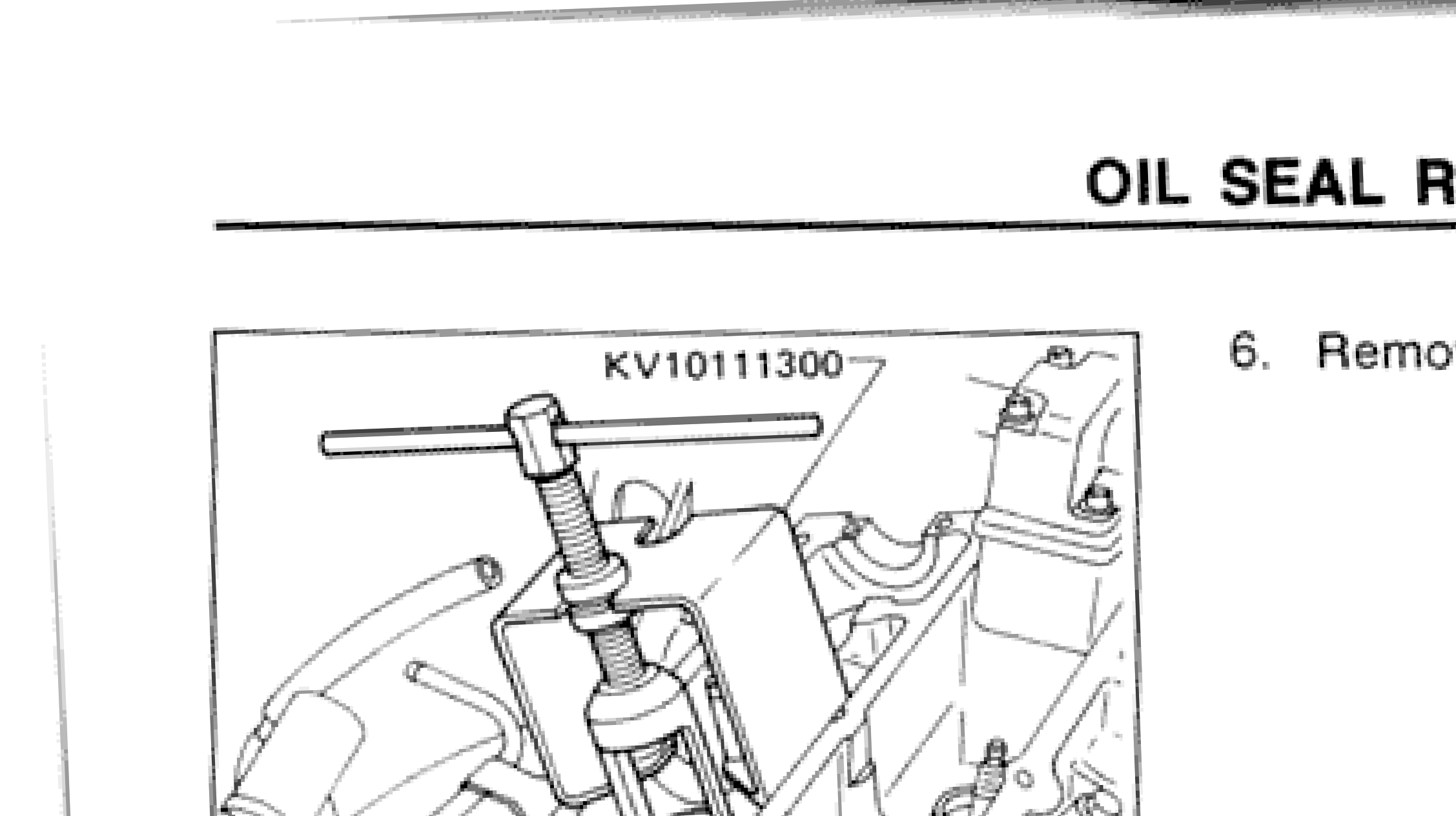

    Tool KV10111300 being used to compress valve spring on cylinder head
    SEM765B
  2. 7
    Apply engine oil to valve oil seal and install it in place.

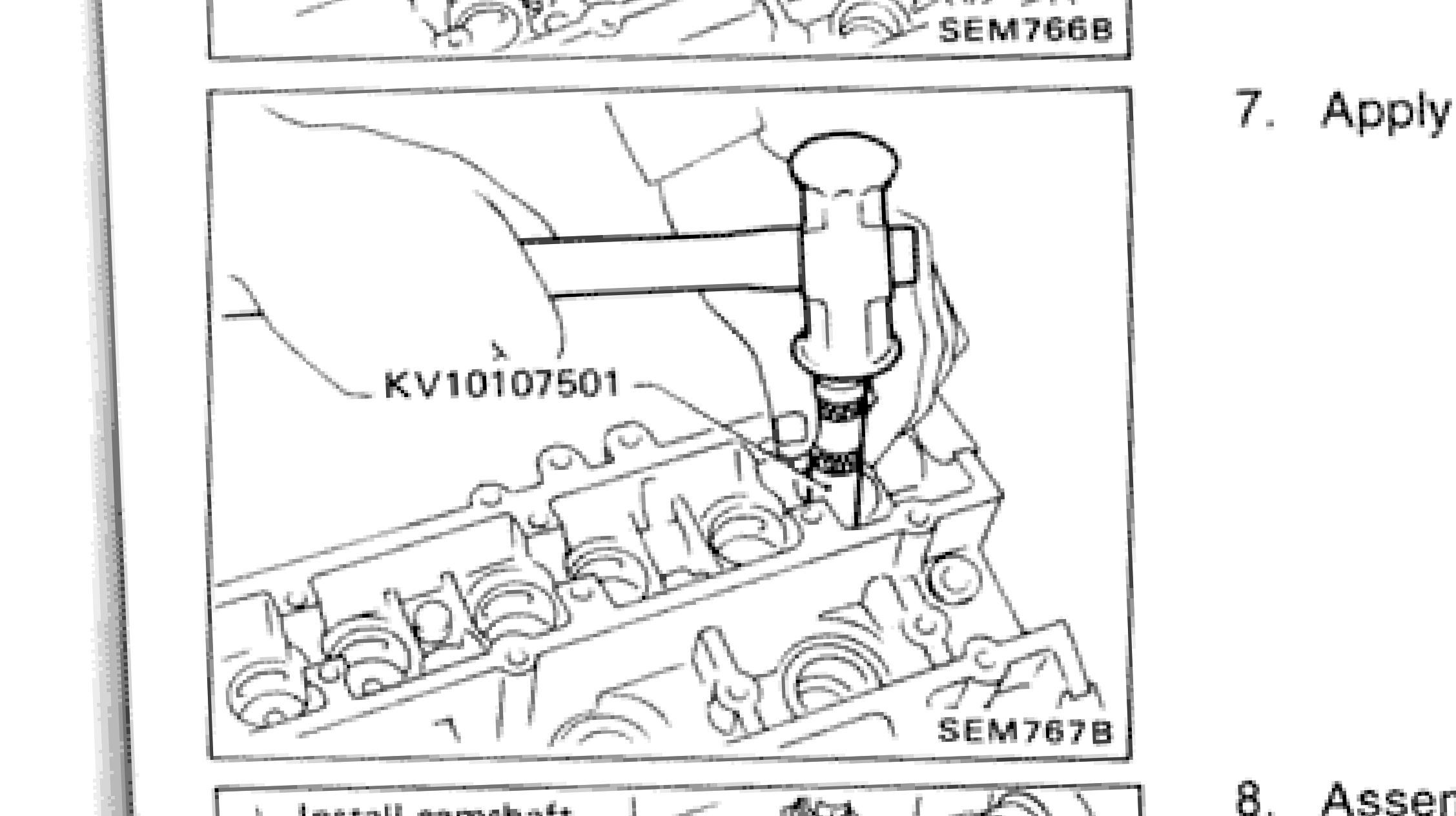

    Tool KV10107501 being used to install valve oil seal in place
    SEM767B
  3. 8
    Assemble valve mechanism, camshafts and timing belt.
    Camshaft installation diagram showing knock pin position, intake side and exhaust side orientation
    SEM552B
  4. 9
    Reinstall remaining parts.
Component LocationFig. fig4

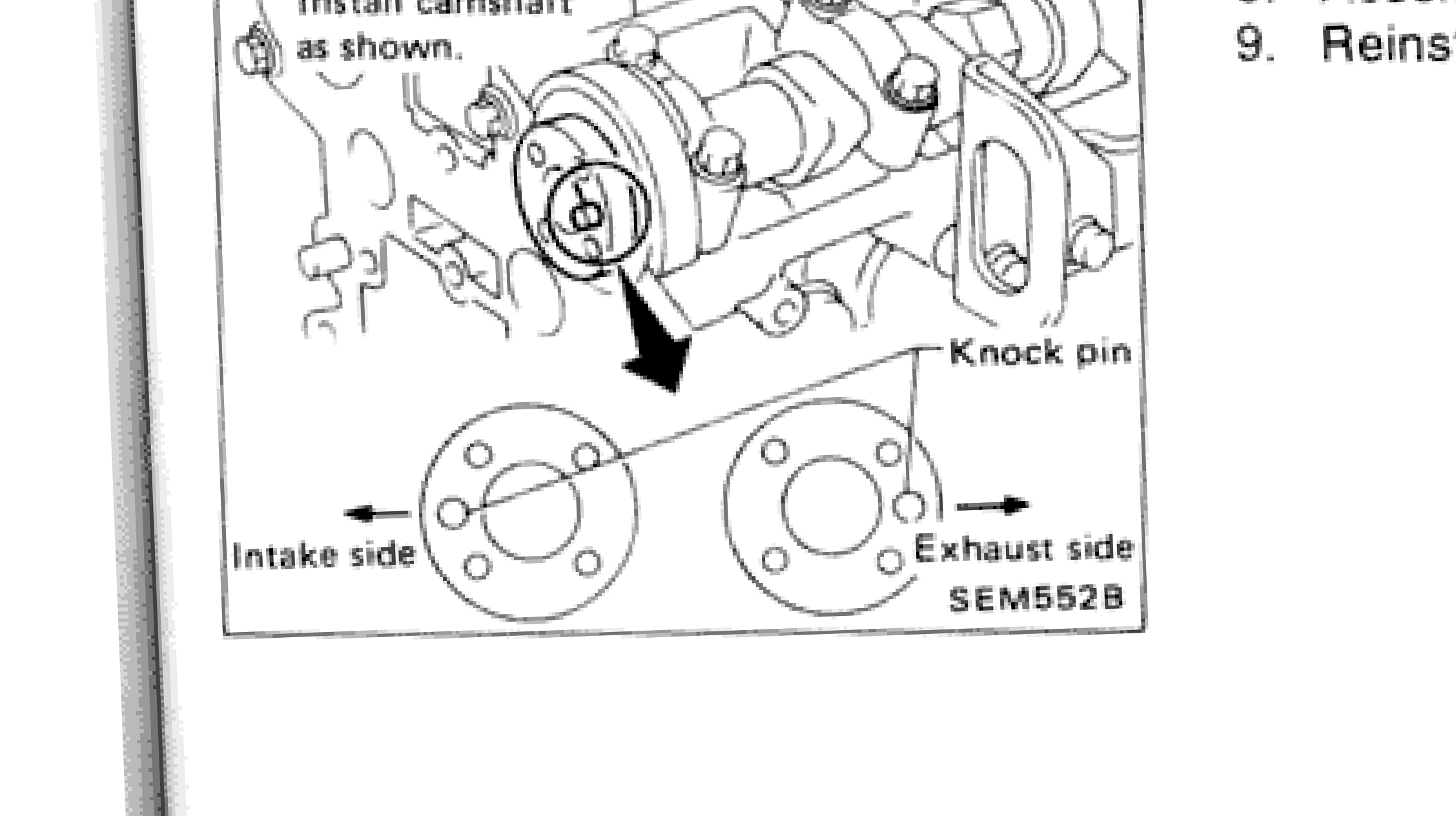

Camshaft installation orientation diagram

Camshaft installation diagram showing knock pin position, intake side and exhaust side orientation
SEM552B
1Install camshaft as shown.(top-left of diagram)
2Knock pin(right side of camshaft sprocket)
3Intake side(left)
4Exhaust side(right)
