S13S13

TIMING BELT — Installation (Cont'd)

EM-13prose procedure

Installation (Cont'd)

  1. 4

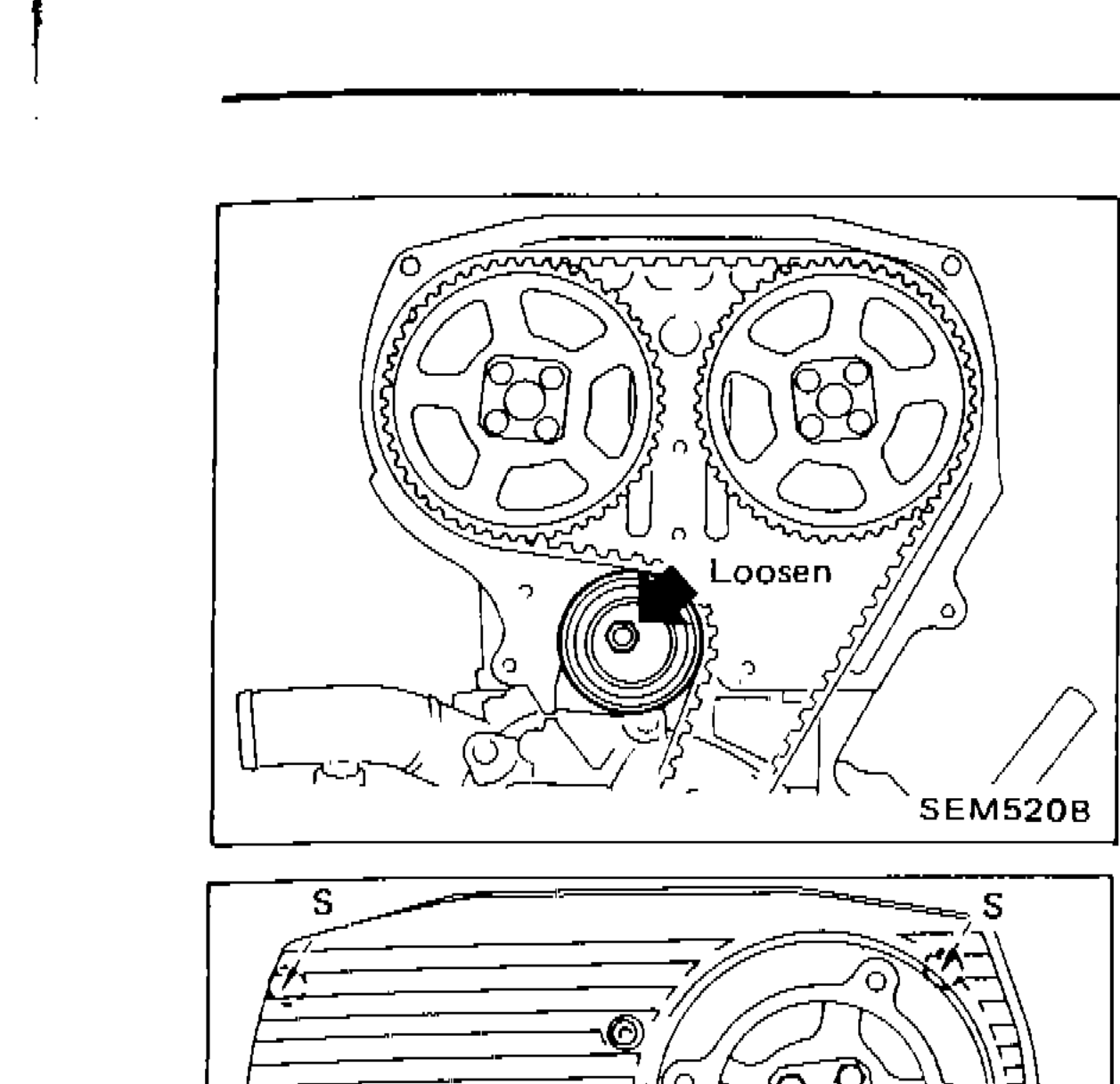

    Loosen tensioner lock nut, keeping tensioner steady with hexagon wrench.
    Timing belt tensioner area showing tensioner lock nut with 'Loosen' callout and hexagon wrench location
    SEM520B
  2. 5
    Rotate crankshaft at least two turns clockwise.
  3. 6
    Adjust belt tension. Slowly swing tensioner with hexagon wrench clockwise and counterclockwise two or three times.
  4. 7
    Tighten tensioner lock nut.
  5. 8

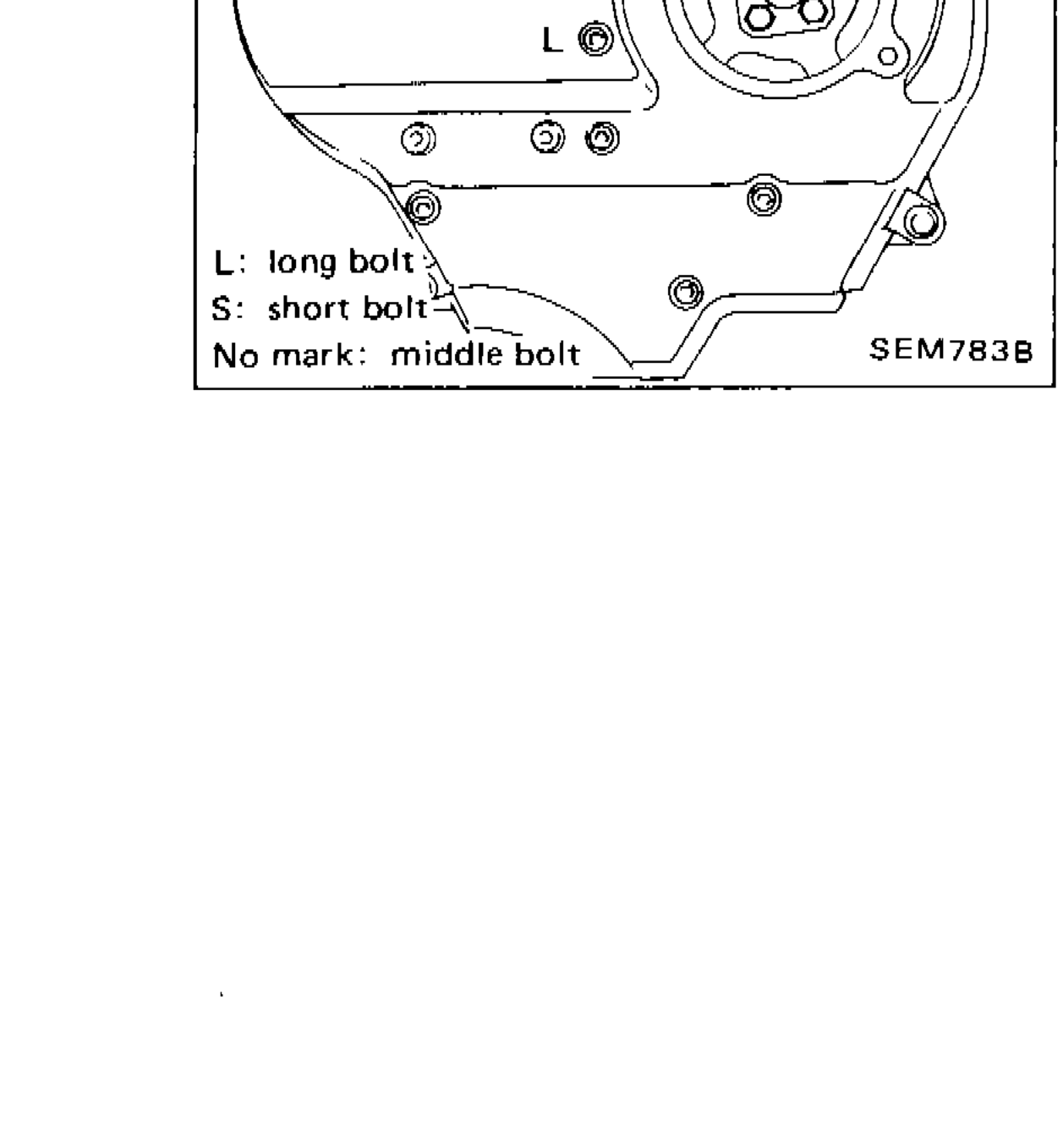

    Install lower and upper timing belt covers.
    L: long bolt
    S: short bolt
    No mark: middle bolt
    Lower and upper timing belt cover installation diagram showing bolt position legend: L = long bolt, S = short bolt, No mark = middle bolt
    SEM783B
  6. 9
    Install crankshaft pulley with washer.
  7. 10
    Install engine mount bracket.
  8. 11
    Install crank angle sensor and water pump pulley.
