CYLINDER BLOCK — Assembly (Cont'd) — Replacing Pilot Bushing

EM-43prose procedure

M/T uses pilot bushing; A/T uses pilot converter. Installation orientation differs — crankshaft side indicated by arrow in diagram.

Continued from EM-42

Assembly (Cont'd)

Replacing Pilot Bushing

  1. 1
    Remove pilot bushing (M/T)/pilot converter (A/T).

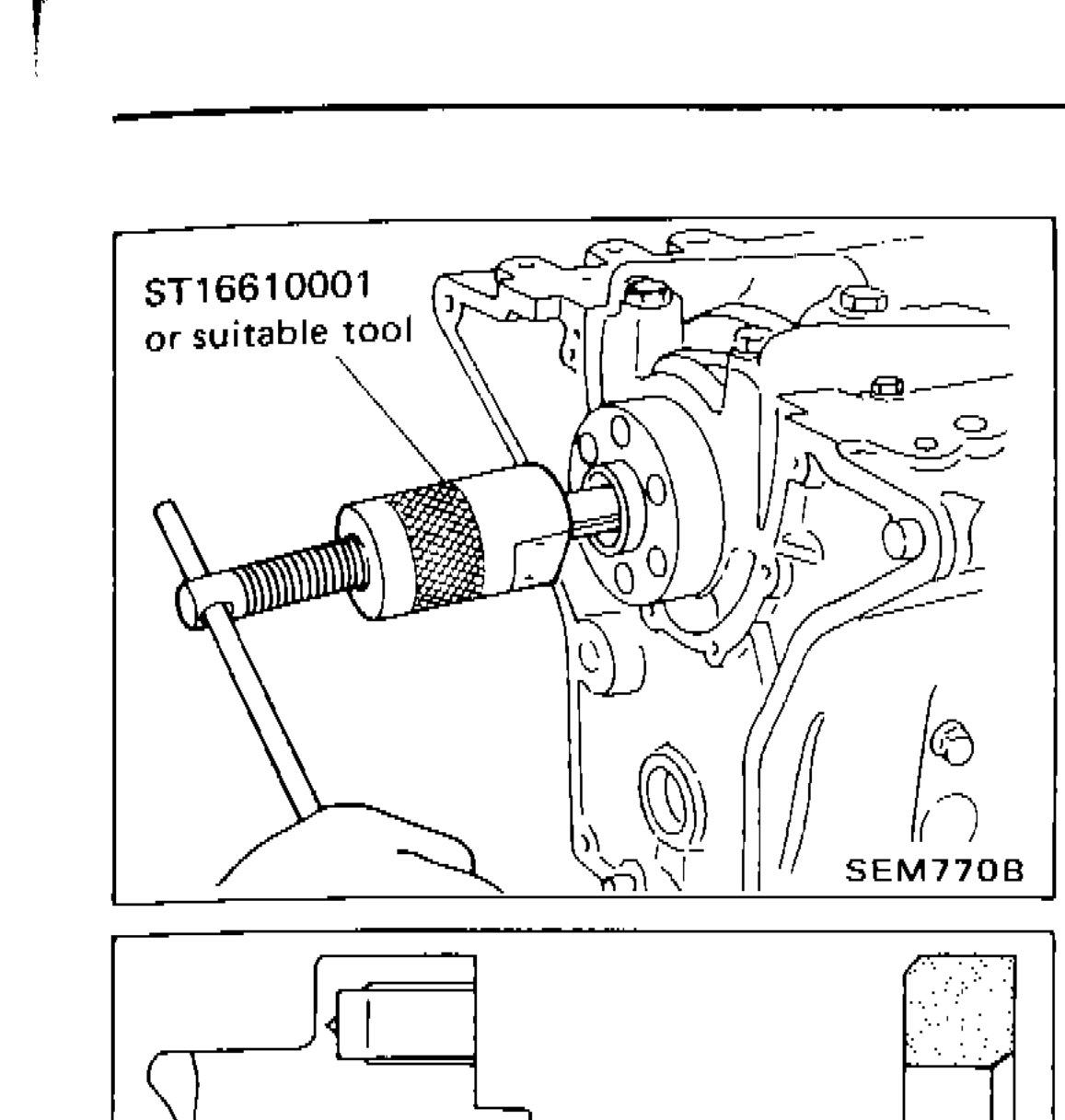

    Tool ST16610001 or suitable tool being used to remove pilot bushing from crankshaft end of cylinder block
    SEM770B
  2. 2
    Install pilot bushing (M/T)/pilot converter (A/T).

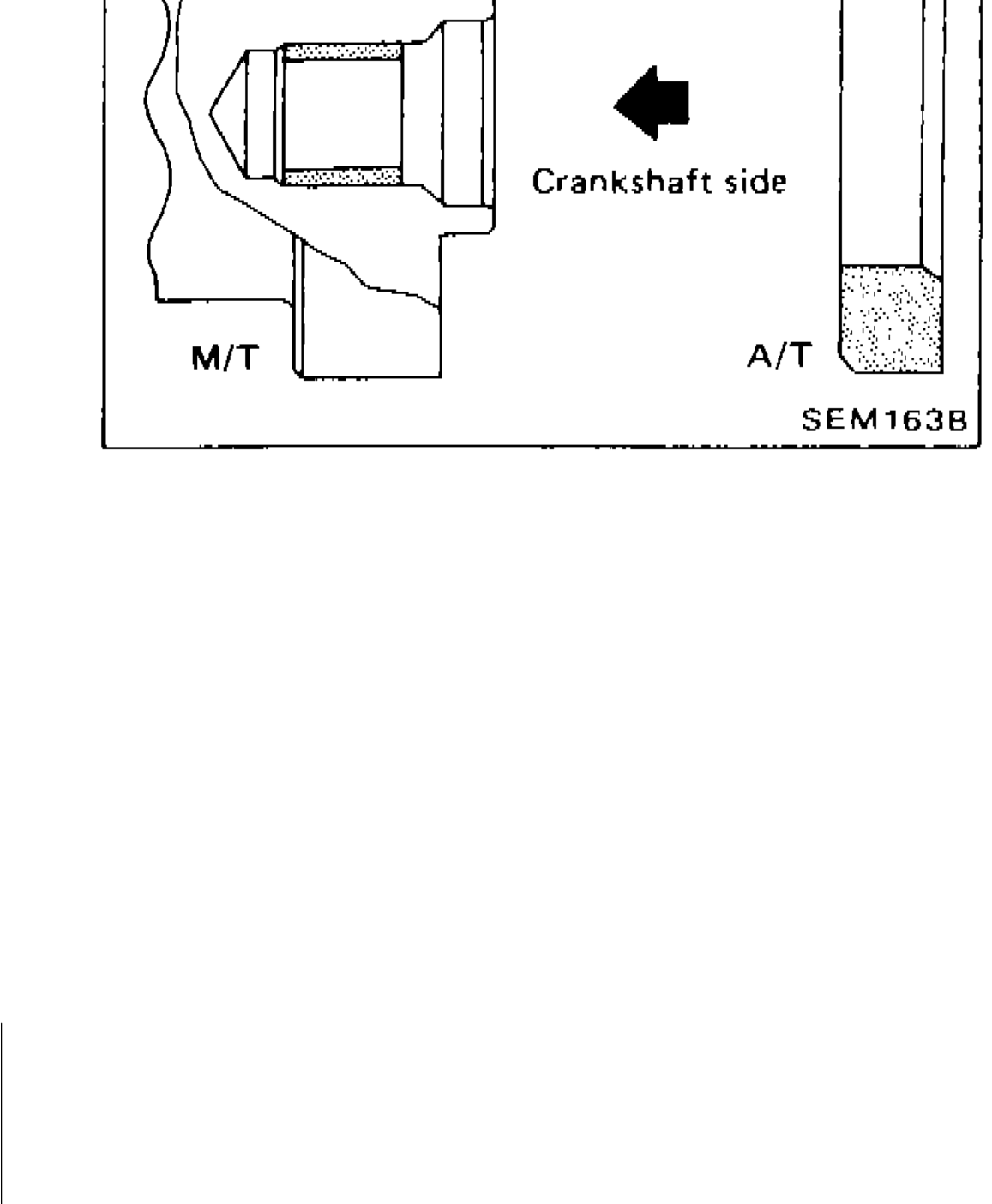

    Comparison of M/T pilot bushing and A/T pilot converter orientation, with arrow indicating crankshaft side for installation direction
    SEM163B
Continue to EM-44
