CYLINDER HEAD — Installation (Cont'd)
EM-27prose procedureInstallation (Cont'd)

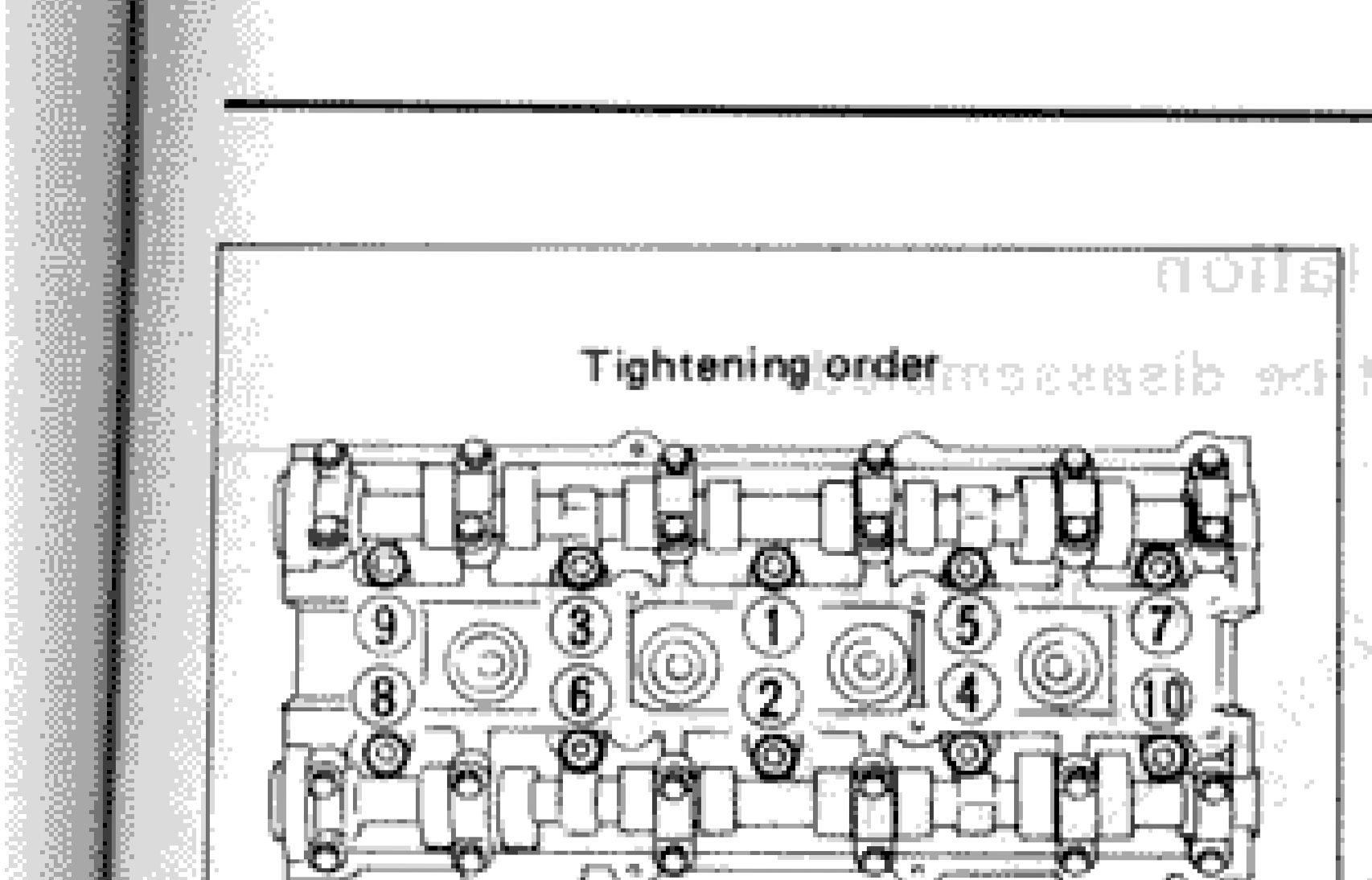

- 3Tighten cylinder head bolts in numerical order.Tightening procedure: (1) Tighten all bolts to 29 N·m (3.0 kg-m, 22 ft-lb). (2) Tighten all bolts to 103 N·m (10.5 kg-m, 76 ft-lb). (3) Loosen all bolts completely. (4) Tighten all bolts to 29 N·m (3.0 kg-m, 22 ft-lb). (5) Tighten all bolts to 103 N·m (10.5 kg-m, 76 ft-lb) or if an angle wrench is available, tighten bolts 85 to 90 degrees clockwise.
SEM556B - 4Install timing belt and adjust belt tension. Refer to "Installation" of TIMING BELT.
| Specification | Value |
|---|---|
| Cylinder head bolt torque — Step 1Initial tighten, numerical order | 29N·m (3.0 kg-m, 22 ft-lb) |
| Cylinder head bolt torque — Step 2Second tighten, numerical order | 103N·m (10.5 kg-m, 76 ft-lb) |
| Cylinder head bolt torque — Step 4After loosening completely, numerical order | 29N·m (3.0 kg-m, 22 ft-lb) |
| Cylinder head bolt torque — Step 5Final torque, or angle tighten 85–90 degrees clockwise | 103N·m (10.5 kg-m, 76 ft-lb) |
| Cylinder head bolt angle tighten — Step 5 (alternative)If angle wrench is available | 85 to 90degrees clockwise |
Cylinder head bolt torque — Step 1Initial tighten, numerical order
29N·m (3.0 kg-m, 22 ft-lb)
Cylinder head bolt torque — Step 2Second tighten, numerical order
103N·m (10.5 kg-m, 76 ft-lb)
Cylinder head bolt torque — Step 4After loosening completely, numerical order
29N·m (3.0 kg-m, 22 ft-lb)
Cylinder head bolt torque — Step 5Final torque, or angle tighten 85–90 degrees clockwise
103N·m (10.5 kg-m, 76 ft-lb)
Cylinder head bolt angle tighten — Step 5 (alternative)If angle wrench is available
85 to 90degrees clockwise
