CYLINDER HEAD — Assembly (Cont'd)
EM-25prose procedureAssembly (Cont'd)

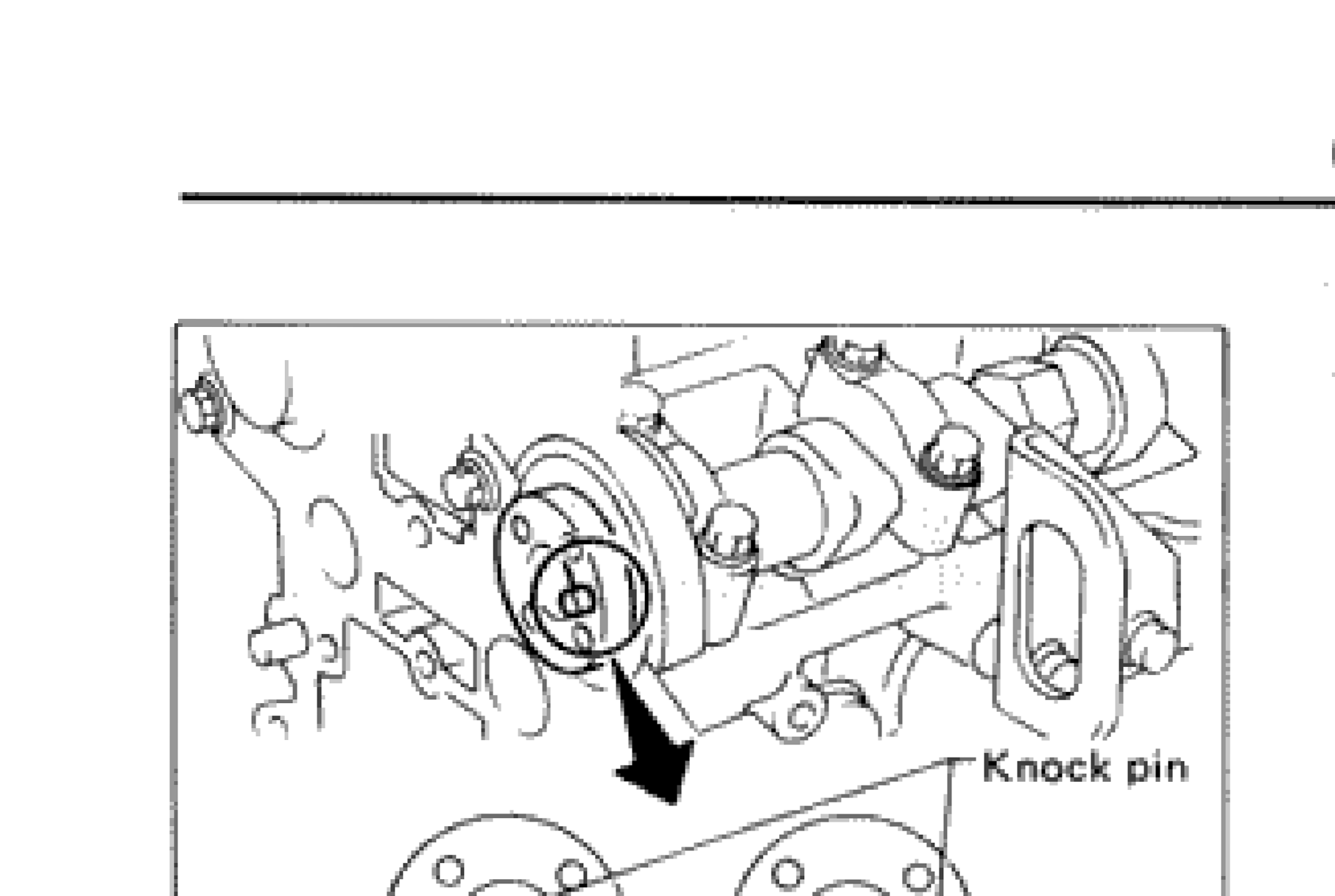

- Install camshaft as shown.

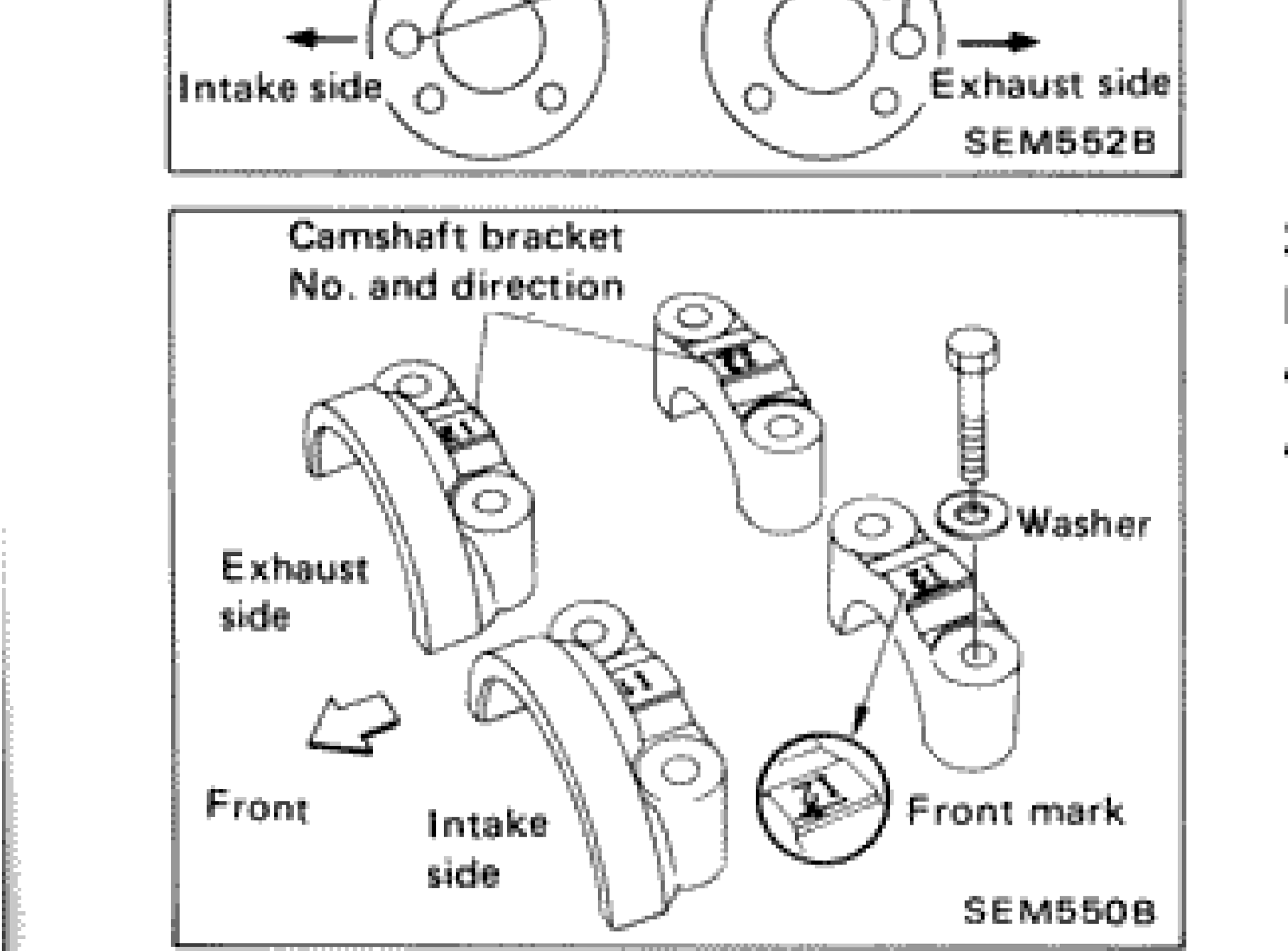

SEM552B - 3Install camshaft brackets. Front mark is punched on the camshaft bracket.Front mark is punched on the camshaft bracket.
SEM550B - 4Apply engine oil to camshaft oil seal lip and install it in place. Always use new camshaft oil seal.Always use new camshaft oil seal.

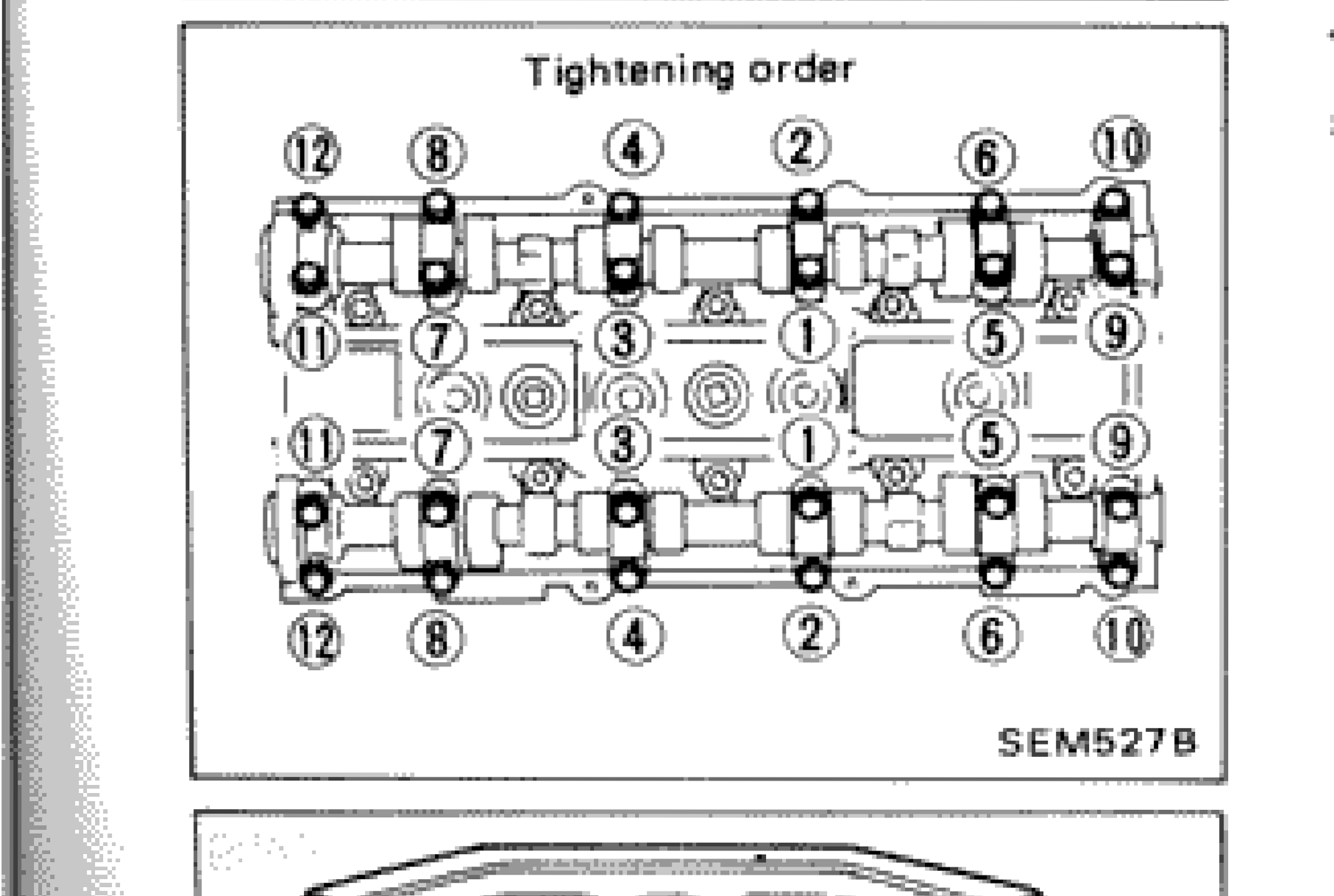

- Tighten camshaft bracket bolts gradually in two or three stages.

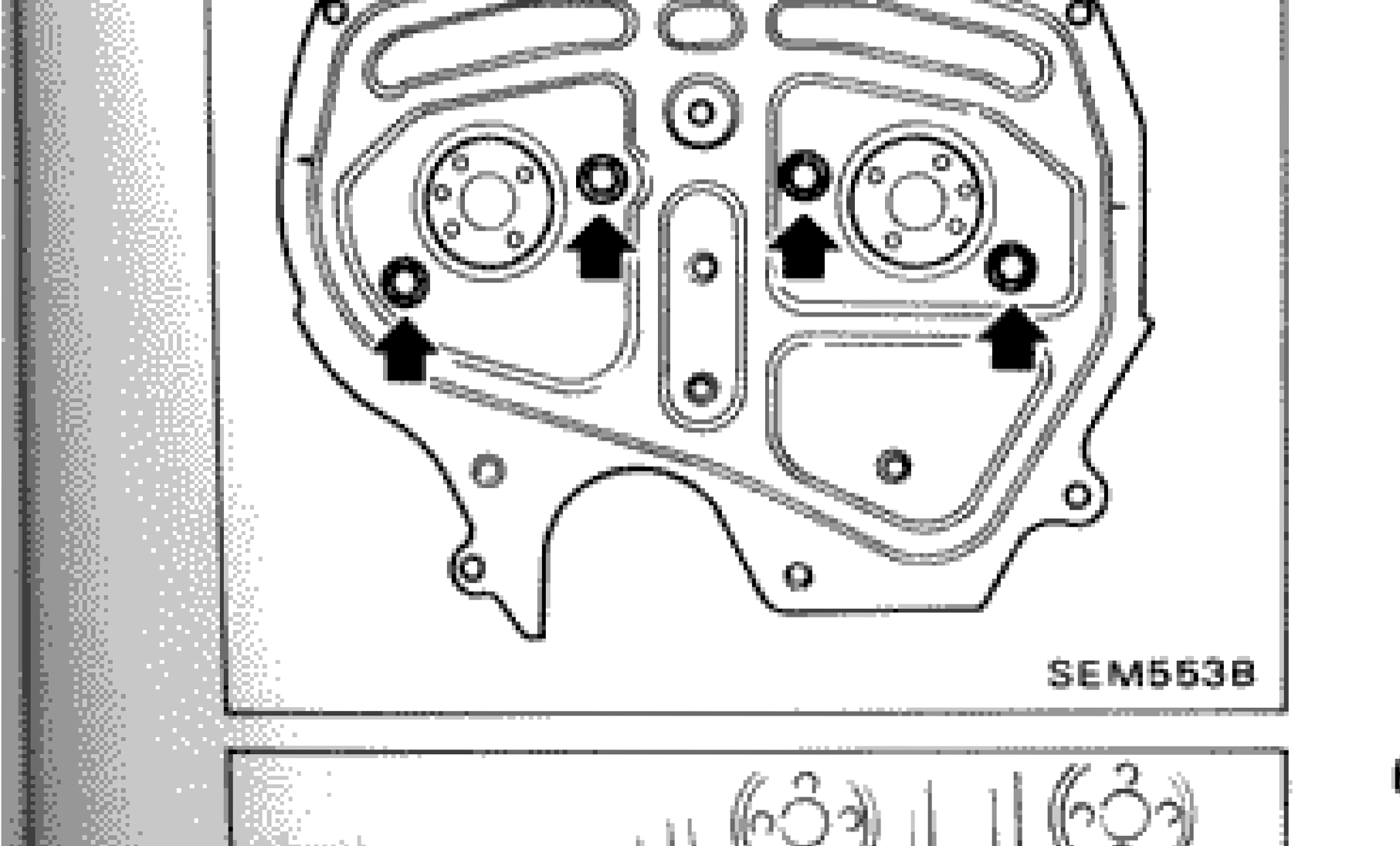

SEM527B - 5Install rear timing cover.

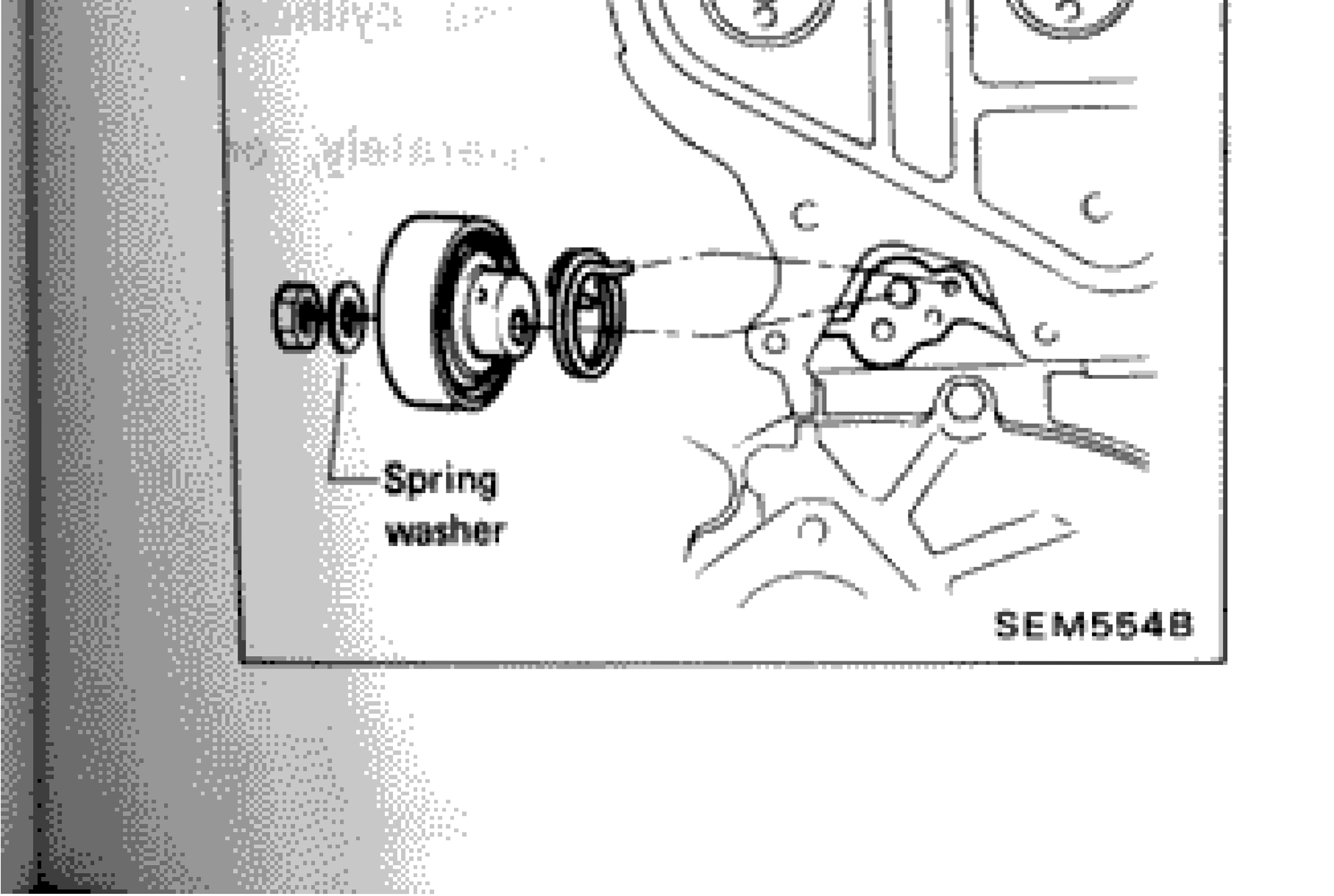

SEM553B - 6Install timing belt tensioner. Tensioner nut:
SEM554B
| Specification | Value |
|---|---|
| Camshaft oil seal lip bolt torque (camshaft bracket bolts)Camshaft bracket bolt torque | 9 - 12N·m |
| Camshaft bracket bolt torqueCamshaft bracket bolt torque | 0.9 - 1.2kg-m |
| Camshaft bracket bolt torqueCamshaft bracket bolt torque | 6.5 - 8.7ft-lb |
| Rear timing cover bolt torqueRear timing cover | 7 - 8N·m |
| Rear timing cover bolt torqueRear timing cover | 0.7 - 0.8kg-m |
| Rear timing cover bolt torqueRear timing cover | 5.1 - 5.8ft-lb |
| Tensioner nut torqueTiming belt tensioner nut | 22 - 29N·m |
| Tensioner nut torqueTiming belt tensioner nut | 2.2 - 3.0kg-m |
| Tensioner nut torqueTiming belt tensioner nut | 16 - 22ft-lb |
Camshaft oil seal lip bolt torque (camshaft bracket bolts)Camshaft bracket bolt torque
9 - 12N·m
Camshaft bracket bolt torqueCamshaft bracket bolt torque
0.9 - 1.2kg-m
Camshaft bracket bolt torqueCamshaft bracket bolt torque
6.5 - 8.7ft-lb
Rear timing cover bolt torqueRear timing cover
7 - 8N·m
Rear timing cover bolt torqueRear timing cover
0.7 - 0.8kg-m
Rear timing cover bolt torqueRear timing cover
5.1 - 5.8ft-lb
Tensioner nut torqueTiming belt tensioner nut
22 - 29N·m
Tensioner nut torqueTiming belt tensioner nut
2.2 - 3.0kg-m
Tensioner nut torqueTiming belt tensioner nut
16 - 22ft-lb
