CYLINDER HEAD — Assembly (Cont'd) / Installation

EM-26prose procedure
Continued from EM-25

Assembly (Cont'd)

  1. 7

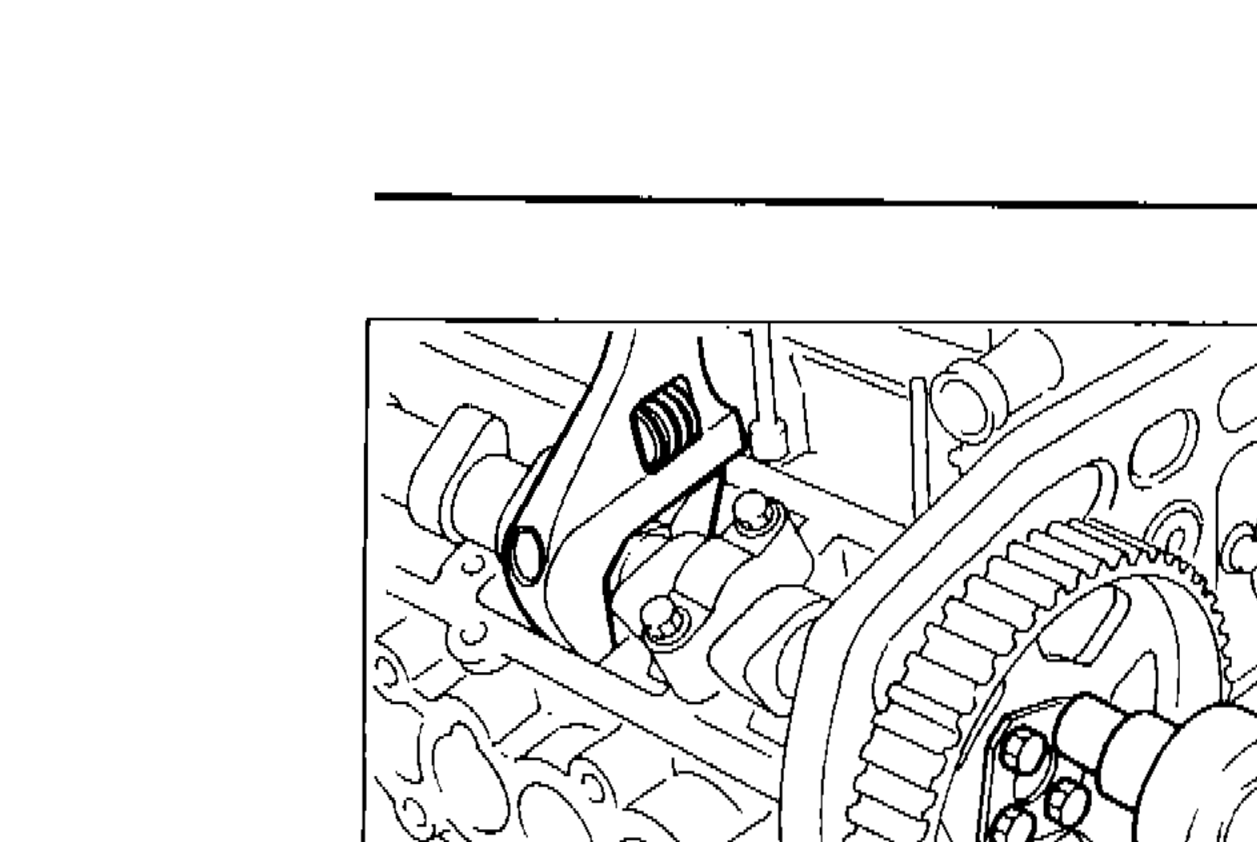

    Install camshaft sprockets.
    Sprocket bolt: 14 - 19 N·m (1.4 - 1.9 kg-m, 10 - 14 ft-lb)
    When tightening bolts, fix camshaft to prevent it from rotating.
    Camshaft sprocket installation showing timing belt and sprockets
    SEM525B
  2. 8
    Adjust timing belt tension. Refer to TIMING BELT.
  3. 9
    Reinstall remaining parts.
Sprocket boltCamshaft sprocket installation
14 - 19N·m
Sprocket boltCamshaft sprocket installation
1.4 - 1.9kg-m
Sprocket boltCamshaft sprocket installation
10 - 14ft-lb

Installation

  1. 1
    Set No. 1 piston at T.D.C. on its compression stroke as follows:
  2. 1-1

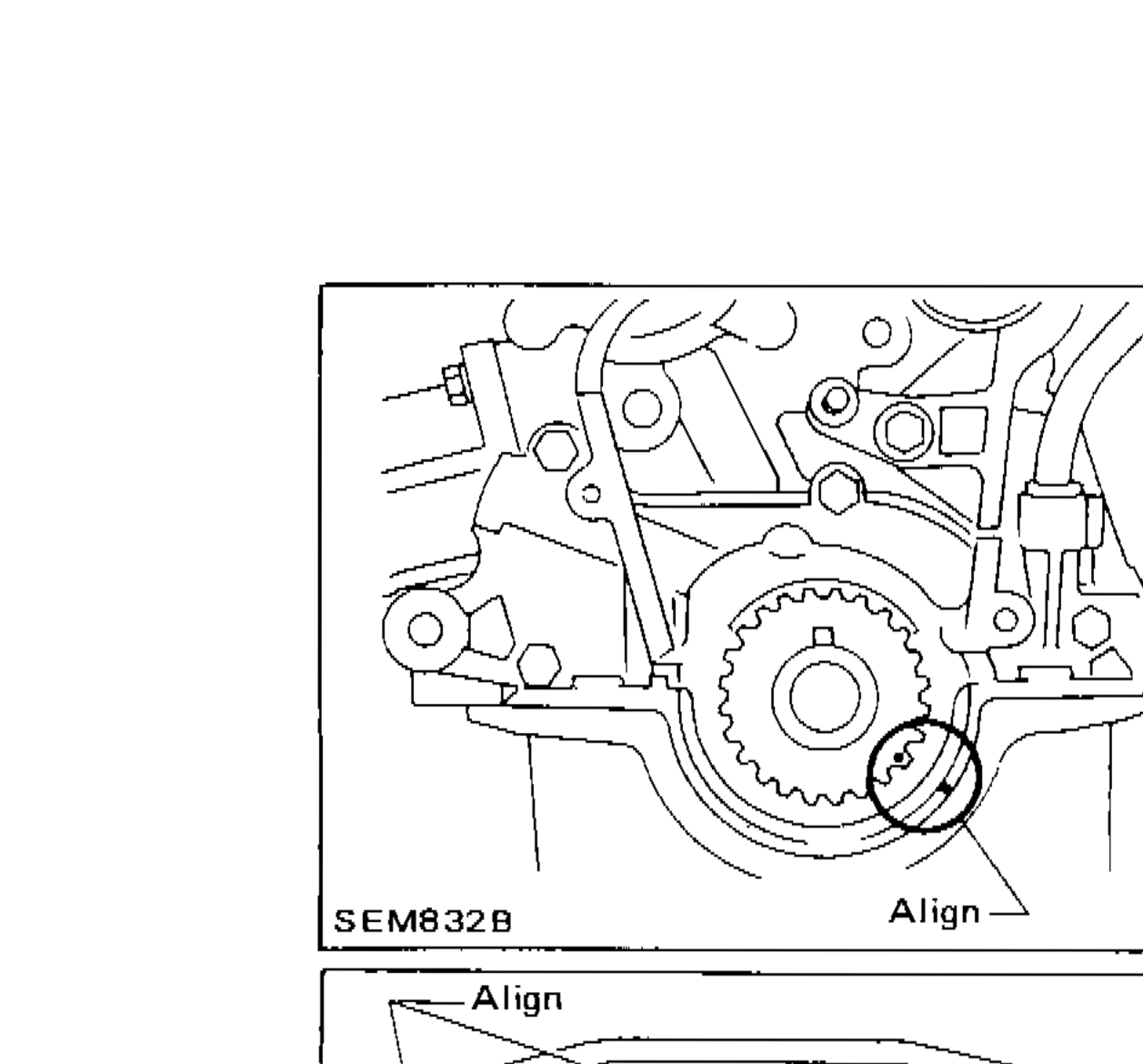

    (1) Align crankshaft sprocket aligning mark with mark on oil pump body.
    Crankshaft sprocket aligning mark aligned with mark on oil pump body, with 'Align' callout arrow
    SEM832B
  3. 1-2

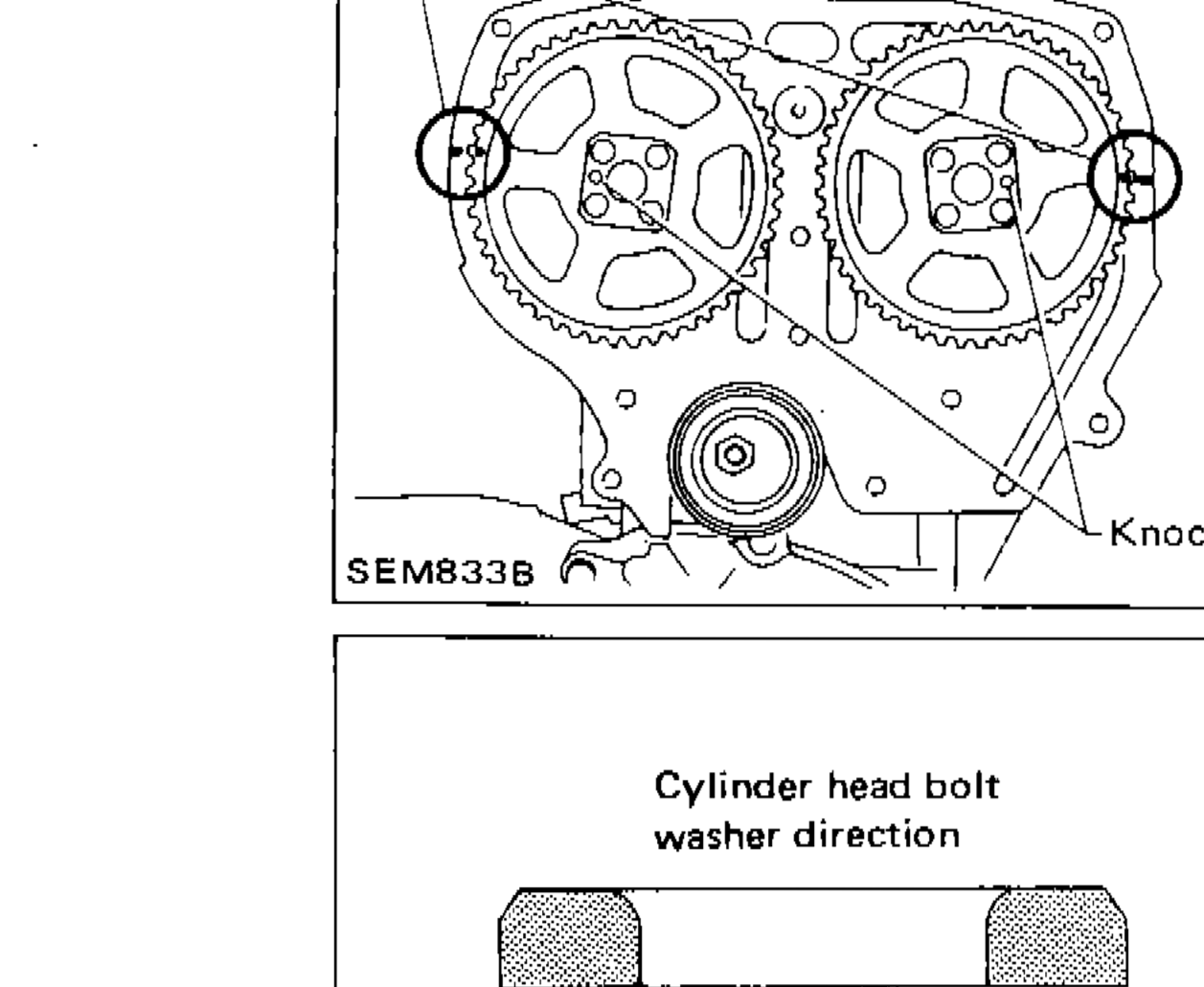

    (2) Align camshaft sprocket aligning mark with mark on timing belt rear cover.
    Camshaft sprocket aligning marks aligned with marks on timing belt rear cover, with 'Align' and 'Knock pin' callouts
    SEM833B
  4. 2
    Install cylinder head with new gasket.
    Do not rotate crankshaft and camshaft separately, or valves will hit piston heads.
    Be sure to install washers between bolts and cylinder head.
    Cylinder head bolt washer direction diagram showing washer orientation relative to cylinder head side
    SEM555B
Continue to EM-27
