REMOVAL AND INSTALLATION
MT-5prose procedureM/T (Manual Transmission) specific. Bolt legend distinguishes M/T to engine bolts (circle with dot symbol) and Engine gusset to M/T bolts (circle with X symbol).
Removal

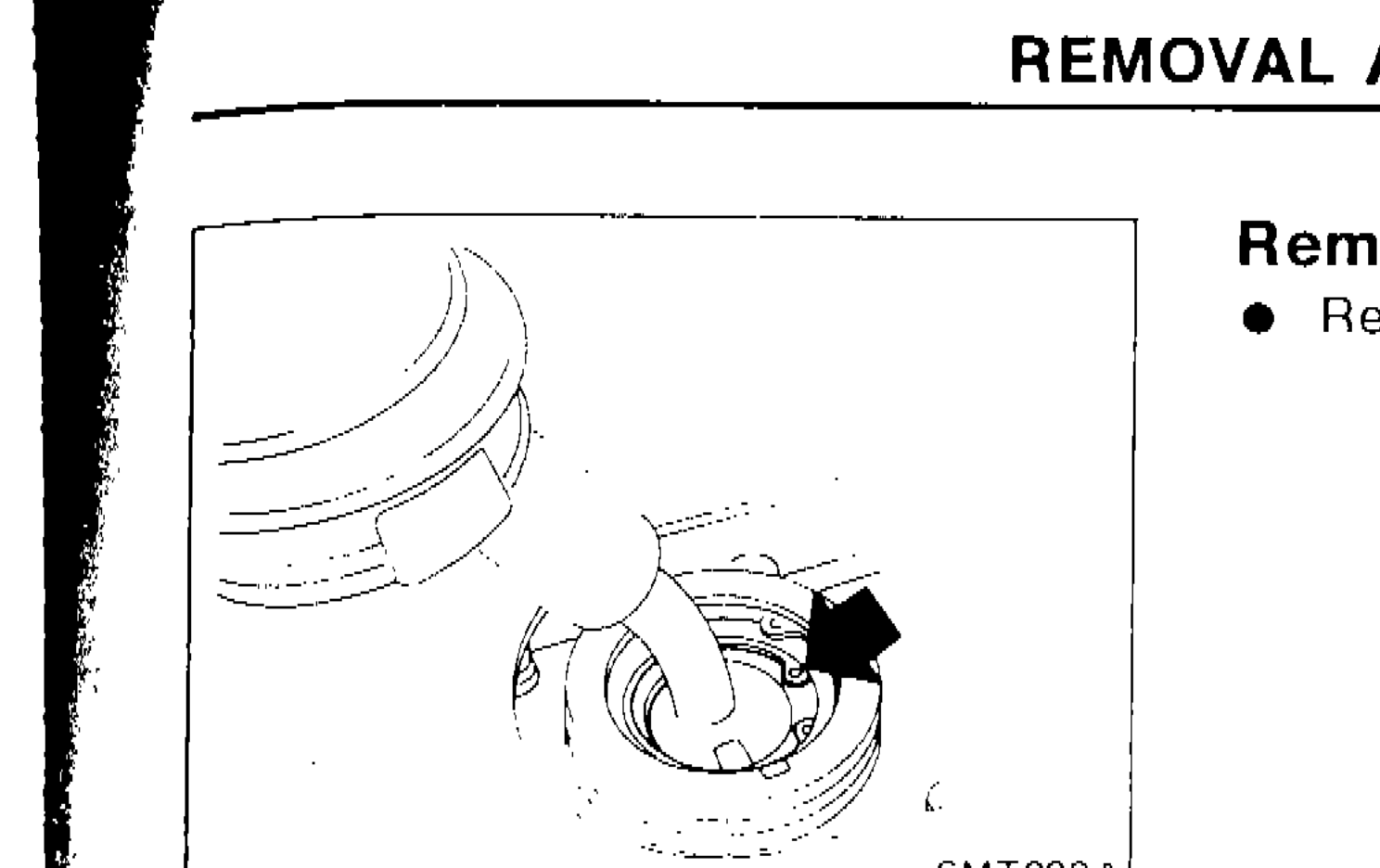

- 1Remove shift lever.

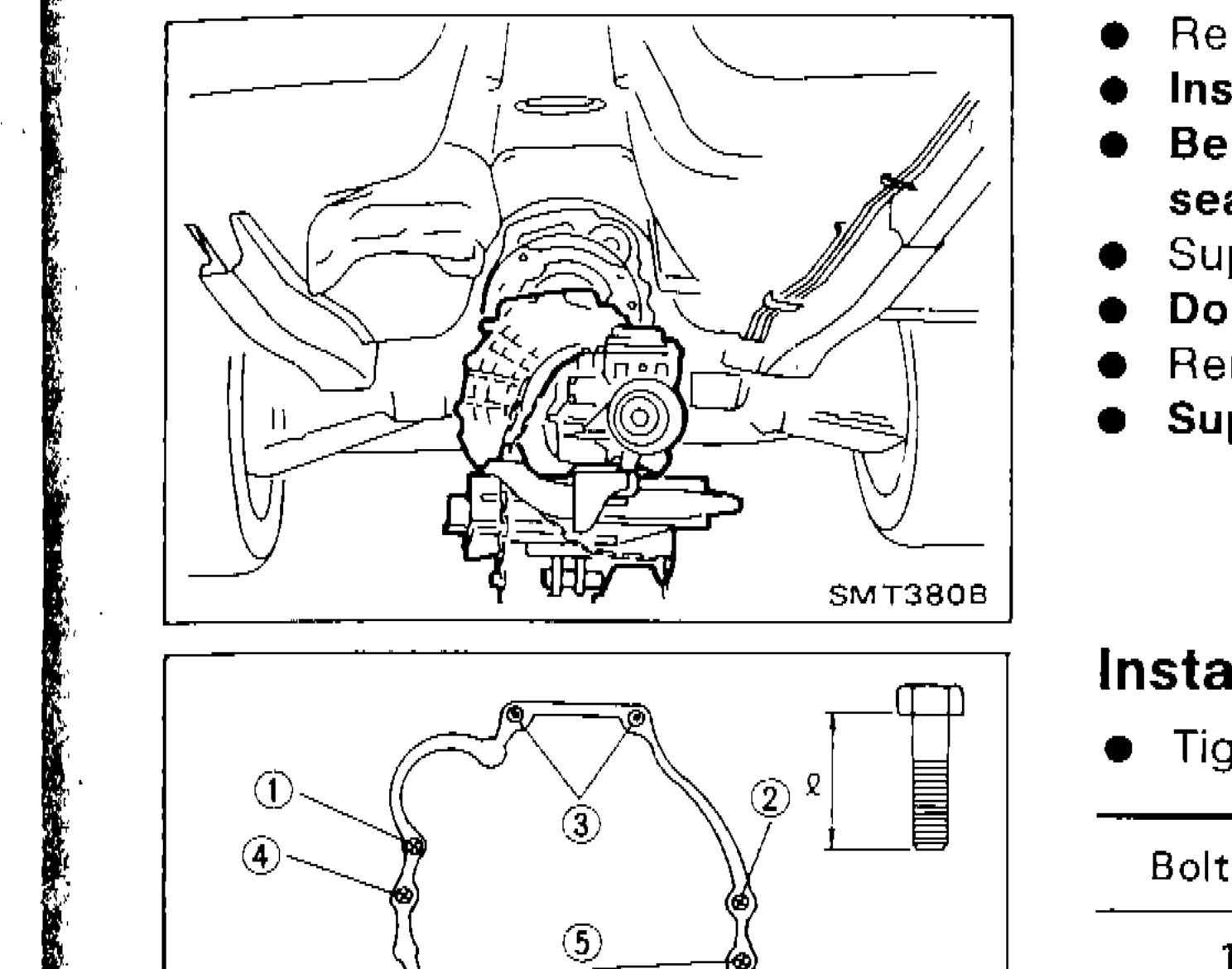

SMT099A - 2Remove propeller shaft. — Refer to section PD.
SMT380B - 3Insert plug into rear oil seal after removing propeller shaft.Insert plug into rear oil seal after removing propeller shaft.
- 4Be careful not to damage spline, sleeve yoke and rear oil seal, when removing propeller shaft.Be careful not to damage spline, sleeve yoke and rear oil seal, when removing propeller shaft.
- 5Support engine by placing a jack under oil pan.
- 6Do not place jack under oil pan drain plug.Do not place jack under oil pan drain plug.
- 7Remove transmission from engine.
- 8Support manual transmission, while removing it.Support manual transmission, while removing it.
Installation
- 1Tighten all transmission bolts.
SMT452B
Transmission Bolt Tightening Torques
| Bolt No. | Tightening torque N·m (kg-m, ft-lb) | ℓ mm (in) |
|---|---|---|
| 1 | 39 - 49 (4.0 - 5.0, 29 - 36) | 80 (3.15) |
| 2 | 39 - 49 (4.0 - 5.0, 29 - 36) | 75 (2.95) |
| 3 | 39 - 49 (4.0 - 5.0, 29 - 36) | 65 (2.56) |
| 4 | 29 - 39 (3.0 - 4.0, 22 - 29) | 40 (1.57) |
| 5 | 29 - 39 (3.0 - 4.0, 22 - 29) | 25 (0.98) |
| Gusset to engine | 29 - 39 (3.0 - 4.0, 22 - 29) | 20 (0.79) |
1
Tightening torque N·m (kg-m, ft-lb)39 - 49 (4.0 - 5.0, 29 - 36)
ℓ mm (in)80 (3.15)
2
Tightening torque N·m (kg-m, ft-lb)39 - 49 (4.0 - 5.0, 29 - 36)
ℓ mm (in)75 (2.95)
3
Tightening torque N·m (kg-m, ft-lb)39 - 49 (4.0 - 5.0, 29 - 36)
ℓ mm (in)65 (2.56)
4
Tightening torque N·m (kg-m, ft-lb)29 - 39 (3.0 - 4.0, 22 - 29)
ℓ mm (in)40 (1.57)
5
Tightening torque N·m (kg-m, ft-lb)29 - 39 (3.0 - 4.0, 22 - 29)
ℓ mm (in)25 (0.98)
Gusset to engine
Tightening torque N·m (kg-m, ft-lb)29 - 39 (3.0 - 4.0, 22 - 29)
ℓ mm (in)20 (0.79)
Parts DiagramFig. fig3
| # | Part Name | Notes / Torque |
|---|---|---|
| 1 | M/T to engine bolt position 1 | M/T to engine |
| 2 | M/T to engine bolt position 2 | M/T to engine |
| 3 | M/T to engine bolt position 3 | M/T to engine |
| 4 | M/T to engine bolt position 4 | M/T to engine |
| 5 | M/T to engine bolt position 5 | M/T to engine |
| — | Engine (gusset) to M/T | Gusset bolt location |
