S13S13

Assembly — Shift Control Components (Cont'd)

MT-24prose procedure
Continued from MT-23

Shift Control Components (Cont'd)

  1. b

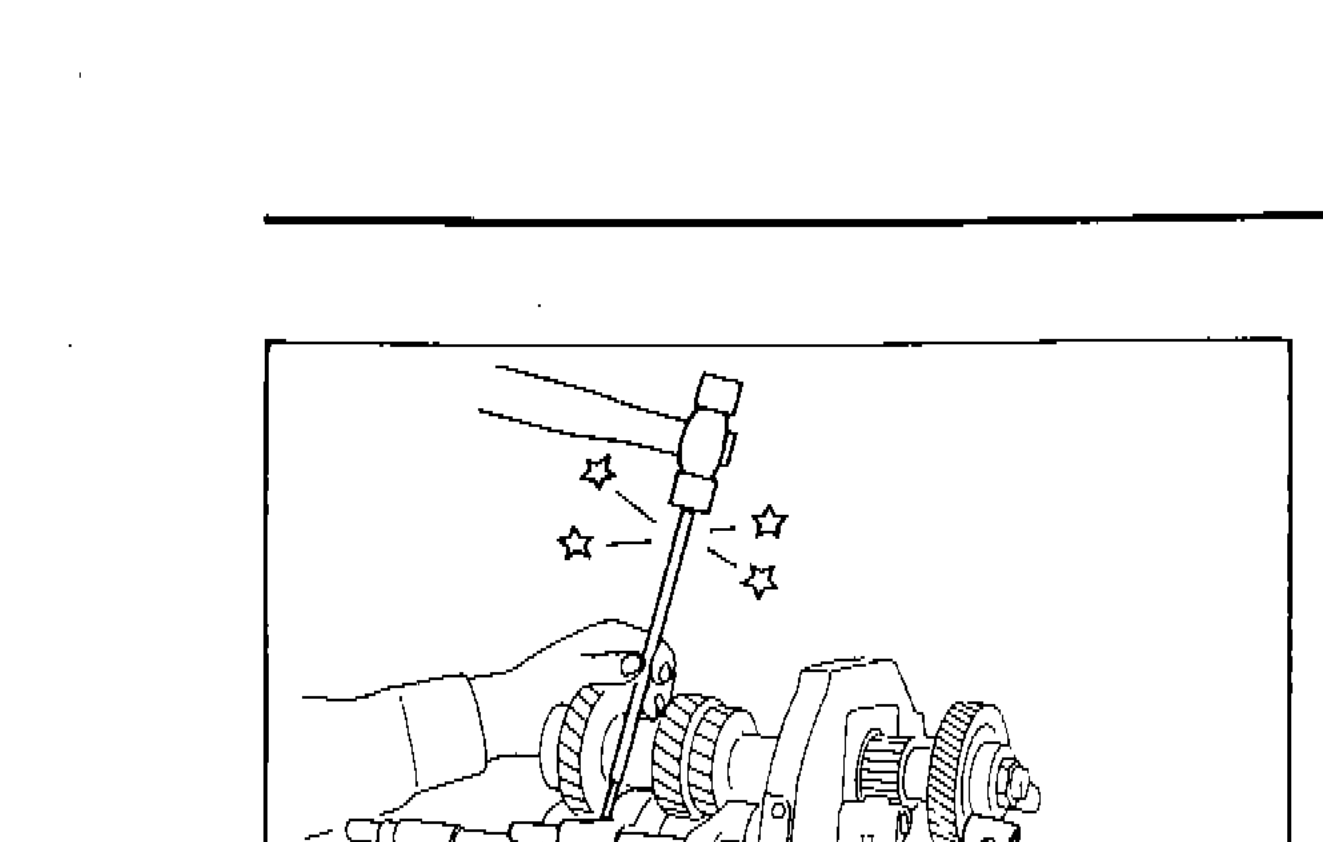

    3rd-4th shift fork
    3rd-4th shift fork installation, showing fork positioning with star callouts indicating key points
    SMT990
  2. c

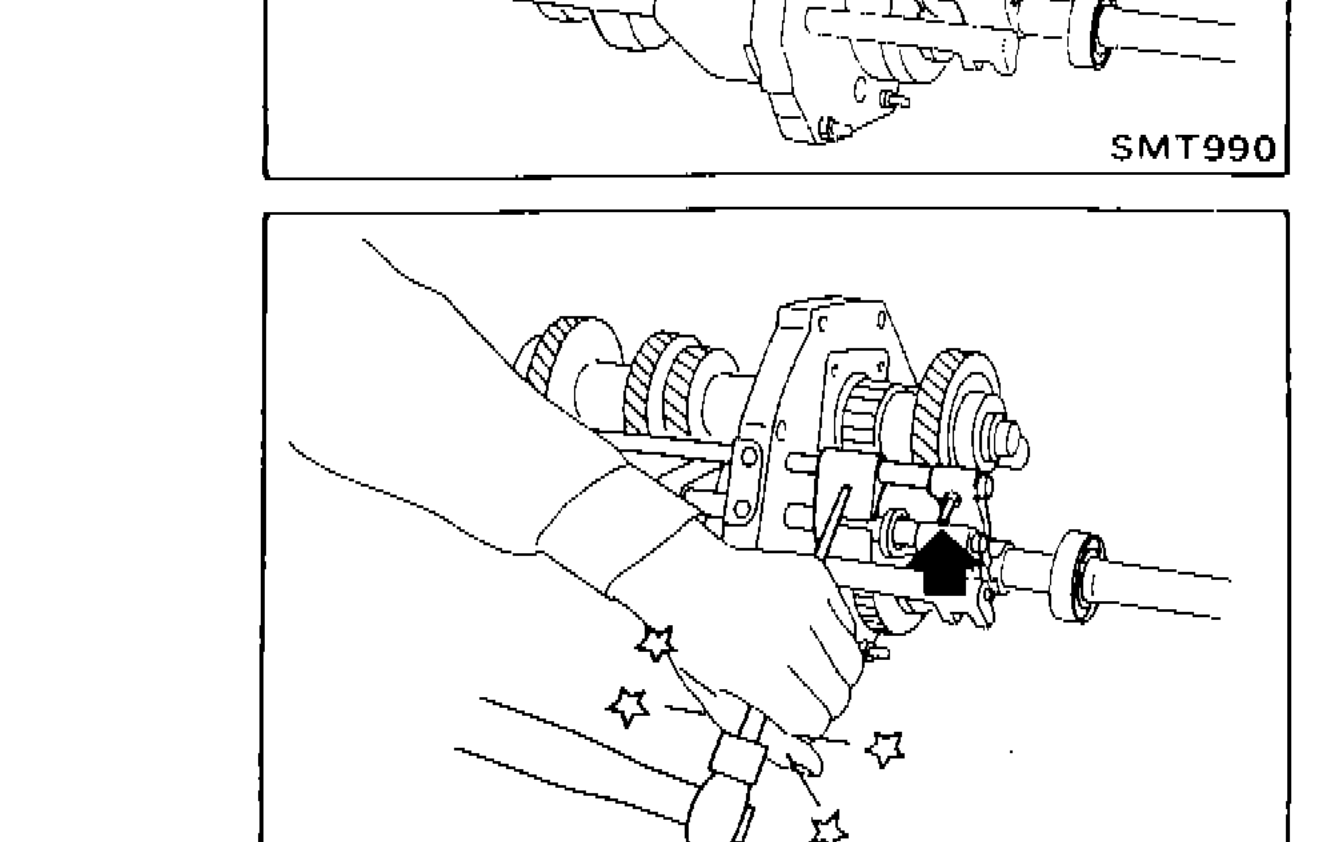

    O.D.-reverse shift fork or reverse shift fork.
    O.D.-reverse shift fork or reverse shift fork installation, with star callouts indicating key points
    SMT991
  3. 2

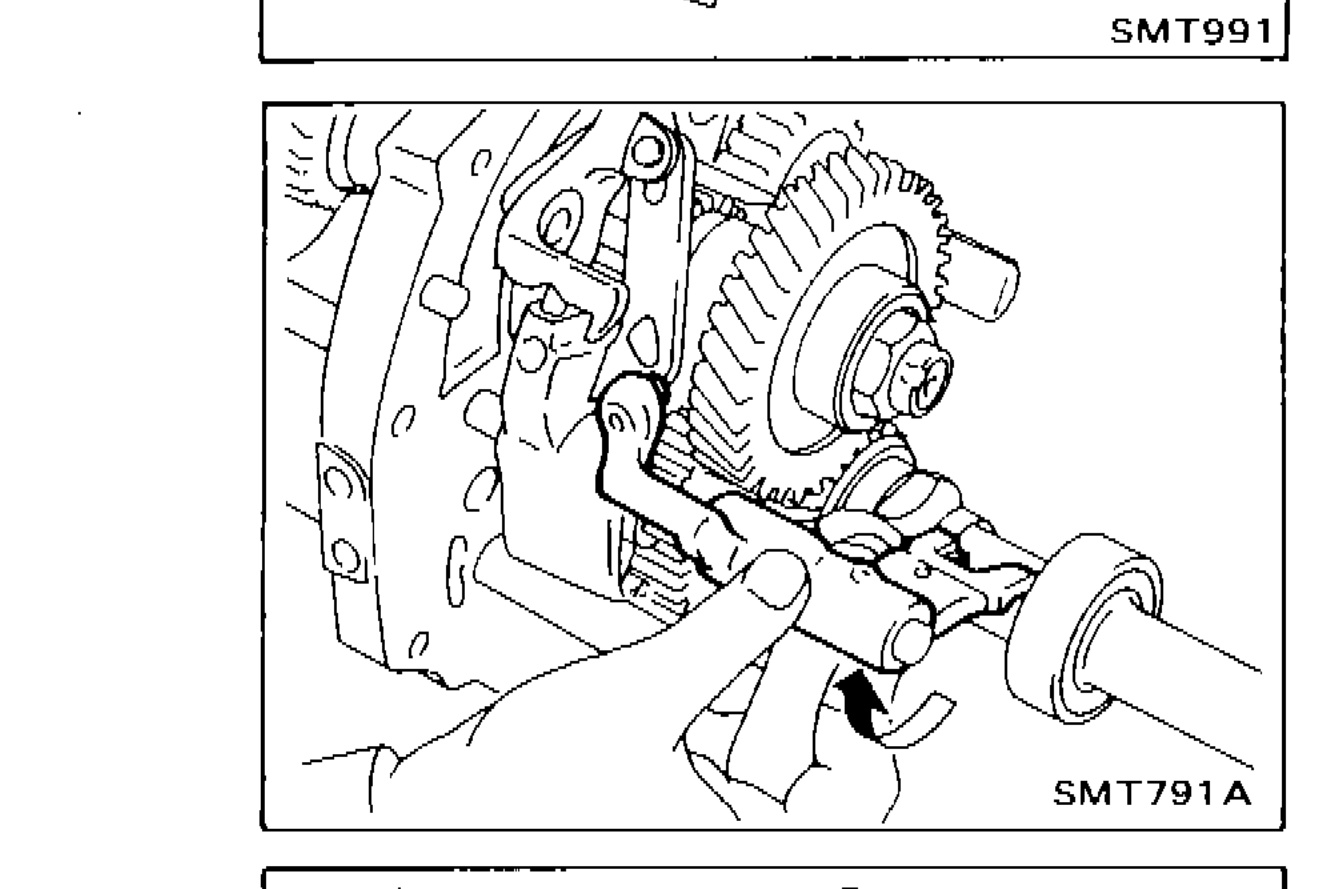

    Install O.D. and reverse fork shaft by rotating O.D. and reverse bracket clockwise.
    Installing O.D. and reverse fork shaft by rotating O.D. and reverse bracket clockwise
    SMT791A
  4. 3

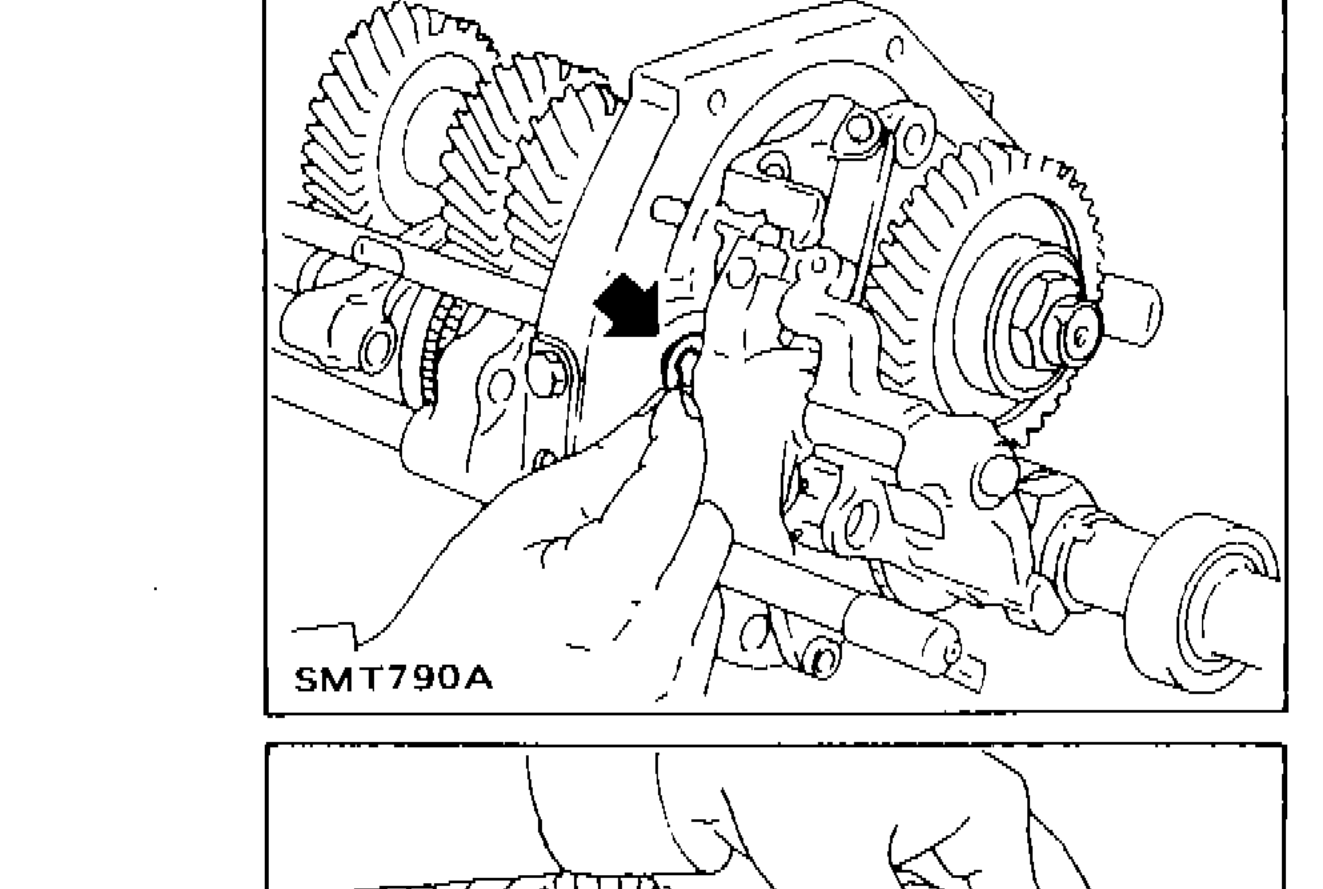

    Install E-ring on O.D. and reverse fork rod.
    Installing E-ring on O.D. and reverse fork rod, arrow pointing to E-ring location
    SMT790A
  5. 4

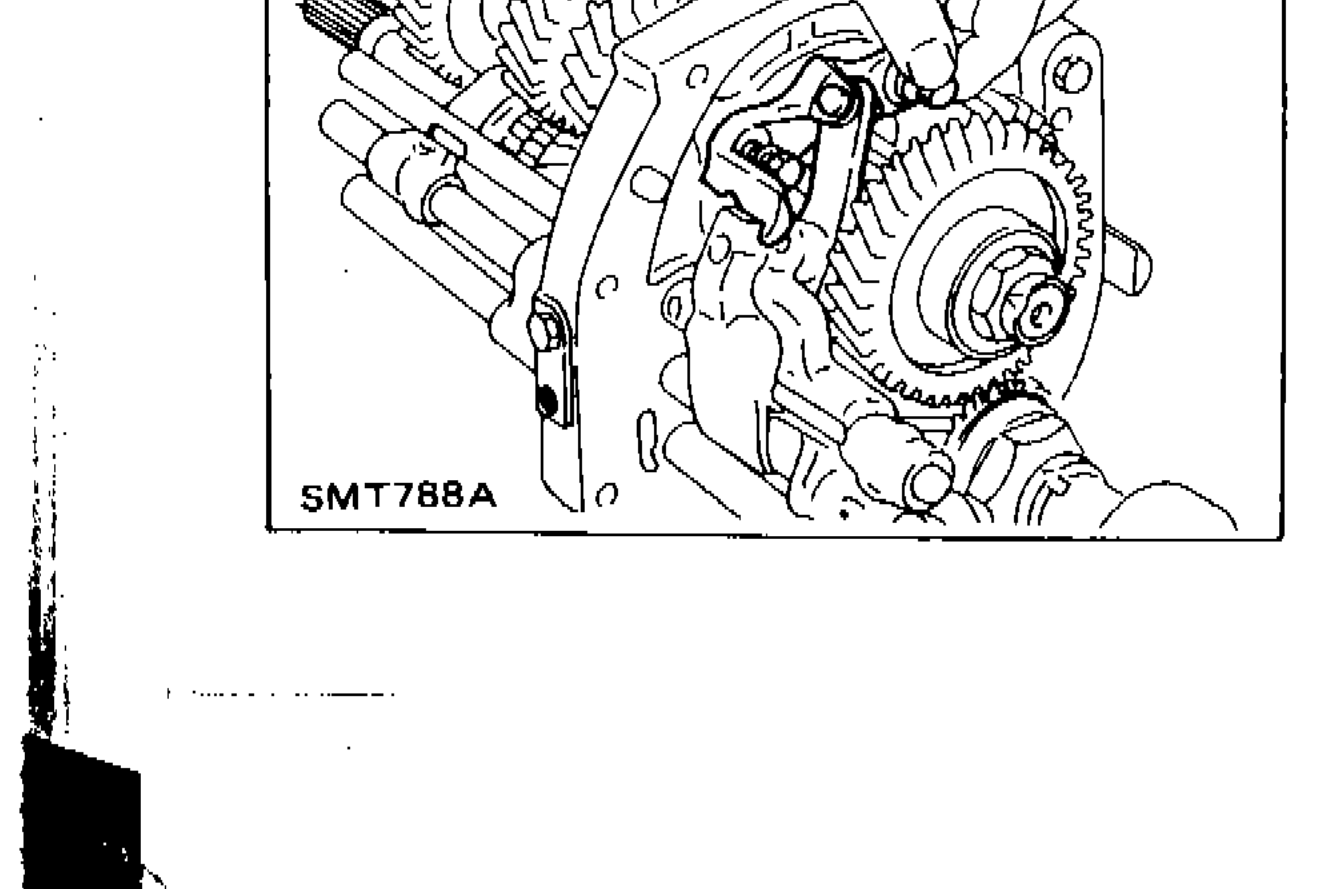

    Install lever bracket securing bolt.
    Installing lever bracket securing bolt
    SMT788A
Continue to MT-25
