ASSEMBLY — Gear Components

MT-17prose procedure
Continued from MT-16

Gear Components

Gear Components Assembly

  1. 1
    Install bearings into case components.

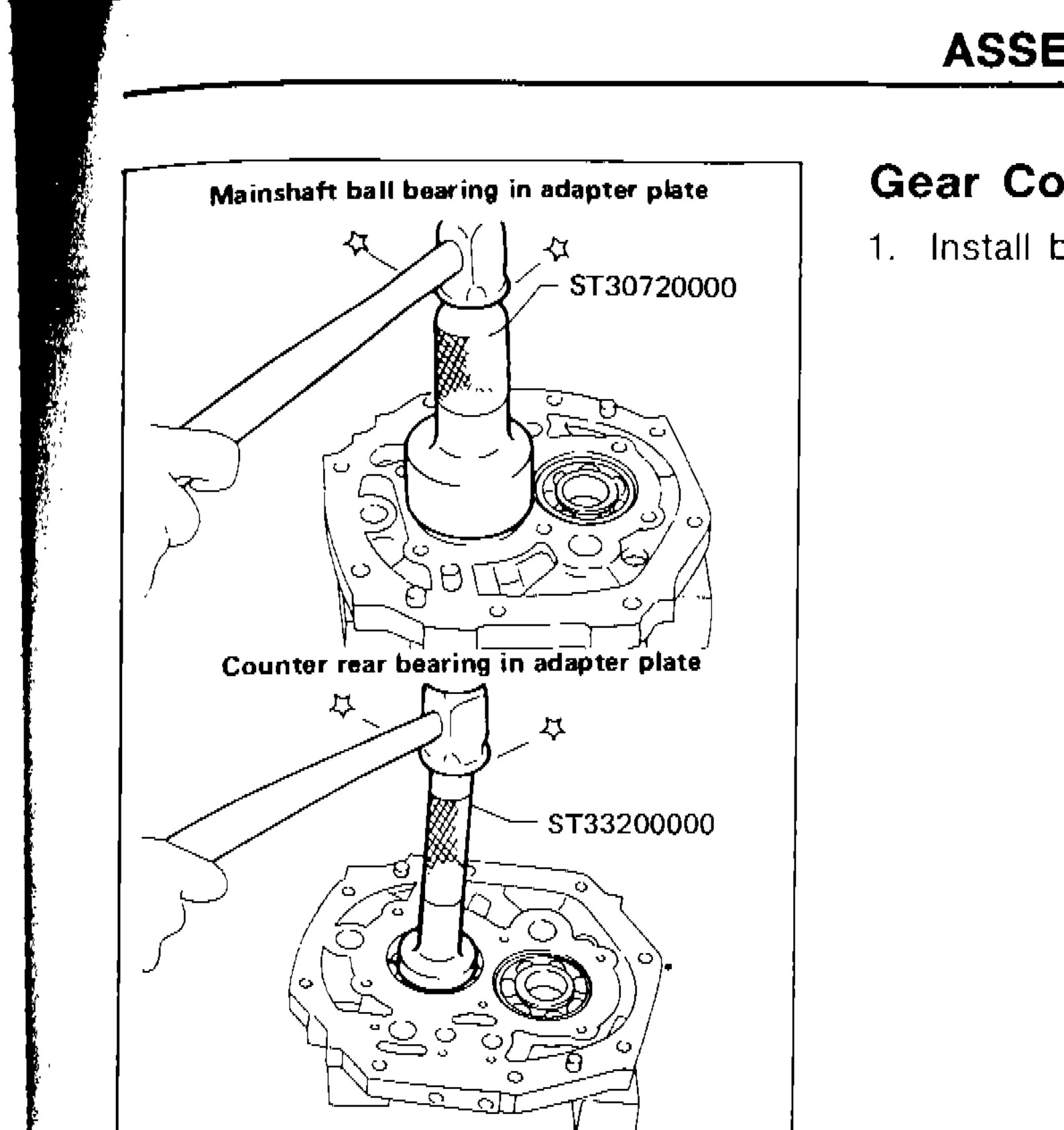

    Two-panel illustration showing mainshaft ball bearing being installed into adapter plate using tool ST30720000 (top), and counter rear bearing being installed into adapter plate using tool ST33200000 (bottom).
    SMT429B
  2. 2

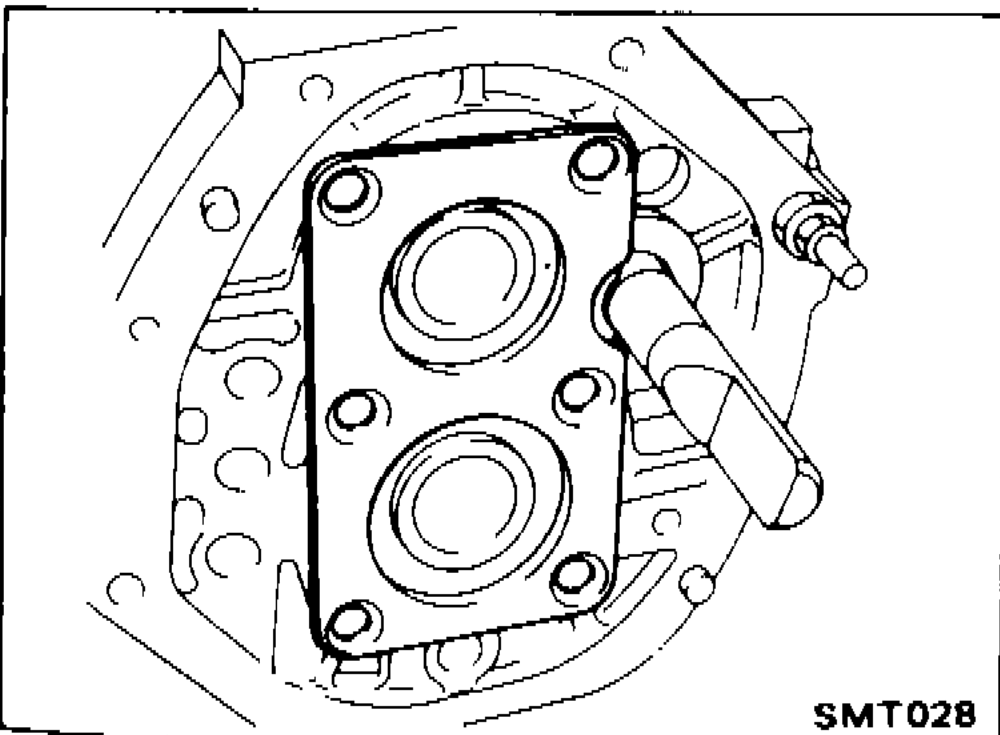

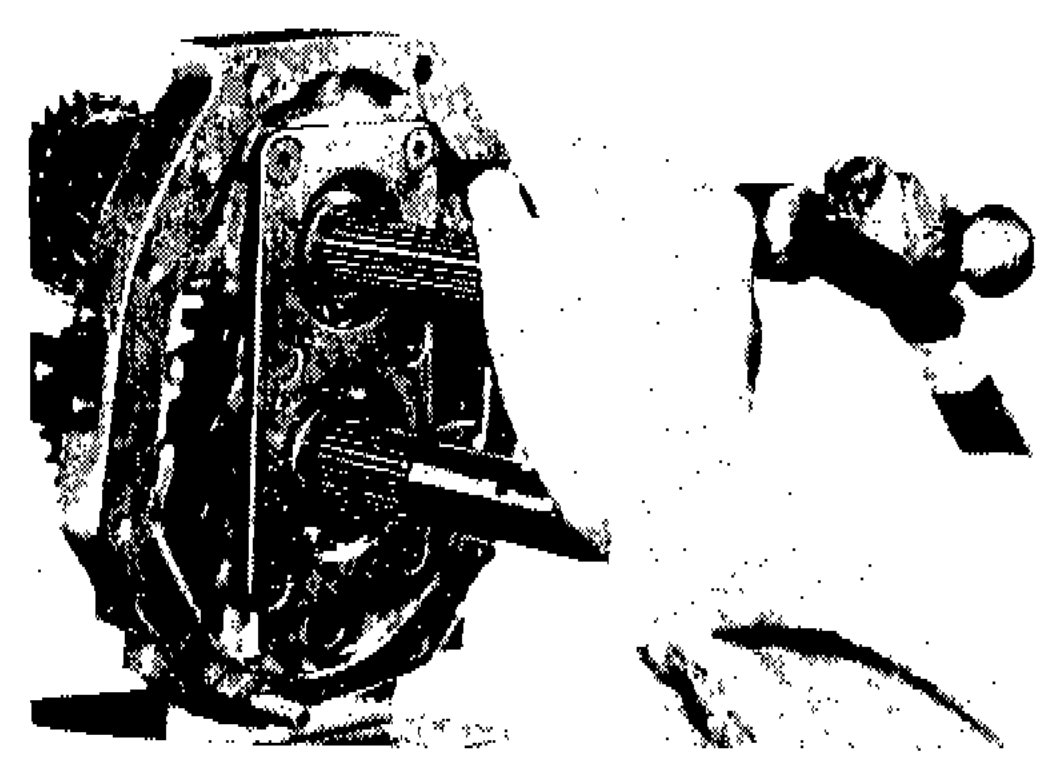

    Assemble adapter plate parts.

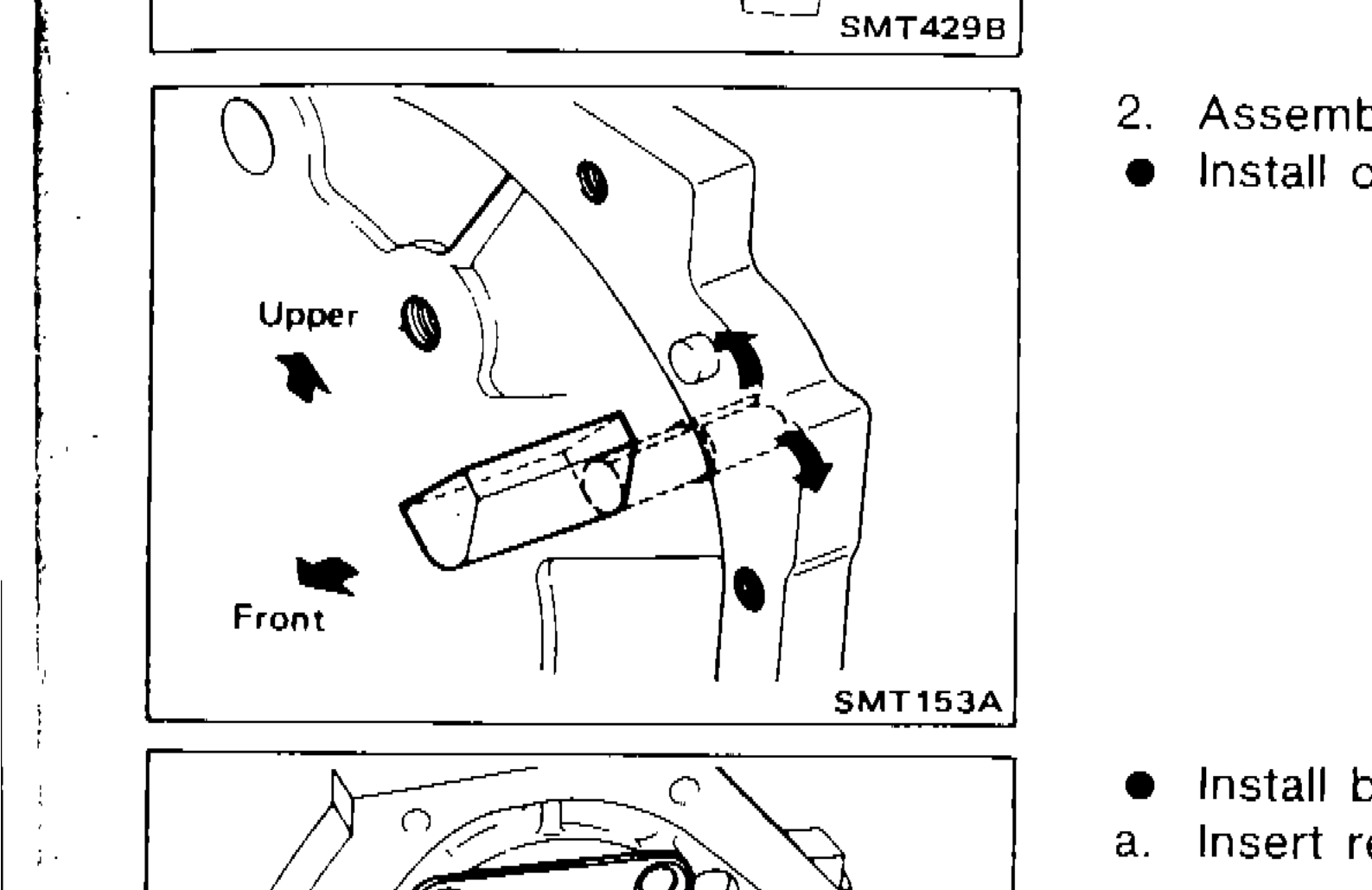

    Illustration showing oil gutter installation on adapter plate, with Upper and Front orientation callouts.
    SMT153A
