Assembly — Gear Components (Cont'd)

MT-22prose procedure
Continued from MT-21

Gear Components (Cont'd)

Gear Components Assembly (Continued)

  1. 7
    Install rear side components on mainshaft and counter gear.
  2. 7a
    Install reverse idler gear to reverse idler shaft with spacers, snap rings and needle bearing.

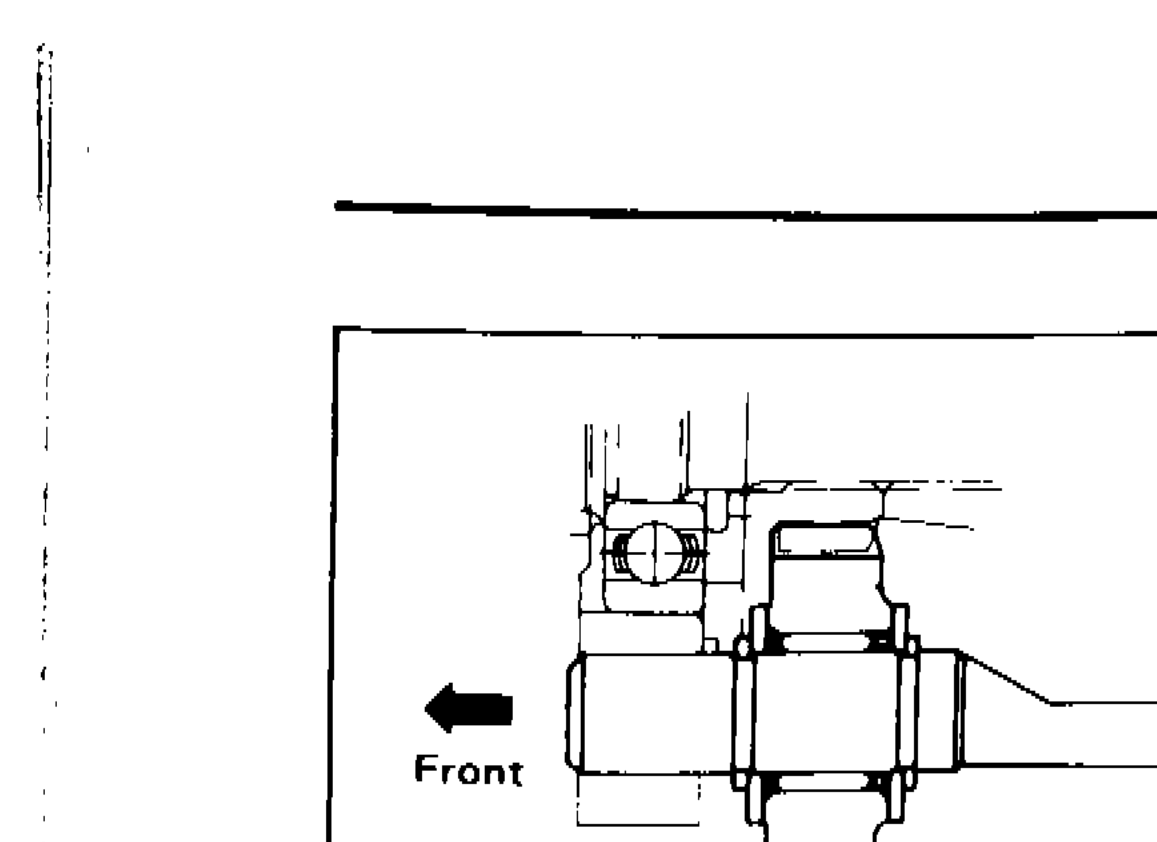

    Reverse idler gear installed on reverse idler shaft with spacers, snap rings and needle bearing, arrow indicating front direction
    TM451
  3. 7b
    Install insert retainer and O.D. synchronizer to mainshaft.
    Pay attention to direction of hub.

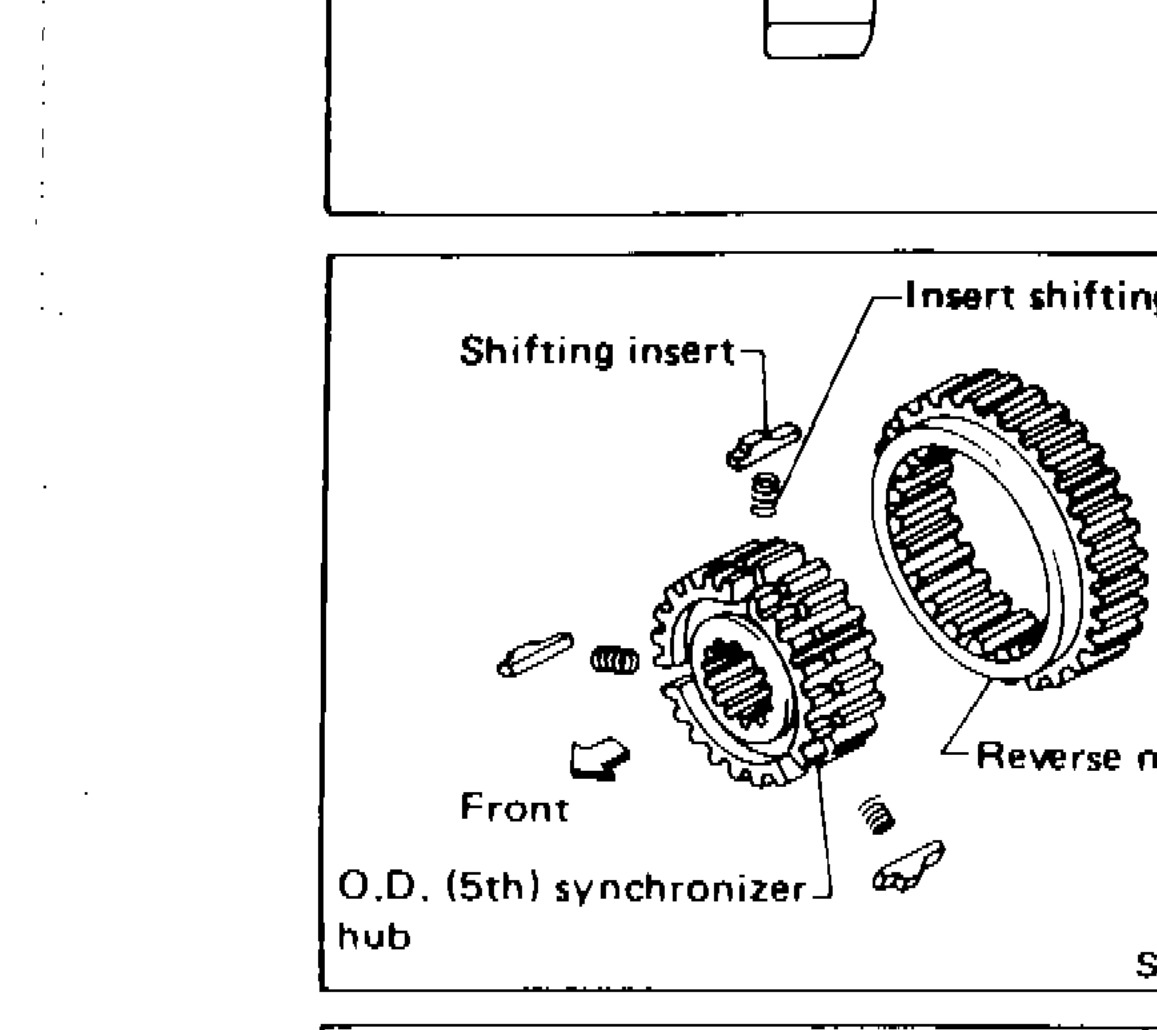

    O.D. (5th) synchronizer hub assembly showing shifting insert, insert shifting spring, reverse main gear, and front direction label
    SMT095A
  4. 7c
    Install O.D. gear bushing with Tool.

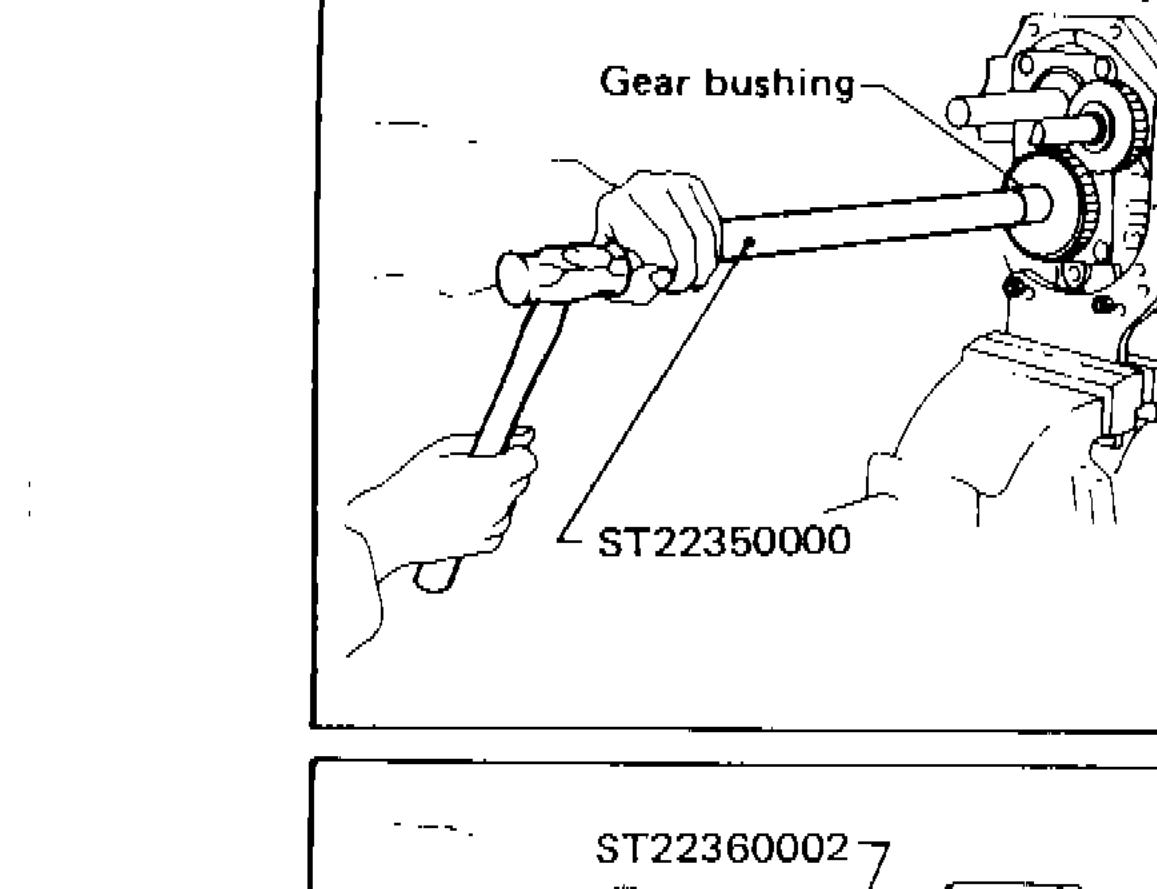

    Installation of O.D. gear bushing using tool ST22350000
    SMT531
  5. 7d
    Install O.D. main gear and needle bearing.
  6. 7e
    Install spacer, reverse counter gear and O.D. counter gear.
    O.D. main gear and O.D. counter gear should be handled as a matched set.
  7. 7f
    Install washer, roller bearing, steel roller and thrust washer.
  8. 7g
    Tighten mainshaft lock nut temporarily.
    Always use new lock nut.
  9. 7h
    Install countershaft rear end bearing with Tool.

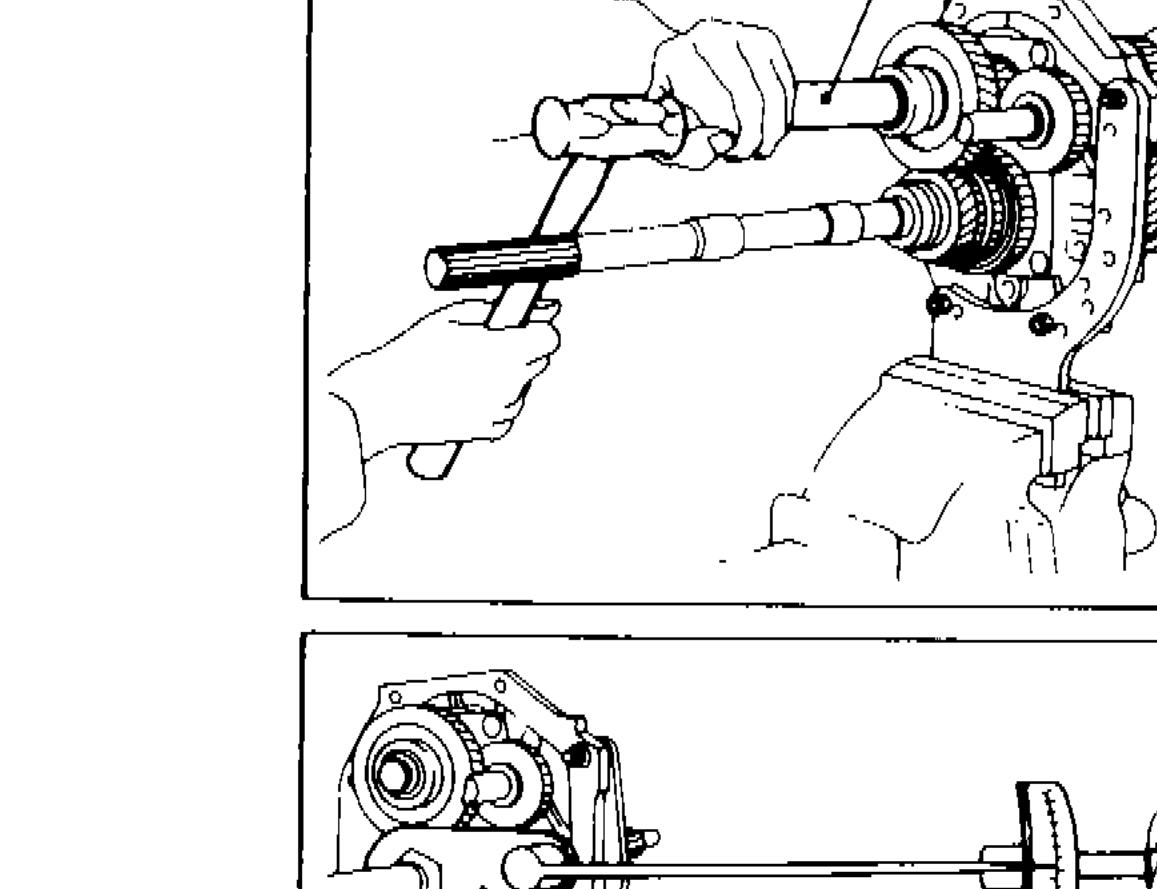

    Installation of countershaft rear end bearing using tool ST22360002
    SMT043
  10. 8
    Mesh 2nd and reverse gears, then tighten mainshaft lock nut with Tool.
    Meshing 2nd and reverse gears then tightening mainshaft lock nut with tool ST22520000
    SMT003A
Continue to MT-23
