ASSEMBLY — Case Components

MT-25prose procedure
Continued from MT-24

Case Components

  1. 1

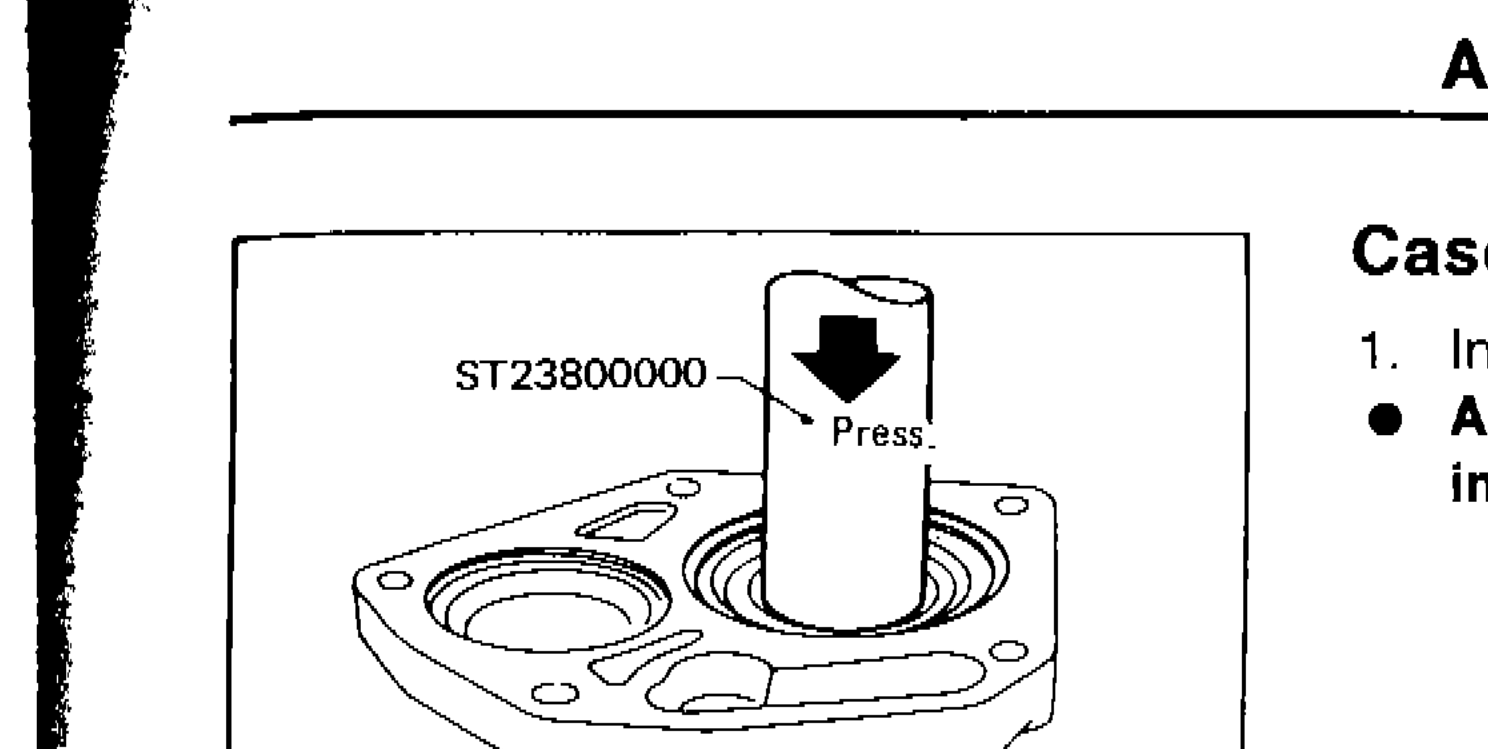

    Install front cover oil seal.
    Apply multi-purpose grease to seal lip of oil seal before installing.
    ST23800000 tool pressing front cover oil seal into front cover
    SMT036
  2. 2

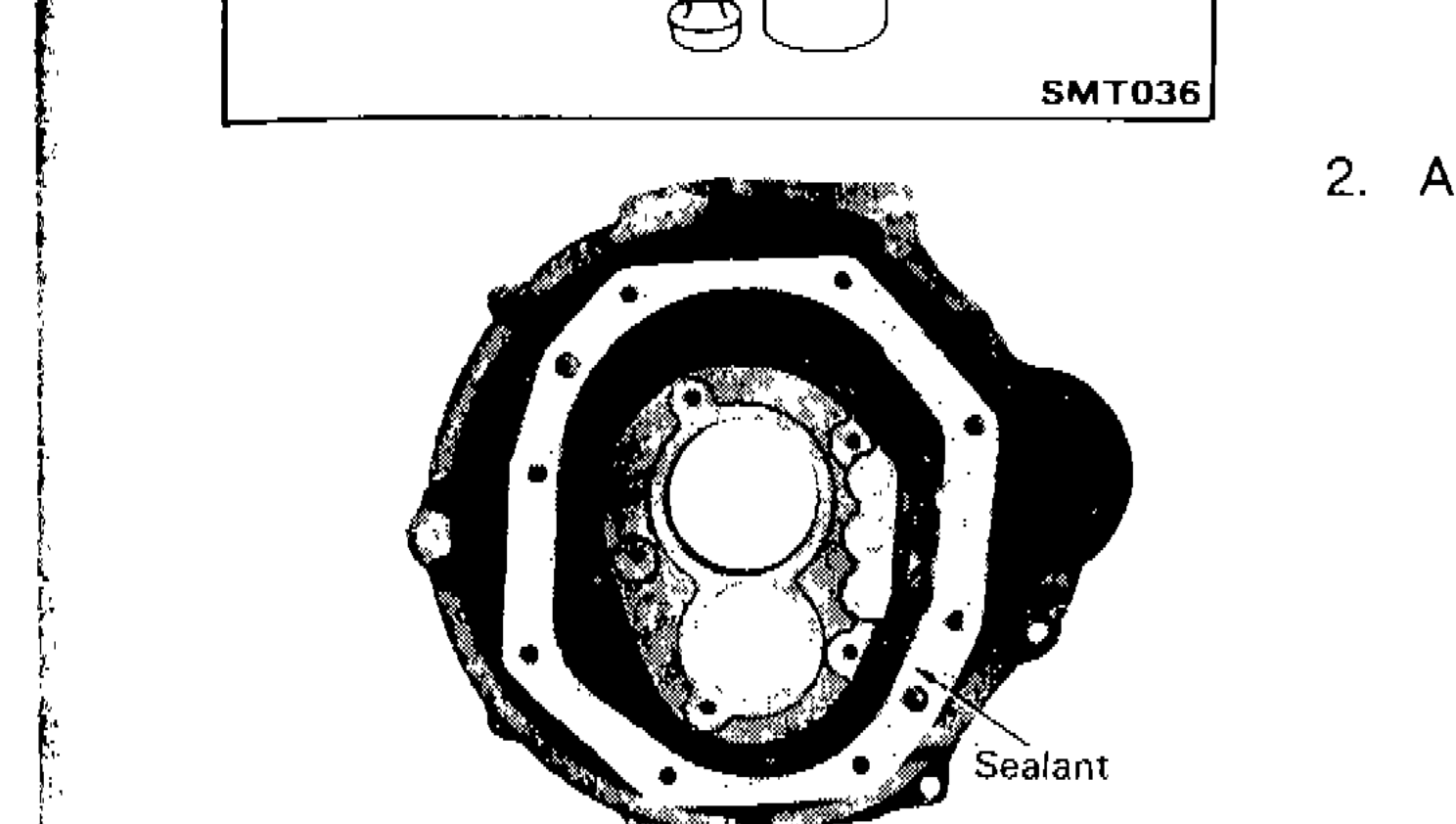

    Apply sealant to mating surface of transmission case.
    Transmission case mating surface with sealant applied around perimeter
  3. 3

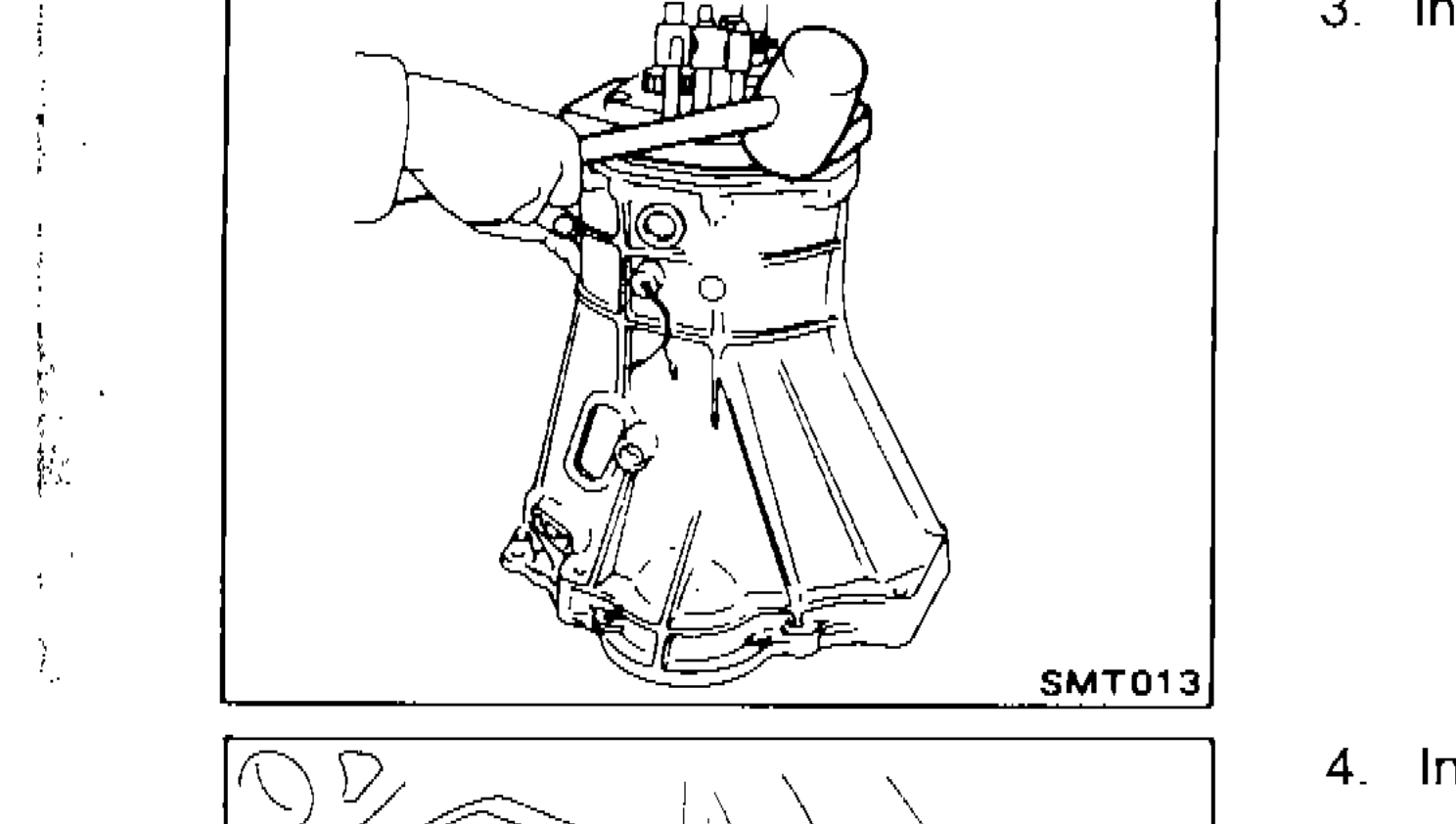

    Install gear assembly onto transmission case.
    Gear assembly being installed onto transmission case
    SMT013
  4. 4

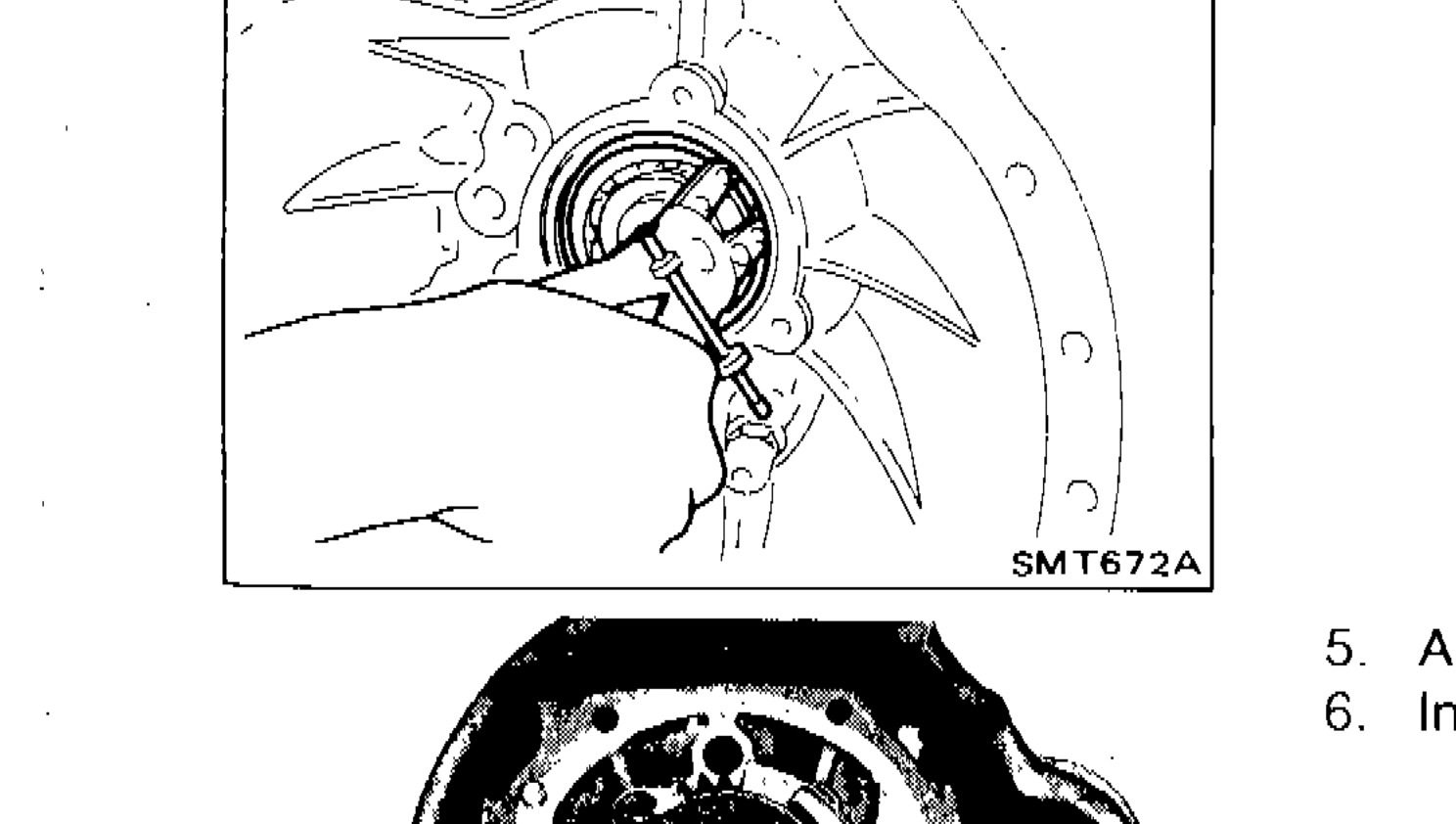

    Install snap ring of main drive bearing.
    Snap ring of main drive bearing being installed
    SMT672A
  5. 5

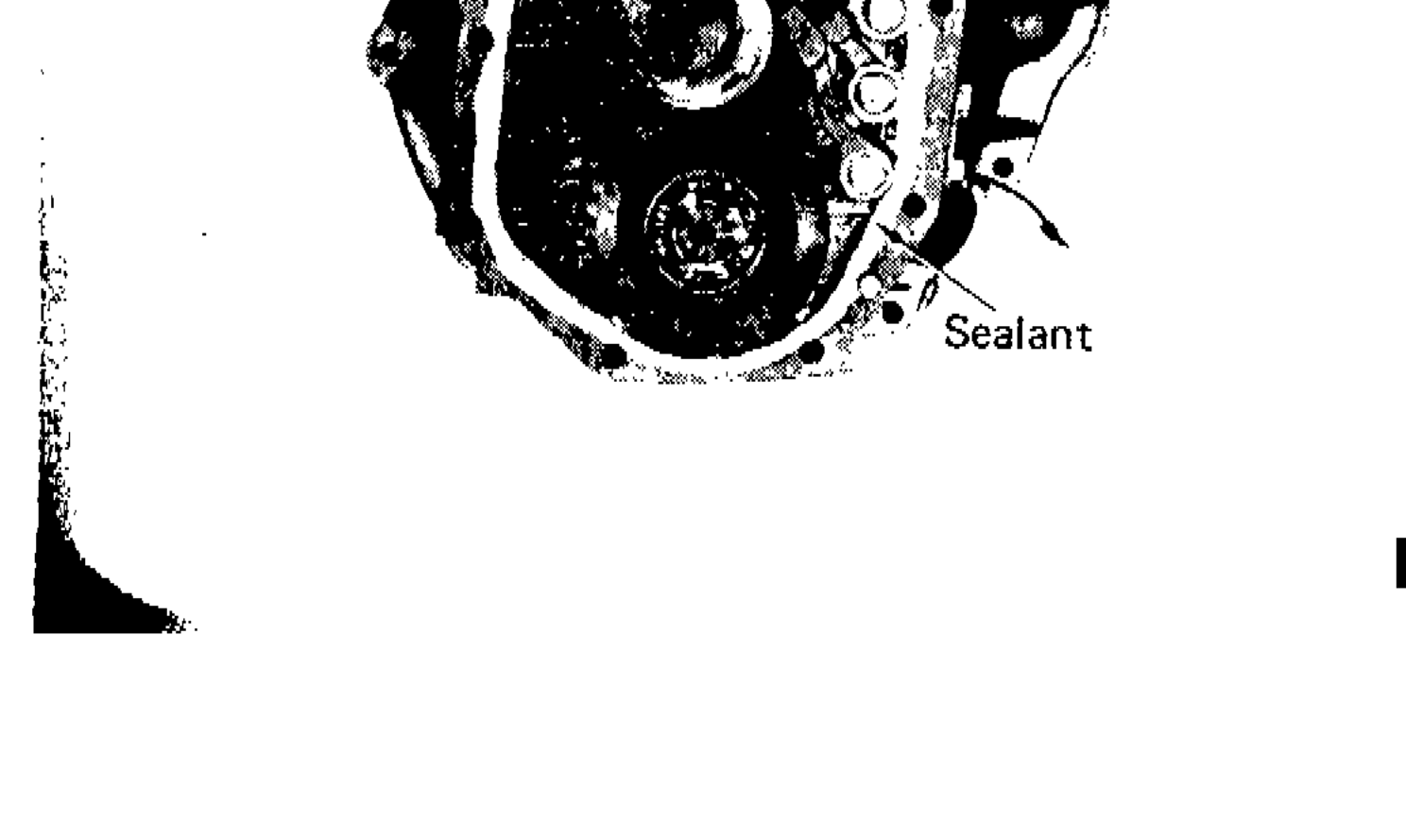

    Apply sealant to mating surface of adapter plate.
    Adapter plate mating surface with sealant applied, rear extension installation
  6. 6
    Install rear extension.
    Adapter plate mating surface with sealant applied, rear extension installation
Continue to MT-26
