INSPECTION

MT-15prose procedure

Shift Control Components

  1. 1
    Check contact surface and sliding surface for wear, scratches, projections or other damage.

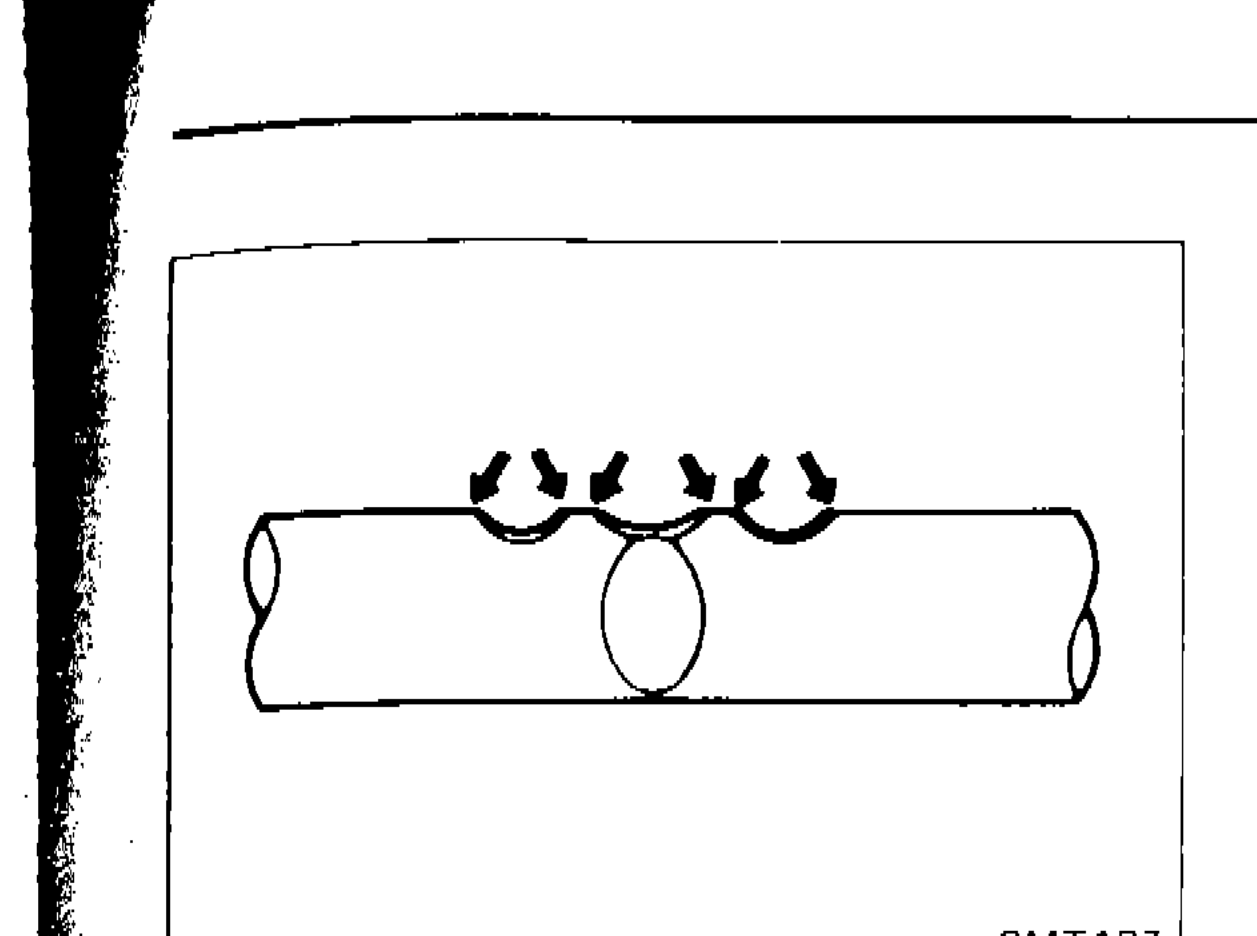

    Shift control component showing contact and sliding surfaces with arrows indicating inspection areas
    SMT137

Gear Components

Gear and Shaft

  1. 1
    Check shafts for cracks, wear or bending.

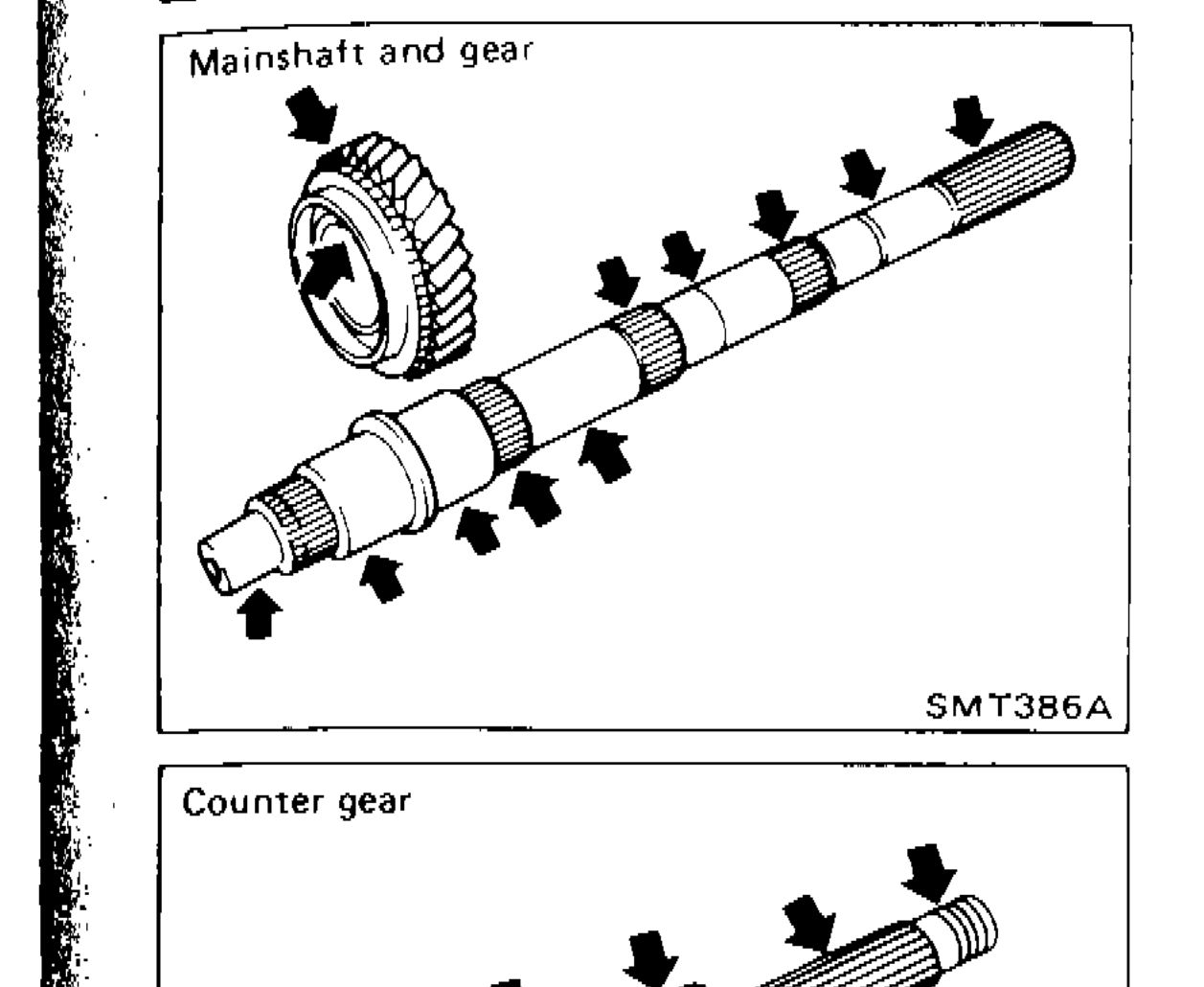

    Mainshaft and gear assembly with arrows indicating inspection points for cracks, wear or bending
    SMT386A
  2. 2
    Check gears for excessive wear, chips or cracks.

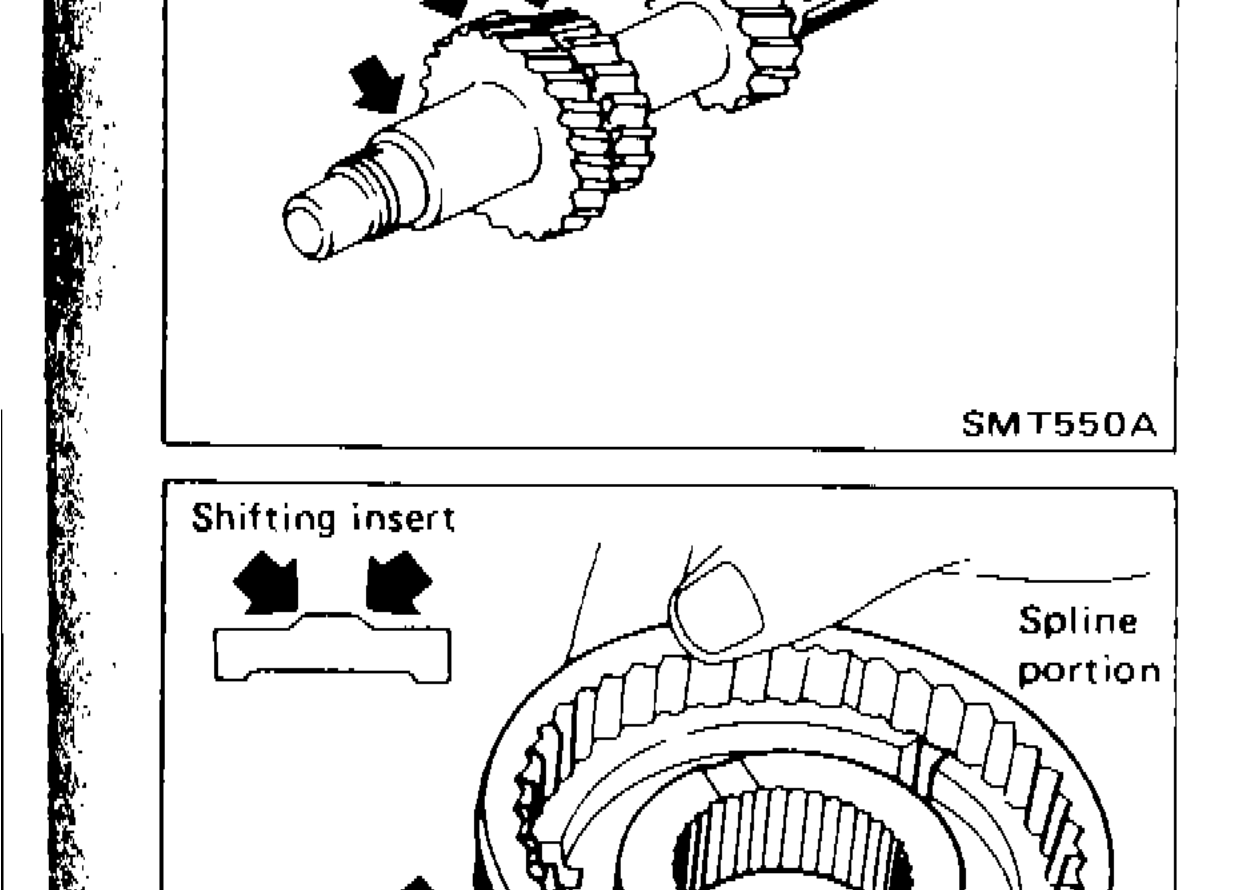

    Counter gear assembly with arrows indicating inspection points for excessive wear, chips or cracks
    SMT550A

Synchronizers

  1. 1
    Check spline portion of coupling sleeves, hubs and gears for wear or cracks.
    Synchronizer assembly showing shifting insert and spline portion with arrows indicating inspection areas
    SMT387A
  2. 2
    Check baulk rings for cracks or deformation.
    Synchronizer assembly showing shifting insert and spline portion with arrows indicating inspection areas
    SMT387A
  3. 3
    Check shifting inserts for wear or deformation.
    Synchronizer assembly showing shifting insert and spline portion with arrows indicating inspection areas
    SMT387A
  4. 4
    Check insert springs for deformation.
    Synchronizer assembly showing shifting insert and spline portion with arrows indicating inspection areas
    SMT387A
