REAR AXLE — Wheel Hub and Axle Housing
RA-9parts diagramParts marked with X symbol indicate non-reusable parts (do not reuse). Torque values shown in N·m (kg·m, ft·lb).

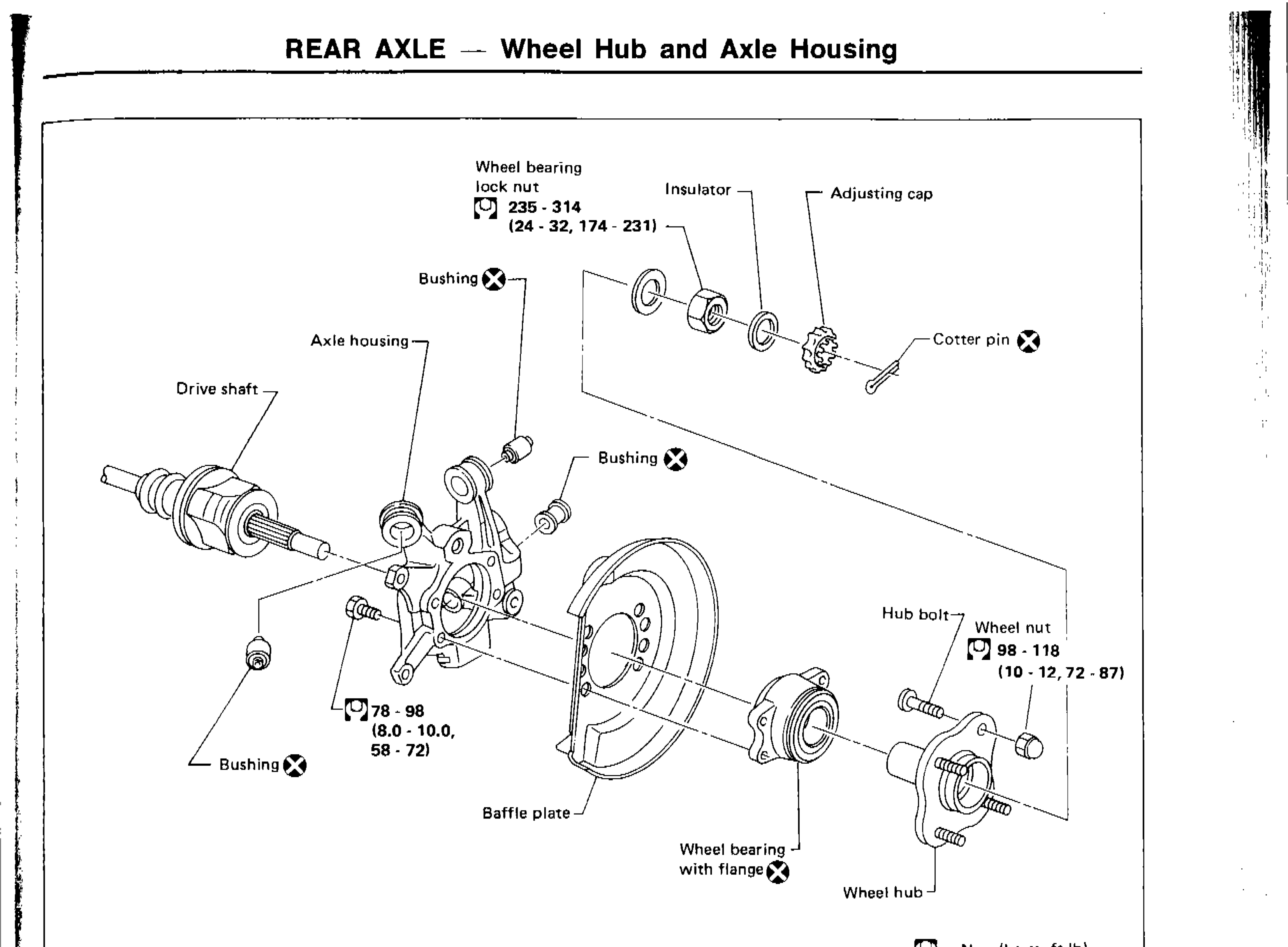

Parts DiagramFig. fig1
| # | Part Name | Notes / Torque |
|---|---|---|
| 1 | Wheel bearing lock nut | Torque: 235-314 N·m (24-32 kg·m, 174-231 ft·lb) |
| 2 | Insulator | — |
| 3 | Adjusting cap | — |
| 4 | Cotter pin | Do not reuse |
| 5 | Bushing | Do not reuse (upper, near axle housing) |
| 6 | Axle housing | — |
| 7 | Drive shaft | — |
| 8 | Bushing | Do not reuse (lower left, near drive shaft) |
| 9 | Bushing | Do not reuse (middle, near axle housing upper) |
| 10 | Baffle plate | — |
| 11 | Wheel bearing with flange | Do not reuse |
| 12 | Wheel hub | — |
| 13 | Hub bolt | — |
| 14 | Wheel nut | Torque: 98-118 N·m (10-12 kg·m, 72-87 ft·lb) |
| Specification | Value |
|---|---|
| Wheel bearing lock nut torque | 235-314N·m |
| Wheel bearing lock nut torque | 24-32kg·m |
| Wheel bearing lock nut torque | 174-231ft·lb |
| Axle housing bolt torque | 78-98N·m |
| Axle housing bolt torque | 8.0-10.0kg·m |
| Axle housing bolt torque | 58-72ft·lb |
| Wheel nut torque | 98-118N·m |
| Wheel nut torque | 10-12kg·m |
| Wheel nut torque | 72-87ft·lb |
Wheel bearing lock nut torque
235-314N·m
Wheel bearing lock nut torque
24-32kg·m
Wheel bearing lock nut torque
174-231ft·lb
Axle housing bolt torque
78-98N·m
Axle housing bolt torque
8.0-10.0kg·m
Axle housing bolt torque
58-72ft·lb
Wheel nut torque
98-118N·m
Wheel nut torque
10-12kg·m
Wheel nut torque
72-87ft·lb
Removal
- 1Remove wheel bearing lock nut.

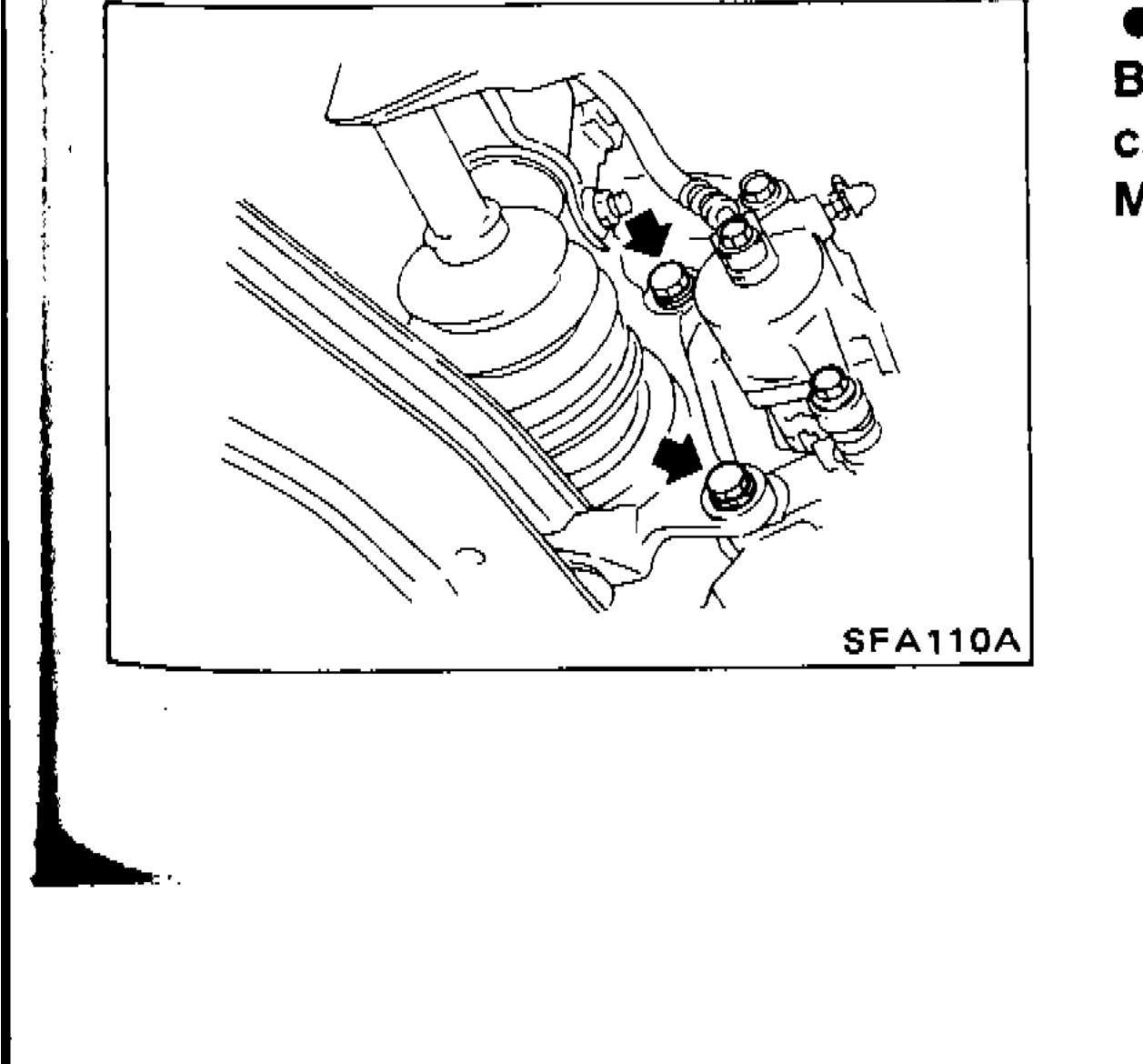

- 2Remove brake caliper assembly and rotor.Brake hose need not be disconnected from brake caliper. Be careful not to depress brake pedal, or piston will pop out. Make sure brake hose is not twisted.
SFA110A
CAUTION
Brake hose need not be disconnected from brake caliper. Be careful not to depress brake pedal, or piston will pop out. Make sure brake hose is not twisted.
NOTE
[C] : N·m (kg·m, ft·lb)
