REAR AXLE — Wheel Hub and Axle Housing
RA-10prose procedureRemoval (Cont'd)

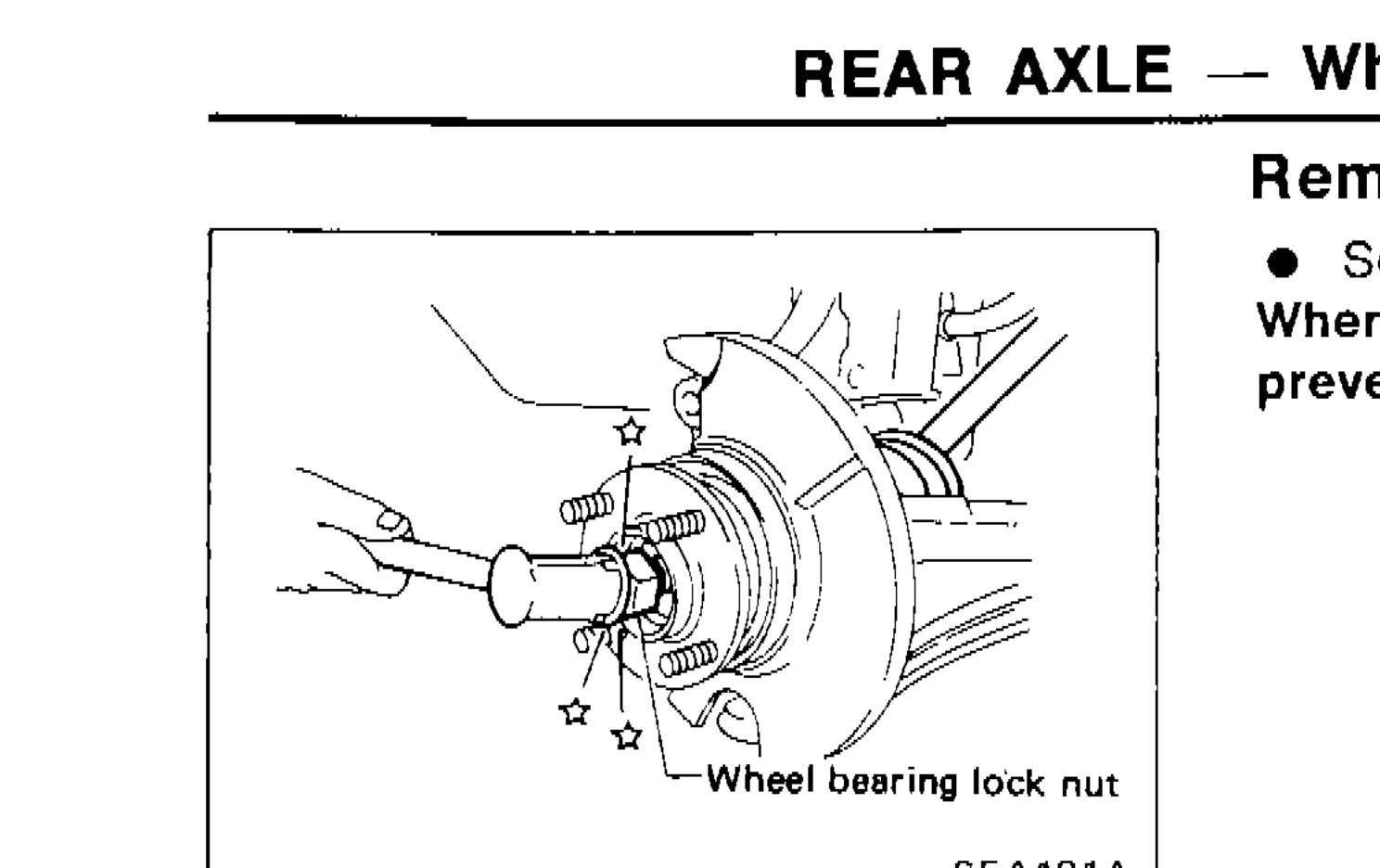

- 1Separate drive shaft from axle housing by slightly tapping it.When removing drive shaft, cover boots with waste cloth to prevent them from being damaged.
SFA181A - 2Remove axle housing.

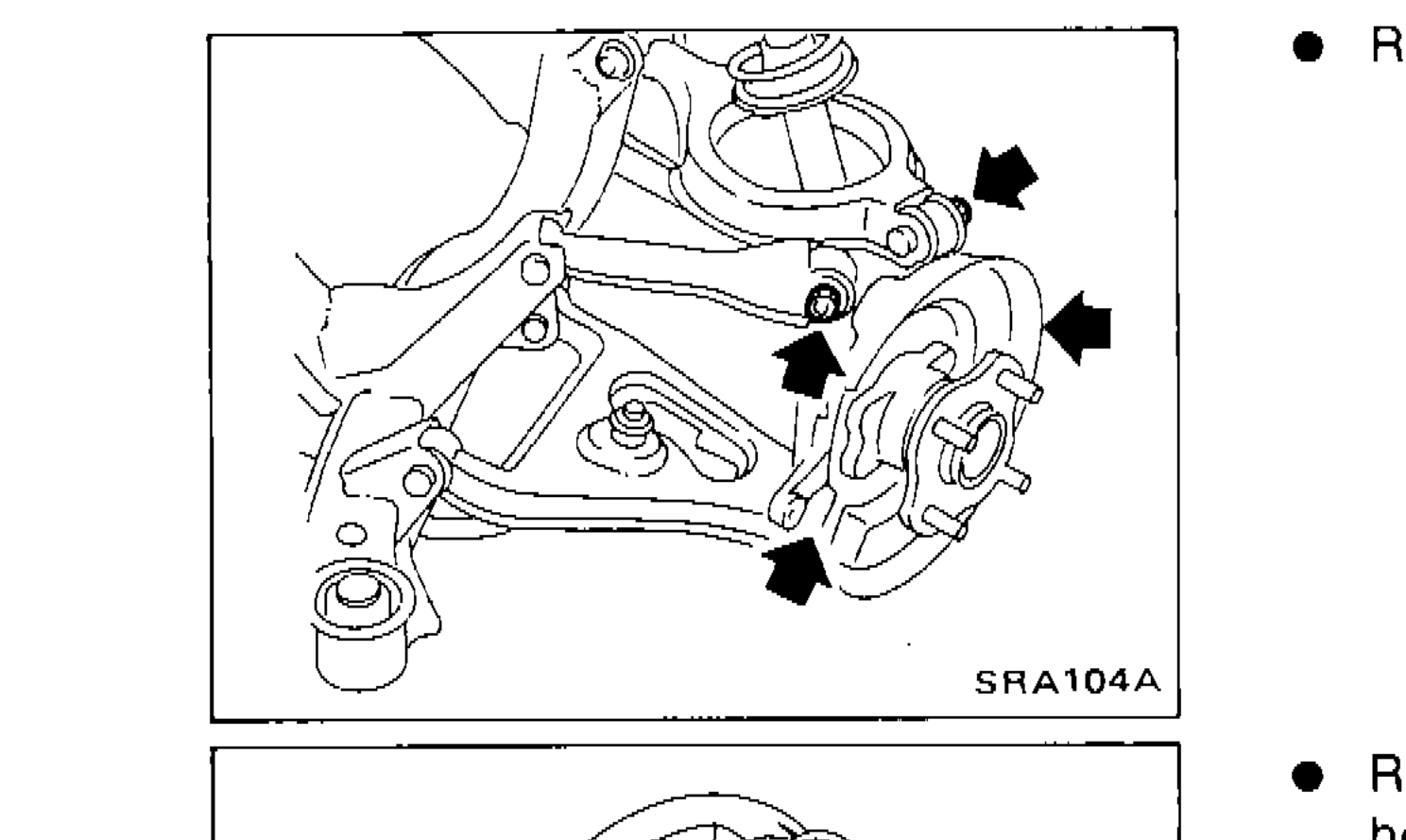

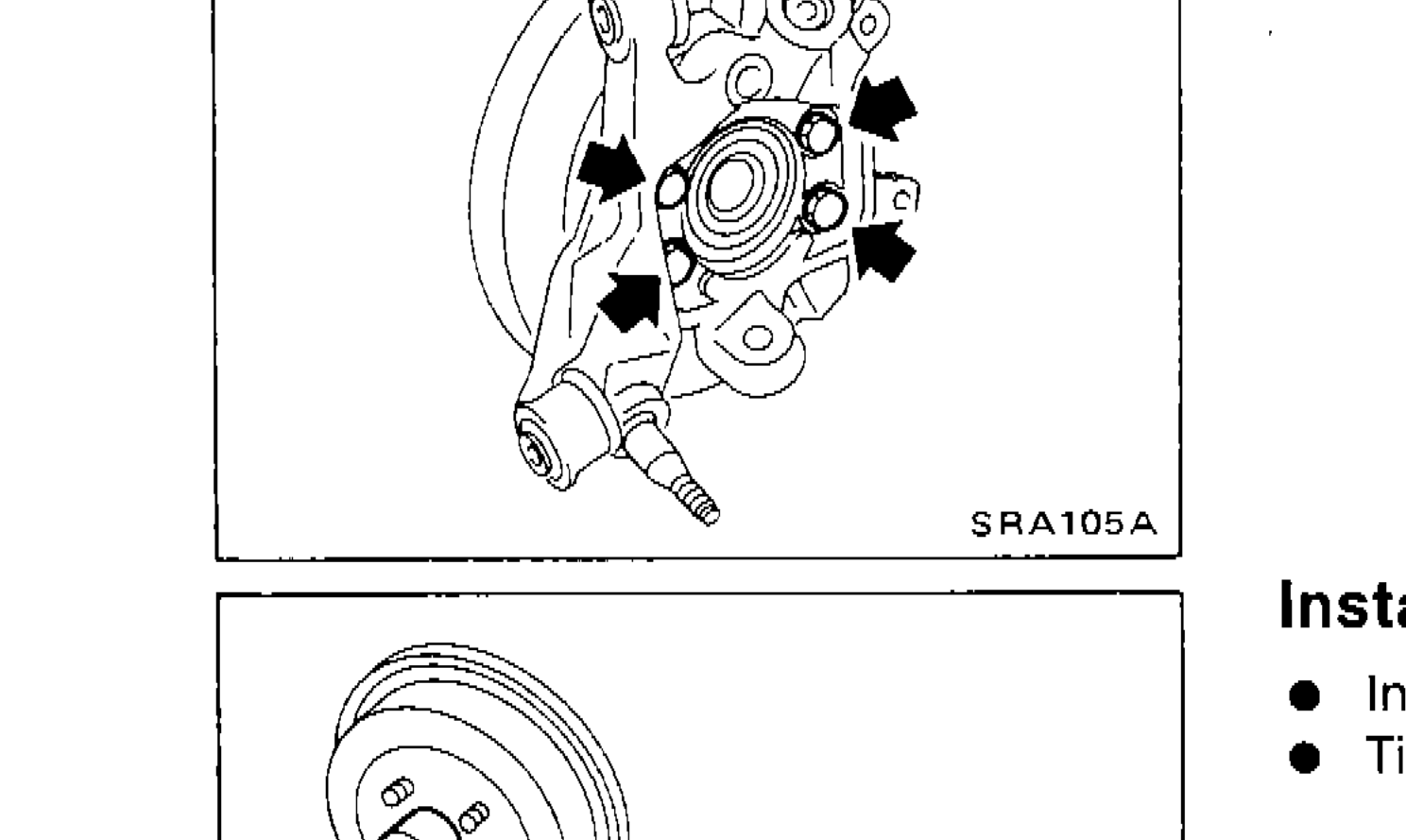

SRA104A - 3Remove wheel bearing with flange, and wheel hub from axle housing.
SRA105A
Installation
- 1Install axle housing with wheel hub.

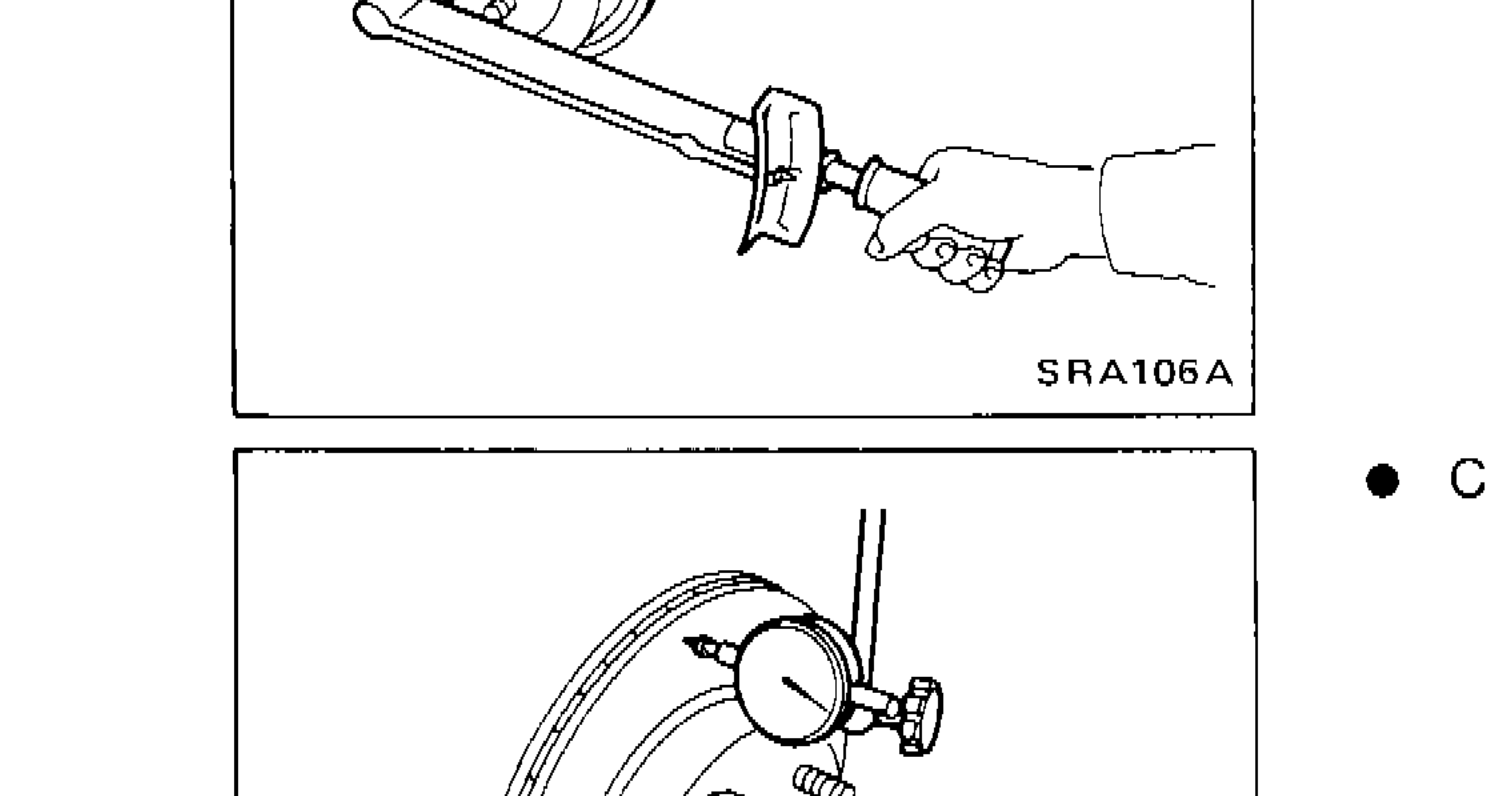

- 2Tighten wheel bearing lock nut.

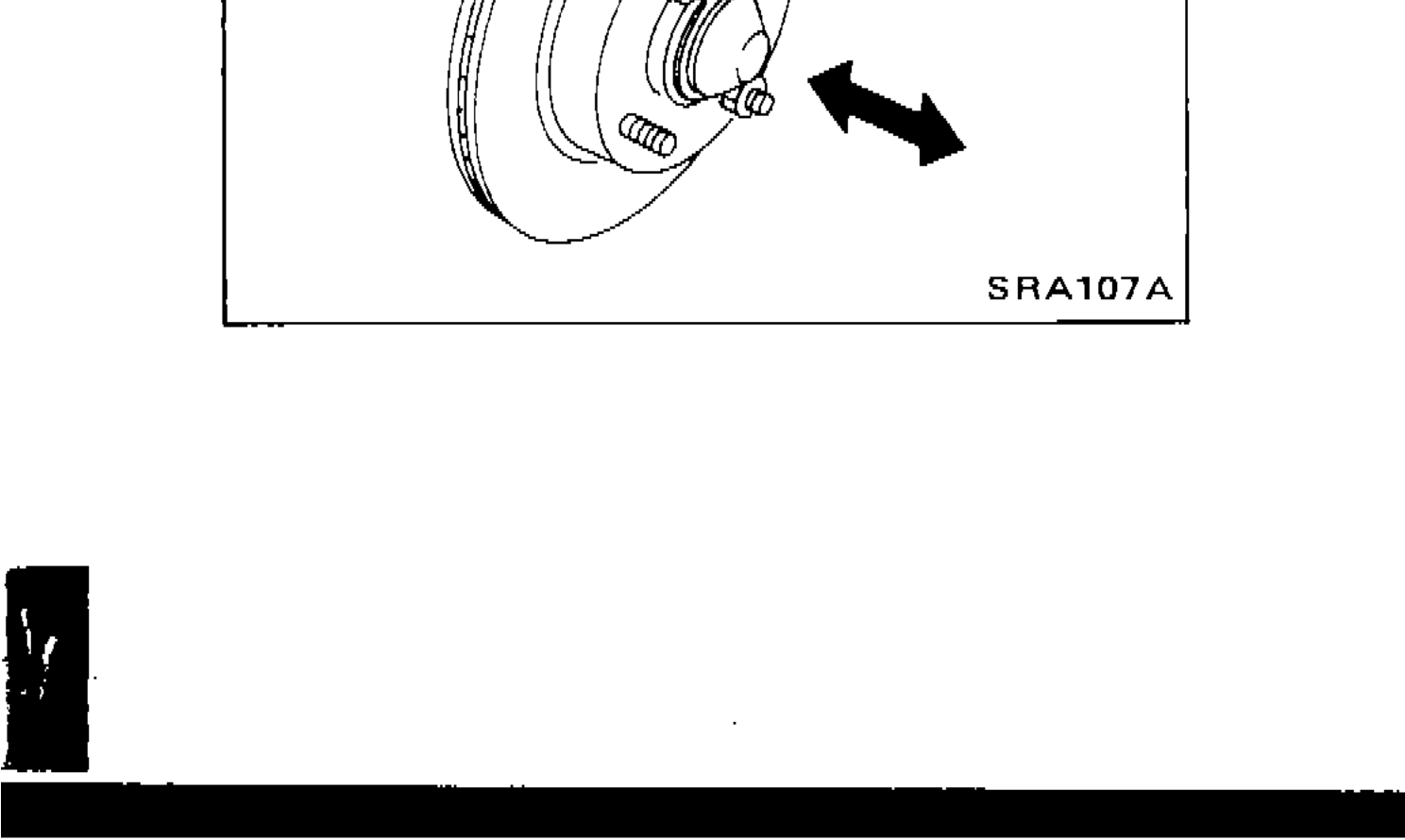

SRA106A - 3Check wheel bearing axial end play.
SRA107A
| Specification | Value |
|---|---|
| Wheel bearing lock nut torqueInstallation | 235 - 314N·m |
| Wheel bearing lock nut torqueInstallation | 24 - 32kg-m |
| Wheel bearing lock nut torqueInstallation | 174 - 231ft-lb |
| Wheel bearing axial end playCheck after installation | 0.05 or lessmm |
| Wheel bearing axial end playCheck after installation | 0.0020 or lessin |
Wheel bearing lock nut torqueInstallation
235 - 314N·m
Wheel bearing lock nut torqueInstallation
24 - 32kg-m
Wheel bearing lock nut torqueInstallation
174 - 231ft-lb
Wheel bearing axial end playCheck after installation
0.05 or lessmm
Wheel bearing axial end playCheck after installation
0.0020 or lessin
IMPORTANT
Axial end play: 0.05 mm (0.0020 in) or less
