REAR SUSPENSION — Coil Spring and Shock Absorber

RA-20prose procedure

Removal

Remove shock absorber upper and lower fixing nuts.

IMPORTANT

Do not remove piston rod lock nut on vehicle.

1
Set shock absorber on vise with attachment, then loosen piston rod lock nut.
Do not remove piston rod lock nut.
SRA782
2
Compress spring with Tool so that the strut upper spring seat can be turned by hand.

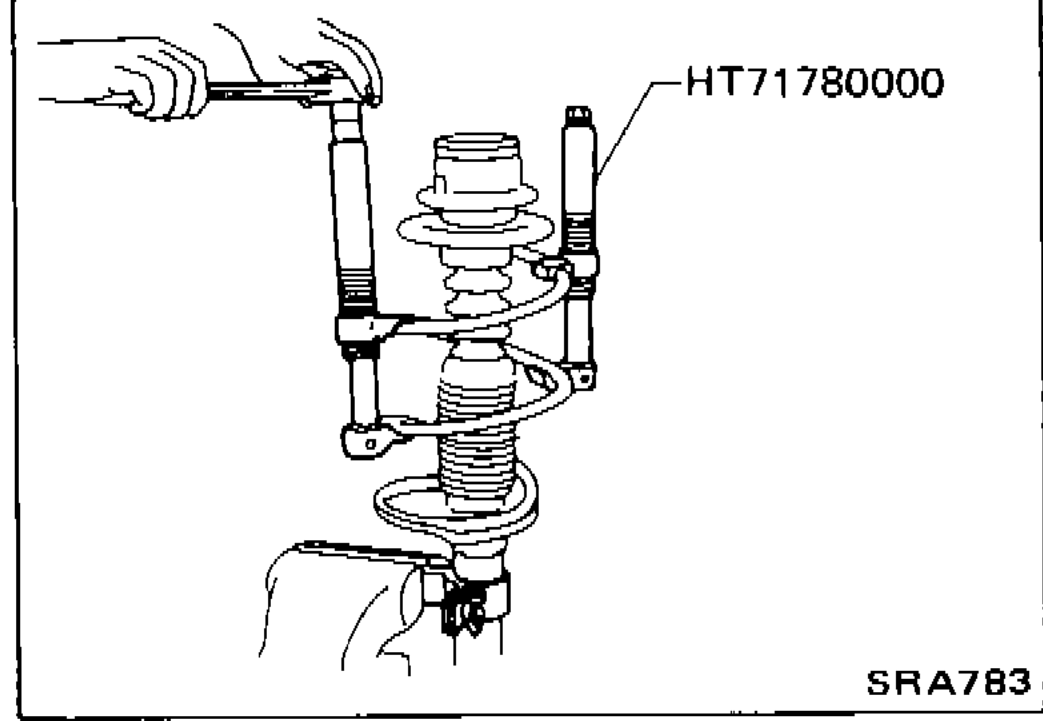

SRA783
3
Remove piston rod lock nut.

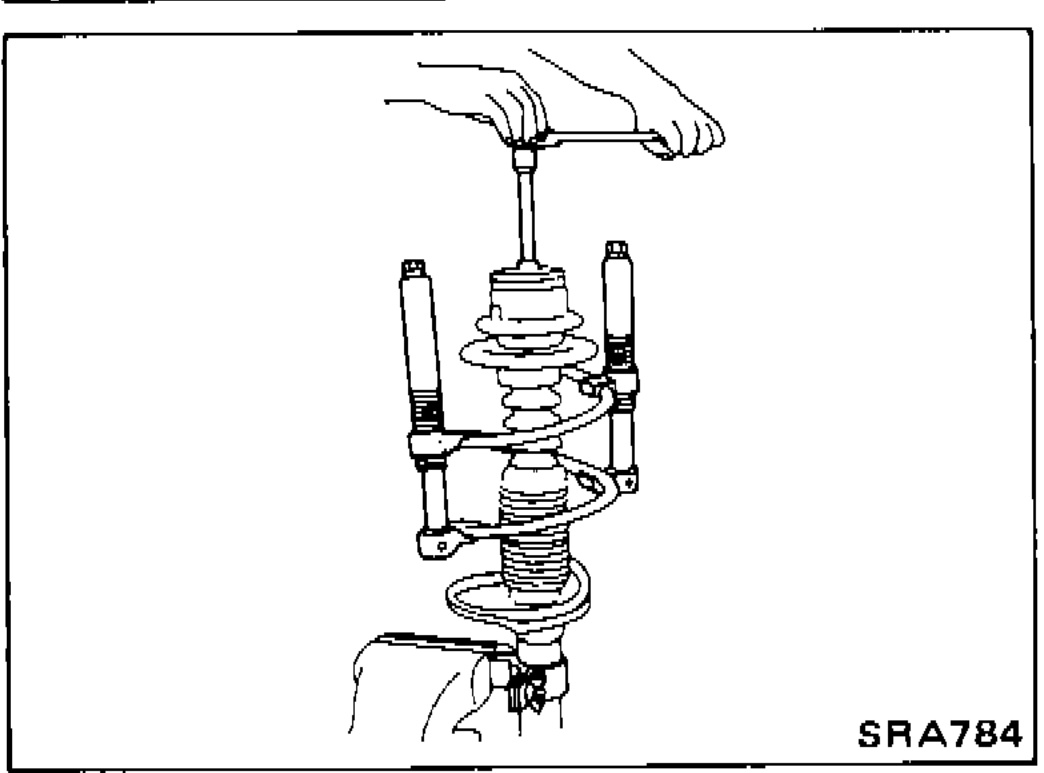

SRA784

Check for smooth operation through a full stroke, both compression and extension.

Check for oil leakage occuring on welded or gland packing portion.

Check piston rod for cracks, deformation or other damage. Replace if necessary.

Check rubber parts for deterioration or cracks. Replace if necessary.
