REAR AXLE AND REAR SUSPENSION

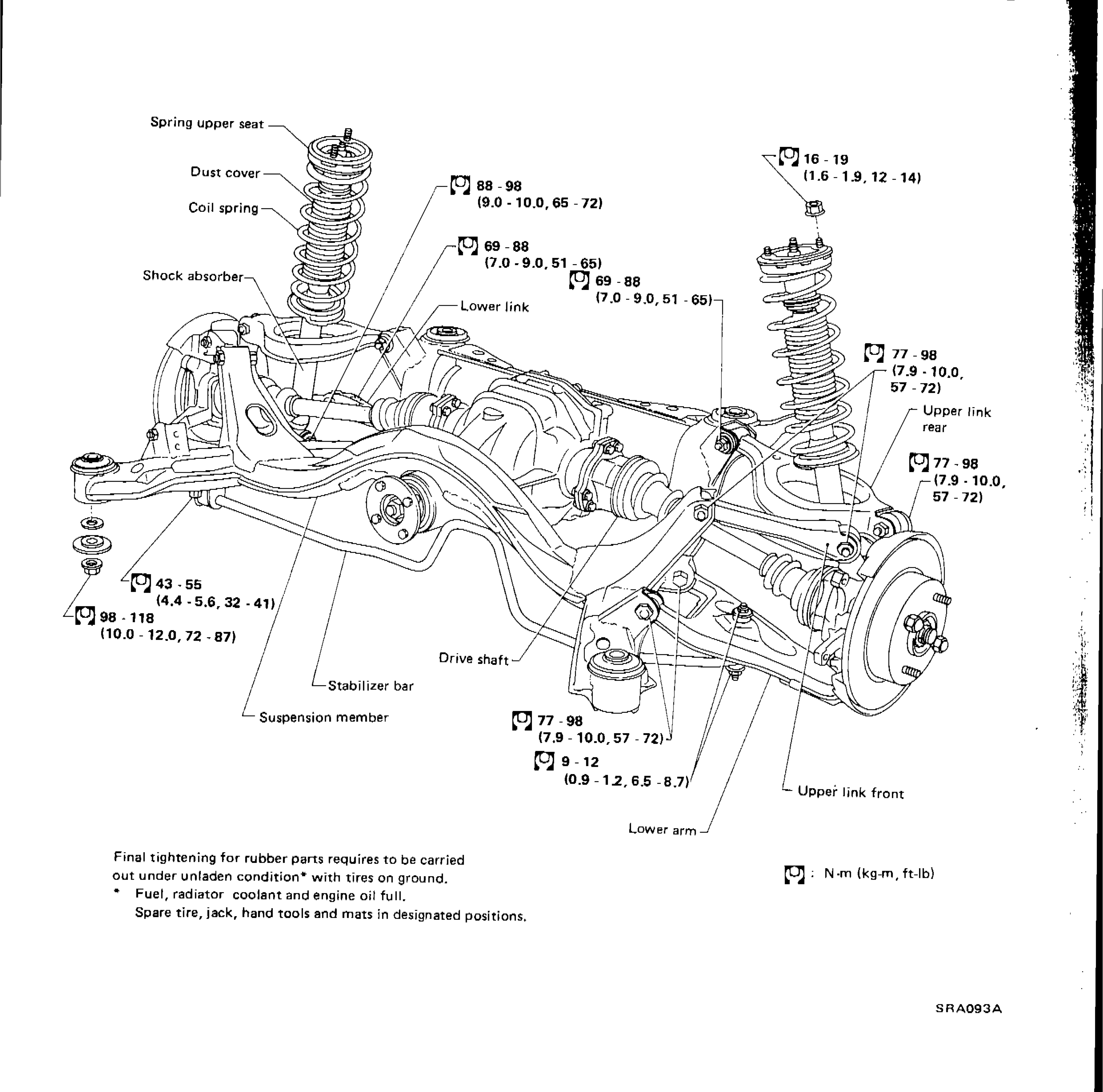

RA-4parts diagramParts DiagramFig. fig1
| # | Part Name | Notes / Torque |
|---|---|---|
| 1 | Spring upper seat | — |
| 2 | Dust cover | — |
| 3 | Coil spring | — |
| 4 | Shock absorber | — |
| 5 | Lower link | — |
| 6 | Stabilizer bar | — |
| 7 | Suspension member | — |
| 8 | Drive shaft | — |
| 9 | Lower arm | — |
| 10 | Upper link rear | — |
| 11 | Upper link front | — |
| Specification | Value |
|---|---|
| Spring upper seat / Dust cover mounting bolt | 88 - 98N·m |
| Spring upper seat / Dust cover mounting bolt | 9.0 - 10.0kg·m |
| Spring upper seat / Dust cover mounting bolt | 65 - 72ft·lb |
| Lower link bolt (inner, upper) | 69 - 88N·m |
| Lower link bolt (inner, upper) | 7.0 - 9.0kg·m |
| Lower link bolt (inner, upper) | 51 - 65ft·lb |
| Lower link bolt (inner, lower / right side) | 69 - 88N·m |
| Lower link bolt (inner, lower / right side) | 7.0 - 9.0kg·m |
| Lower link bolt (inner, lower / right side) | 51 - 65ft·lb |
| Upper link rear bolt | 77 - 98N·m |
| Upper link rear bolt | 7.9 - 10.0kg·m |
| Upper link rear bolt | 57 - 72ft·lb |
| Upper link rear bolt (second location) | 77 - 98N·m |
| Upper link rear bolt (second location) | 7.9 - 10.0kg·m |
| Upper link rear bolt (second location) | 57 - 72ft·lb |
| Small bracket bolt (top area, right) | 16 - 19N·m |
| Small bracket bolt (top area, right) | 1.6 - 1.9kg·m |
| Small bracket bolt (top area, right) | 12 - 14ft·lb |
| Suspension member mounting bolt (small) | 43 - 55N·m |
| Suspension member mounting bolt (small) | 4.4 - 5.6kg·m |
| Suspension member mounting bolt (small) | 32 - 41ft·lb |
| Suspension member mounting bolt (large) | 98 - 118N·m |
| Suspension member mounting bolt (large) | 10.0 - 12.0kg·m |
| Suspension member mounting bolt (large) | 72 - 87ft·lb |
| Lower arm bolt (upper location) | 77 - 98N·m |
| Lower arm bolt (upper location) | 7.9 - 10.0kg·m |
| Lower arm bolt (upper location) | 57 - 72ft·lb |
| Lower arm bolt (lower location) | 9 - 12N·m |
| Lower arm bolt (lower location) | 0.9 - 1.2kg·m |
| Lower arm bolt (lower location) | 6.5 - 8.7ft·lb |
Spring upper seat / Dust cover mounting bolt
88 - 98N·m
Spring upper seat / Dust cover mounting bolt
9.0 - 10.0kg·m
Spring upper seat / Dust cover mounting bolt
65 - 72ft·lb
Lower link bolt (inner, upper)
69 - 88N·m
Lower link bolt (inner, upper)
7.0 - 9.0kg·m
Lower link bolt (inner, upper)
51 - 65ft·lb
Lower link bolt (inner, lower / right side)
69 - 88N·m
Lower link bolt (inner, lower / right side)
7.0 - 9.0kg·m
Lower link bolt (inner, lower / right side)
51 - 65ft·lb
Upper link rear bolt
77 - 98N·m
Upper link rear bolt
7.9 - 10.0kg·m
Upper link rear bolt
57 - 72ft·lb
Upper link rear bolt (second location)
77 - 98N·m
Upper link rear bolt (second location)
7.9 - 10.0kg·m
Upper link rear bolt (second location)
57 - 72ft·lb
Small bracket bolt (top area, right)
16 - 19N·m
Small bracket bolt (top area, right)
1.6 - 1.9kg·m
Small bracket bolt (top area, right)
12 - 14ft·lb
Suspension member mounting bolt (small)
43 - 55N·m
Suspension member mounting bolt (small)
4.4 - 5.6kg·m
Suspension member mounting bolt (small)
32 - 41ft·lb
Suspension member mounting bolt (large)
98 - 118N·m
Suspension member mounting bolt (large)
10.0 - 12.0kg·m
Suspension member mounting bolt (large)
72 - 87ft·lb
Lower arm bolt (upper location)
77 - 98N·m
Lower arm bolt (upper location)
7.9 - 10.0kg·m
Lower arm bolt (upper location)
57 - 72ft·lb
Lower arm bolt (lower location)
9 - 12N·m
Lower arm bolt (lower location)
0.9 - 1.2kg·m
Lower arm bolt (lower location)
6.5 - 8.7ft·lb
NOTE
Final tightening for rubber parts requires to be carried out under unladen condition* with tires on ground.
NOTE
* Fuel, radiator coolant and engine oil full. Spare tire, jack, hand tools and mats in designated positions.
[torque symbol] : N·m (kg·m, ft·lb)
