REAR AXLE — Wheel Hub and Axle Housing

RA-12prose procedure

Disassembly (Cont'd)

1

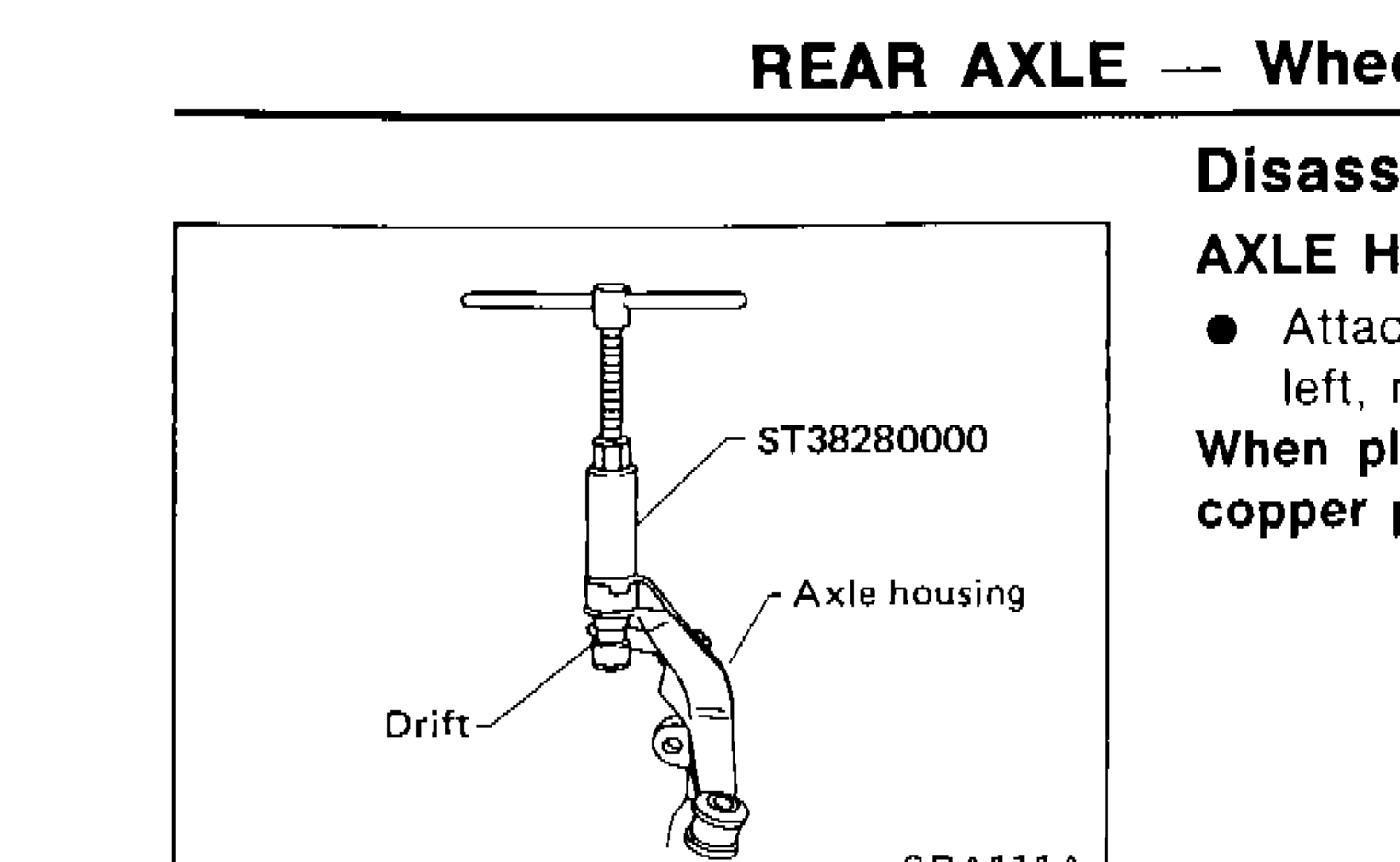

Attach a drift on outer shell of bushing as shown in figure at left, remove bushing using arm bushing remover.
SRA111A
2
When placing axle housing in a vise, use wooden blocks or copper plates as pads.
When placing axle housing in a vise, use wooden blocks or copper plates as pads.
3
Ensure axle housing bore is free from scratches or deformities before pressing bushing into it.
SRA112A
4

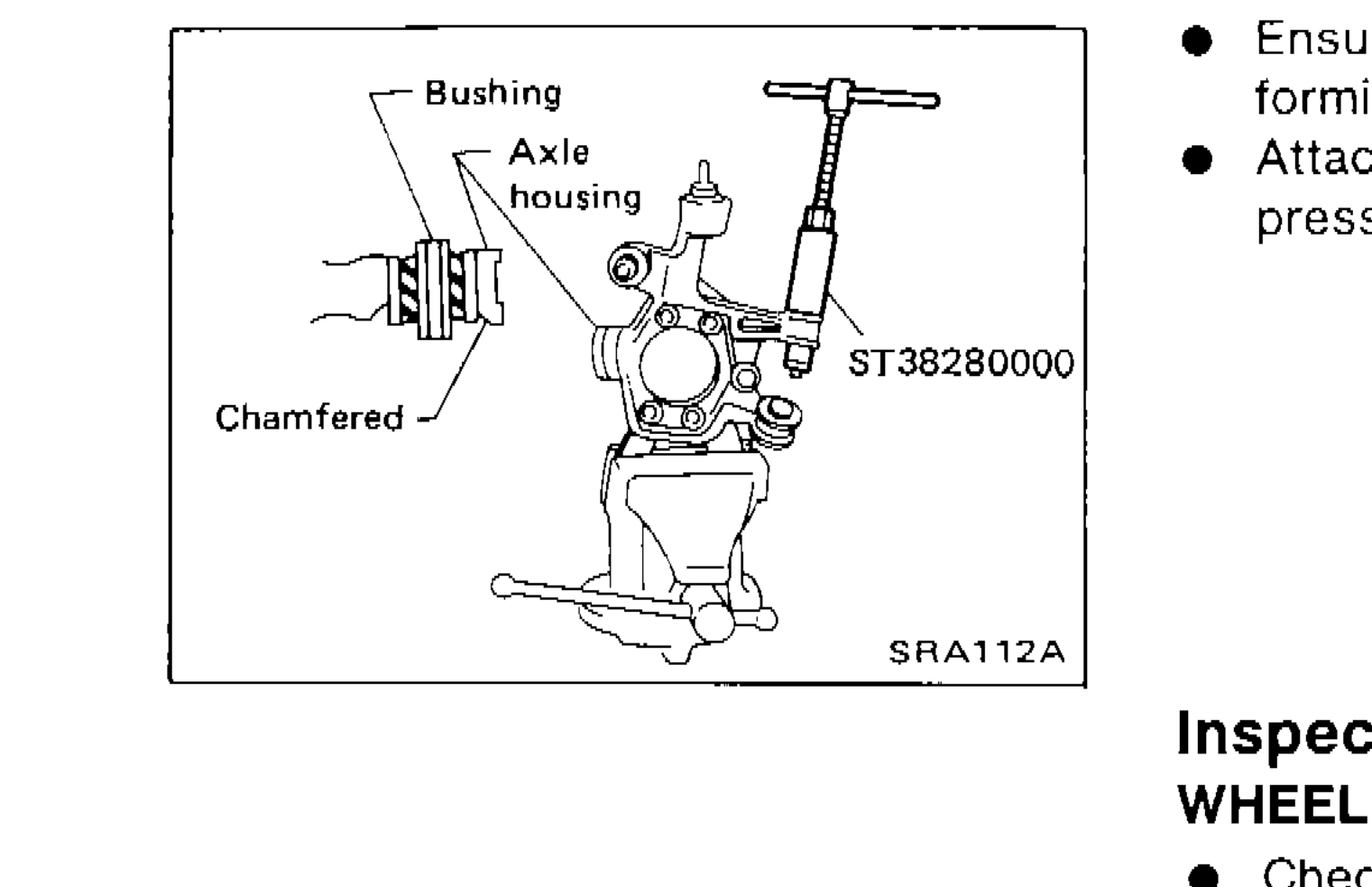

Attach bushing to chamfered bore end of axle housing and press it until it is flush with end face of axle housing.
SRA112A

1
Check wheel hub and axle housing for cracks by using a magnetic exploration or dyeing test.
2
Check wheel bearing for damage, seizure, rust or rough operation.
3
Check rubber bushing for wear or other damage.

IMPORTANT

Replace if necessary.

1

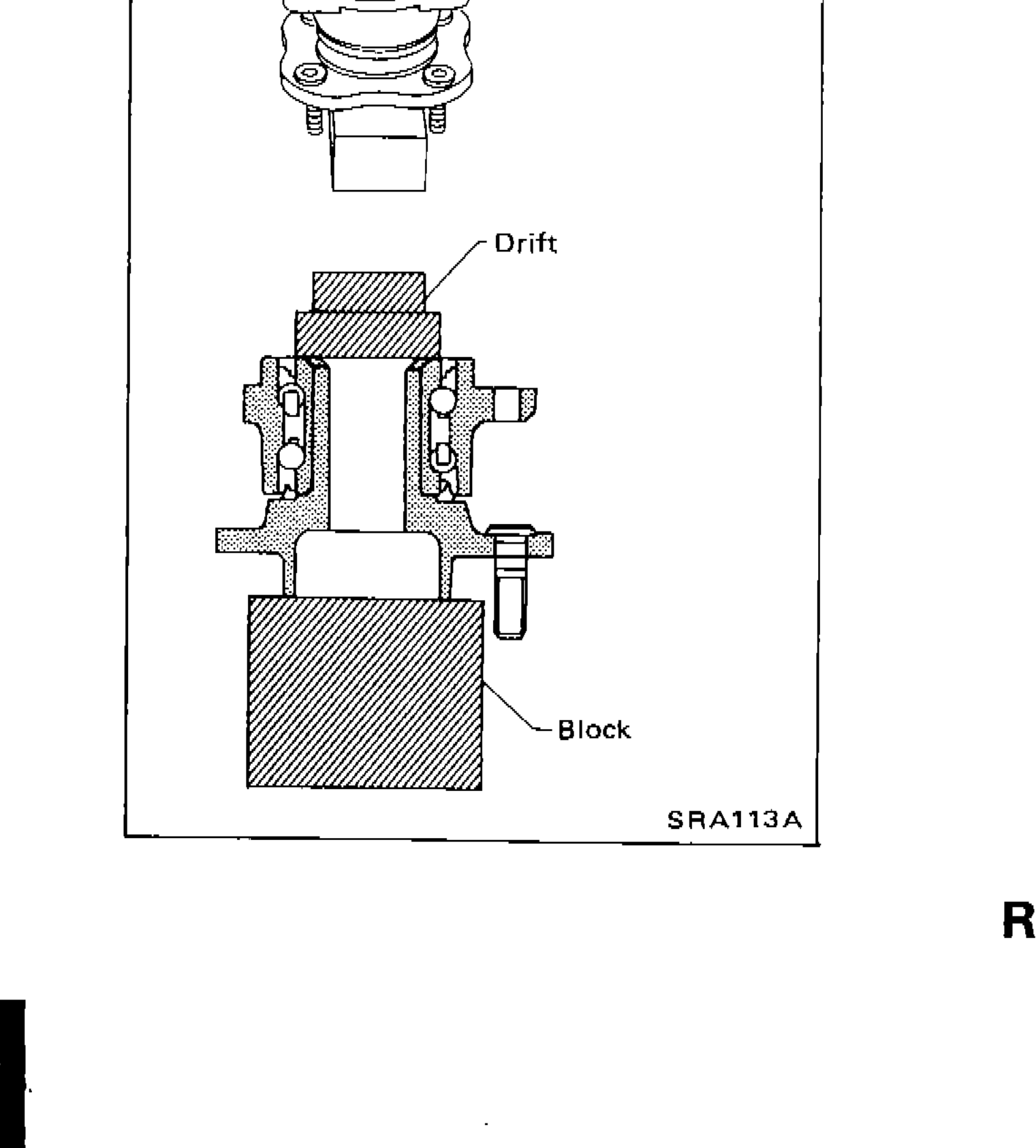

Place hub on a block. Attach a drift to inner race of wheel bearing and press it into hub as shown in figure at left.
Be careful not to damage grease seal.
SRA113A

IMPORTANT

Be careful not to damage grease seal.
