CHECK AND ADJUSTMENT — On-vehicle: Front Wheel Alignment (Cont'd) & Front Wheel Turning Angle
FA-8prose procedureWheel turning angle specifications differ between Except Europe L.H.D. model and Europe L.H.D. model.
Front Wheel Alignment (Cont'd)
Measure Toe-in
- 2Measure toe-in. Measure distance "A" and "B" at same height as hub center.
SFA234A
| Specification | Value |
|---|---|
| Toe-in (A - B)Front wheel toe-in | 0 - 2mm (0 - 0.08 in) |
| 2θ (Total toe-in)Front wheel total toe-in | 0' to 12'arcminutes |
Toe-in (A - B)Front wheel toe-in
0 - 2mm (0 - 0.08 in)
2θ (Total toe-in)Front wheel total toe-in
0' to 12'arcminutes
Adjust Toe-in
- 3Adjust toe-in by varying length of steering tie-rods.

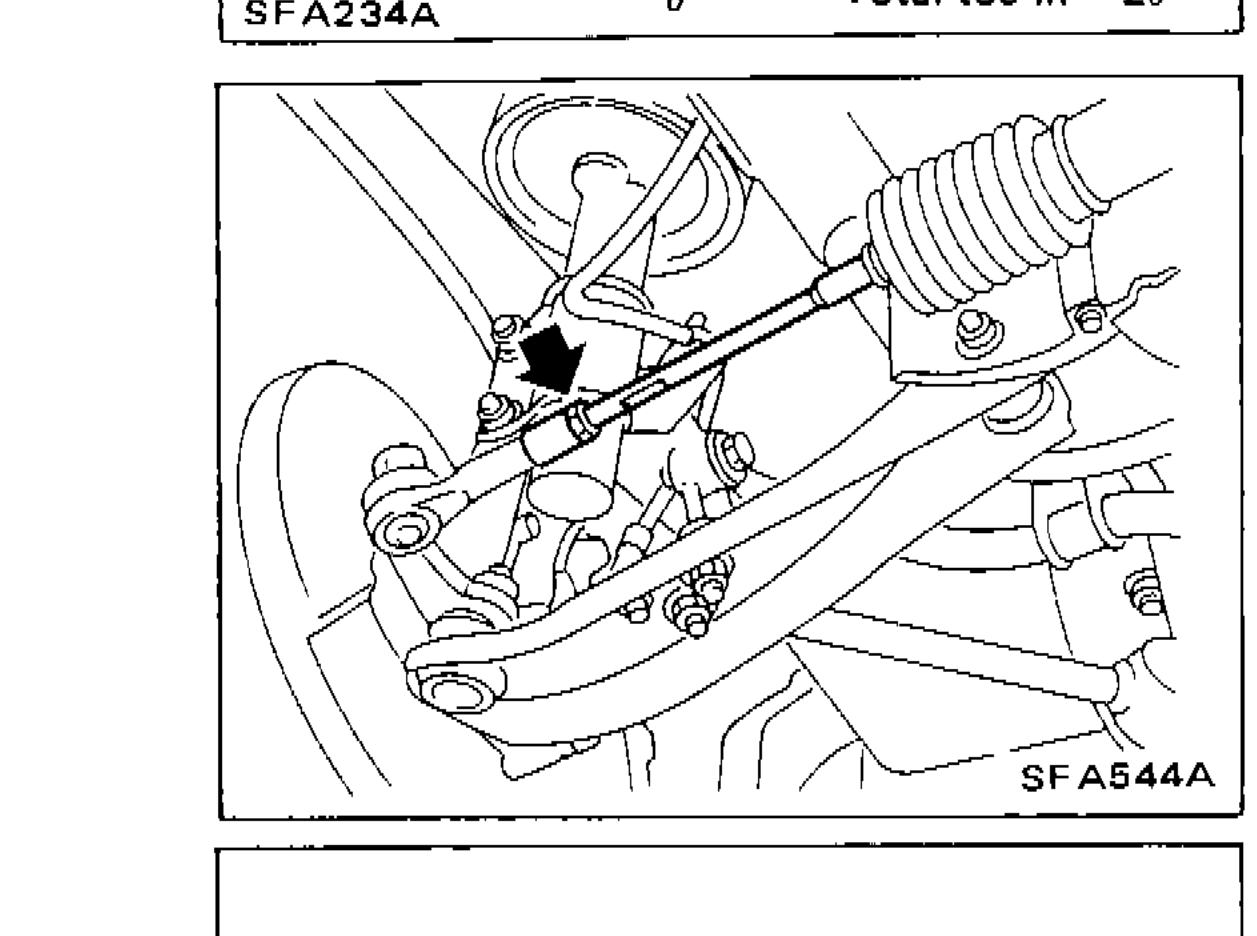

SFA544A - 3.1(1) Loosen lock nuts.
- 3.2(2) Adjust toe-in by turning forward and reverse tie-rod.
IMPORTANT

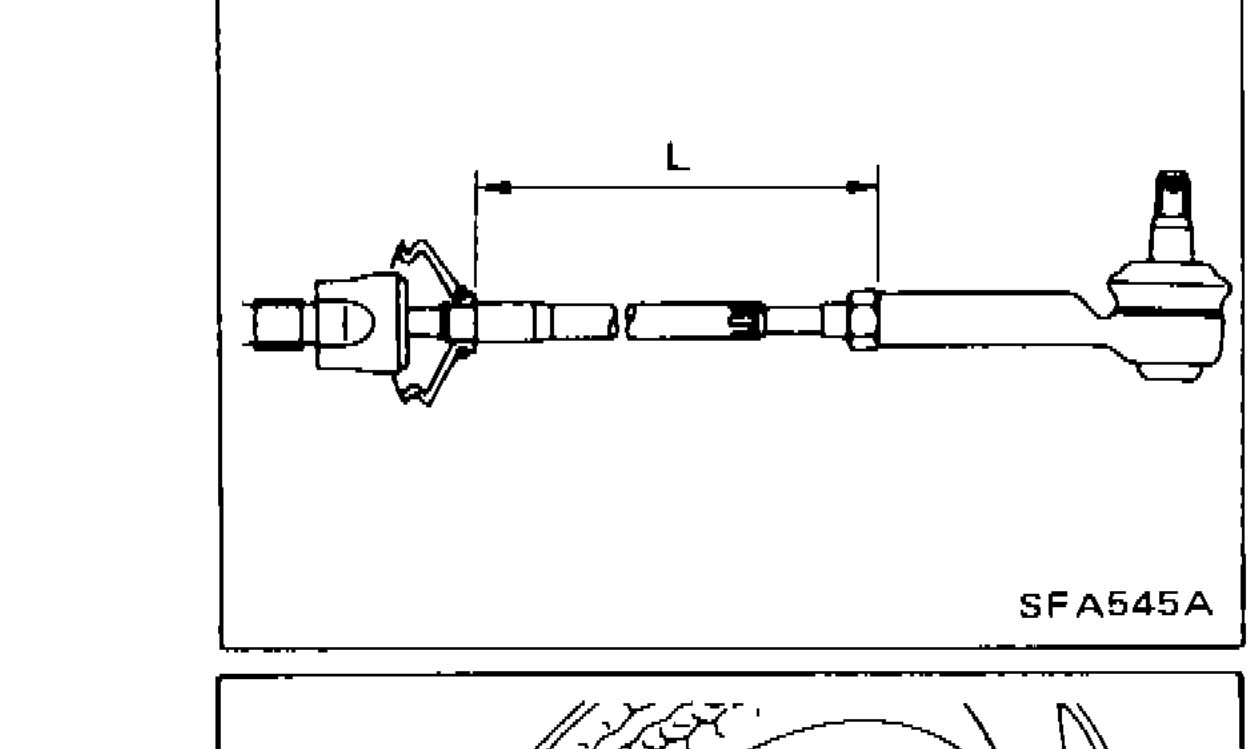

Make sure both tie-rods are the same length. Standard length "L" — reference data: 174.8 mm (6.88 in)
Fix Lock Nuts
- 3.3(3) Fix lock nuts, then tighten them designed torque.
SFA545A
| Specification | Value |
|---|---|
| Lock nut torqueSteering tie-rod lock nut | 37 - 46N·m (3.8 - 4.7 kg-m, 27 - 34 ft-lb) |
Lock nut torqueSteering tie-rod lock nut
37 - 46N·m (3.8 - 4.7 kg-m, 27 - 34 ft-lb)
FRONT WHEEL TURNING ANGLE
Front Wheel Turning Angle Measurement

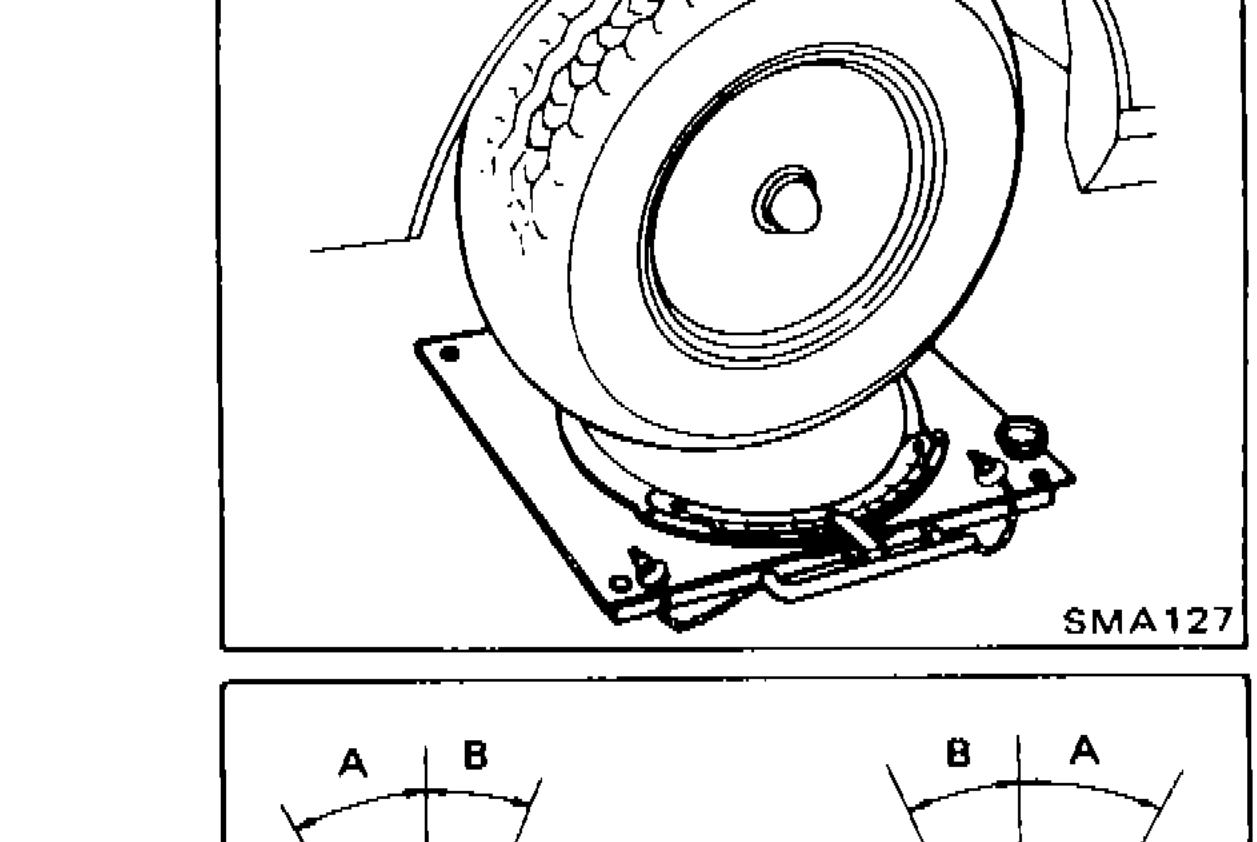

- 1Set wheels in straight-ahead position and then move vehicle forward until front wheels rest on turning radius gauge properly.
SMA127 - 2Rotate fully steering wheel to the right or left; measure turning angle.

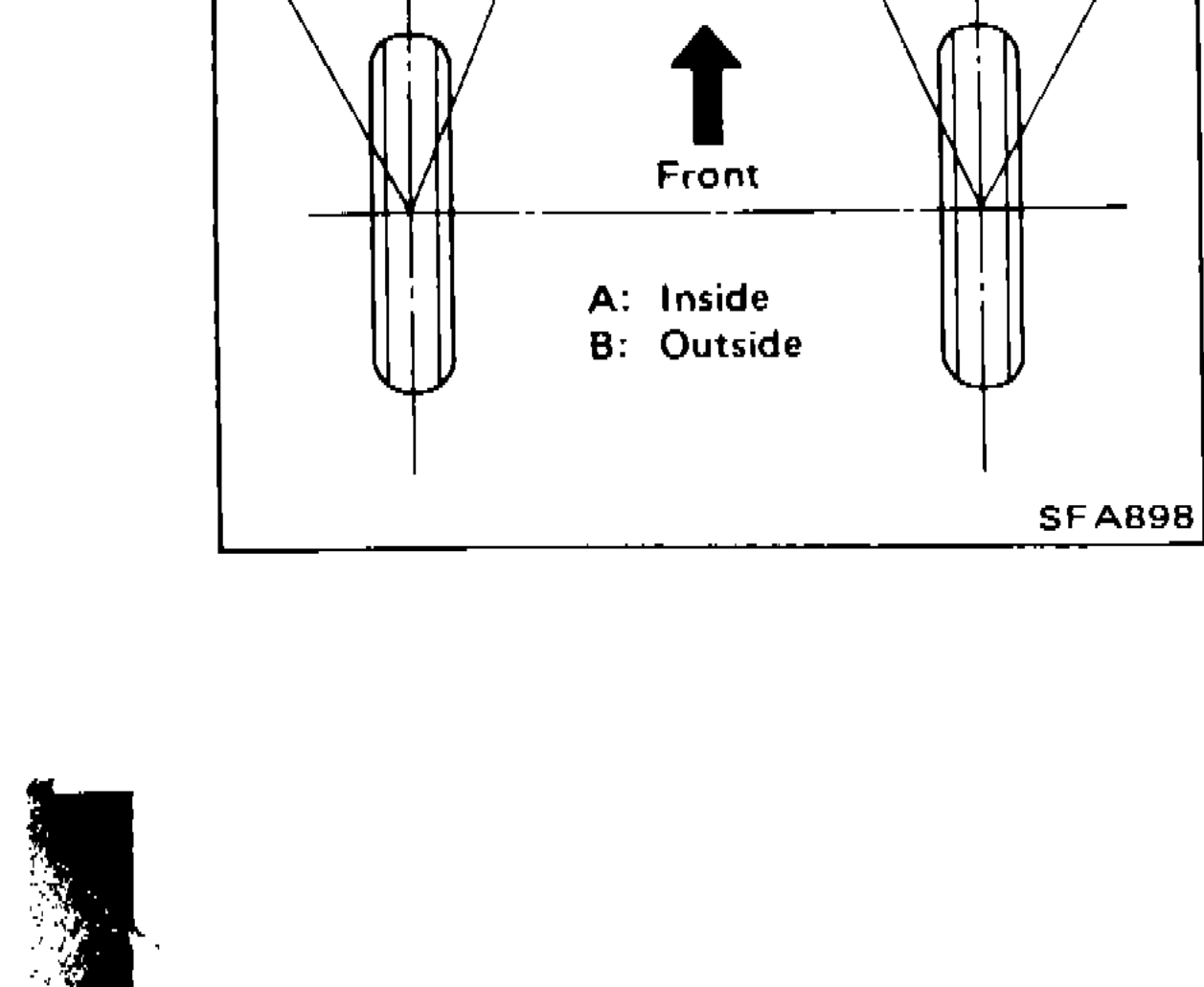

SFA898
Wheel turning angle
| Turns | Model | Wheel | Angle |
|---|---|---|---|
| Full turns | Except Europe L.H.D. model | Inside wheel: A | 39° - 43° |
| Full turns | Except Europe L.H.D. model | Outside wheel: B | 33° |
| Full turns | Europe L.H.D. model | Inside wheel: A | 36° - 40° |
| Full turns | Europe L.H.D. model | Outside wheel: B | 32° |
Full turns
ModelExcept Europe L.H.D. model
WheelInside wheel: A
Angle39° - 43°
Full turns
ModelExcept Europe L.H.D. model
WheelOutside wheel: B
Angle33°
Full turns
ModelEurope L.H.D. model
WheelInside wheel: A
Angle36° - 40°
Full turns
ModelEurope L.H.D. model
WheelOutside wheel: B
Angle32°
