FRONT AXLE — Wheel Hub and Knuckle
FA-11prose procedureInstallation

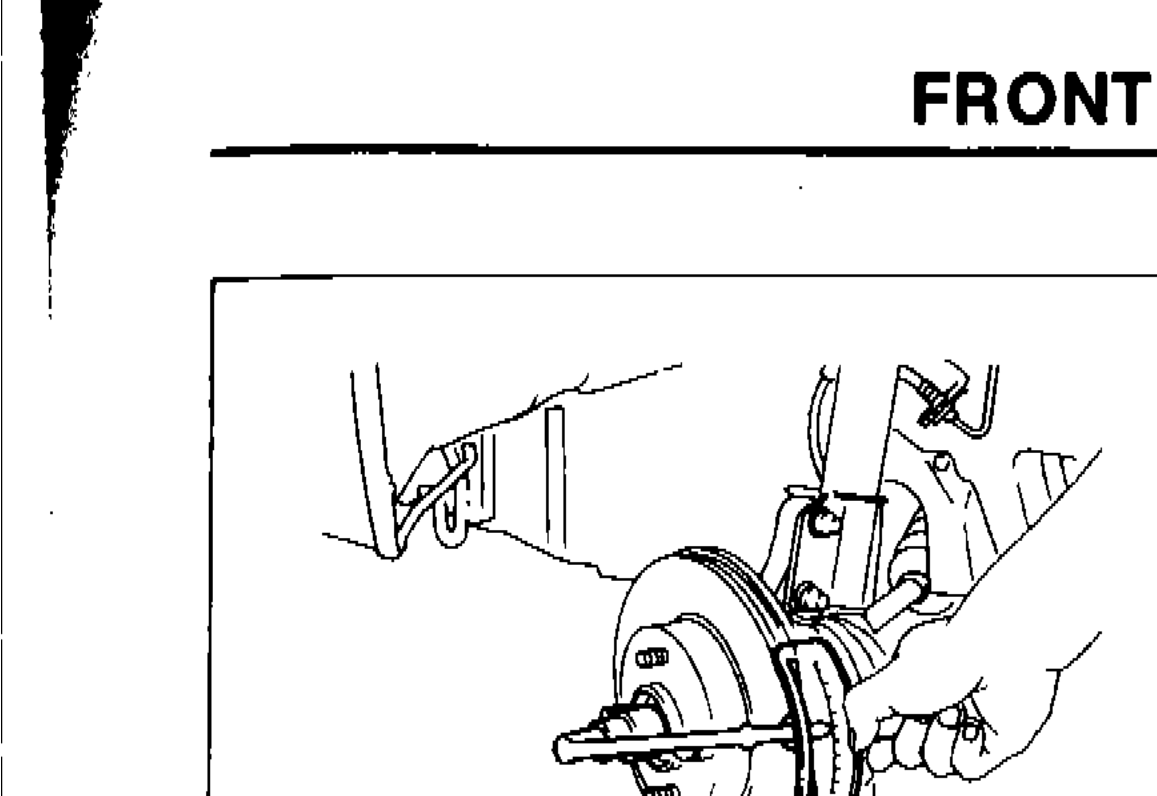

- 1Install wheel hub.
SFA114A - 2Tighten wheel bearing lock nut.SFA114A

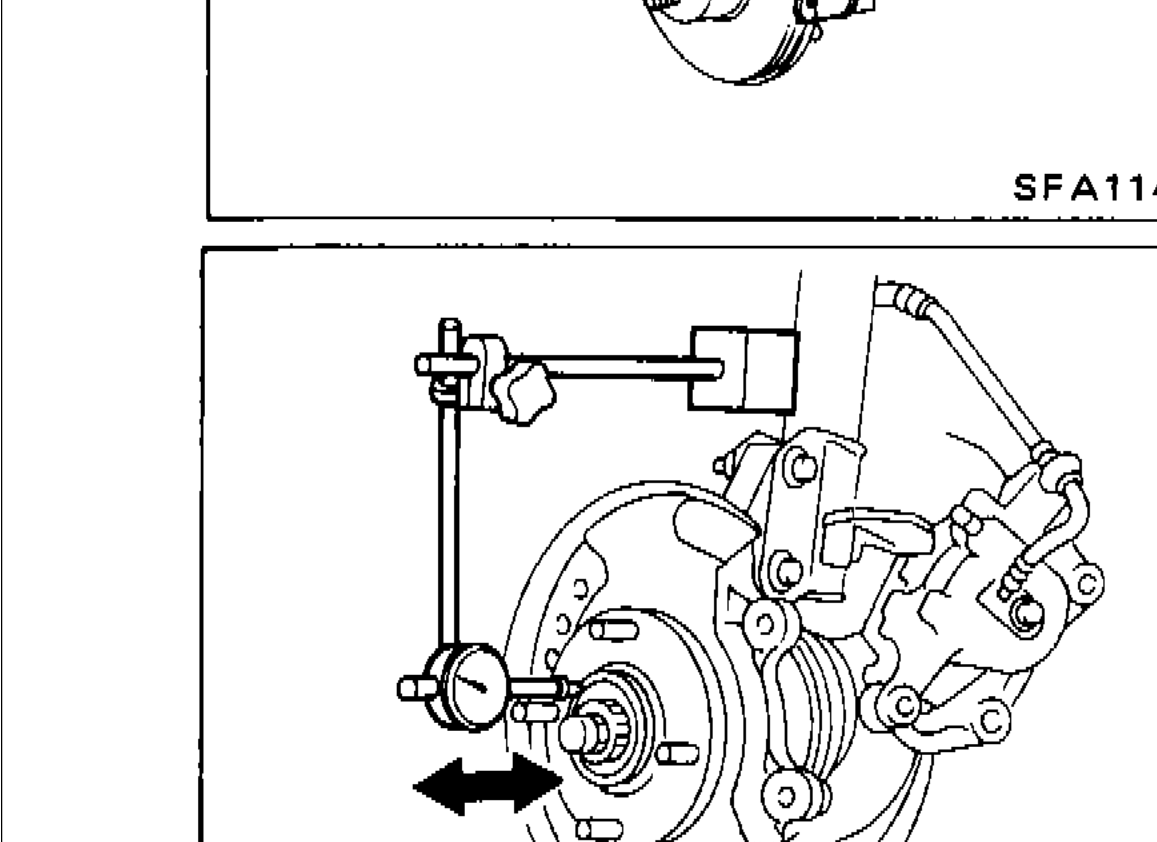

- 3Check wheel bearing axial end play. Axial end play: 0.03 mm (0.0012 in) or less
SFA543A
| Specification | Value |
|---|---|
| Wheel bearing lock nut torque | 147 - 216N·m |
| Wheel bearing lock nut torque | 15 - 22kg-m |
| Wheel bearing lock nut torque | 108 - 159ft-lb |
| Wheel bearing axial end play | 0.03 or lessmm |
| Wheel bearing axial end play | 0.0012 or lessin |
Wheel bearing lock nut torque
147 - 216N·m
Wheel bearing lock nut torque
15 - 22kg-m
Wheel bearing lock nut torque
108 - 159ft-lb
Wheel bearing axial end play
0.03 or lessmm
Wheel bearing axial end play
0.0012 or lessin
Disassembly
CAUTION
CAUTION: When removing wheel bearing from wheel hub, replace wheel bearing assembly (outer race, inner races and grease seal) with a new one.
Disassembly

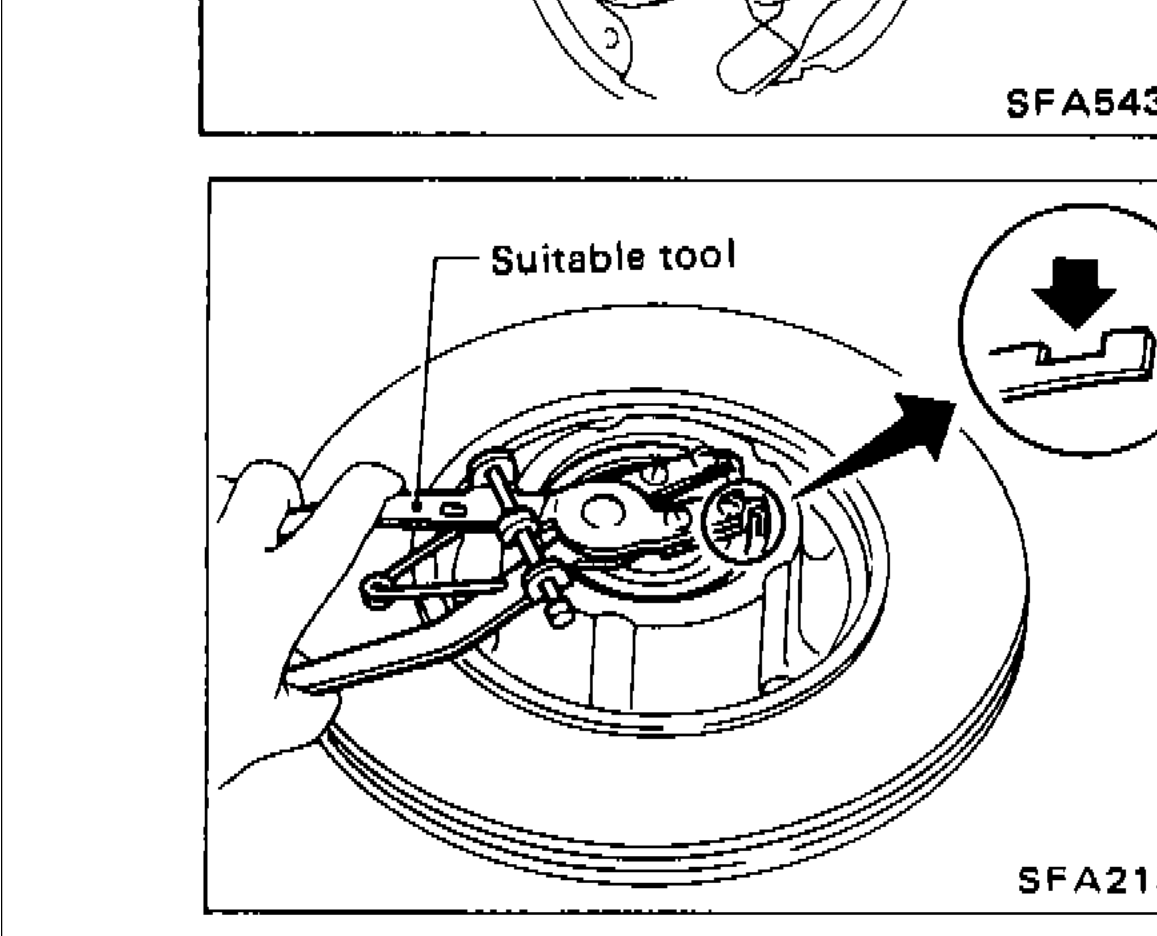

- 1Remove circular clip with suitable tool.

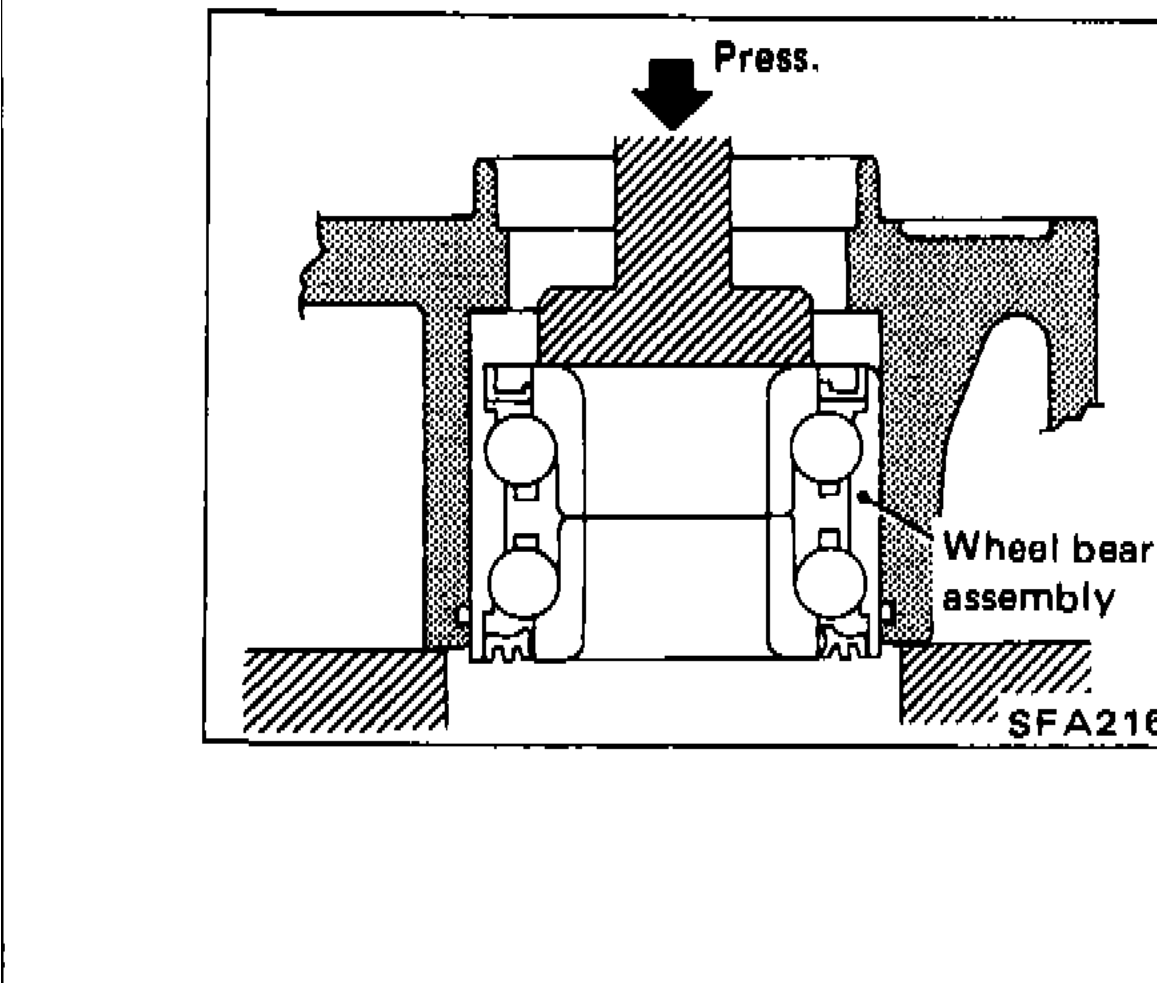

SFA215A - 2Press out wheel bearing assembly from wheel hub.
SFA216A
Inspection
WHEEL HUB
Check wheel hub for any cracks by using a magnetic exploration or dyeing test.
CIRCULAR CLIP
Check circular clip for wear or cracks. Replace if necessary.
