FRONT AXLE — Baffle Plate

FA-13prose procedure

Removal

  1. 1
    Mark matchmarks on baffle plate before removing.

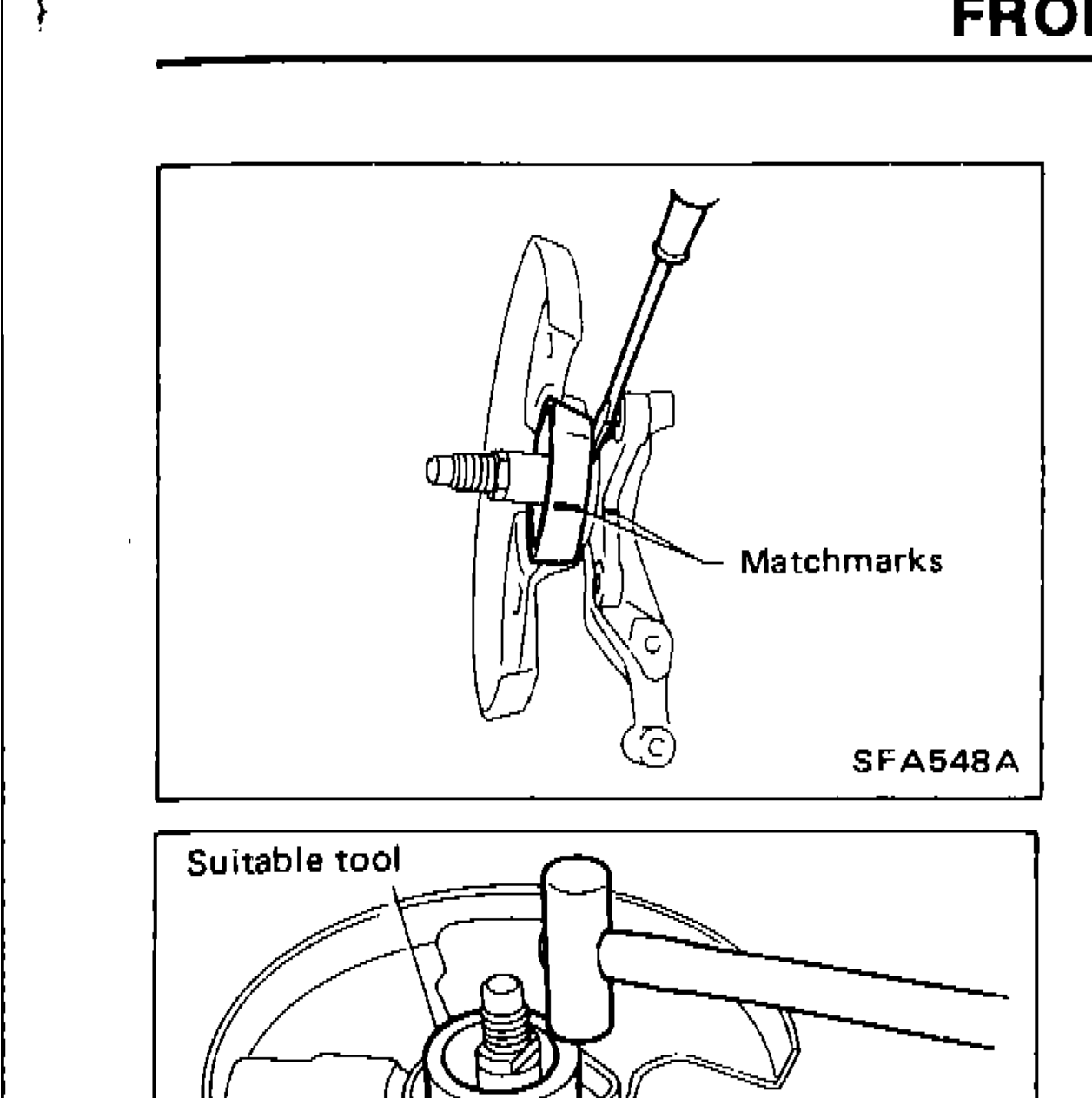

    Illustration showing matchmarks on baffle plate before removal, with a screwdriver being used to separate it from the knuckle spindle.
    SFA548A
  2. 2
    If baffle plate replacement requires removal of knuckle spindle, separate it equally using a screwdriver.
    Be careful not to scratch knuckle spindle.
    Illustration showing matchmarks on baffle plate before removal, with a screwdriver being used to separate it from the knuckle spindle.
    SFA548A

Installation

  1. 1
    Align matchmarks previously marked on baffle plate and install baffle plate by lightly tapping with a copper hammer and suitable tool.

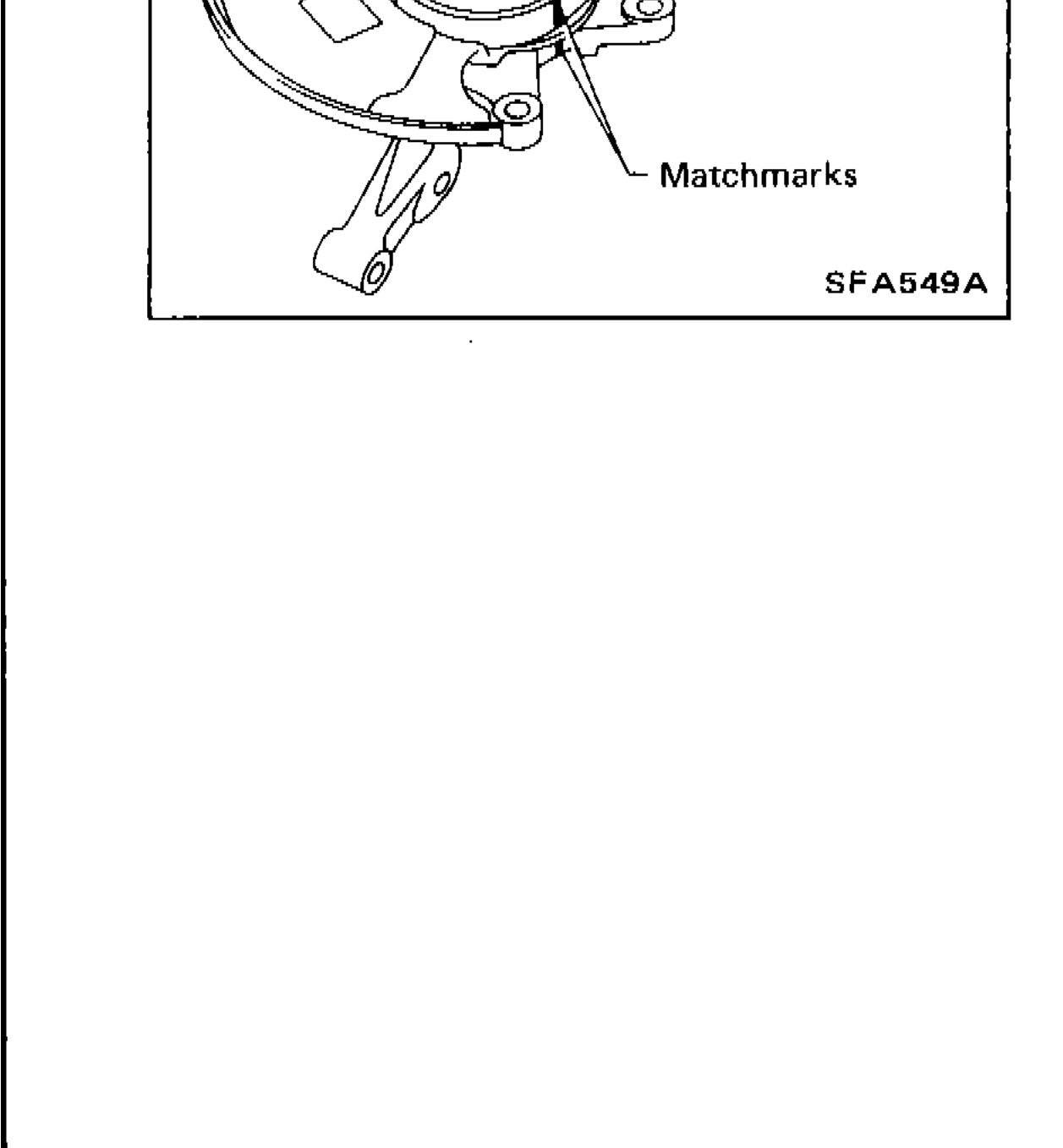

    Illustration showing installation of baffle plate using a suitable tool and copper hammer, with matchmarks aligned.
    SFA549A
