FRONT AXLE — Wheel Hub and Knuckle

FA-10prose procedure
Continued from FA-9

Removal

  1. 1
    Remove wheel bearing lock nut.

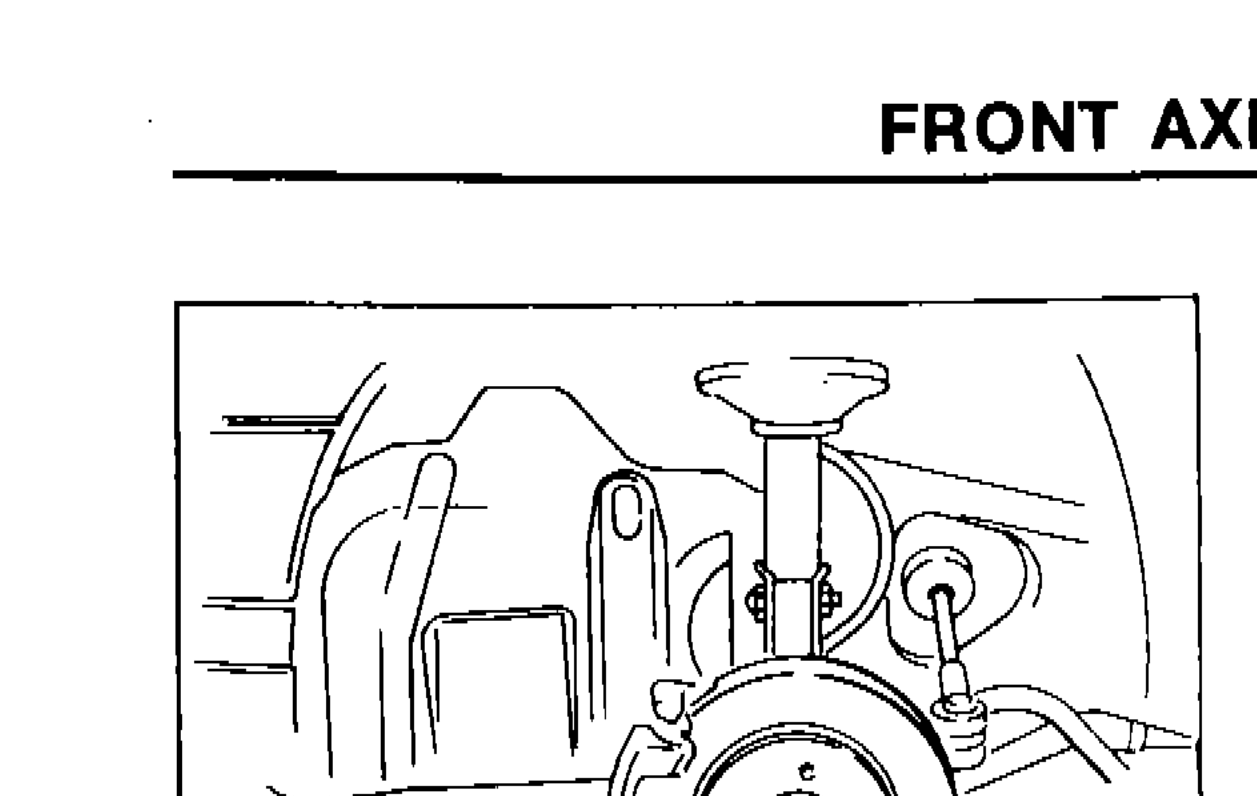

    Wheel bearing lock nut location on front hub/spindle assembly
    SFA090A
  2. 2
    Remove brake caliper assembly.
    Brake hose need not be disconnected from brake caliper. Be careful not to depress brake pedal, or piston will pop out. Make sure brake hose is not twisted.

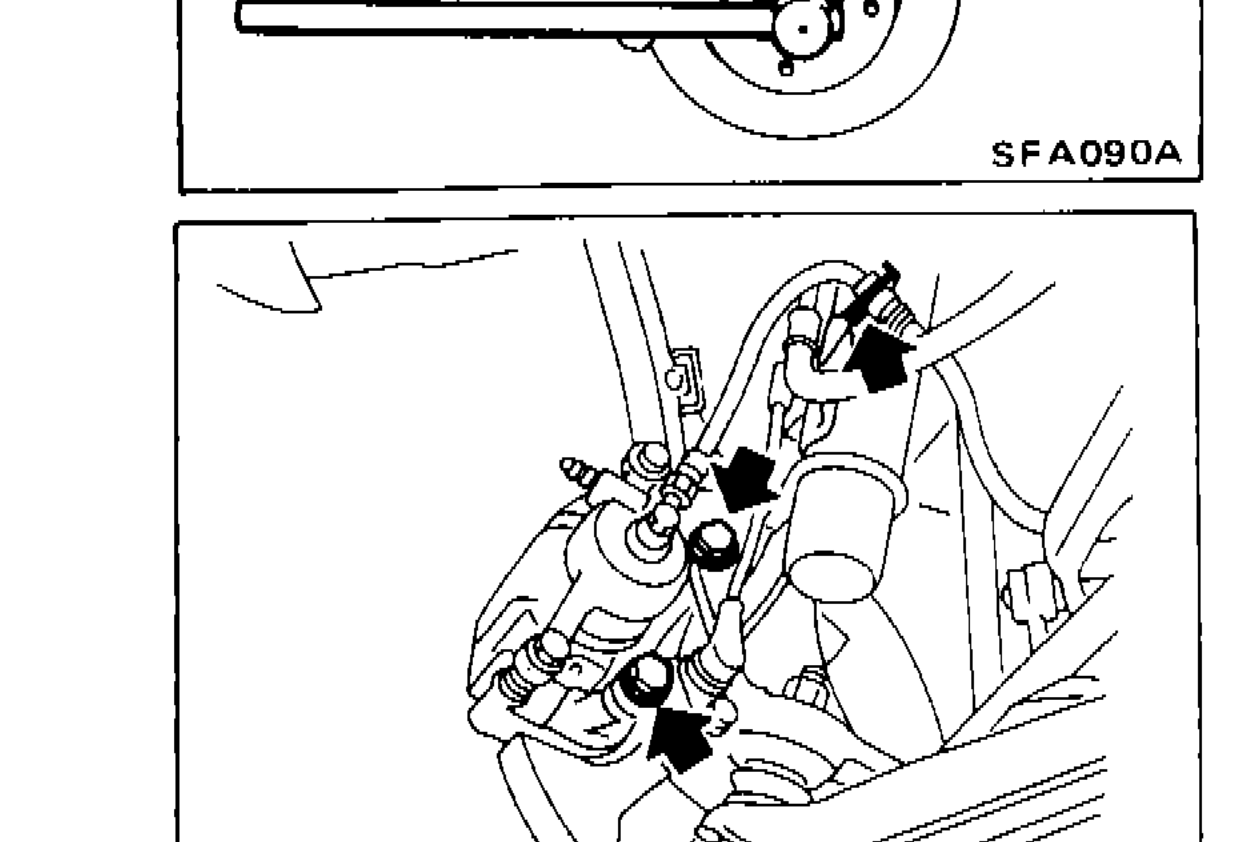

    Brake caliper assembly removal from front knuckle
    SFA547A
  3. 3
    Remove rotor and wheel hub from spindle.

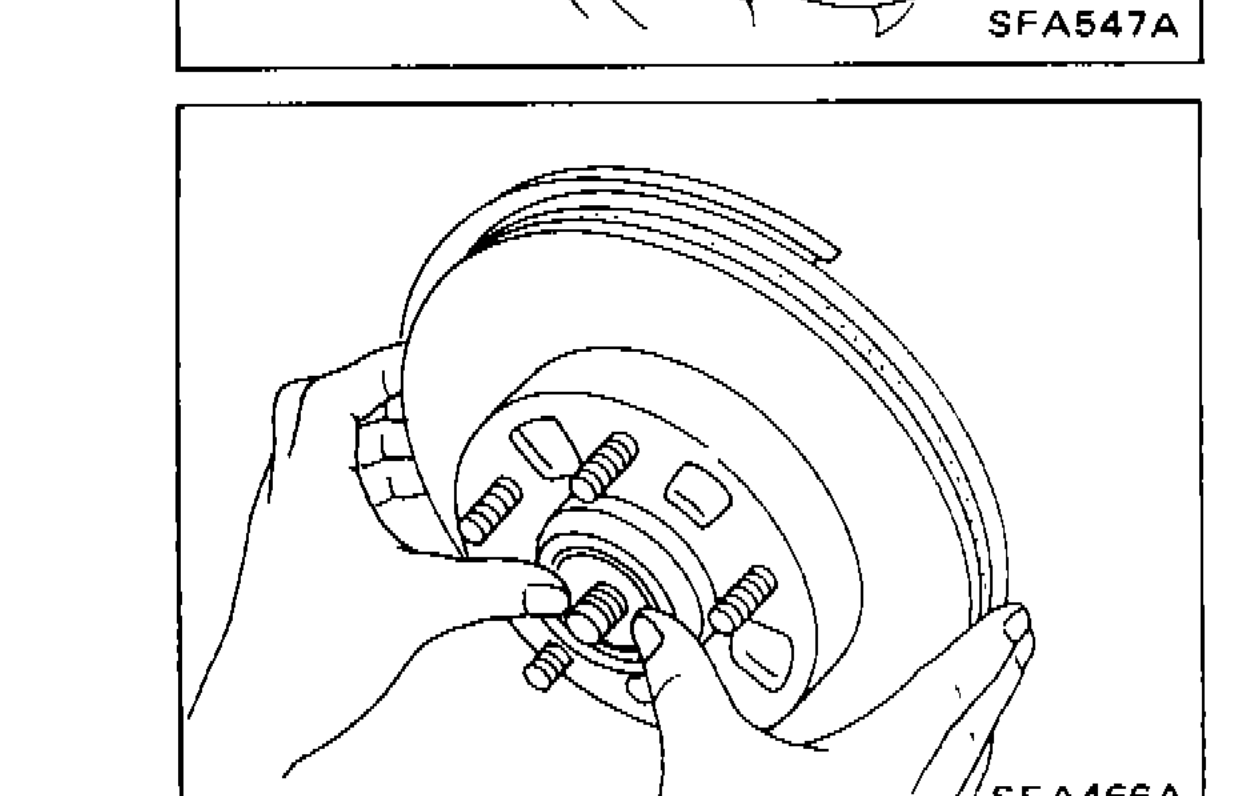

    Rotor and wheel hub removal from spindle
    SFA466A
  4. 4
    Remove tie-rod ball joint and lower ball joint.

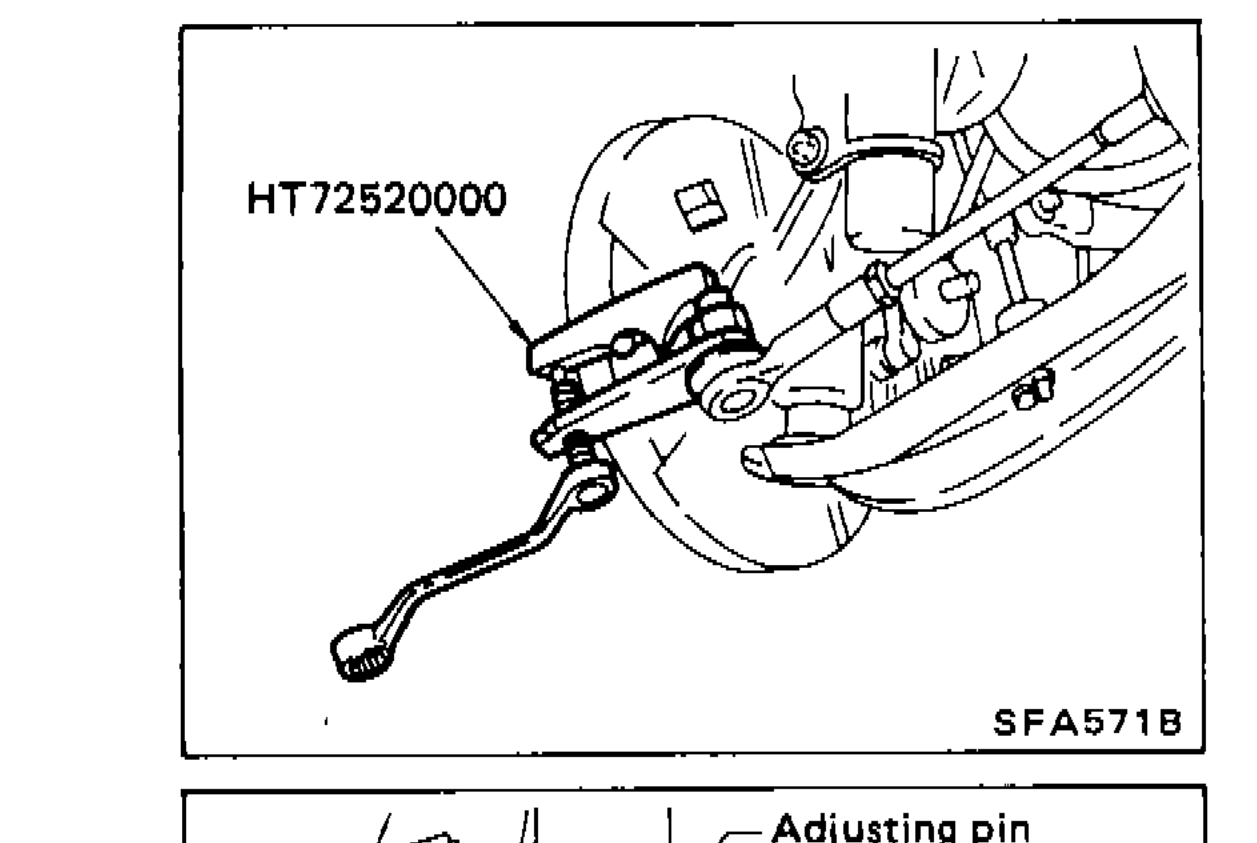

    Tie-rod ball joint and lower ball joint removal using special tool HT72520000
    SFA571B
  5. 5
    Remove bolts and nuts as shown at left. Make matchmarks before removing adjusting pin.
    Make matchmarks before removing adjusting pin.

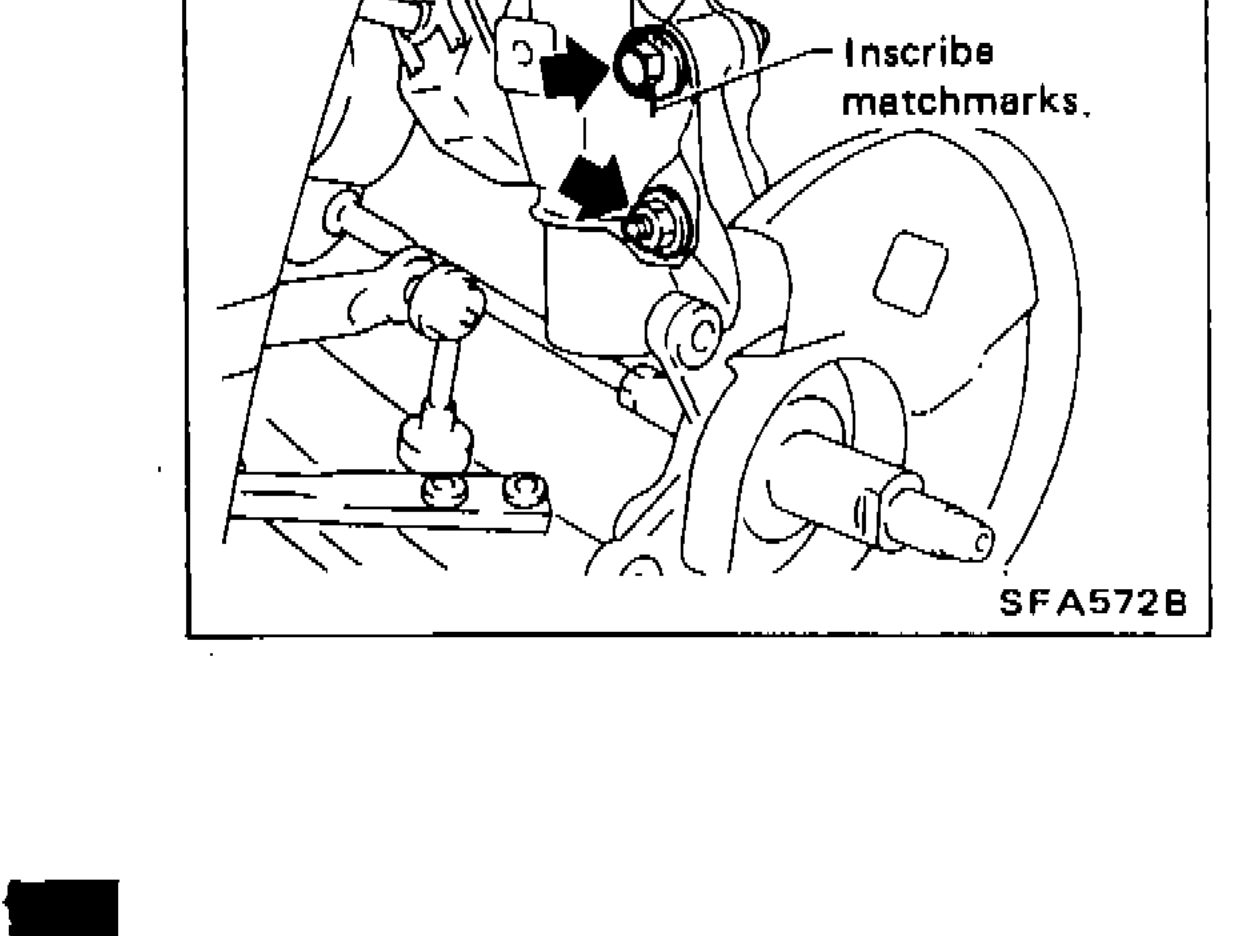

    Adjusting pin location with matchmarks inscribed before removal of bolts and nuts
    SFA572B
Continue to FA-11
