S13S13

CHASSIS AND BODY MAINTENANCE

MA-27prose procedure

LUBRICATING LOCKS, HINGES AND HOOD LATCHES

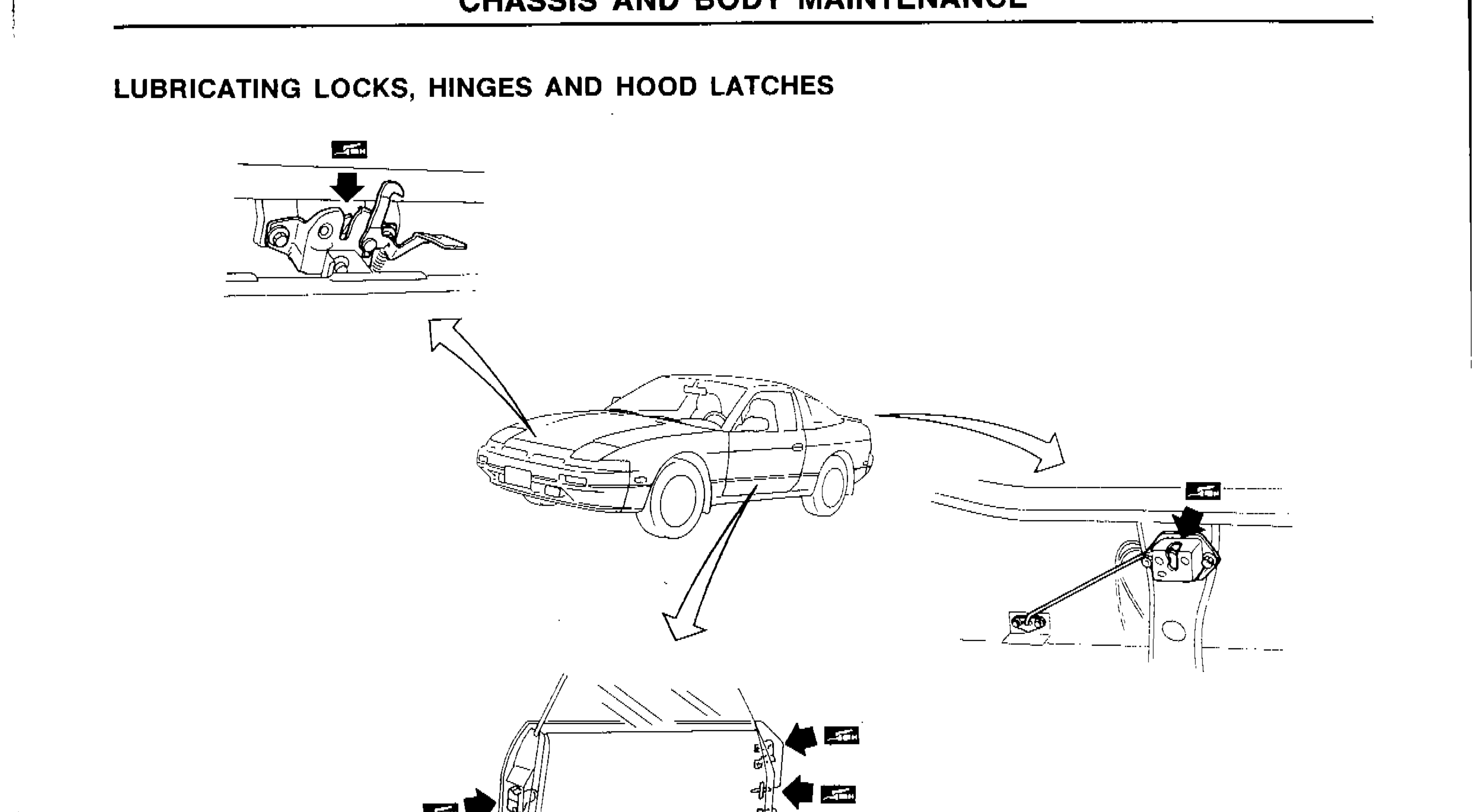

Component LocationFig. fig1

Lubrication points on the vehicle including hood latch, door hinges (upper and lower), and door lock mechanisms.

Diagram showing lubrication points on the 1989 Nissan 200SX (S13): hood latch area, door hinges, and door lock mechanisms, with arrows indicating lubrication points.
SMA045C
1Hood latch lubrication point(top-left area of vehicle)
2Door hinge lubrication points (3 locations on door)(left door hinge area)
3Door lock/latch lubrication point(right side door lock area)

CHECKING SEAT BELTS, BUCKLES, RETRACTORS, ANCHORS AND ADJUSTERS

CAUTION

  1. 1
    If the vehicle is collided or overturned, replace the entire belt assembly, regardless of nature of accident.
  2. 2
    If the condition of any component of a seat belt is questionable, do not have seat belt repaired, but replaced as a belt assembly.
  3. 3
    If webbing is cut, frayed, or damaged, replace belt assembly.
  4. 4
    Do not spill drinks, oil, etc. on inner lap belt buckle. Never oil tongue and buckle.
  5. 5
    Use a NISSAN genuine seat belt assembly.
Anchor bolt
24 - 31N·m
Anchor bolt
2.4 - 3.2kg-m
Anchor bolt
17 - 23ft-lb

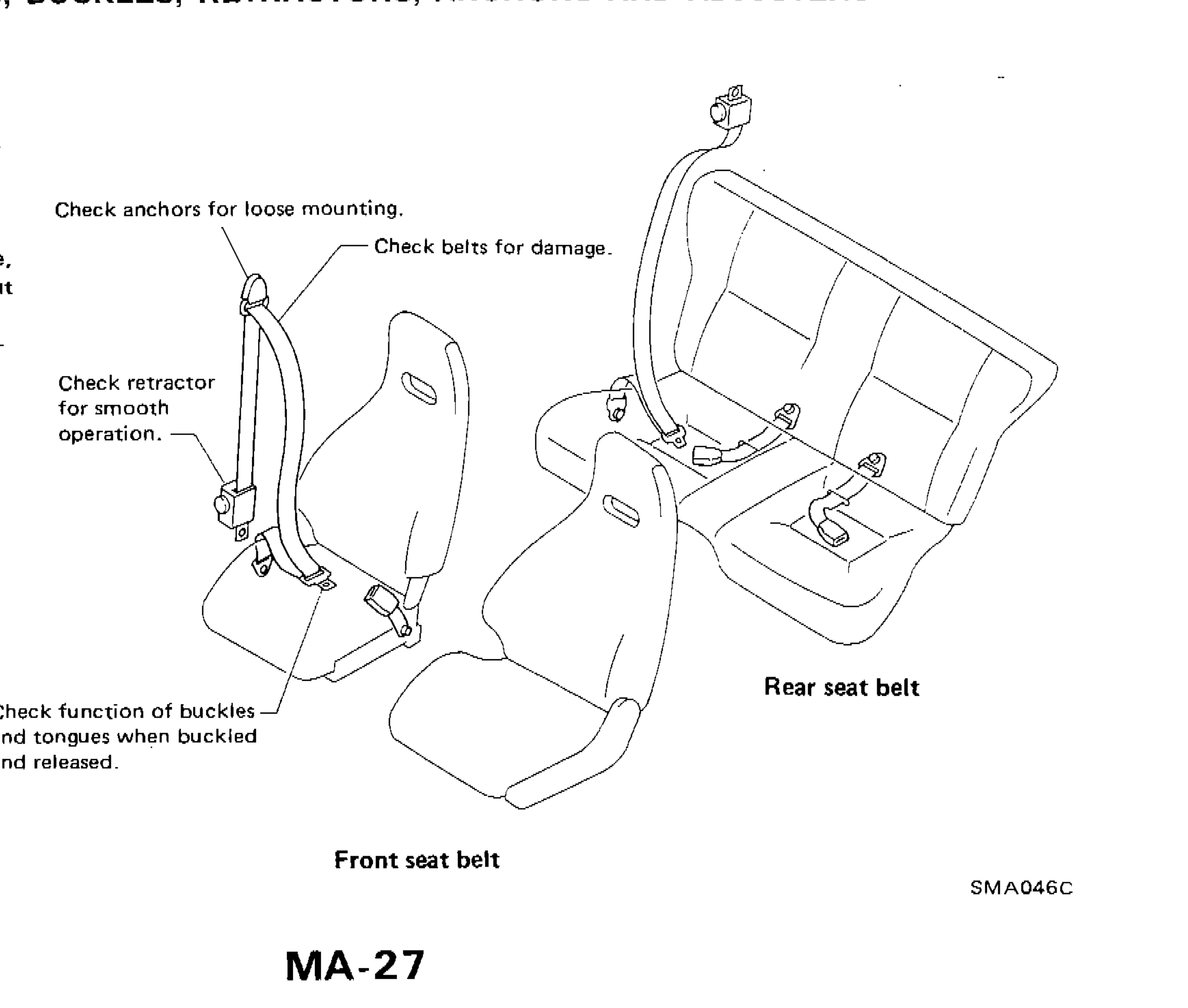

Component LocationFig. fig2

Front and rear seat belt inspection points.

Diagram showing front and rear seat belt assemblies with callouts for checking anchors, belts, retractor, buckles and tongues.
SMA046C
1Check anchors for loose mounting.(upper shoulder anchor area)
2Check belts for damage.(belt webbing)
3Check retractor for smooth operation.(retractor unit)
4Check function of buckles and tongues when buckled and released.(buckle area lower seat)
5Front seat belt(lower center of figure)
6Rear seat belt(right side of figure)
