S13S13

CHASSIS AND BODY MAINTENANCE

MA-24prose procedure

Checking Brake Fluid Level and Leaks

If fluid level is extremely low, check brake system for leaks.

Checking Brake System

Check brake fluid lines and parking brake cables for improper attachment and for leaks, chafing, abrasions, deterioration, etc.

Changing Brake Fluid

  1. 1
    Drain brake fluid from each air bleeder valve.

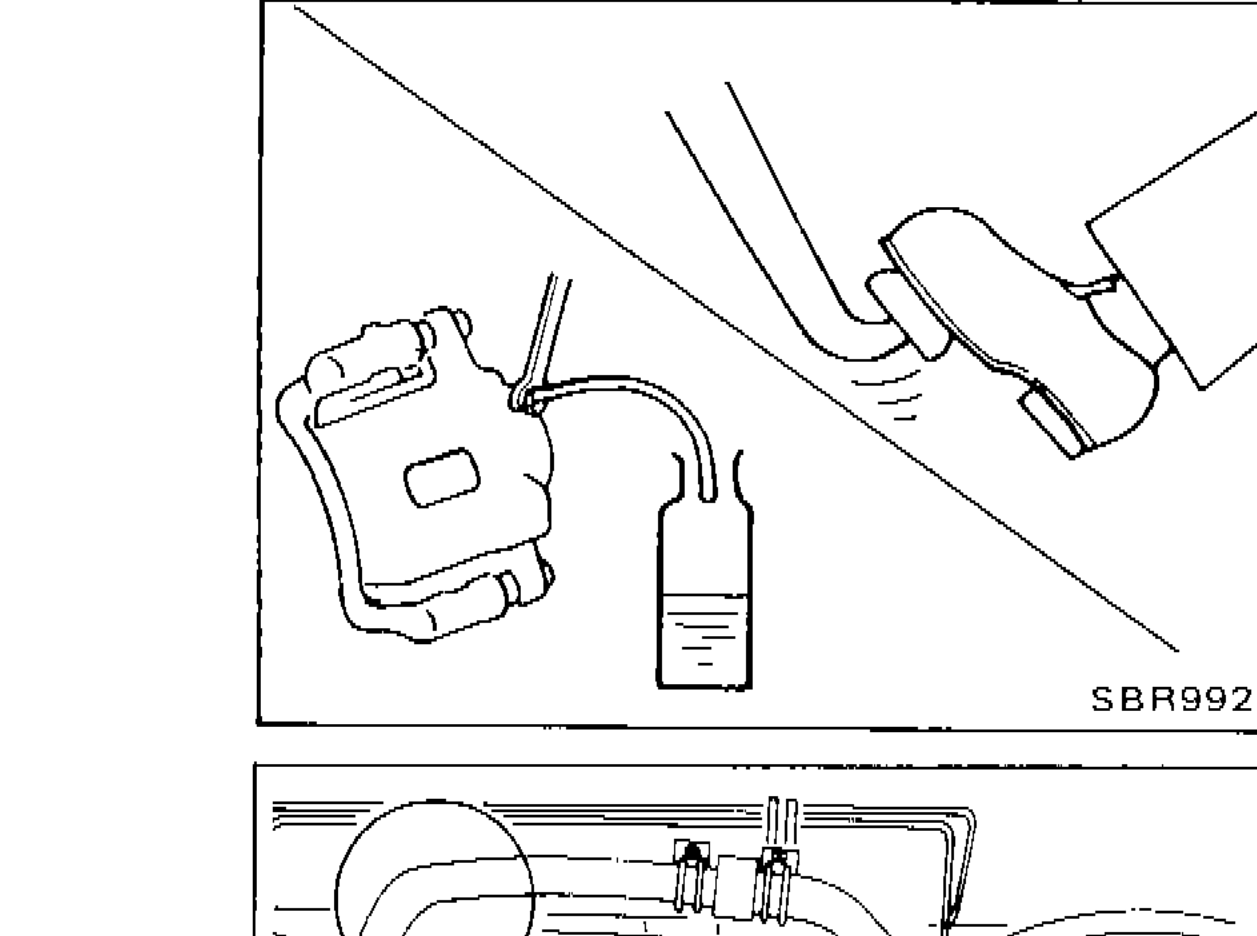

    Brake fluid being changed, showing air bleeder valve and fluid container
    SBR992
  2. 2
    Refill until new brake fluid comes out from each air bleeder valve. Use same procedure as in bleeding hydraulic system to refill brake fluid. Refer to section BR.
    Refill with recommended brake fluid "DOT 3".
    Never reuse drained brake fluid.
    Be careful not to splash brake fluid on painted areas.
    Brake fluid being changed, showing air bleeder valve and fluid container
    SBR992

Checking Brake Booster, Vacuum Hoses, Connections and Check Valve

Check vacuum lines, connections and check valve for improper attachment, air tightness, chafing and deterioration.
