ENGINE MAINTENANCE
MA-16prose procedureChanging Fuel Filter (Cont'd)

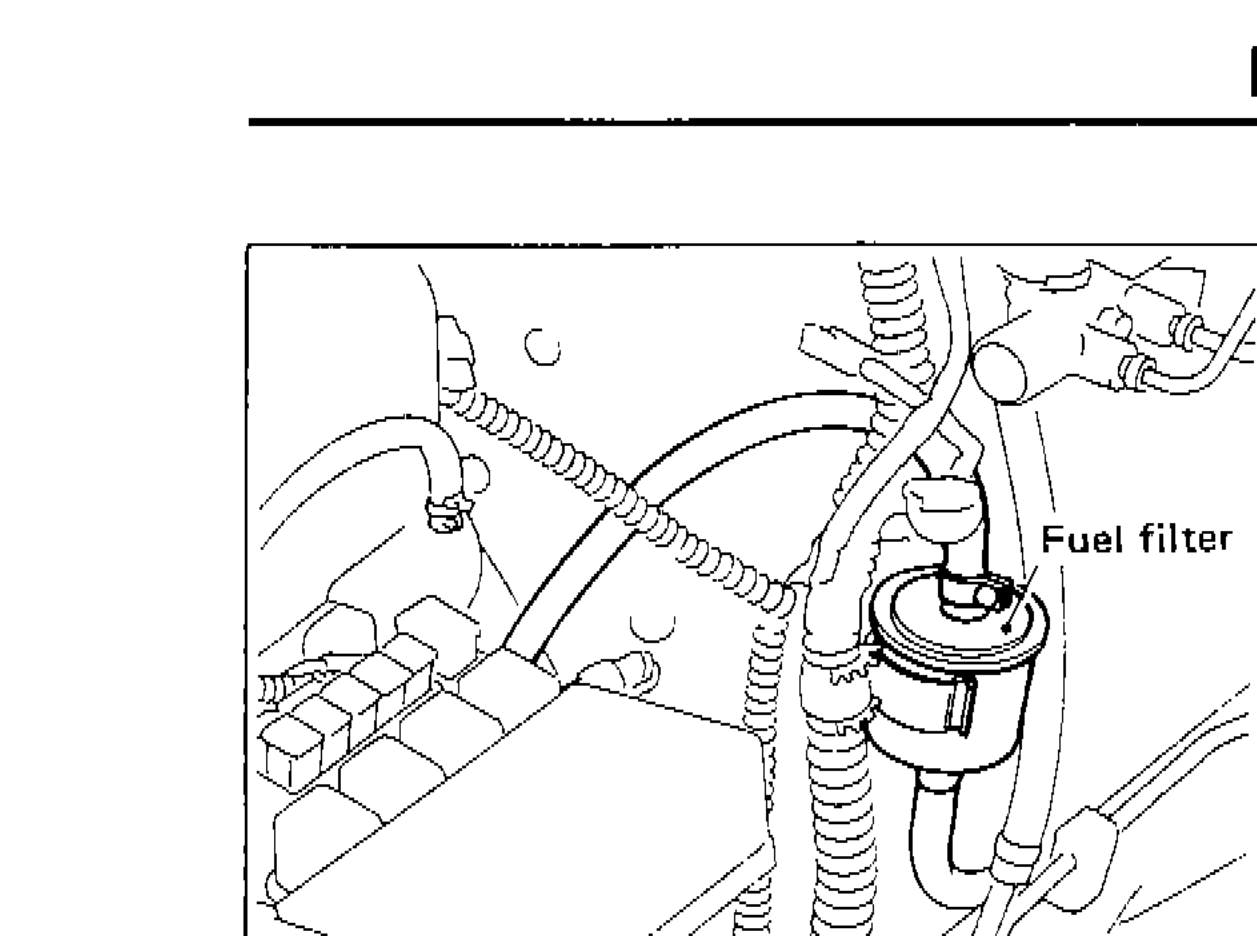

- 5Loosen fuel hose clamps.
SMA993B - 6Replace fuel filter.Be careful not to spill fuel over engine compartment. Place a shop towel to absorb fuel.Use a high-pressure type fuel filter. Do not use a synthetic resinous fuel filter.When tightening fuel hose clamps, refer to "Checking Fuel Lines".SMA993B
Changing Air Cleaner Filter
Viscous paper type
The viscous paper type filter does not need cleaning between renewals.
Changing Engine Oil
WARNING
Be careful not to burn yourself, as the engine oil is hot.
Changing Engine Oil

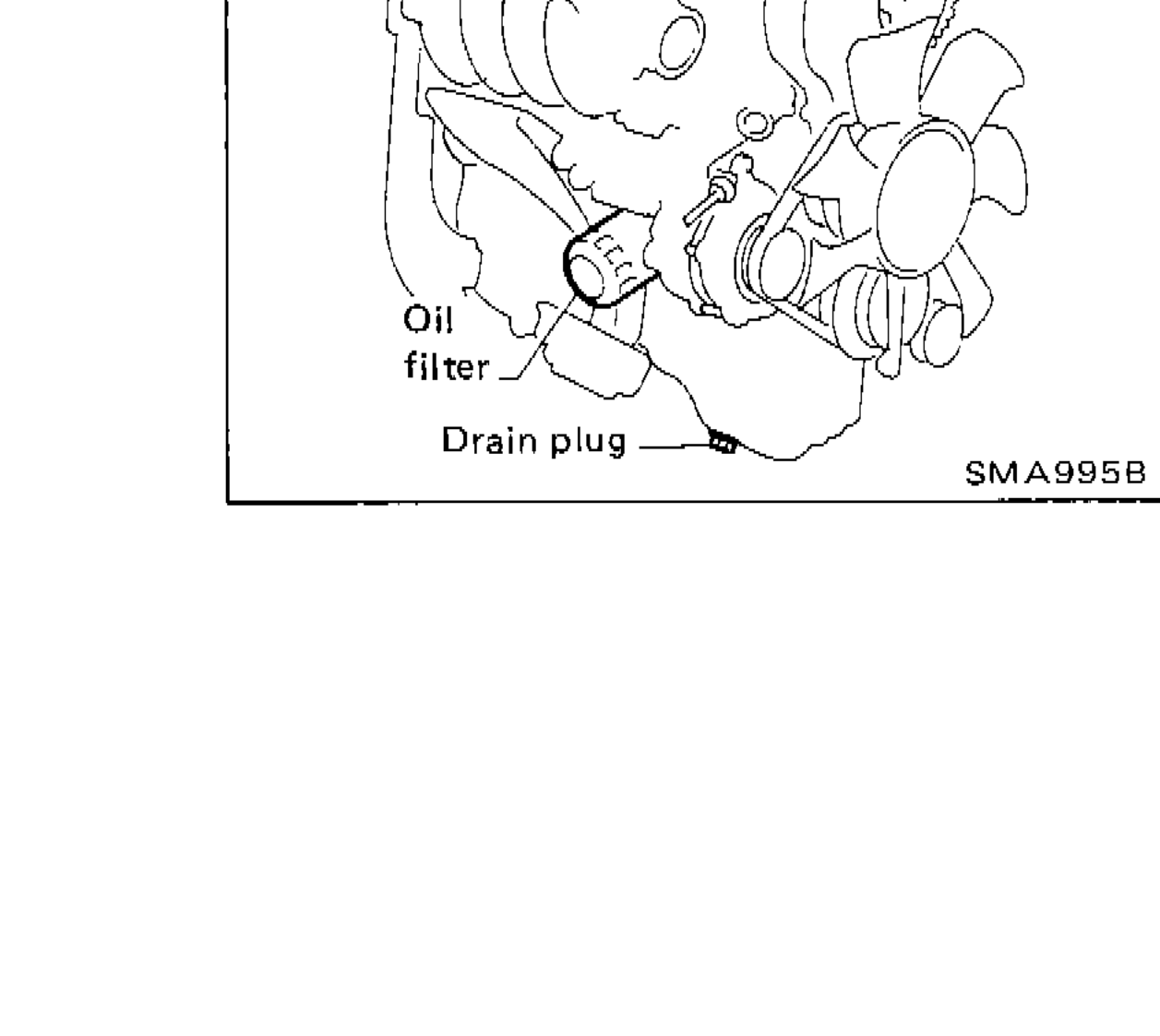

- 1Warm up engine, and check for oil leakage from engine components.
- 2Remove drain plug and oil filler cap.
SMA995B - 3Drain oil and refill with new engine oil.SMA995B
| Specification | Value |
|---|---|
| Refill oil capacity (Approximate) — With oil filter changeWith oil filter change | 3.5ℓ (3-1/8 Imp qt) |
| Refill oil capacity (Approximate) — Without oil filter changeWithout oil filter change | 3.1ℓ (2-3/4 Imp qt) |
| Drain plug torqueInstall with new washer | 29 - 39 N·m (3.0 - 4.0 kg-m, 22 - 29 ft-lb)N·m |
Refill oil capacity (Approximate) — With oil filter changeWith oil filter change
3.5ℓ (3-1/8 Imp qt)
Refill oil capacity (Approximate) — Without oil filter changeWithout oil filter change
3.1ℓ (2-3/4 Imp qt)
Drain plug torqueInstall with new washer
29 - 39 N·m (3.0 - 4.0 kg-m, 22 - 29 ft-lb)N·m
CAUTION
Be sure to clean drain plug and install with new washer. Drain plug: 29 - 39 N·m (3.0 - 4.0 kg-m, 22 - 29 ft-lb)
CAUTION
Use recommended engine oil.
