ENGINE MAINTENANCE

MA-13prose procedure

1
Inspect for cracks, fraying, wear or oil adhesion. If necessary, replace with a new one.
2

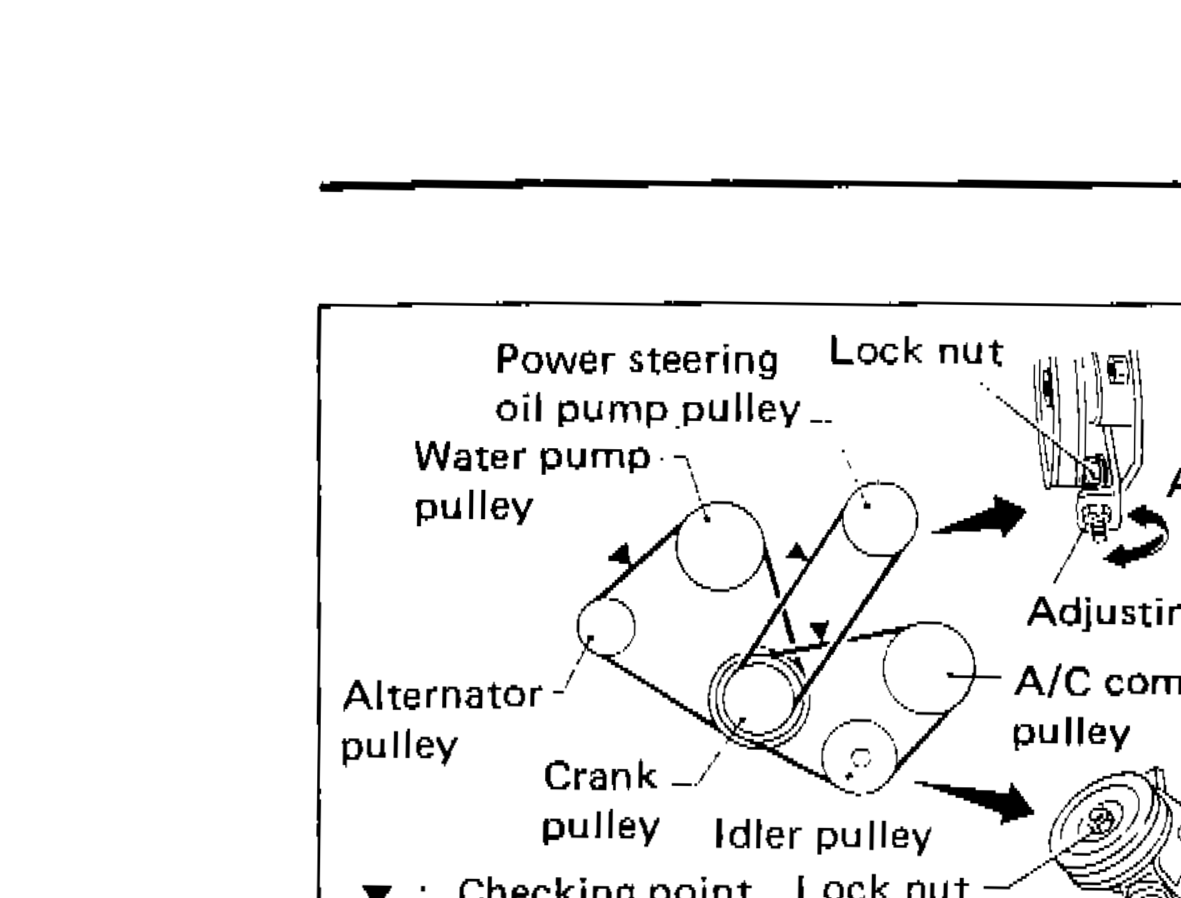

Inspect drive belt deflections by pushing on the belt midway between pulleys.
SMA989B

IMPORTANT

Adjust if belt deflections exceed the limit.

	Used belt deflection — Limit	Used belt deflection — Adjusted deflection	Set deflection of new belt
Alternator	8 (0.31)	4.5 - 5.5 (0.177 - 0.217)	4 - 5 (0.16 - 0.20)
Air conditioner compressor	12 (0.47)	7 - 9 (0.28 - 0.35)	6 - 8 (0.24 - 0.31)
Power steering oil pump	15 (0.59)	10 - 12 (0.39 - 0.47)	9 - 11 (0.35 - 0.43)
Applied pushing force	98 N (10 kg, 22 lb)	98 N (10 kg, 22 lb)	98 N (10 kg, 22 lb)

Alternator

Used belt deflection — Limit8 (0.31)

Used belt deflection — Adjusted deflection4.5 - 5.5 (0.177 - 0.217)

Set deflection of new belt4 - 5 (0.16 - 0.20)

Air conditioner compressor

Used belt deflection — Limit12 (0.47)

Used belt deflection — Adjusted deflection7 - 9 (0.28 - 0.35)

Set deflection of new belt6 - 8 (0.24 - 0.31)

Power steering oil pump

Used belt deflection — Limit15 (0.59)

Used belt deflection — Adjusted deflection10 - 12 (0.39 - 0.47)

Set deflection of new belt9 - 11 (0.35 - 0.43)

Applied pushing force

Used belt deflection — Limit98 N (10 kg, 22 lb)

Used belt deflection — Adjusted deflection98 N (10 kg, 22 lb)

Set deflection of new belt98 N (10 kg, 22 lb)

NOTE

Unit: mm (in)

NOTE

Inspect drive belt deflections when engine is cold.

Changing Engine Coolant

WARNING

WARNING: To avoid being scalded, never change the coolant when the engine is hot.

1

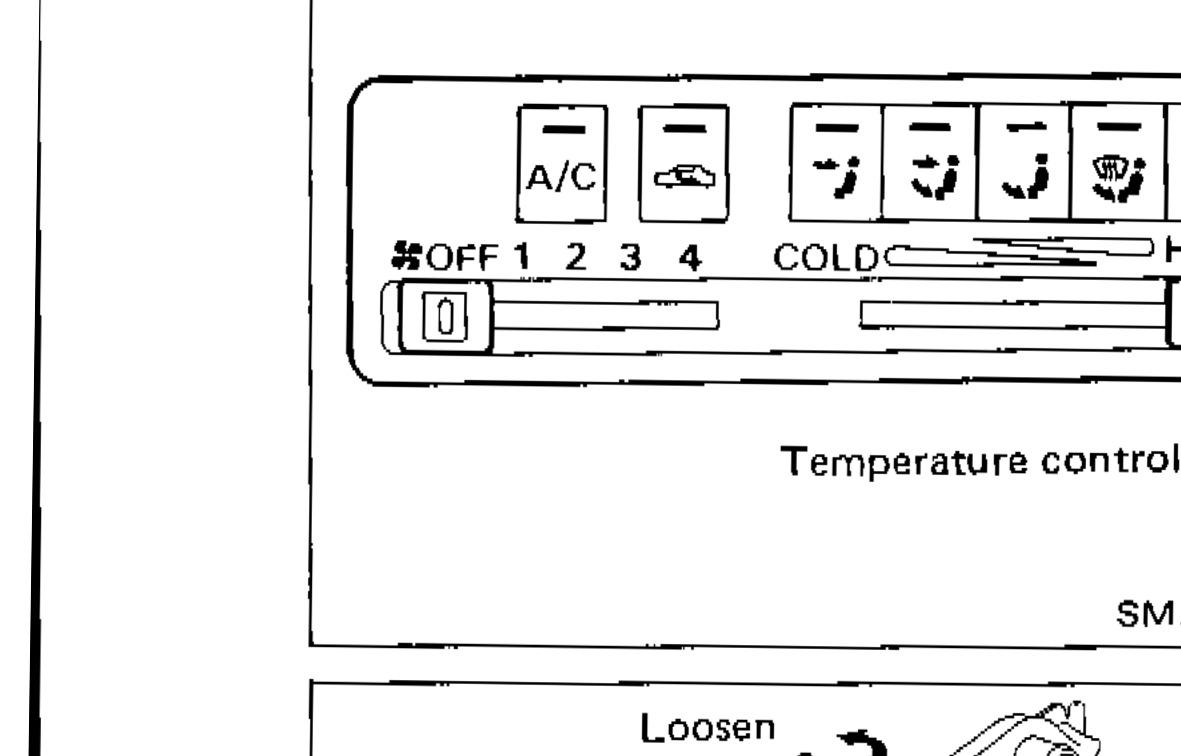

Move heater "TEMP" control lever all the way to "HOT" position.
SMA990B
2

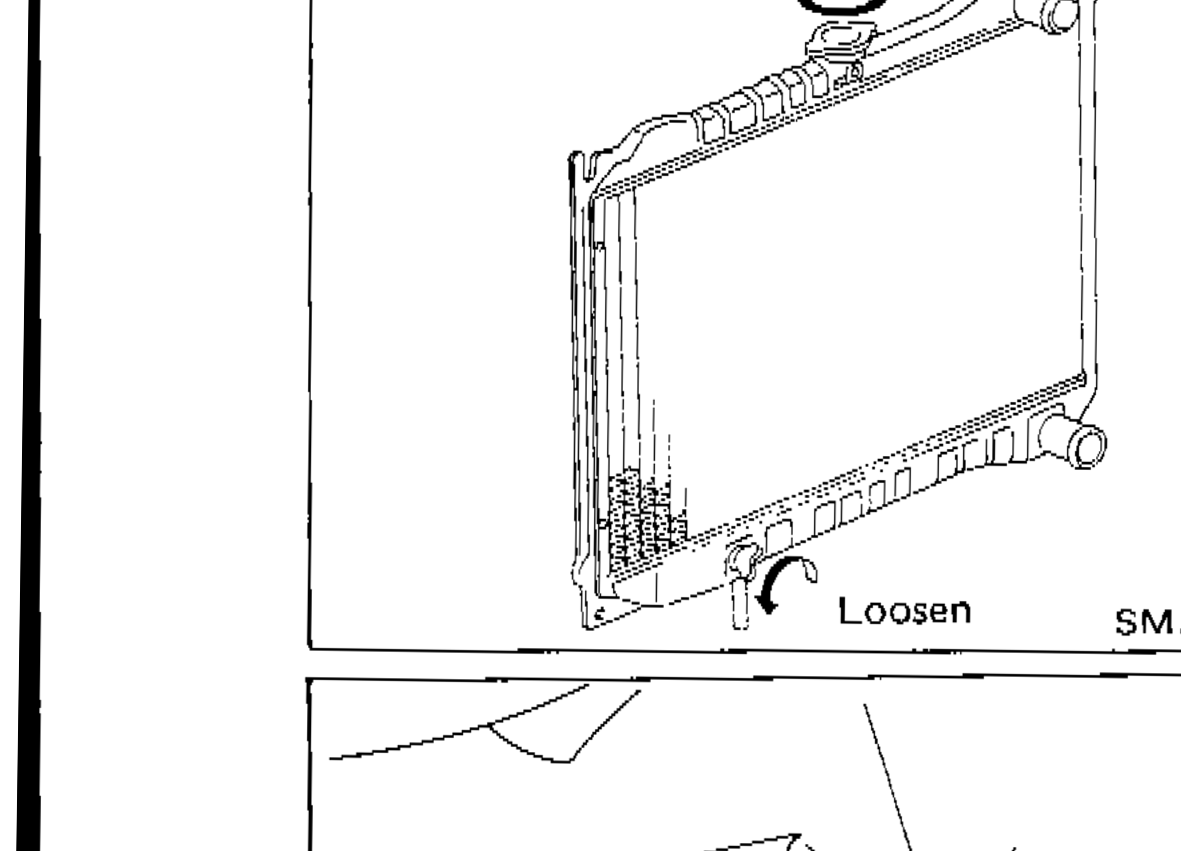

Open drain cock at the bottom of radiator, and remove radiator cap.
Be careful not to allow coolant to contact drive belts.
SMA991B
3

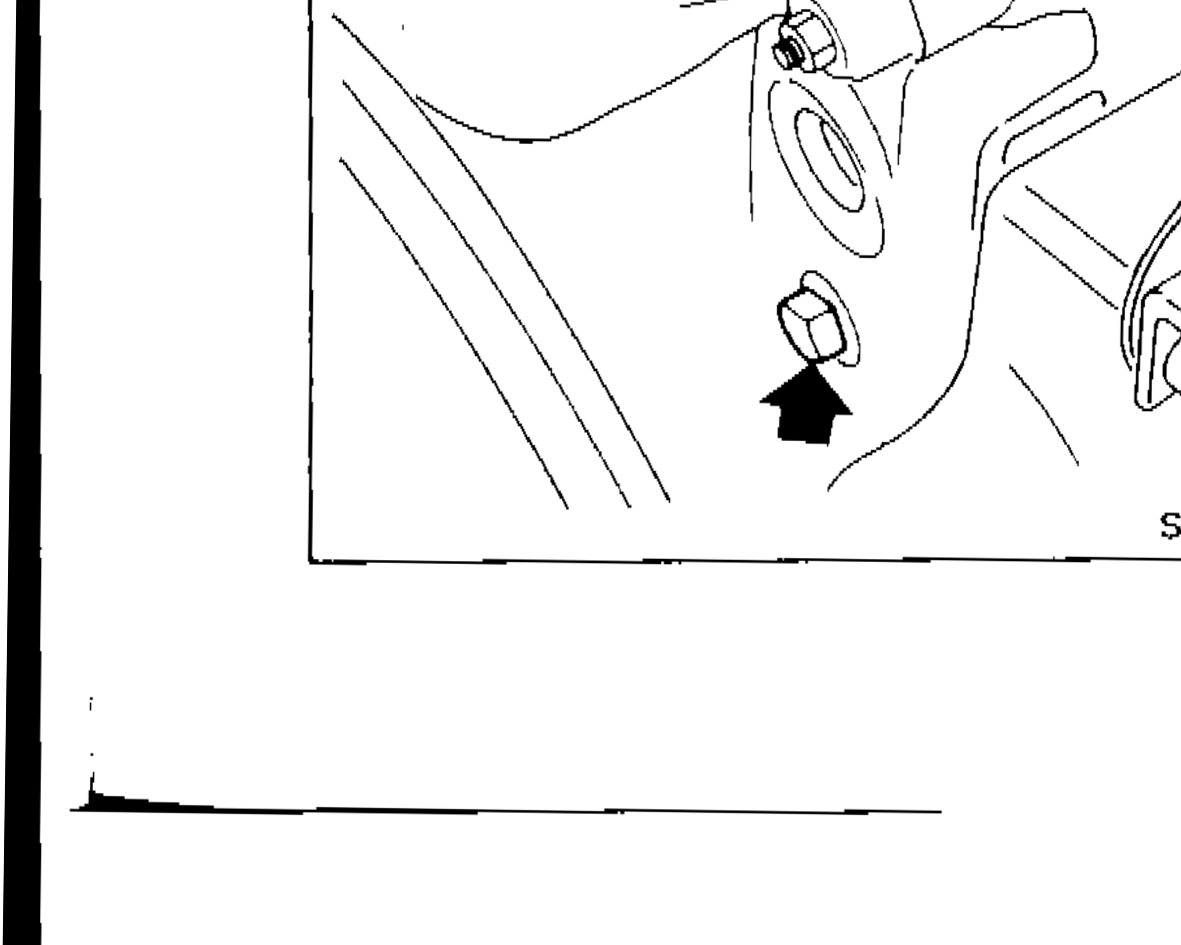

Remove cylinder block drain plug.
SLC764
4
Close drain cock and tighten drain plug securely.
5
Fill radiator with water and warm up engine.
6
Stop engine and wait until it cools down.
7
Repeat step 2 through step 6 until clear water begins to drain from radiator.
8
Drain water.
Apply sealant to the thread of drain plug. Torque: 54 - 74 N·m (5.5 - 7.5 kg-m, 40 - 54 ft-lb)

Specification	Value
Drain plug torqueApply sealant to thread	54 - 74N·m
Drain plug torqueApply sealant to thread	5.5 - 7.5kg-m
Drain plug torqueApply sealant to thread	40 - 54ft-lb

Drain plug torqueApply sealant to thread

54 - 74N·m

Drain plug torqueApply sealant to thread

5.5 - 7.5kg-m

Drain plug torqueApply sealant to thread

40 - 54ft-lb
