CHASSIS AND BODY MAINTENANCE

MA-23prose procedure

Changing A/T Fluid

  1. 1

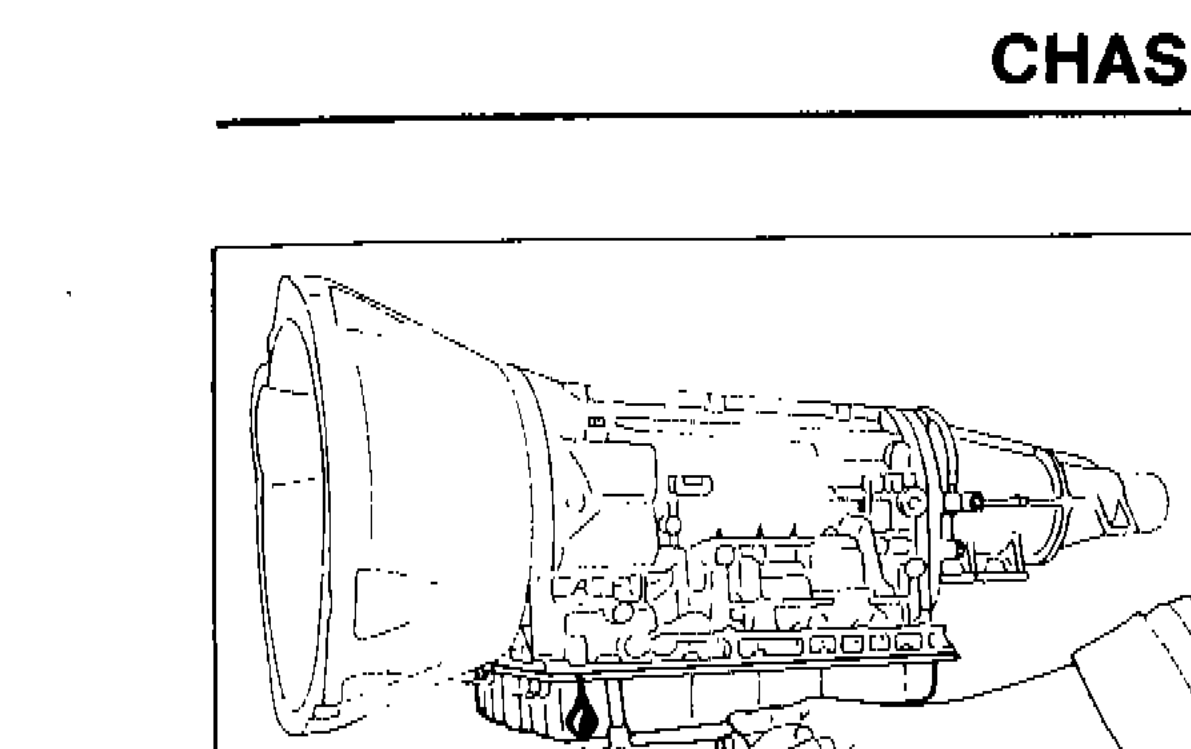

    Drain fluid by removing oil pan.
    Automatic transmission showing oil pan drain for A/T fluid change
    SMA921B
  2. 2
    Replace gasket with new one.
  3. 3
    Refill with fluid and then check fluid level.
Oil capacity (With torque converter)With torque converter
7.9ℓ (7 Imp qt)

Checking Propeller Shaft

  1. 1

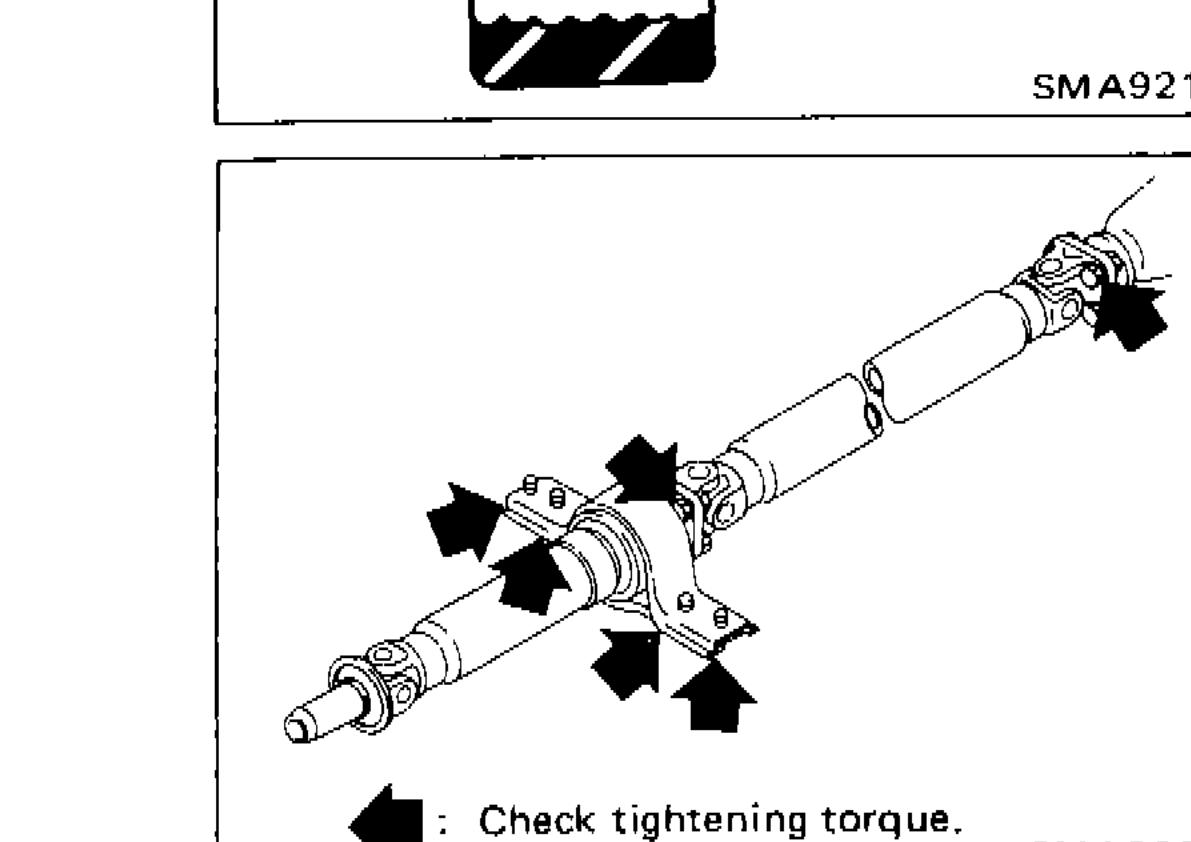

    Check propeller shaft and center bearing for damage, looseness or grease leakage.
    Propeller shaft with arrows indicating check points and tightening torque locations
    SMA922B
  2. 2
    If greasing points are provided, supply grease as necessary. Refer to section PD.
    Propeller shaft with arrows indicating check points and tightening torque locations
    SMA922B

Checking Differential Gear Oil

  1. 1

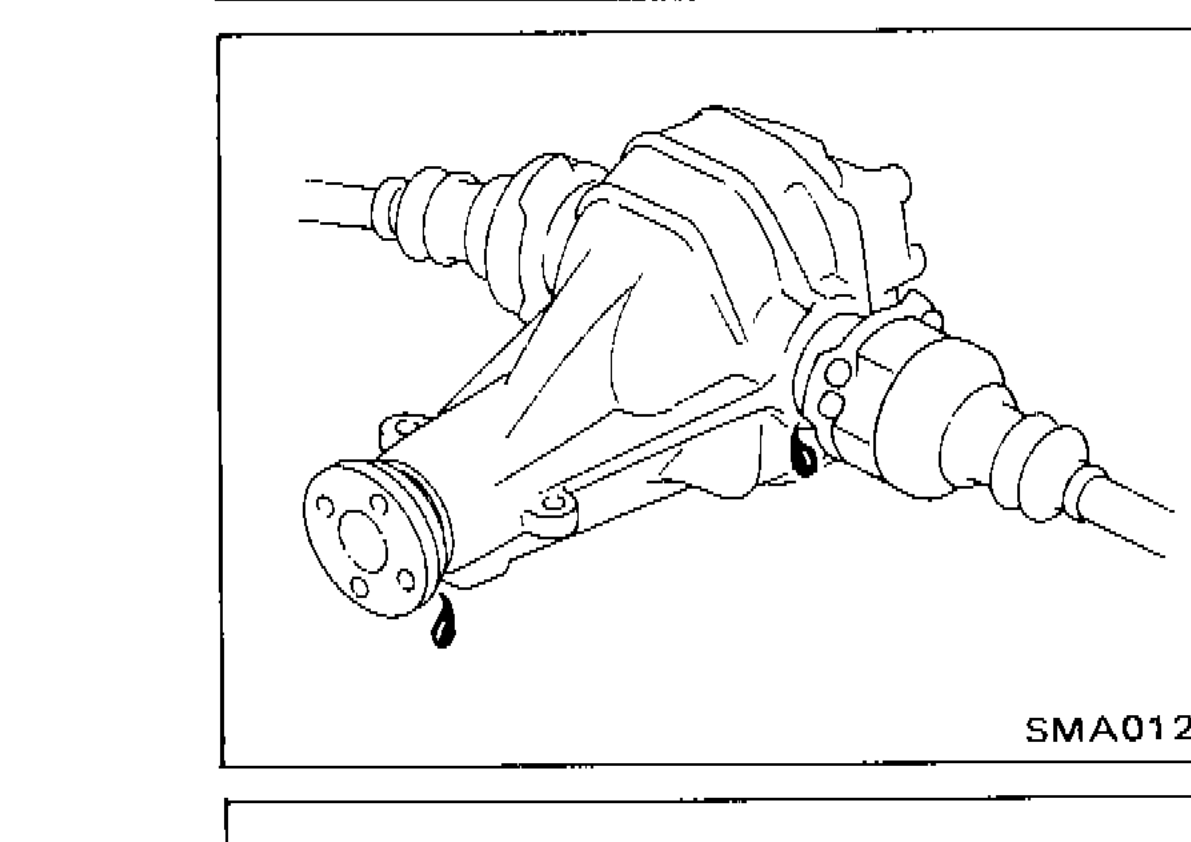

    Check differential carrier for oil leakage.
    Differential carrier assembly showing oil leakage check point
    SMA012C
  2. 2

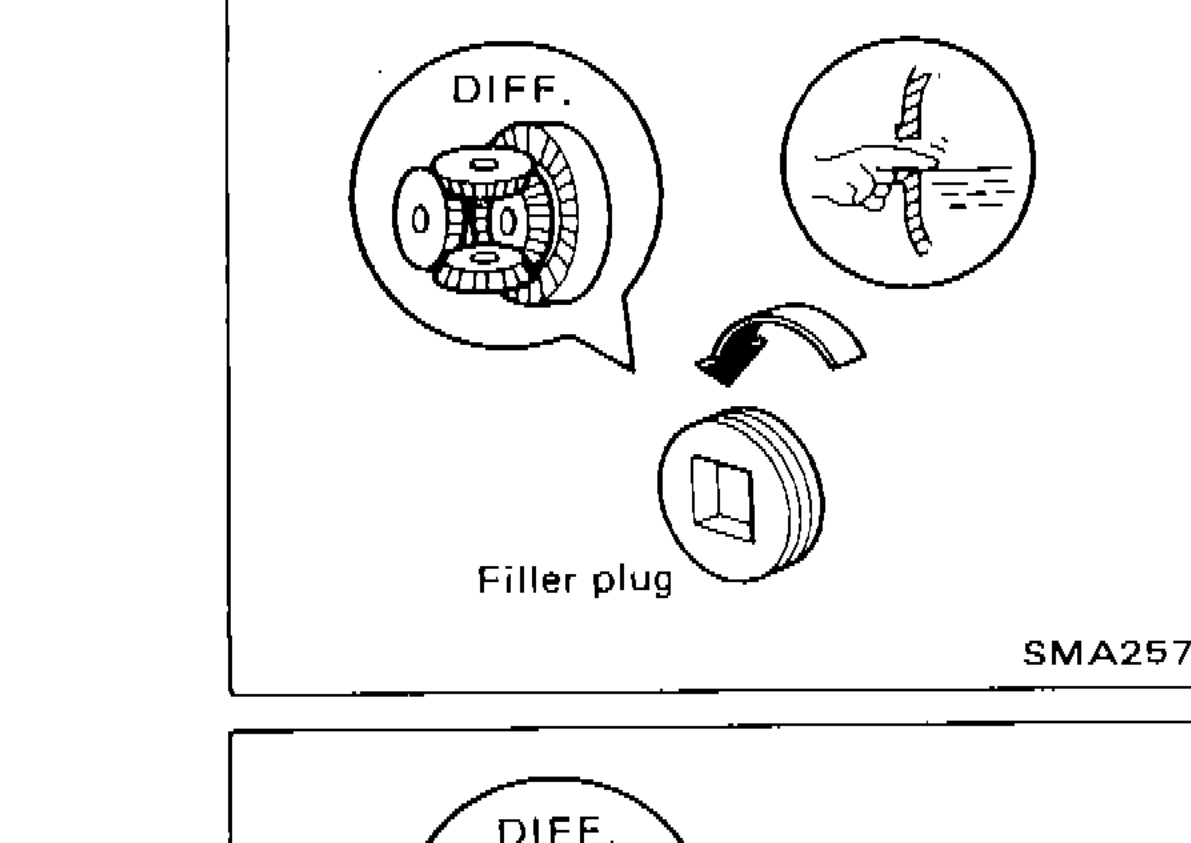

    Check oil level.
    Differential filler plug location diagram
    SMA257A
Filler plug torqueFiller plug
59 - 98N·m (6 - 10 kg-m, 43 - 72 ft-lb)

Changing Differential Gear Oil

  1. 1

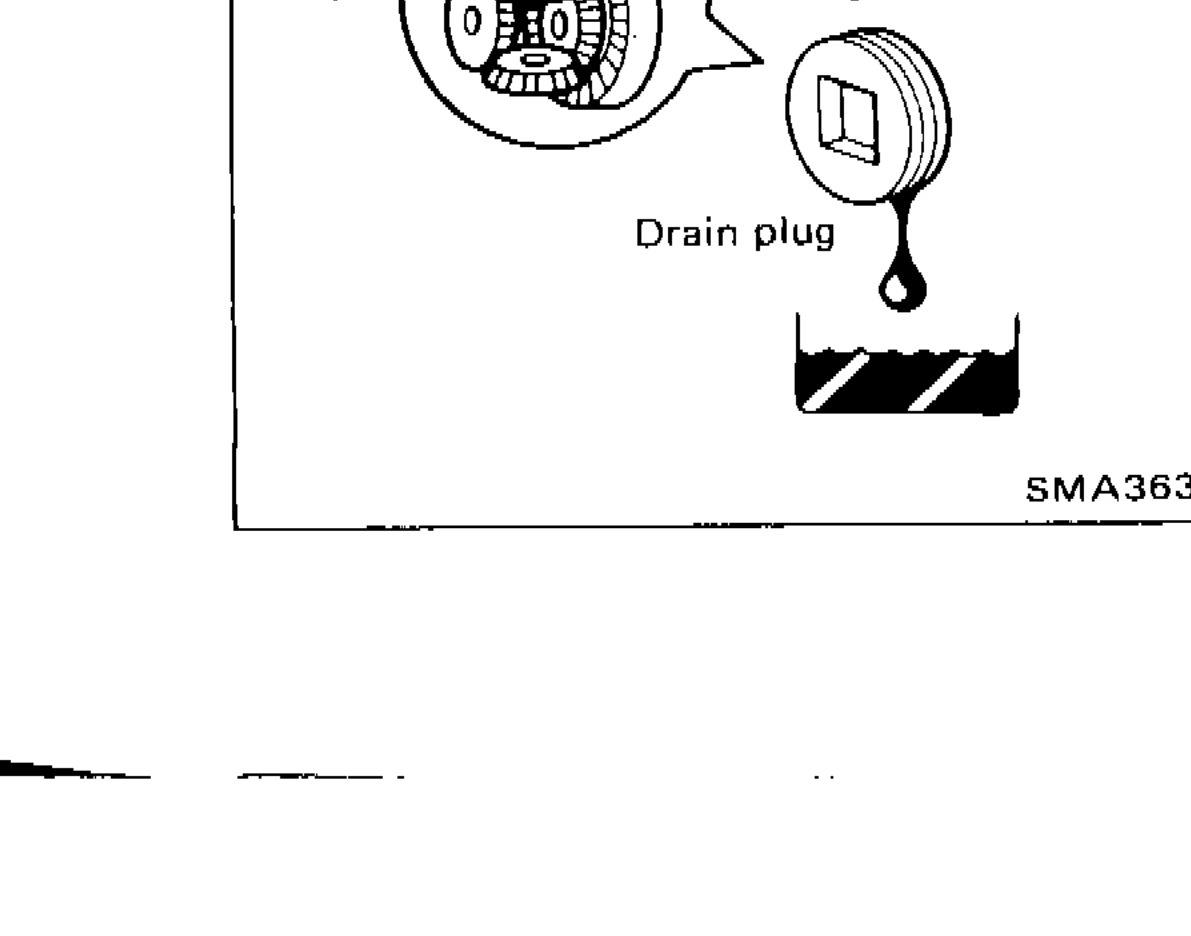

    Drain oil and refill with new gear oil.
    Differential drain plug location diagram showing oil drain
    SMA363A
  2. 2
    Check oil level.
    Differential drain plug location diagram showing oil drain
    SMA363A
Oil capacity
1.8ℓ (3-1/8 Imp pt)
Drain plug torqueDrain plug
59 - 98N·m (6 - 10 kg-m, 43 - 72 ft-lb)
