S13S13

CHASSIS AND BODY MAINTENANCE

MA-21prose procedure

Clutch system described is hydraulic type. M/T oil check specifies never start engine while checking oil level.

Checking Exhaust System

  1. 1
    Check exhaust pipes, muffler and mounting for improper attachment and for leaks, cracks, damage, loose connections, chafing and deterioration.

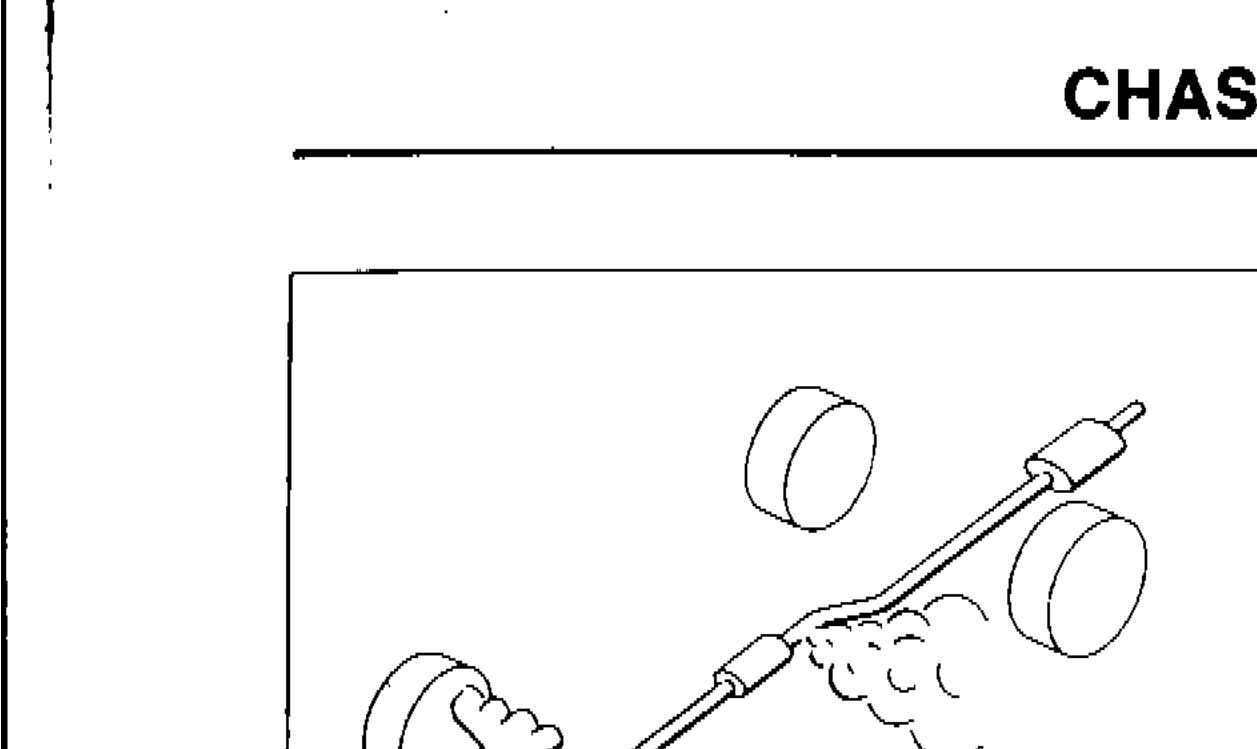

    Exhaust system components including pipes, muffler, and mounting hardware
    SMA211A

Checking Clutch Fluid Level and Leaks

  1. 1
    If fluid level is extremely low, check clutch system for leaks.

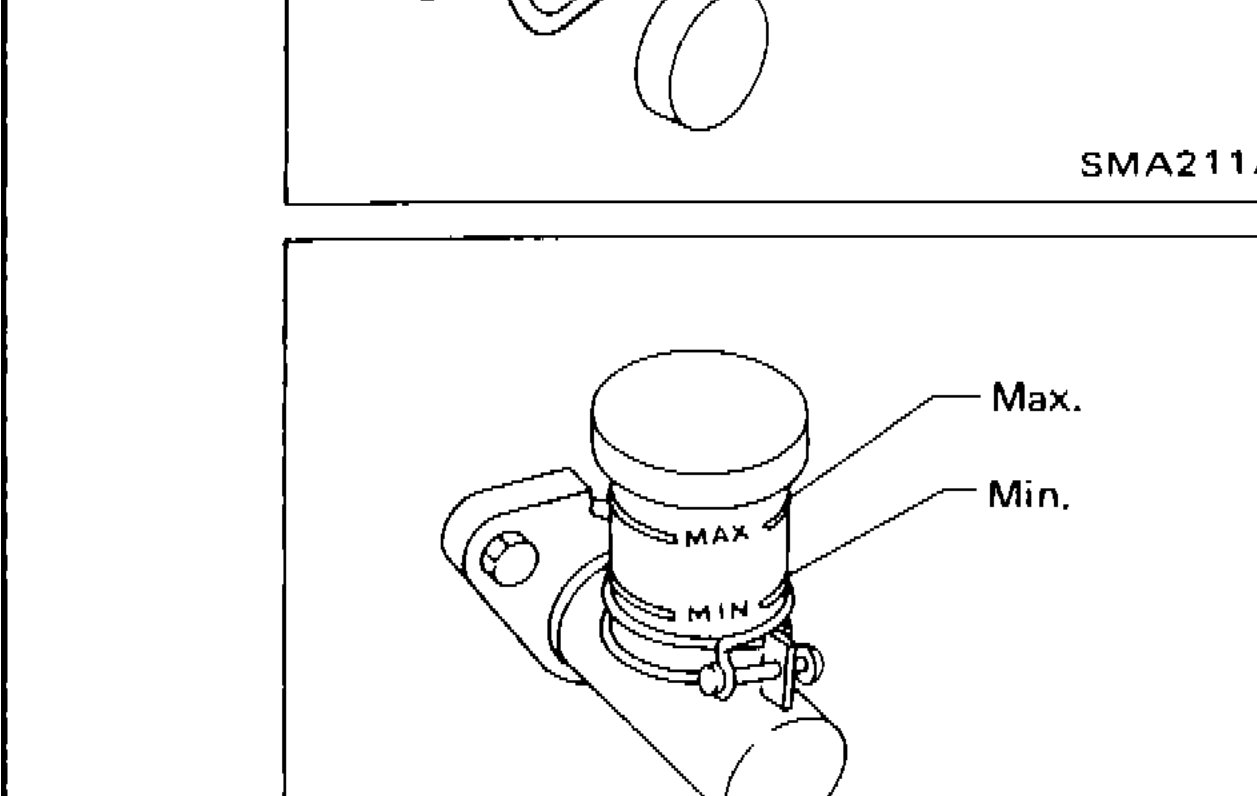

    Clutch fluid reservoir showing MAX and MIN level markings
    SMA941B

Checking Clutch System

  1. 1
    HYDRAULIC TYPE: Check fluid lines and operating cylinder for improper attachment, cracks, damage, loose connections, chafing and deterioration.

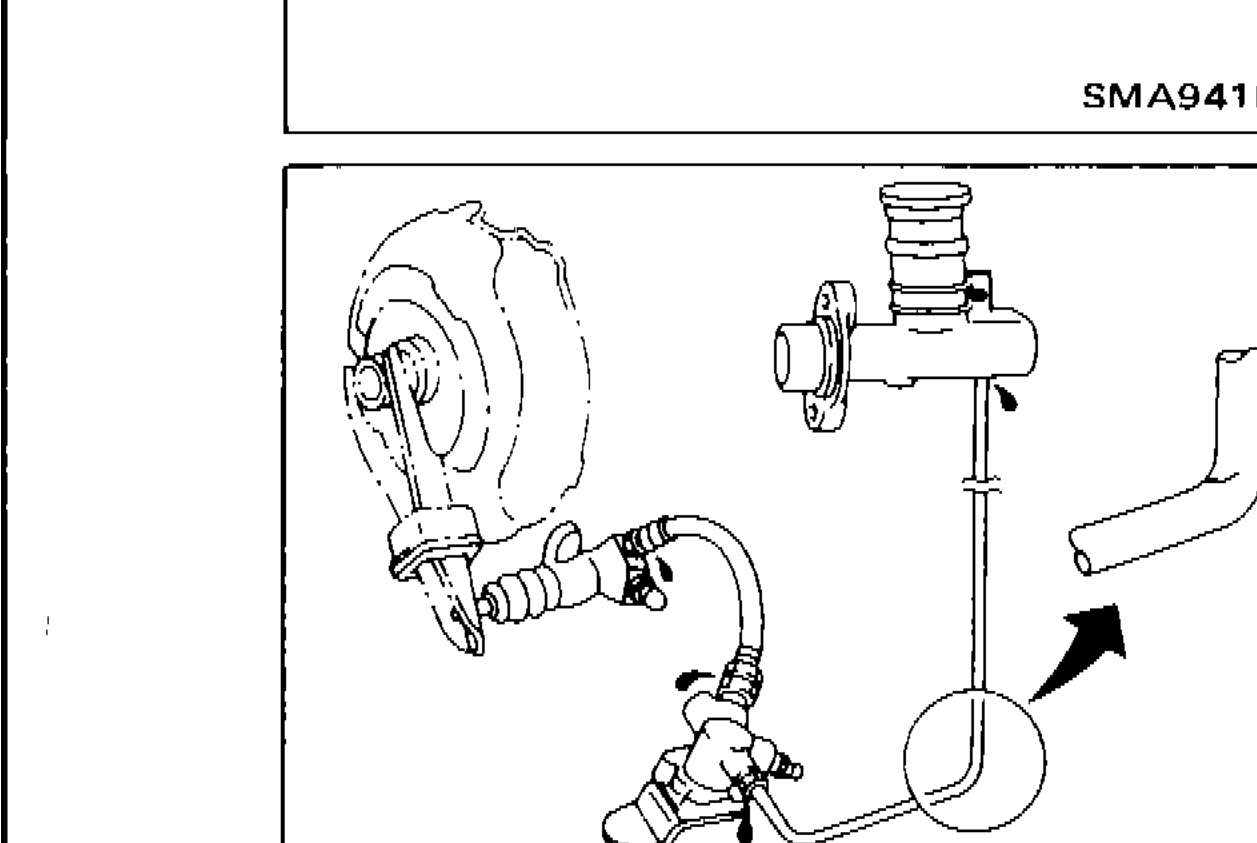

    Hydraulic clutch system showing fluid lines and operating cylinder
    SMA741A

Checking M/T Oil

  1. 1
    Check for oil leakage.

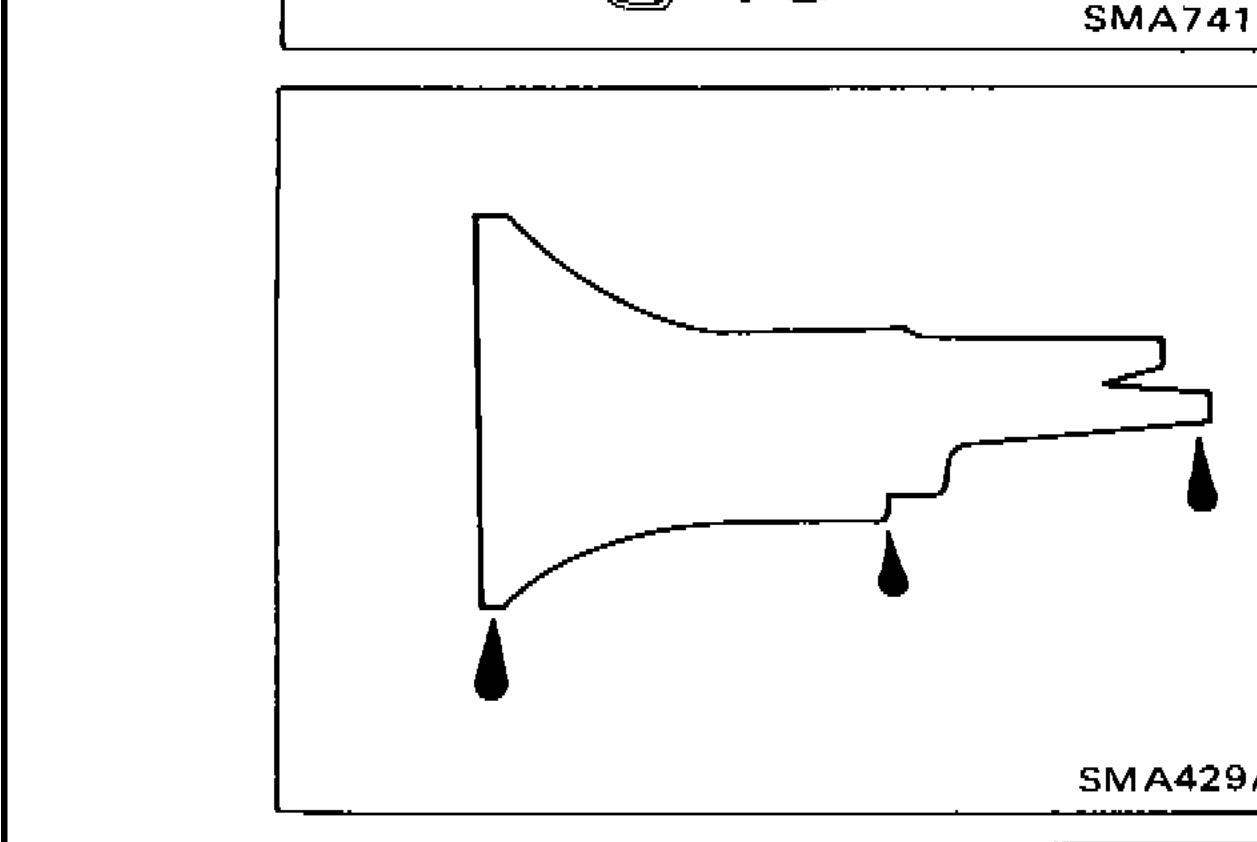

    Manual transmission showing oil leakage check points indicated by arrows
    SMA429A
  2. 2
    Check oil level. Never start engine while checking oil level.
    Never start engine while checking oil level.

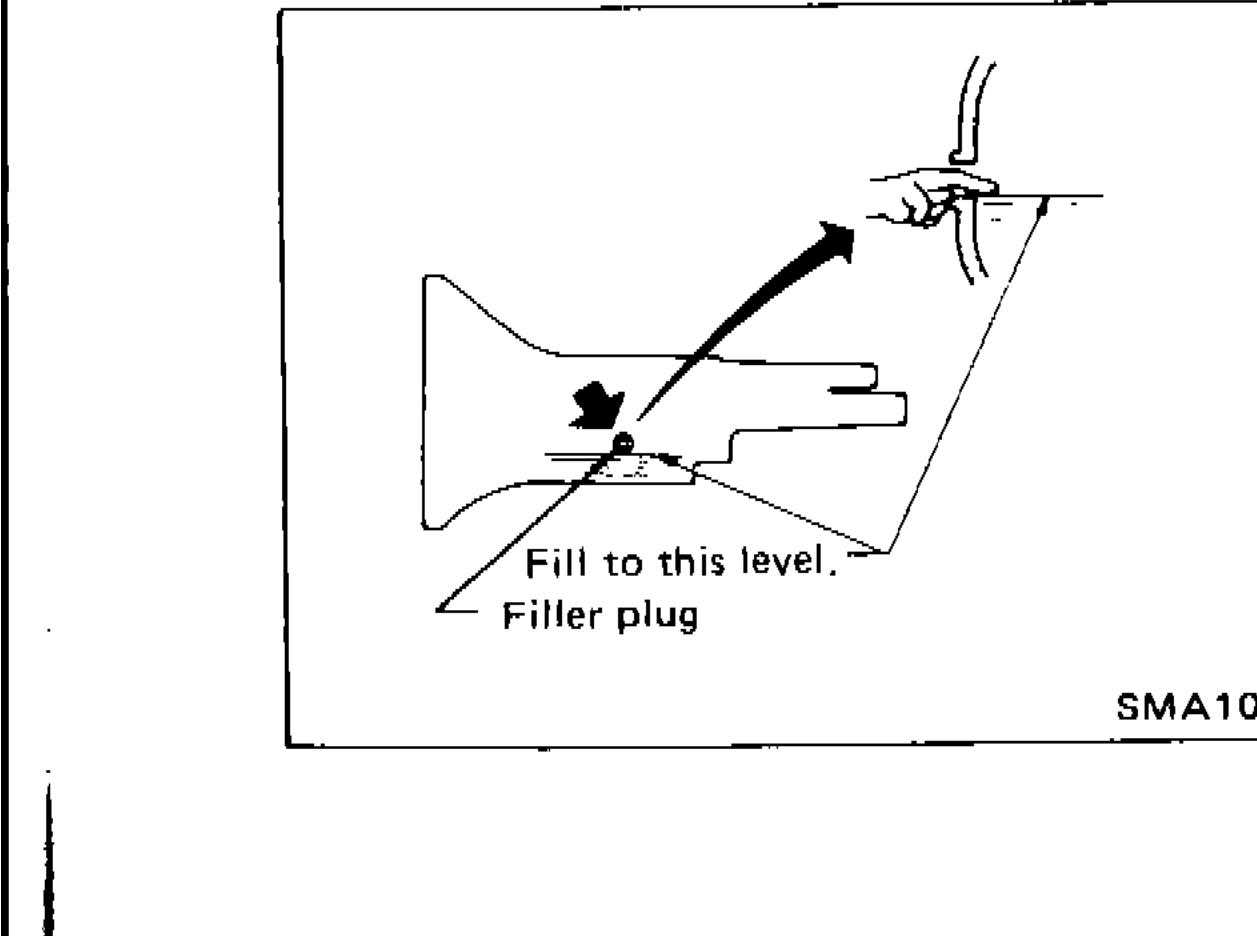

    Manual transmission filler plug location with hand indicating fill level and filler plug label
    SMA103
Filler plug torqueM/T filler plug
25 - 34N·m
Filler plug torqueM/T filler plug
2.5 - 3.5kg-m
Filler plug torqueM/T filler plug
18 - 25ft-lb
