TROUBLE DIAGNOSES — Harness Connector Location

BR-47component photoUnverified
Continued from BR-46

Harness Connector Location

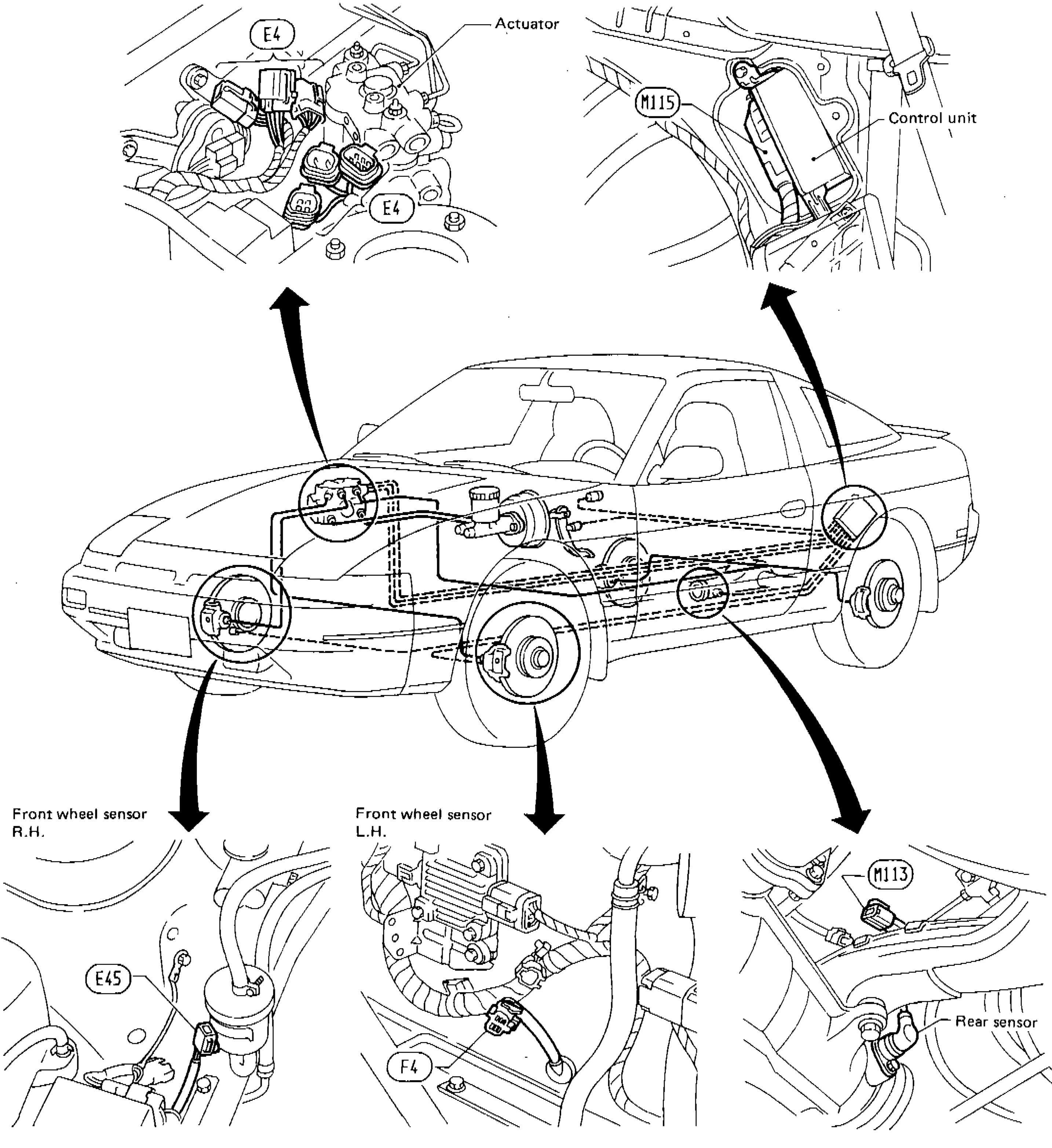

Component LocationFig. fig1

Locations of A.B.S. harness connectors on the vehicle (connector IDs in parentheses).

Side view of the 200SX with four exploded close-ups linked by arrows. Connector IDs labelled in oval tags: E4 / E45 at the actuator and front-R.H.-sensor location, F4 at the front-L.H.-sensor location, M115 at the control-unit location, M113 at the rear-sensor location.
SBR533A
1Actuator (E4)(Engine bay, alongside actuator body)
2Control unit (M115)(Behind dashboard at control-unit harness)
3Front wheel sensor R.H. (E45)(Front-right strut / sensor harness)
4Front wheel sensor L.H. (F4)(Front-left strut / sensor harness)
5Rear sensor (M113)(Rear differential carrier sensor harness)
