FRONT DISC BRAKE (CL18VB, CL25VA) — Caliper — Inspection, Assembly, On-vehicle Inspection

BR-15prose procedure

Inspection

CYLINDER BODY

Check inside surface of cylinder for scoring, rust, wear, damage or foreign materials. Replace if any such condition exists.

Eliminate minor damage from rust or foreign materials by polishing surface with fine emery paper.

CAUTION

Use brake fluid to clean.

PISTON

Check piston for scoring, rust, wear, damage or foreign materials. Replace if any condition exists.

CAUTION

Piston sliding surface is plated. Do not polish with emery paper even if rust or foreign materials are stuck to sliding surface.

PIN, PIN BOLT AND PIN BOOT

Check for wear, cracks or other damage. Replace if any condition exists.

Assembly

IMPORTANT

Place piston boot over rear of piston. Fit piston boot's lip properly in corresponding groove on cylinder body. Insert piston into cylinder body and fit boot's lip properly in corresponding groove on piston.

Inspection (On-vehicle)

INSPECTION OF BRAKE DRAG FORCE

Brake drag force inspection

1
Swing cylinder body upward.
2
Make sure that wheel bearing is adjusted properly. Refer to section FA.
3

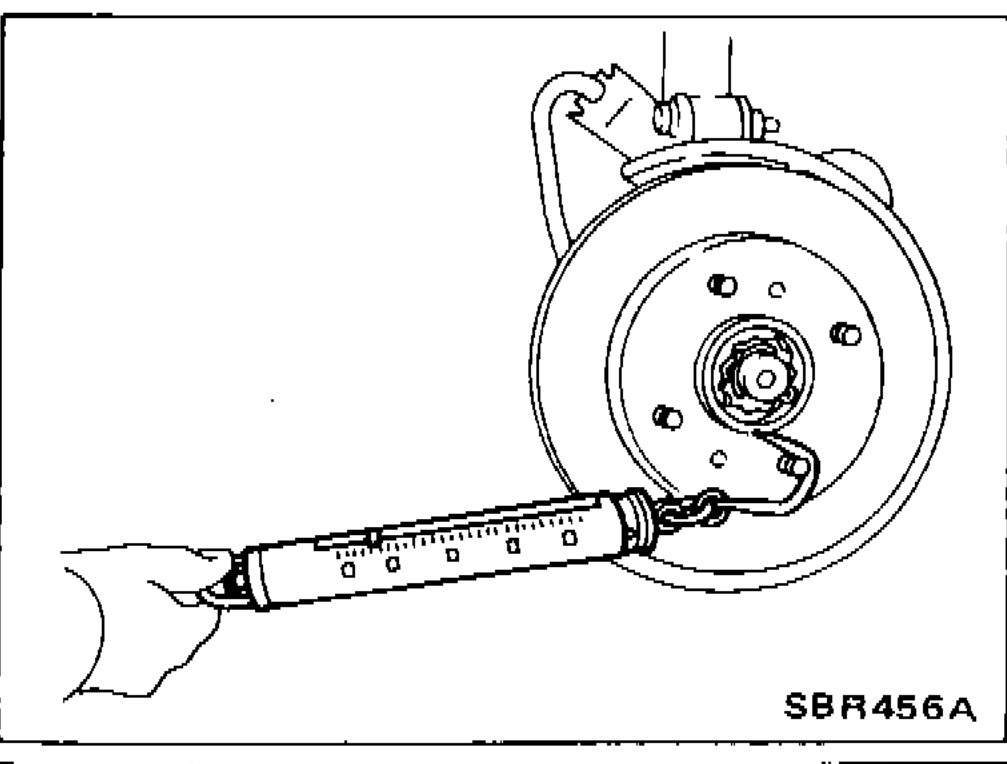

Measure rotating force (F₁).
SBR456A
4
Install caliper with pads to original position.
5
Depress brake pedal for 5 seconds.
6
Release brake pedal and rotate disc rotor 10 revolutions.
7

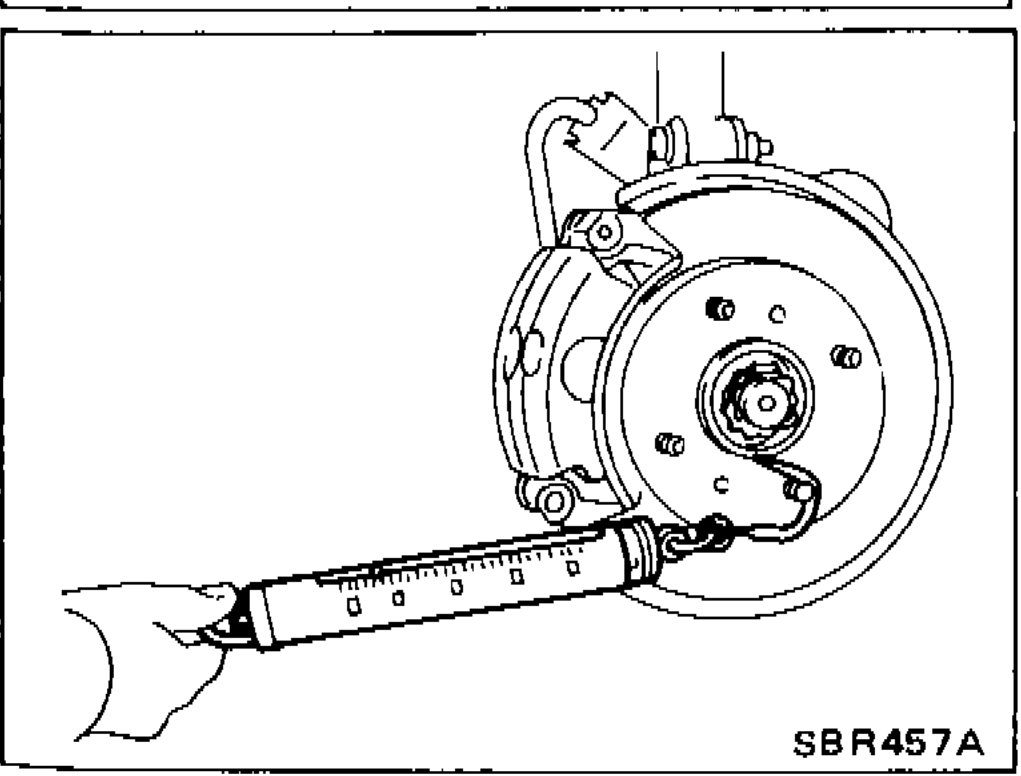

Measure rotating force (F₂).
SBR457A
8
Calculate brake drag force by subtracting F₁ from F₂. If it is not within specification, check main pins and retainer boots in caliper.

Specification	Value
Maximum brake drag force (F₂ - F₁)On-vehicle inspection.	59.8N (6.1 kg, 13.5 lb)

Maximum brake drag force (F₂ - F₁)On-vehicle inspection.

59.8N (6.1 kg, 13.5 lb)
