REAR DISC BRAKE (AD9) — Caliper — Inspection
BR-25prose procedureInspection
INSPECTION OF BRAKE DRAG FORCE
AD9 brake drag force inspection
- 1Swing cylinder body upward.
- 2Make sure that wheel bearing is adjusted properly. Refer to section RA.

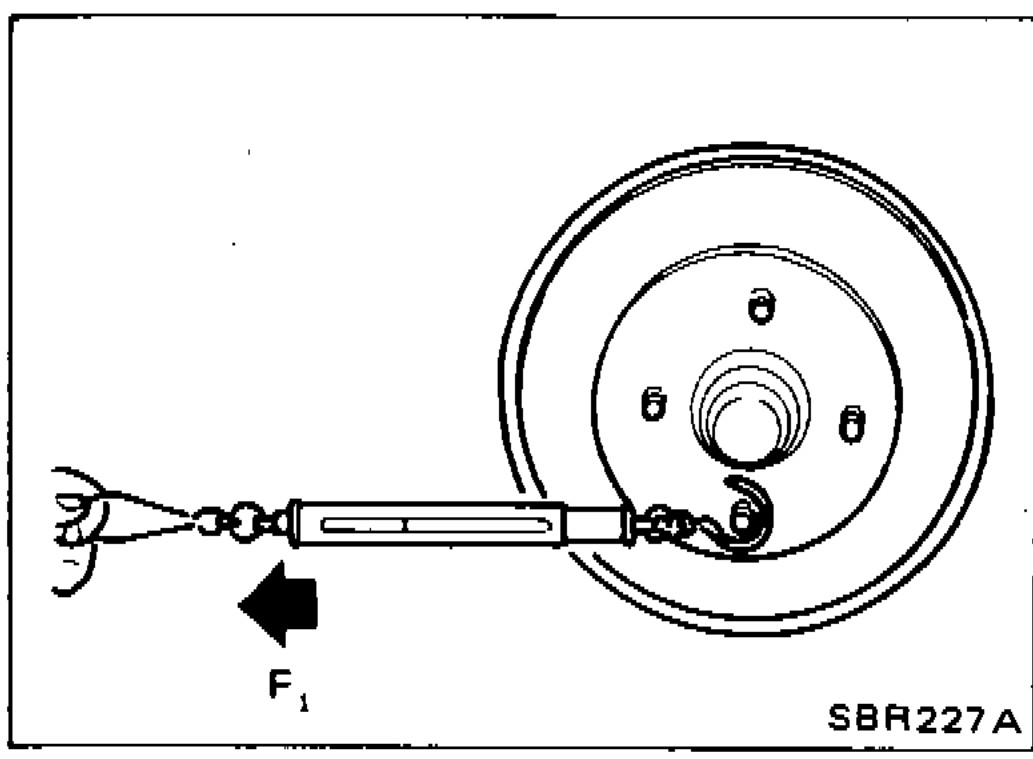

- 3Measure rotating force (F₁).
SBR227A - 4Install caliper with pads to original position.
- 5Depress brake pedal for 5 seconds.
- 6Release brake pedal, rotate disc rotor 10 revolutions.
- 7Measure rotating force (F₂).
SBR018A - 8Calculate brake drag force by subtracting F₁ from F₂. If it is not within specification, check pins and pin boots in caliper.
| Specification | Value |
|---|---|
| Maximum brake drag force (F₂ - F₁)AD9 rear-caliper on-vehicle inspection. | 103.0N (10.5 kg, 23.2 lb) |
Maximum brake drag force (F₂ - F₁)AD9 rear-caliper on-vehicle inspection.
103.0N (10.5 kg, 23.2 lb)
IMPORTANT
Make sure that wheel bearing is adjusted properly.
Disc pads and disc rotor must be dried.
DISC PAD
Check disc pad for wear or damage.
| Specification | Value |
|---|---|
| Pad wear limit (A)AD9 rear-caliper pad — replace below this value. | 2.0mm (0.079 in) |
Pad wear limit (A)AD9 rear-caliper pad — replace below this value.
2.0mm (0.079 in)
CYLINDER BODY
Check inside surface of cylinder body for score, rust, wear, damage or presence of foreign materials. If any of the above conditions are observed, replace cylinder body.
Minor damage from rust of foreign materials may be eliminated by polishing surface with a fine emery paper. Replace cylinder body if necessary.
CAUTION
Use brake fluid to clean. Never use mineral oil.
