TROUBLE DIAGNOSES — Component Parts Location

BR-46component photo
Continued from BR-45

Component Parts Location

Component LocationFig. fig1

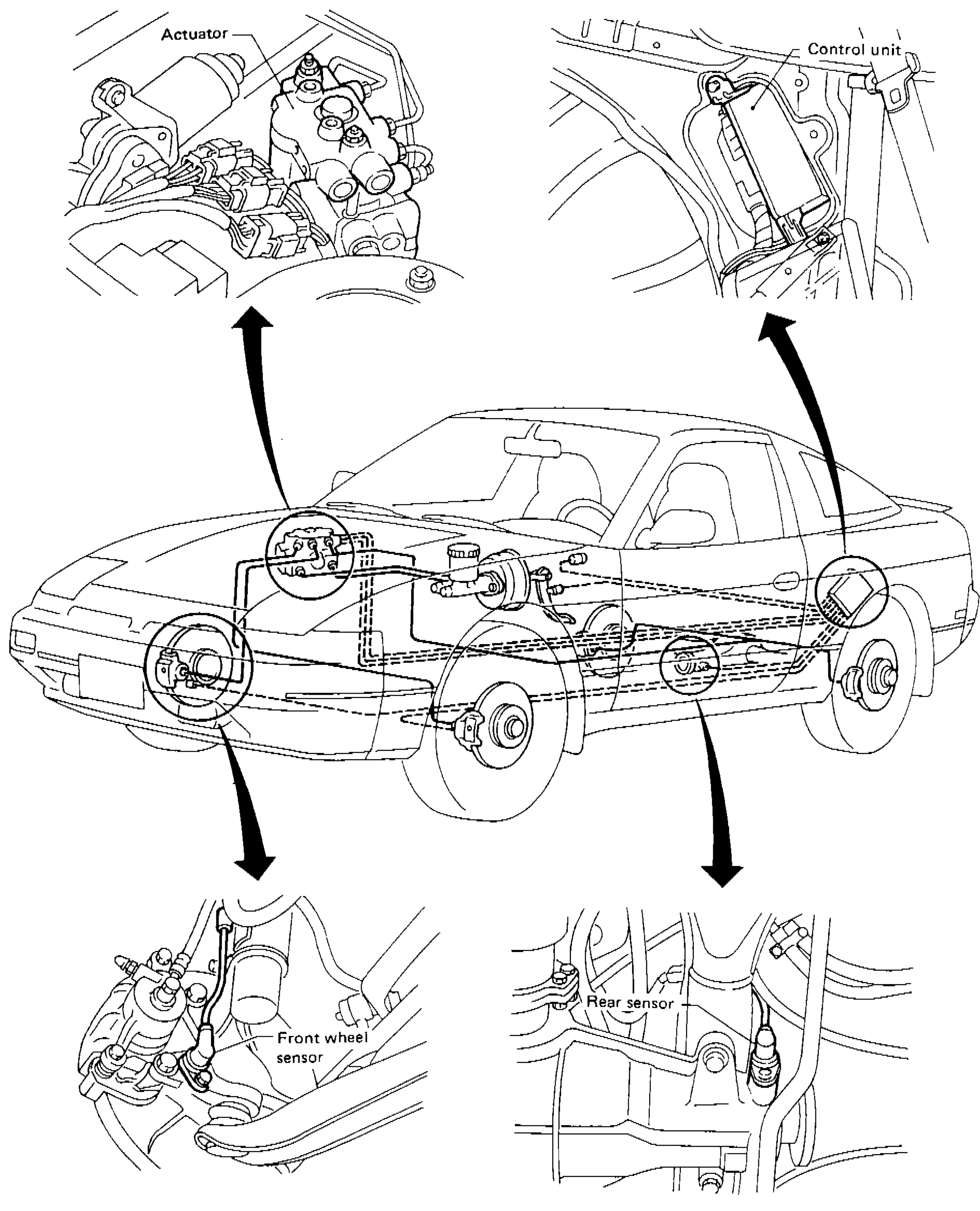

Locations of A.B.S. components on the vehicle.

Side view of the 200SX with four exploded close-ups linked by arrows: actuator (top-left, engine bay, by master cylinder), control unit (top-right, behind dashboard area), front-wheel sensor (bottom-left, at the front-strut/hub), rear sensor (bottom-right, at the differential).
SBR532A
1Actuator(Engine bay, by the master cylinder)
2Control unit(Behind the dashboard, accessible via the rear-side finisher (per BR-44))
3Front wheel sensor(Front-strut bracket / wheel hub)
4Rear sensor(Rear differential carrier)
