REAR DISC BRAKE (CL9H) — Caliper — Removal/Installation, Disassembly

BR-19prose procedure
Continued from BR-18

Removal and Installation

Disconnect parking brake cable and brake hose, then remove caliper assembly.

Disassembly

Rear caliper disassembly (CL9H)

  1. 1

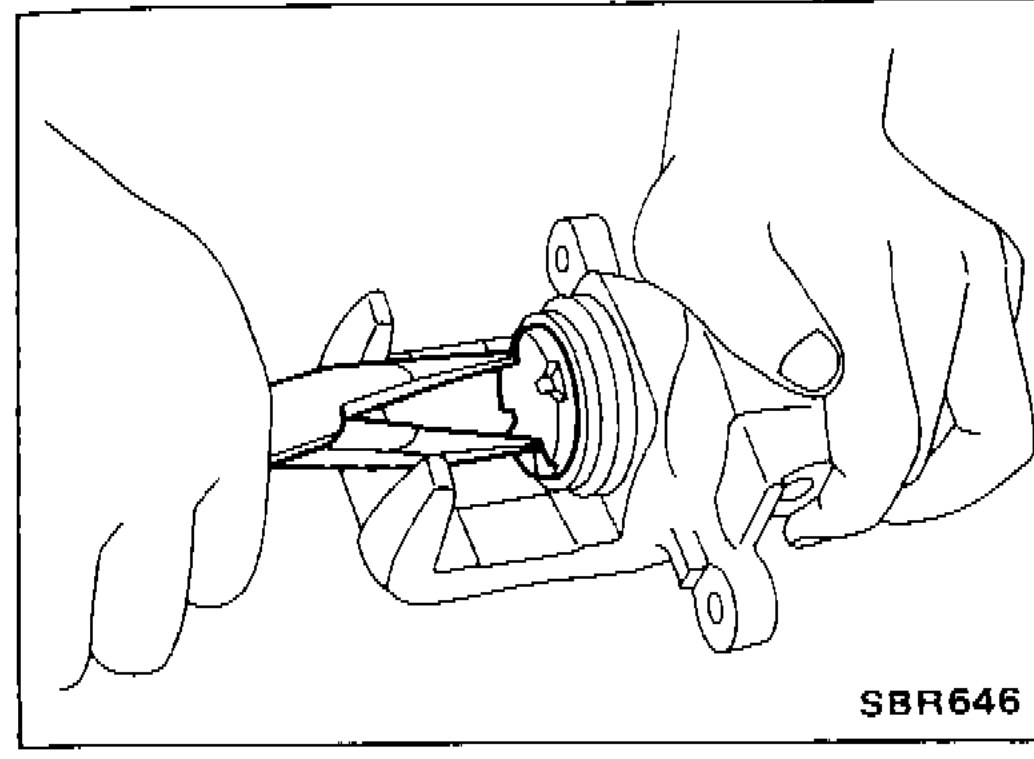

    Remove piston by turning it counterclockwise with suitable longnose pliers.
    Long-nose pliers turning the rear-caliper piston counter-clockwise to back it out of the cylinder body.
    SBR646
  2. 2
    Pry off ring A from piston with suitable pliers and remove adjusting nut.
    Pliers prying off ring A from the piston to expose the adjusting nut.
    SBR648
  3. 3

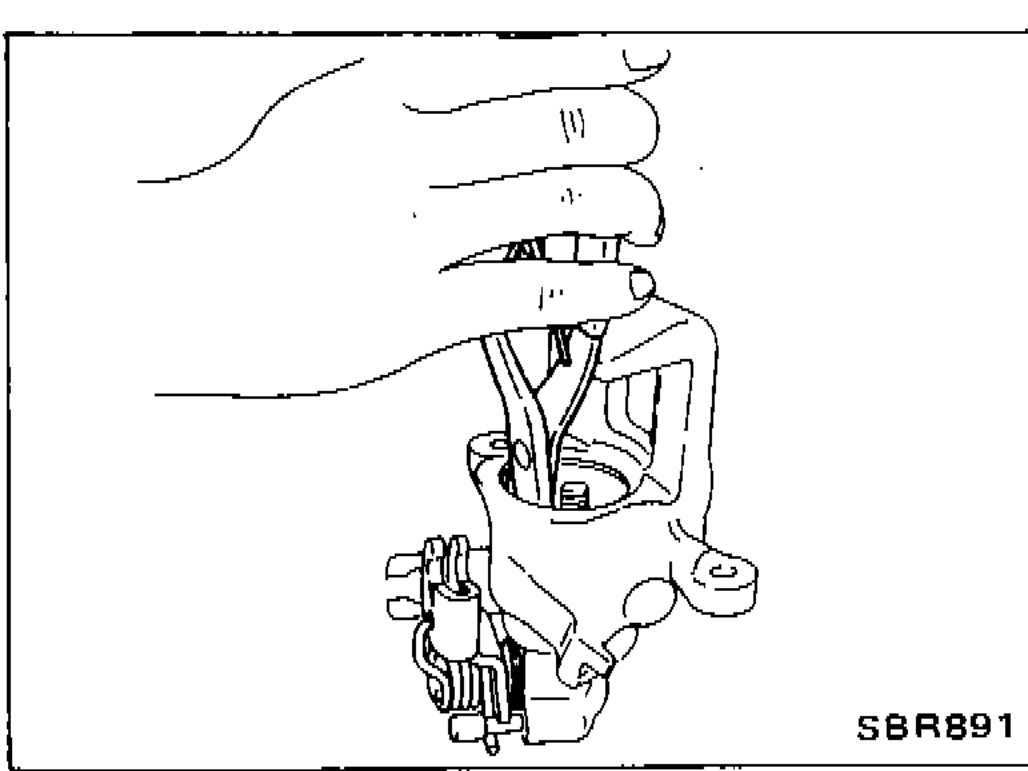

    Disassemble cylinder body. Pry off rings B and C with pliers, then remove spring cover, spring and seat.
    Cylinder body disassembly — pliers prying off rings B and C to remove spring cover, spring and seat.
    SBR891
  4. 4

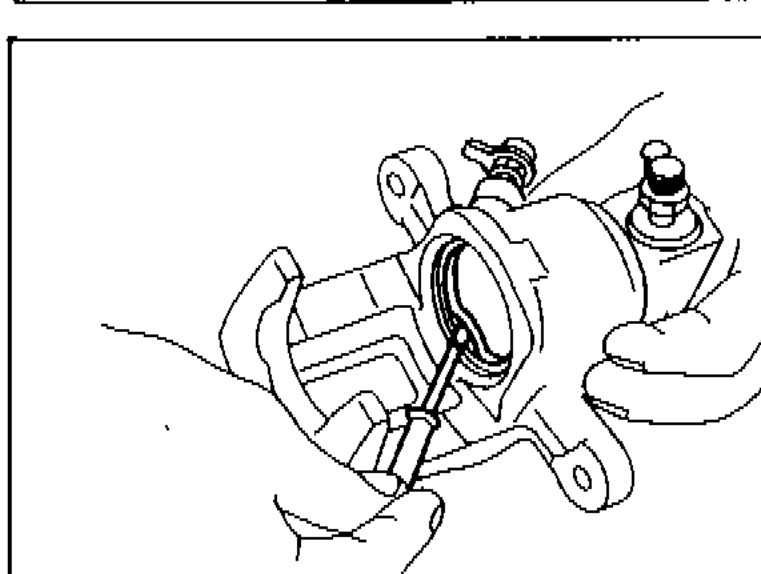

    Remove piston seal.
    Be careful not to damage cylinder body.
    Plastic / non-metal pick removing the piston seal from inside the cylinder body without scoring the bore.
    SBR485A
