ENGINE LUBRICATION SYSTEM — Oil Cooler
LC-7parts diagramOil Cooler

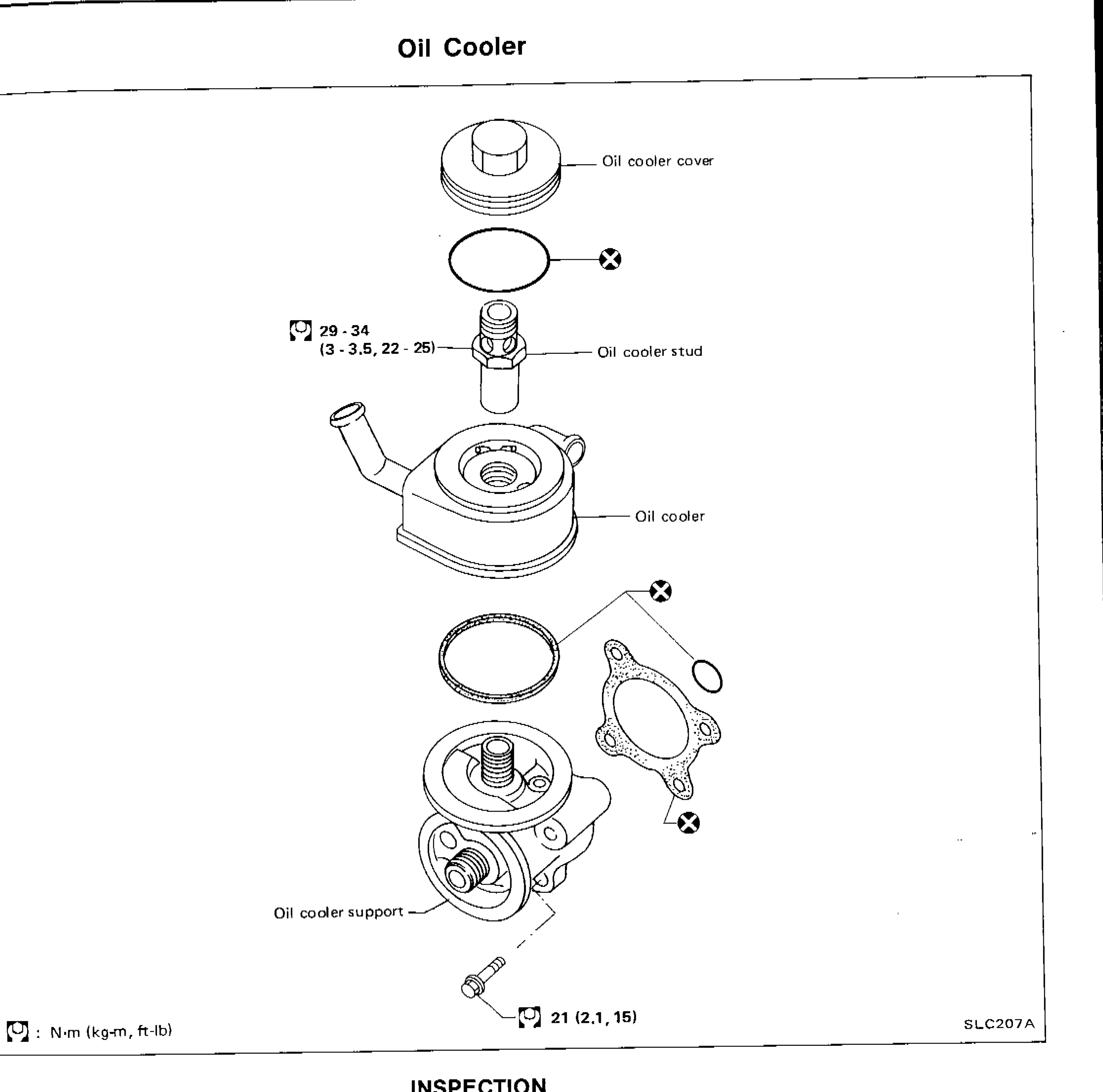

Parts DiagramFig. fig1
| # | Part Name | Notes / Torque |
|---|---|---|
| 1 | Oil cooler cover | — |
| 2 | O-ring (under oil cooler cover) | Replace — indicated by ⊗ symbol |
| 3 | Oil cooler stud | Torque: 29-34 N·m (3-3.5 kg-m, 22-25 ft-lb) |
| 4 | Oil cooler | — |
| 5 | O-ring (between oil cooler and oil cooler support) | Replace — indicated by ⊗ symbol |
| 6 | Gasket (between oil cooler support and engine) | Replace — indicated by ⊗ symbol |
| 7 | Oil cooler support | — |
| 8 | Mounting bolt (oil cooler support) | Torque: 21 N·m (2.1 kg-m, 15 ft-lb) |
| Specification | Value |
|---|---|
| Oil cooler stud torque | 29-34N·m |
| Oil cooler stud torque | 3-3.5kg-m |
| Oil cooler stud torque | 22-25ft-lb |
| Oil cooler support bolt torque | 21N·m |
| Oil cooler support bolt torque | 2.1kg-m |
| Oil cooler support bolt torque | 15ft-lb |
Oil cooler stud torque
29-34N·m
Oil cooler stud torque
3-3.5kg-m
Oil cooler stud torque
22-25ft-lb
Oil cooler support bolt torque
21N·m
Oil cooler support bolt torque
2.1kg-m
Oil cooler support bolt torque
15ft-lb
NOTE
⊗ : N·m (kg-m, ft-lb)
INSPECTION
- 1Check oil cooler element and housing for cracks.
- 2Check oil cooler for clogging by blowing through coolant inlet. Replace it if necessary.
