ENGINE COOLING SYSTEM
LC-14prose procedureRadiator (Aluminum type)(Cont'd)

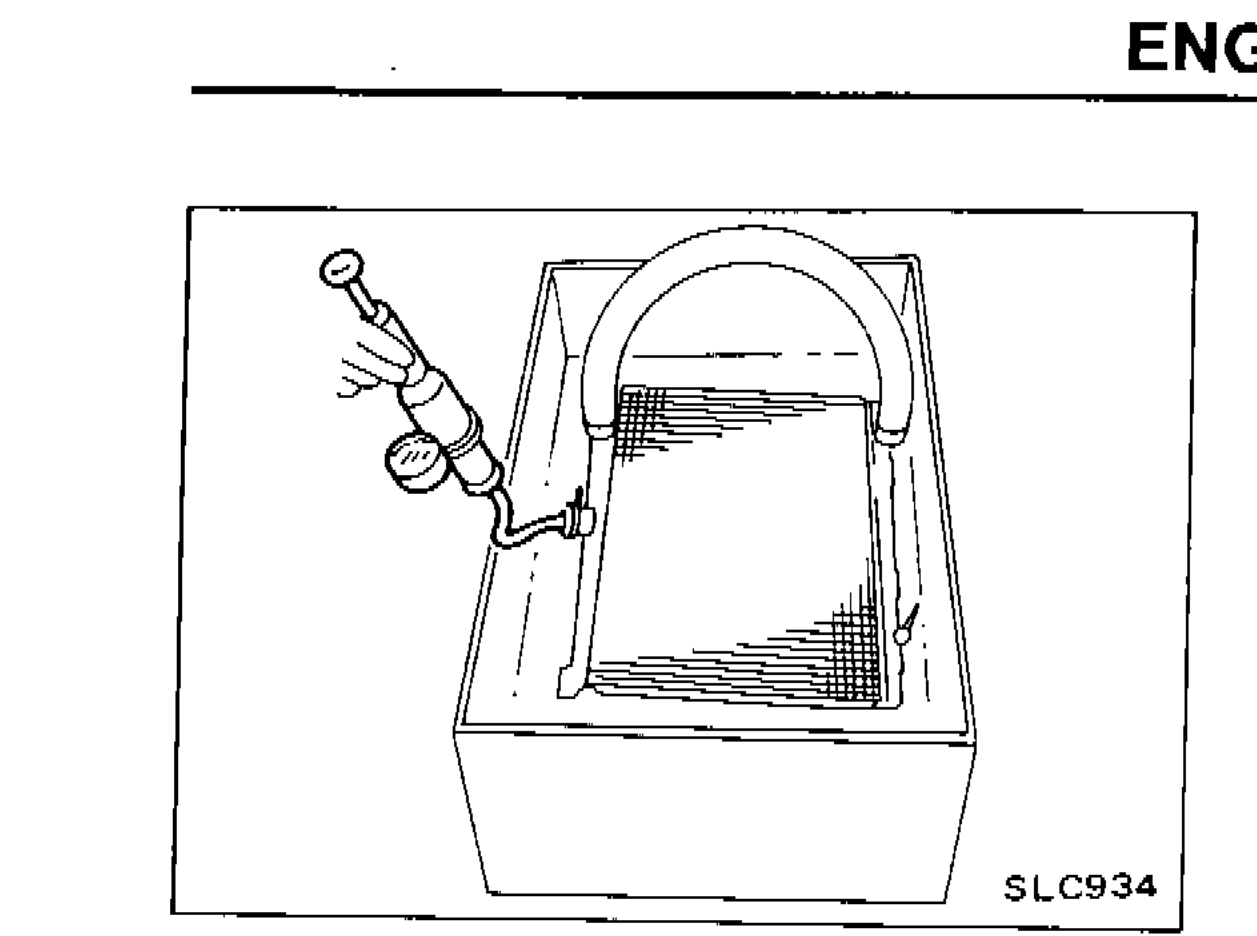

Radiator Leakage Check
- 2Check leakage.
SLC934
Cooling Fan
DISASSEMBLY AND ASSEMBLY

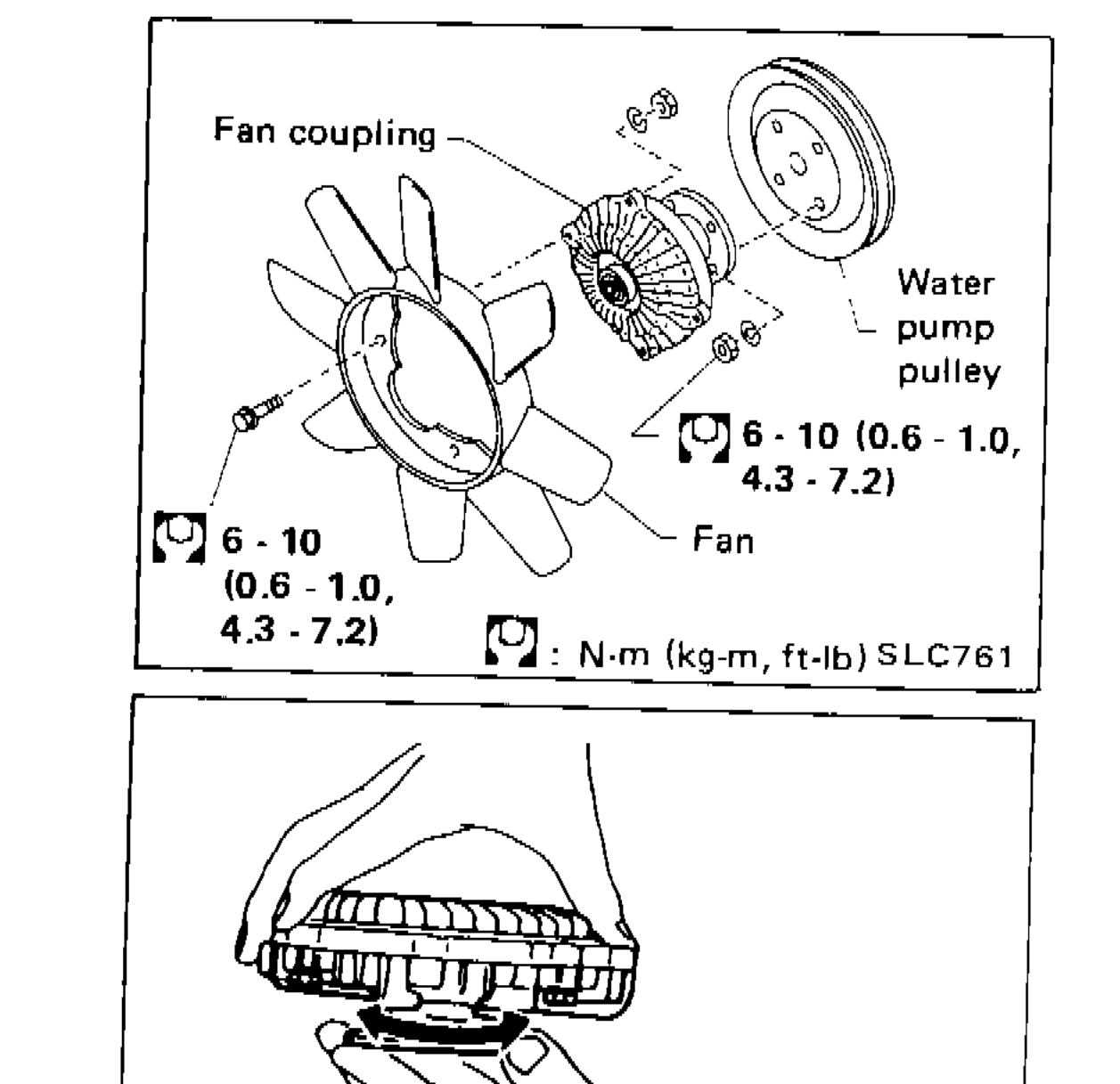

Parts DiagramFig. fig2
| Specification | Value |
|---|---|
| Fan to fan coupling boltFan coupling to fan | 6 - 10N·m |
| Fan coupling to water pump pulley boltFan coupling to water pump pulley | 6 - 10N·m |
Fan to fan coupling boltFan coupling to fan
6 - 10N·m
Fan coupling to water pump pulley boltFan coupling to water pump pulley
6 - 10N·m
INSPECTION
Check fan coupling for rough operation, oil leakage or bent bimetal.
Turbocharger

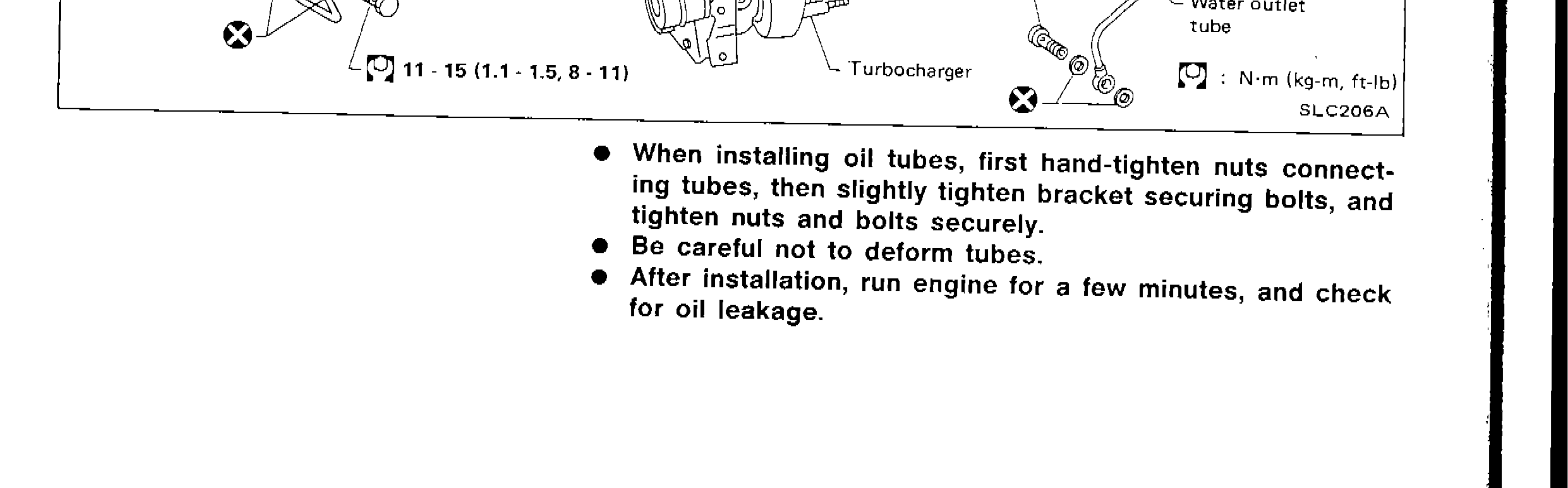

Parts DiagramFig. fig4
| Specification | Value |
|---|---|
| Water inlet tube bracket boltWater inlet tube bracket bolts | 11 - 15N·m |
| Water inlet tube fittingWater inlet tube fittings | 11 - 15N·m |
| Water outlet tube upper fittingWater outlet tube upper fittings | 16 - 21N·m |
| Water outlet tube lower fittingWater outlet tube lower fittings | 16 - 21N·m |
| Turbocharger water tube center bracket boltCenter bracket bolts | 11 - 15N·m |
Water inlet tube bracket boltWater inlet tube bracket bolts
11 - 15N·m
Water inlet tube fittingWater inlet tube fittings
11 - 15N·m
Water outlet tube upper fittingWater outlet tube upper fittings
16 - 21N·m
Water outlet tube lower fittingWater outlet tube lower fittings
16 - 21N·m
Turbocharger water tube center bracket boltCenter bracket bolts
11 - 15N·m
NOTE
When installing oil tubes, first hand-tighten nuts connecting tubes, then slightly tighten bracket securing bolts, and tighten nuts and bolts securely.
CAUTION
Be careful not to deform tubes.
NOTE
After installation, run engine for a few minutes, and check for oil leakage.
