ENGINE LUBRICATION SYSTEM — Oil Pump (Cont'd), Oil Jet, Turbocharger
LC-6prose procedureTurbocharger section applicable to CA18DET turbocharged engine variant only.
Oil Pump (Cont'd)
REGULATOR VALVE INSPECTION
- 1Visually inspect components for wear and damage.
SLC295 - 2Check oil pressure regulator valve sliding surface and valve spring.SLC295
- 3Coat regulator valve with engine oil and check that it falls smoothly into the valve hole by its own weight.SLC295
IMPORTANT
If damaged, replace regulator valve set or oil pump assembly.
OIL PRESSURE RELIEF VALVE INSPECTION
Inspect oil pressure relief valve for movement, cracks and breaks by pushing the ball. If replacement is necessary, remove valve by prying it out with a suitable tool. Install a new valve in place by tapping it.
Oil Jet
INSPECTION (For piston)
- 1Blow through outlet of oil jet and make sure that air comes out of inlet.

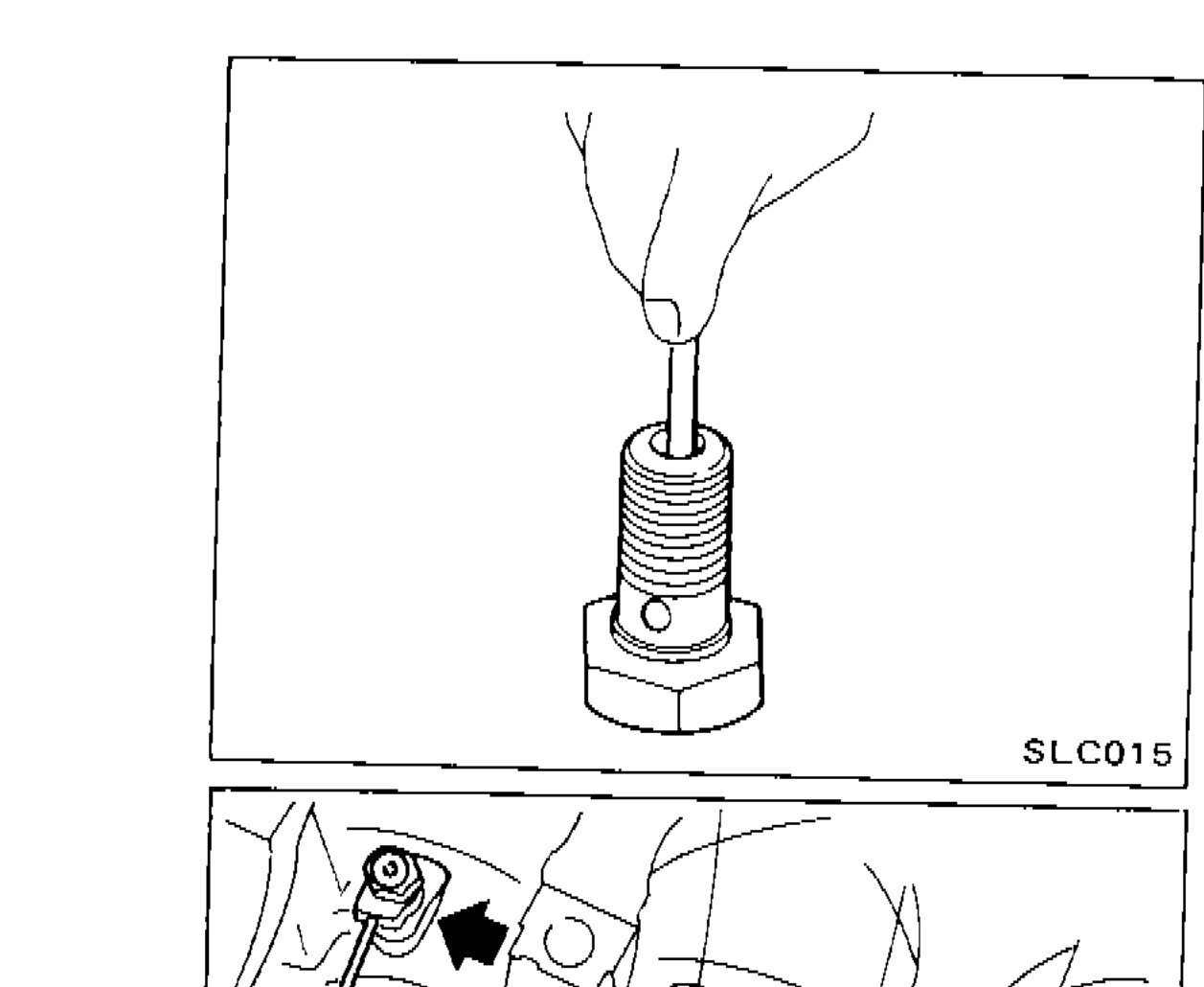

SLC015 - 2Push cut-off valve of oil jet bolt with a clean resin or brass rod and make sure that cut-off valve moves smoothly with proper repulsion.SLC015
NOTE
When installing oil jet, align oil jet's boss with hole on cylinder block.
| Specification | Value |
|---|---|
| Oil jet bolt torque | 29 - 39N·m |
| Oil jet bolt torque | 3.0 - 4.0kg-m |
| Oil jet bolt torque | 22 - 29ft-lb |
Oil jet bolt torque
29 - 39N·m
Oil jet bolt torque
3.0 - 4.0kg-m
Oil jet bolt torque
22 - 29ft-lb
Turbocharger
CAUTION
Before removing water tube, drain coolant first.
NOTE
After installation, run engine for a few minutes and check for leaks.
| Specification | Value |
|---|---|
| Oil inlet tube bolt torque | 16 - 24N·m |
| Oil inlet tube bolt torque | 1.6 - 2.4kg-m |
| Oil inlet tube bolt torque | 12 - 17ft-lb |
| Oil inlet tube (small bolt) torque | 6.3 - 8.3N·m |
| Oil inlet tube (small bolt) torque | 0.64 - 0.85kg-m |
| Oil inlet tube (small bolt) torque | 4.6 - 6.1ft-lb |
| Turbocharger mounting bolt torque | 16 - 24N·m |
| Turbocharger mounting bolt torque | 1.6 - 2.4kg-m |
| Turbocharger mounting bolt torque | 12 - 17ft-lb |
| Oil outlet tube bolt torque | 13 - 16N·m |
| Oil outlet tube bolt torque | 1.3 - 1.6kg-m |
| Oil outlet tube bolt torque | 9 - 12ft-lb |
Oil inlet tube bolt torque
16 - 24N·m
Oil inlet tube bolt torque
1.6 - 2.4kg-m
Oil inlet tube bolt torque
12 - 17ft-lb
Oil inlet tube (small bolt) torque
6.3 - 8.3N·m
Oil inlet tube (small bolt) torque
0.64 - 0.85kg-m
Oil inlet tube (small bolt) torque
4.6 - 6.1ft-lb
Turbocharger mounting bolt torque
16 - 24N·m
Turbocharger mounting bolt torque
1.6 - 2.4kg-m
Turbocharger mounting bolt torque
12 - 17ft-lb
Oil outlet tube bolt torque
13 - 16N·m
Oil outlet tube bolt torque
1.3 - 1.6kg-m
Oil outlet tube bolt torque
9 - 12ft-lb

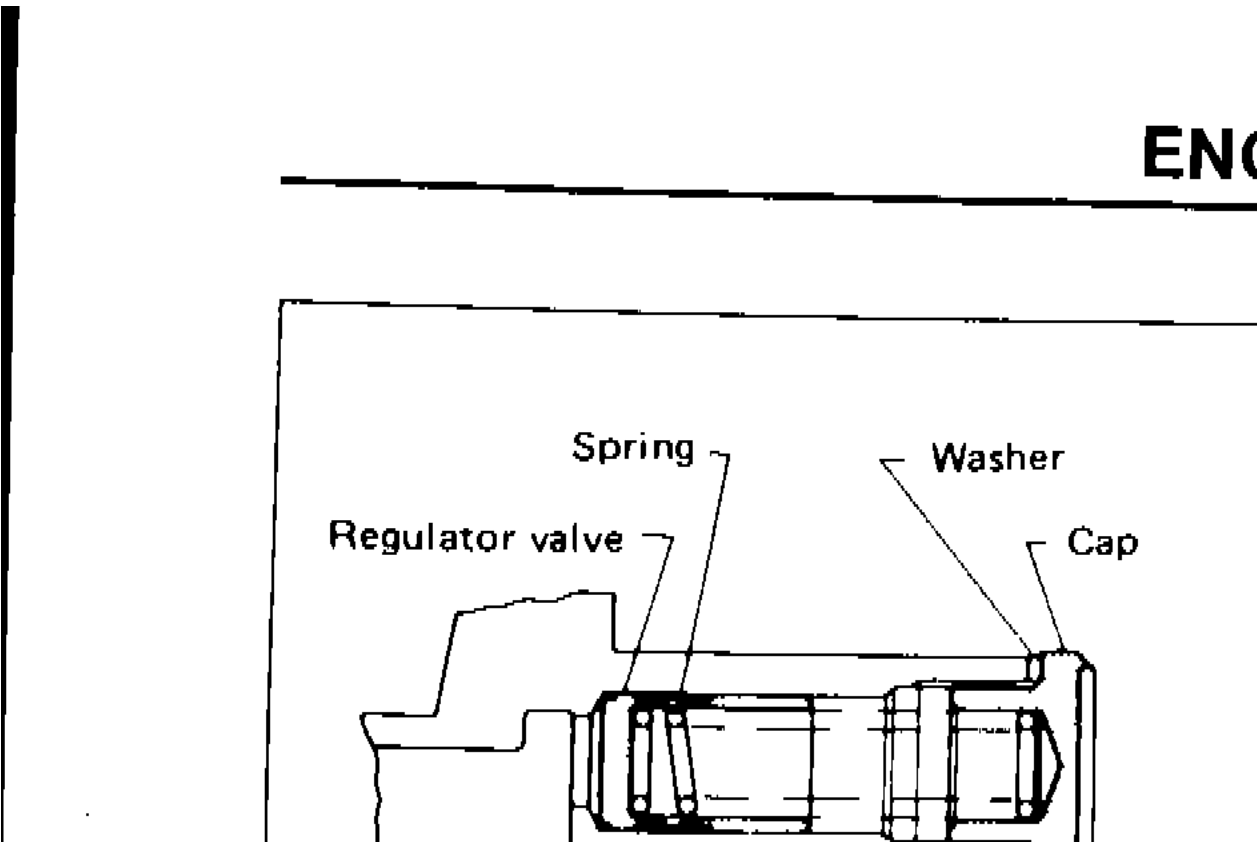

Parts DiagramFig. fig1
| # | Part Name | Notes / Torque |
|---|---|---|
| 1 | Spring | |
| 2 | Washer | |
| 3 | Regulator valve | |
| 4 | Cap |

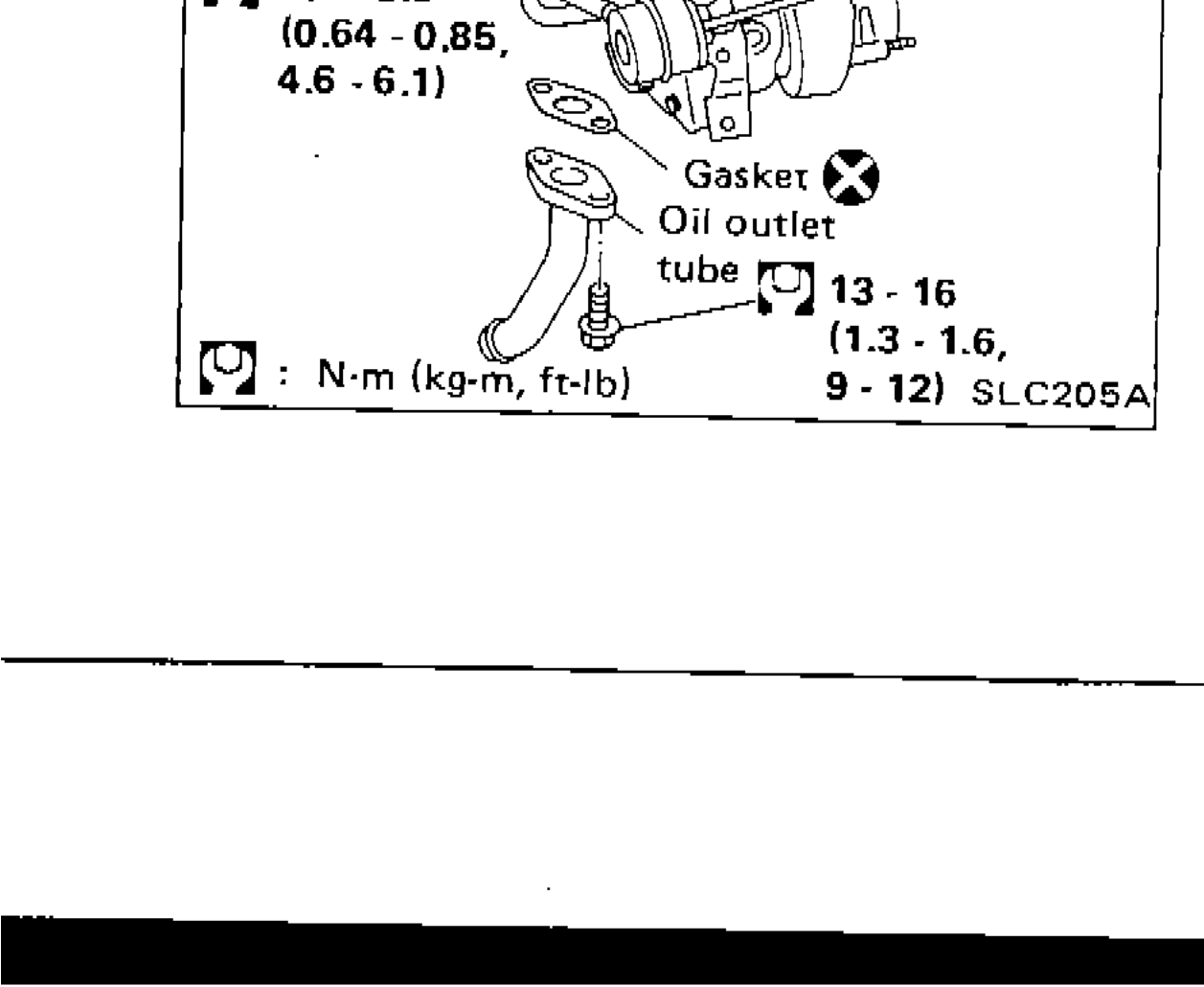

Parts DiagramFig. fig4
| # | Part Name | Notes / Torque |
|---|---|---|
| 1 | Oil inlet tube | |
| 2 | Turbocharger | |
| 3 | Gasket | Replace with new |
| 4 | Oil outlet tube |
